Removal

1 Disconnect the battery negative lead.
2 Position the engine assembly/valve timing
holes as described in Section 3, and lock both
the camshaft sprocket and flywheel in
position. Do not attempt to rotate the engine
whilst the pins are in position.

Camshaft sprocket

3 Remove the centre timing belt cover as
described in Section 6.
4 Loosen the timing belt tensioner pulley
retaining nut. Rotate the pulley in a clockwise
direction, using a suitable square-section key
fitted to the hole in the pulley hub, then
retighten the retaining nut.
5 Disengage the timing belt from the
sprocket, and move the belt clear, taking care
not to bend or twist it sharply. Remove the
locking pin from the camshaft sprocket.
6 Slacken the camshaft sprocket retaining
bolt and remove it, along with its washer. To
prevent the camshaft rotating as the bolt is
slackened, restrain the sprocket with a
suitable tool through the holes in the sprocket
face (see Tool Tip). Do not attempt to use the
sprocket locking pin to prevent the sprocket
from rotating whilst the bolt is slackened.
7 With the retaining bolt removed, slide the
sprocket off the end of the camshaft. If the
locating peg is a loose fit in the rear of the
sprocket, remove it for safe-keeping. Examine
the camshaft oil seal for signs of oil leakage
and, if necessary, renew it as described in
Section 9.

Crankshaft sprocket

8 Remove the centre and lower timing belt
covers as described in Section 6.
9 Loosen the timing belt tensioner pulley
retaining nut. Rotate the pulley in a clockwise
direction, using a suitable square-section key
fitted to the hole in the pulley hub, then
retighten the retaining nut.
10 To prevent crankshaft rotation whilst the
sprocket retaining bolt is slackened, select
top gear, and have an assistant apply the
brakes firmly. If the engine has been removed
from the vehicle, lock the flywheel ring gear,
using an arrangement similar to that shown
(see illustration). Do not be tempted to use
the flywheel locking pin to prevent the
crankshaft from rotating; temporarily remove
the locking pin from the rear of the flywheel
prior to slackening the pulley bolt, then refit it
once the bolt has been slackened.
11 Unscrew the retaining bolt and washer,
then slide the sprocket off the end of the
crankshaft (see illustrations). Refit the locating

pin to the rear of the timing hole in the rear of
the flywheel.
12 If the Woodruff key is a loose fit in the
crankshaft, remove it and store it with the
sprocket for safe-keeping. If necessary, also
slide the flanged spacer off the end of the
crankshaft  (see illustration). Examine the
crankshaft oil seal for signs oil leakage and, if
necessary, renew as described in Section 14.

Tensioner pulley

13 Remove the centre timing belt cover as
described in Section 6.
14 Slacken and remove the timing belt
tensioner pulley retaining nut, and slide the
pulley off its mounting stud. Examine the
mounting stud for signs of damage and, if
necessary, renew it.

Inspection

15 Clean the sprockets thoroughly, and renew
any that show signs of wear, damage or cracks.
16 Clean the tensioner assembly, but do not
use any strong solvent which may enter the
pulley bearing. Check that the pulley rotates
freely about its hub, with no sign of stiffness or
of free play. Renew the tensioner pulley if there
is any doubt about its condition, or if there are
any obvious signs of wear or damage.

Refitting

Camshaft sprocket

17 Refit the locating peg (where removed) to
the rear of the sprocket, then locate the
sprocket on the end of the camshaft. Ensure
that the locating peg is correctly engaged with
the cut-out in the camshaft end.
18 Refit the sprocket retaining bolt and
washer. Tighten the bolt to the specified
torque, whilst retaining the sprocket with the
tool used on removal.
19 Realign the timing hole in the camshaft
sprocket (see Section 3) with the
corresponding hole in the cylinder head, and
refit the locking pin.
20 Refit the timing belt to the camshaft
sprocket. Ensure that the “front run” of the
belt is taut - ie, ensure that any slack is on the
tensioner pulley side of the belt. Do not twist
the belt sharply while refitting it, and ensure
that the belt teeth are seated centrally in the
sprockets.

TU series engine in-car repair procedures  2C•7

2C

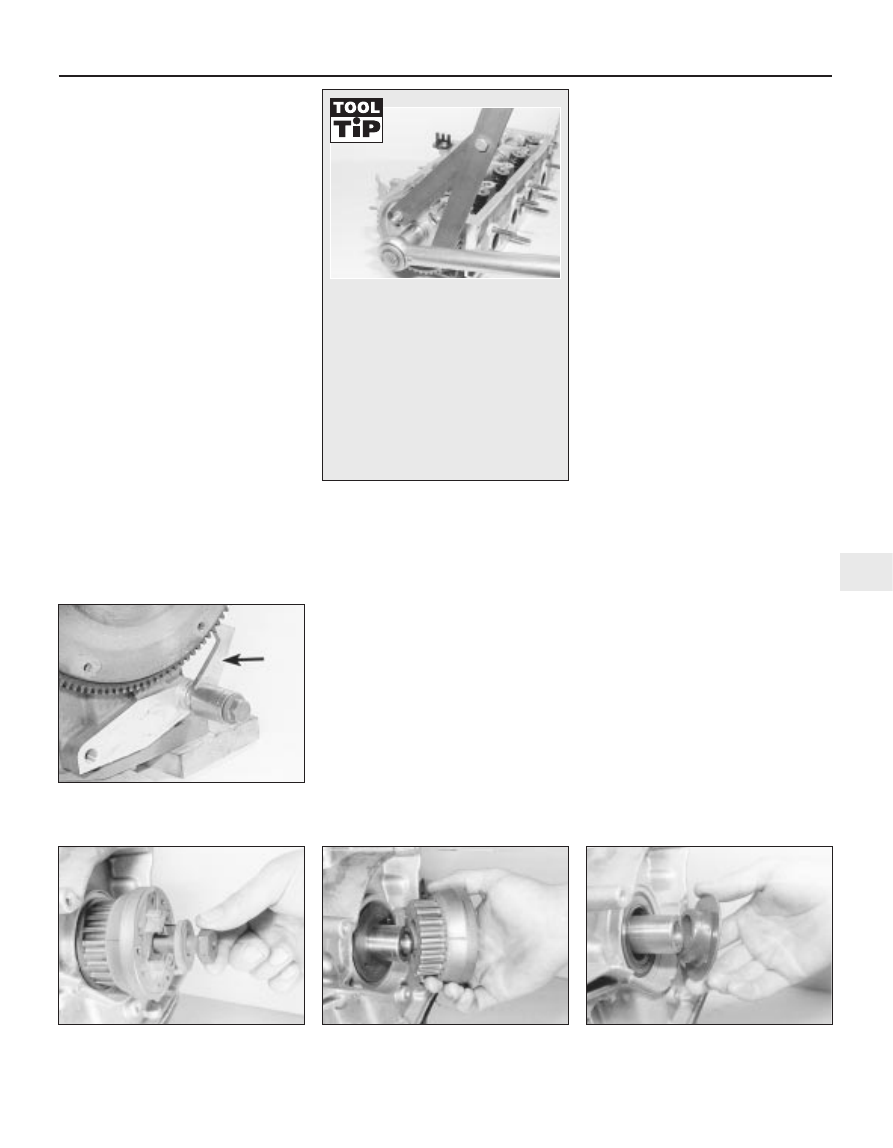

8.10  Use the tool shown to lock the

flywheel ring gear and prevent the

crankshaft rotating

8.11a  Remove the crankshaft sprocket

bolt . . .

8.11b  . . . then slide off the sprocket

8.12  Remove the flanged spacer if

necessary

To make a camshaft sprocket holding
tool, obtain two lengths of steel strip
about 6 mm thick by 30 mm wide or
similar, one 600 mm long, the other 200
mm long (all dimensions approximate).
Bolt the two strips together to form a
forked end, leaving the bolt slack so
that the shorter strip can pivot freely. At
the end of each ‘prong’ of the fork,
secure a bolt with a nut and a locknut,
to act as the fulcrums; these will engage
with the cut-outs in the sprocket, and
should protrude by about 30 mm

21 Loosen the tensioner pulley retaining nut.
Rotate the pulley anti-clockwise to remove all
free play from the timing belt, then retighten
the nut.
22 Tension the belt as described in
paragraphs 14 to 19 of Section 7.
23 Refit the timing belt covers as described
in Section 6.

Crankshaft sprocket

24 Where removed, locate the Woodruff key
in the crankshaft end, then slide on the
flanged spacer, aligning its slot with the
Woodruff key.
25 Align the crankshaft sprocket slot with the
Woodruff key, and slide it onto the end of the
crankshaft.
26 Temporarily remove the locking pin from
the rear of the flywheel, then refit the
crankshaft sprocket retaining bolt and
washer. Tighten the bolt to the specified
torque, whilst preventing crankshaft rotation
using the method employed on removal. Refit
the locking pin to the rear of the flywheel.
27 Relocate the timing belt on the crankshaft
sprocket. Ensure that the “front run” of the
belt is taut - ie, ensure that any slack is on the
tensioner pulley side of the belt. Do not twist
the belt sharply while refitting it, and ensure
that the belt teeth are seated centrally in the
sprockets.
28 Loosen the tensioner pulley retaining nut.
Rotate the pulley anti-clockwise to remove all
free play from the timing belt, then retighten
the nut.
29 Tension the belt as described in
paragraphs 14 to 19 of Section 7.
30 Refit the timing belt covers as described
in Section 6.

Tensioner pulley

31 Refit the tensioner pulley to its mounting
stud, and fit the retaining nut.
32 Ensure that the “front run” of the belt is
taut - ie, ensure that any slack is on the pulley
side of the belt. Check that the belt is centrally
located on all its sprockets. Rotate the pulley
anti-clockwise to remove all free play from the
timing belt, then tighten the pulley retaining
nut securely.
33 Tension the belt as described in
paragraphs 14 to 19 of Section 7.
34 Refit the timing belt covers as described
in Section 6.

9

Camshaft oil seal - renewal

3

Note: If the camshaft oil seal is to be renewed
with the timing belt still in place, check first
that the belt is free from oil contamination.
(Renew the belt as a matter of course if signs
of oil contamination are found; see Section 7).
Cover the belt to protect it from oil
contamination while work is in progress.
Ensure that all traces of oil are removed from
the area before the belt is refitted.

1 Remove the camshaft sprocket as
described in Section 8.
2 Punch or drill two small holes opposite
each other in the oil seal. Screw a self-tapping
screw into each, and pull on the screws with
pliers to extract the seal.
3 Clean the seal housing, and polish off any
burrs or raised edges, which may have
caused the seal to fail in the first place.
4 Lubricate the lips of the new seal with clean
engine oil, and drive it into position until it
seats on its locating shoulder. Use a suitable
tubular drift, such as a socket, which bears
only on the hard outer edge of the seal. Take
care not to damage the seal lips during fitting.
Note that the seal lips should face inwards.
5 Refit the camshaft sprocket as described in
Section 8.

10 Camshaft and rocker arms -

removal, inspection and
refitting

4

General information

1 The rocker arm assembly is secured to the
top of the cylinder head by the cylinder head
bolts. Although in theory it is possible to undo
the head bolts and remove the rocker arm
assembly without removing the head, in
practice, this is not recommended. Once the
bolts have been removed, the head gasket will
be disturbed, and the gasket will almost
certainly leak or blow after refitting. For this
reason, removal of the rocker arm assembly
cannot be done without removing the cylinder
head and renewing the head gasket.
2 The camshaft is slid out of the right-hand
end of the cylinder head, and it therefore
cannot be removed without first removing the
cylinder head, due to a lack of clearance.

Removal

Rocker arm assembly

3 Remove the cylinder head as described in
Section 11.
4 To dismantle the rocker arm assembly,
carefully prise off the circlip from the right-
hand end of the rocker shaft; retain the rocker
pedestal, to prevent it being sprung off the

end of the shaft. Slide the various
components off the end of the shaft, keeping
all components in their correct fitted order
(see illustration). Make a note of each
component’s correct fitted position and
orientation as it is removed, to ensure it is
fitted correctly on reassembly.
5 To separate the left-hand pedestal and
shaft, first unscrew the cylinder head cover
retaining stud from the top of the pedestal;
this can be achieved using a stud extractor, or
two nuts locked together. With the stud
removed, unscrew the grub screw from the
top of the pedestal, and withdraw the rocker
shaft (see illustrations).

Camshaft

6 Remove the cylinder head as described in
Section 11.
7 With the head on a bench, remove the
locking pin, then remove the camshaft
sprocket as described in paragraphs 6 and 7
of Section 8.

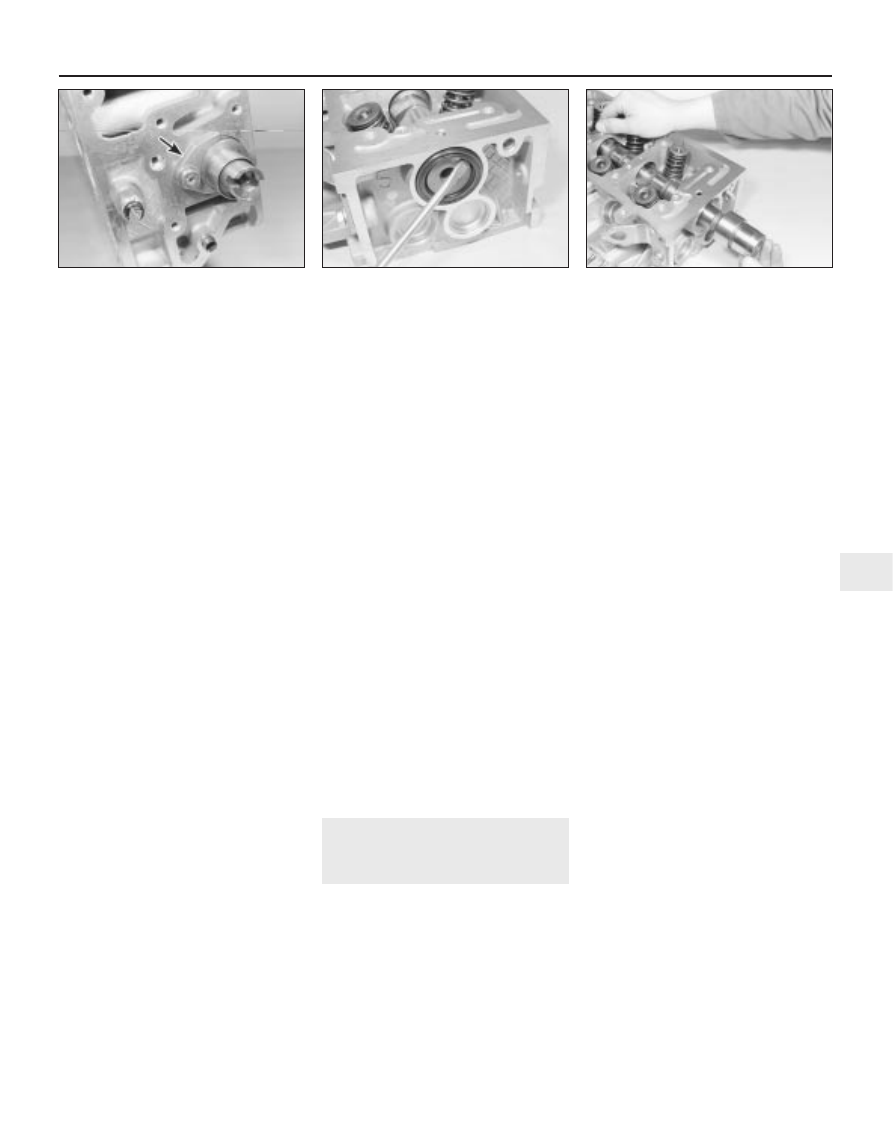

8 Unbolt the housing from the left-hand end
of the cylinder head, then undo the retaining
bolt, and remove the camshaft thrust fork
from the cylinder head (see illustration).
9 Using a large flat-bladed screwdriver,
carefully prise the oil seal out of the right-hand
end of the cylinder head, then slide out the
camshaft (see illustrations). Discard the seal
- a new one must be used on refitting.

Inspection

Rocker arm assembly

10 Examine the rocker arm bearing surfaces

2C•8 TU series engine in-car repair procedures

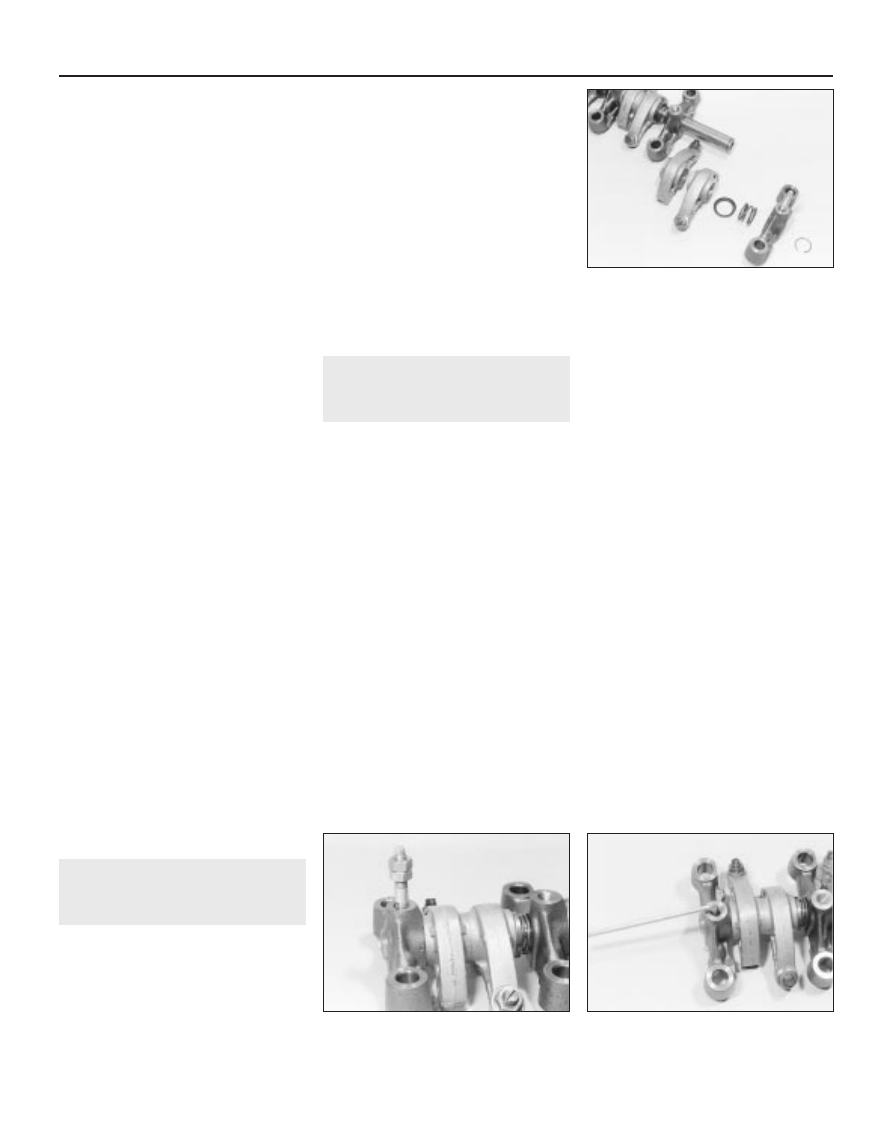

10.4  Remove the circlip, and slide the

components off the end of the rocker shaft

10.5a  To remove the left-hand pedestal,

lock two nuts together and unscrew the

stud . . .

10.5b  . . . then remove the grub screw

which contact the camshaft lobes for wear
ridges and scoring. Renew any rocker arms on
which these conditions are apparent. If a
rocker arm bearing surface is badly scored,
also examine the corresponding lobe on the
camshaft for wear, as it is likely that both will be
worn. Renew worn components as necessary.
The rocker arm assembly can be dismantled as
described in paragraphs 4 and 5.
11 Inspect the ends of the (valve clearance)
adjusting screws for signs of wear or damage,
and renew as required.
12 If the rocker arm assembly has been
dismantled, examine the rocker arm and shaft
bearing surfaces for wear ridges and scoring.
If there are obvious signs of wear, the relevant
rocker arm(s) and/or the shaft must be
renewed.

Camshaft

13 Examine the camshaft bearing surfaces
and cam lobes for signs of wear ridges and
scoring. Renew the camshaft if any of these
conditions are apparent. Examine the
condition of the bearing surfaces, both on the
camshaft journals and in the cylinder head. If
the head bearing surfaces are worn
excessively, the cylinder head will need to be
renewed. If the necessary measuring
equipment is available, camshaft bearing
journal wear can be checked by direct
measurement, noting that No 1 journal is at
the transmission end of the head.
14 Examine the thrust fork for signs of wear
or scoring, and renew as necessary.

Refitting

Rocker arm assembly

15 If the rocker arm assembly was
dismantled, refit the rocker shaft to the left-
hand pedestal, aligning its locating hole with
the pedestal threaded hole. Refit the grub
screw, and tighten it securely. With the grub
screw in position, refit the cylinder head cover
mounting stud to the pedestal, and tighten it
securely. Apply a smear of clean engine oil to
the shaft, then slide on all removed
components, ensuring each is correctly fitted
in its original position. Once all components
are in position on the shaft, compress the
right-hand pedestal and refit the circlip.
Ensure that the circlip is correctly located in
its groove on the shaft.

16 Refit the cylinder head and rocker arm
assembly as described in Section 11.

Camshaft

17 Ensure that the cylinder head and
camshaft bearing surfaces are clean, then
liberally oil the camshaft bearings and lobes.
Slide the camshaft back into position in the
cylinder head. On carburettor engines, take
care that the fuel pump operating lever is not
trapped by the camshaft as it is slid into
position. To prevent this, remove the fuel
pump before refitting the camshaft, then refit
it afterwards.
18 Locate the thrust fork with the left-hand
end of the camshaft. Refit the fork retaining
bolt, tightening it to the specified torque
setting.
19 Ensure that the housing and cylinder head
mating surfaces are clean and dry, then apply a
smear of sealant to the housing mating surface.
Refit the housing to the left-hand end of the
head, and securely tighten its retaining bolts.
20 Lubricate the lips of the new seal with
clean engine oil, then drive it into position until
it seats on its locating shoulder. Use a
suitable tubular drift, such as a socket, which
bears only on the hard outer edge of the seal.
Take care not to damage the seal lips during
fitting. Note that the seal lips should face
inwards.
21 Refit the camshaft sprocket as described
in paragraphs 17 to 19 of Section 8.
22 Refit the cylinder head as described in
Section 11.

11 Cylinder head - removal and

refitting

4

Removal

1 Disconnect the battery negative lead.
2 Drain the cooling system as described in
Chapter 1.
3 Remove the cylinder head cover as
described in Section 4.
4 Align the engine assembly/valve timing
holes as described in Section 3, and lock both
the camshaft sprocket and flywheel in
position. Do not attempt to rotate the engine
whilst the tools are in position.

5 Note that the following text assumes that
the cylinder head will be removed with both
inlet and exhaust manifolds attached; this is
easier, but makes it a bulky and heavy
assembly to handle. If it is wished to remove
the manifolds first, proceed as described in
the relevant Part of Chapter 4.
6 Working as described in the relevant Part of
Chapter 4, disconnect the exhaust system
front pipe from the manifold. Where fitted,
disconnect or release the oxygen sensor
wiring, so that it is not strained by the weight
of the exhaust.
7 Remove the air cleaner assembly and inlet
ducts as described in Chapter 4.
8 On carburettor engines, disconnect the
following from the carburettor and inlet
manifold as described in Chapter 4A:

a) Fuel feed and return hoses (plug all

openings, to prevent loss of fuel and the
entry of dirt into the system).

b) Throttle cable.
c) Choke cable (where applicable).
d) Carburettor idle fuel cut-off solenoid

wiring connector(s).

e) Vacuum servo unit vacuum hose, coolant

hose and all other relevant
breather/vacuum hoses from the
manifold.

9 On fuel-injected engines, carry out the
following operations as described in Chapter
4B:

a) Depressurise the fuel system, and

disconnect the fuel feed and return hoses
from the throttle body (plug all openings,
to prevent loss of fuel and entry of dirt
into the fuel system).

b) Disconnect the throttle cable.
c) Disconnect the relevant electrical

connectors from the throttle body.

d) Disconnect the vacuum servo unit hose,

coolant hose(s) and all the other
relevant/breather hoses from the
manifold.

10 Remove the centre and upper timing belt
covers as described in Section 6.
11 Loosen the timing belt tensioner pulley
retaining nut. Pivot the pulley in a clockwise
direction, using a suitable square-section key
fitted to the hole in the pulley hub, then
retighten the retaining nut.

TU series engine in-car repair procedures  2C•9

2C

10.8  Undo the retaining bolt and remove

the camshaft thrust fork (arrowed) . . .

10.9a  . . . prise out the oil seal . . .

10.9b  . . . and slide out the camshaft

12 Disengage the timing belt from the
camshaft sprocket, and position the belt clear
of the sprocket. Ensure that the belt is not
bent or twisted sharply.
13 Slacken the retaining clips, and
disconnect the coolant hoses from the
thermostat housing (on the left-hand end of
the cylinder head).
14 Depress the retaining clip(s), and
disconnect the wiring connector(s) from the
electrical switch and/or sensor(s) which are
screwed into the thermostat housing/cylinder
head (as appropriate). Also where necessary
release the TDC sensor connector from its
support on the distributor bracket on the left-
hand end of the cylinder head.

Carburettor models

15 Disconnect the LT wiring connectors from
the distributor and HT coil. Release the TDC
sensor wiring connector from the side of the
coil mounting bracket, and disconnect the
vacuum pipe from the distributor vacuum
diaphragm unit. If the cylinder head is to be
dismantled for overhaul, remove the
distributor and ignition HT coil as described in
Chapter 5B. If the cylinder numbers are not
already marked on the HT leads, number each
lead, to avoid the possibility of the leads being
incorrectly connected on refitting. Disconnect
the HT leads from the spark plugs, and
remove the distributor cap and lead
assembly.

Fuel-injected models

16 Disconnect the wiring connector from the
ignition module. If the cylinder head is to be
dismantled for overhaul, remove the ignition
module as described in Chapter 5B. If the
cylinder numbers are not already marked on
the HT leads, number each lead, to avoid the
possibility of the leads being incorrectly
connected on refitting. Note that the HT leads
should be disconnected from the spark plugs
instead of the coil, and the coil and leads
removed as an assembly.

All models

17 Slacken and remove the bolt securing the
engine oil dipstick tube to the cylinder head.
18 Working in the reverse of the sequence
shown in illustration 11.38, progressively
slacken the ten cylinder head bolts by half a
turn at a time, until all bolts can be unscrewed
by hand.
19 With all the cylinder head bolts removed,
lift the rocker arm assembly off the cylinder
head. Note the locating pins which are fitted
to the base of each rocker arm pedestal. If
any pin is a loose fit in the head or pedestal,
remove it for safe-keeping.
20 On engines with a cast-iron cylinder
block, lift the cylinder head away; seek
assistance if possible, as it is a heavy
assembly, especially if it is being removed
complete with the manifolds.
21 On engines with an aluminium cylinder
block, the joint between the cylinder head and
gasket and the cylinder block/crankcase must

now be broken without disturbing the wet

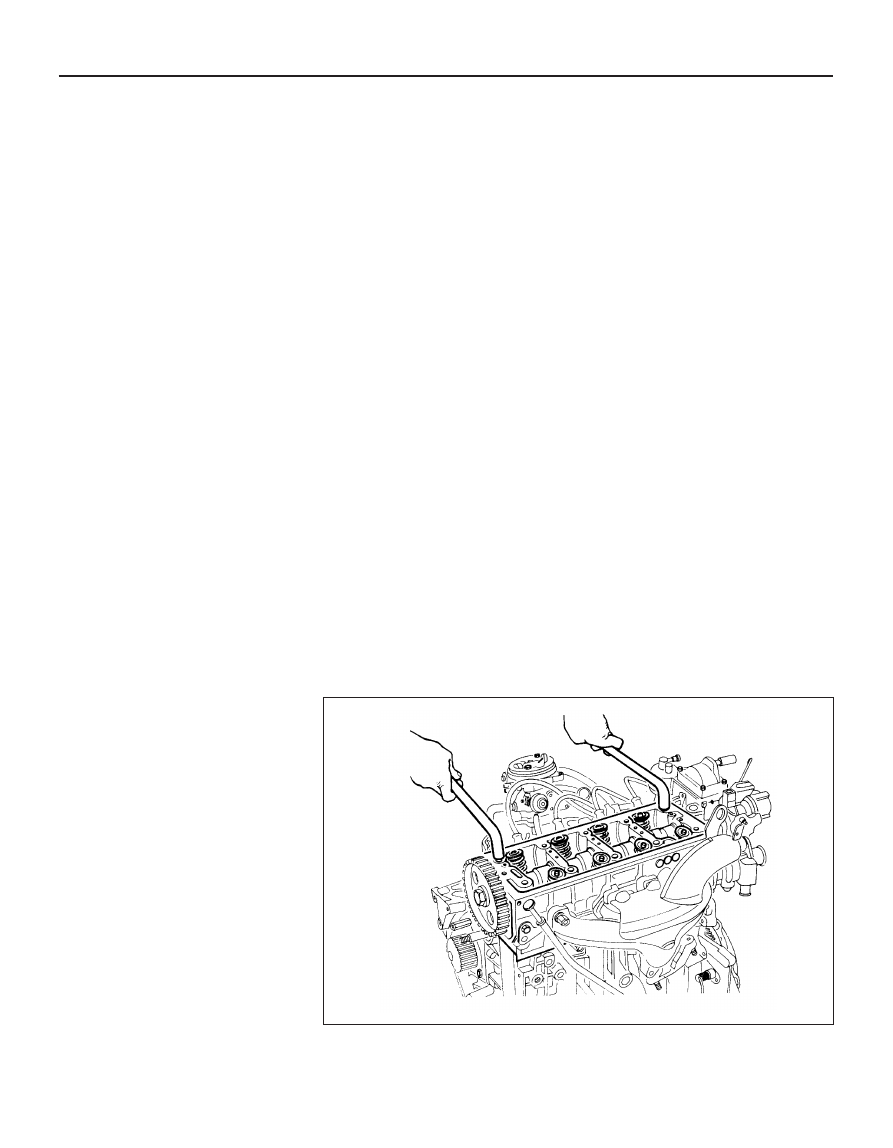

liners. To break the joint, obtain two L-shaped
metal bars which fit into the cylinder head bolt
holes. Gently “rock” the cylinder head free
towards the front of the car (see illustration).
Do not try to swivel the head on the cylinder
block/crankcase; it is located by dowels, as
well as by the tops of the liners. Note: If care
is not taken and the liners are moved, there is
also a possibility of the bottom seals being
disturbed, causing leakage after refitting the
head. When the joint is broken, lift the cylinder
head away; seek assistance if possible, as it is
a heavy assembly, especially if it is being
removed complete with the manifolds.
22 On all models, remove the gasket from
the top of the block, noting the two locating
dowels. If the locating dowels are a loose fit,
remove them and store them with the head for
safe-keeping. Do not discard the gasket - on
some models it will be needed for
identification purposes (see paragraphs 28
and 29).
Caution: On aluminium block engines, Do
not attempt to rotate the crankshaft with
the cylinder head removed, otherwise the
wet liners may be displaced. Operations
that require the rotation of the crankshaft
(eg cleaning the piston crowns), should
only be carried out once the cylinder liners
are firmly clamped in position. In the
absence of the special Peugeot liner
clamps, the liners can be clamped in
position using large flat washers
positioned underneath suitable-length
bolts. Alternatively, the original head bolts
could be temporarily refitted, with suitable
spacers fitted to their shanks.
23 If the cylinder head is to be dismantled for
overhaul, remove the camshaft as described
in Section 10, then refer to Part D of this
Chapter.

Preparation for refitting

24 The mating faces of the cylinder head and
cylinder block/crankcase must be perfectly
clean before refitting the head. Use a hard
plastic or wood scraper to remove all traces of
gasket and carbon; also clean the piston
crowns. Refer to paragraph 23 before turning
the crankshaft on aluminium block engines.
Take particular care during the cleaning
operations, as aluminium alloy is easily
damaged. Also, make sure that the carbon is
not allowed to enter the oil and water
passages - this is particularly important for the
lubrication system, as carbon could block the
oil supply to the engine’s components. Using
adhesive tape and paper, seal the water, oil
and bolt holes in the cylinder
block/crankcase. To prevent carbon entering
the gap between the pistons and bores,
smear a little grease in the gap. After cleaning
each piston, use a small brush to remove all
traces of grease and carbon from the gap,
then wipe away the remainder with a clean
rag. Clean all the pistons in the same way.
25 Check the mating surfaces of the cylinder
block/crankcase and the cylinder head for
nicks, deep scratches and other damage. If
slight, they may be removed carefully with a
file, but if excessive, machining may be the
only alternative to renewal.
26 If warpage of the cylinder head gasket
surface is suspected, use a straight-edge to
check it for distortion. Refer to Part D of this
Chapter if necessary.
27 When purchasing a new cylinder head
gasket, it is essential that a gasket of the
correct thickness is obtained. On some
models only one thickness of gasket is
available, so this is not a problem. However
on other models, there are two different
thicknesses available - the standard gasket

2C•10 TU series engine in-car repair procedures

11.21  Using two angled metal rods to free the cylinder head from the block
