Opel Crossland X (2018 year). Manual - part 10





150

Driving and operating

Manual parking brake

9 Warning

Always apply parking brake firmly

without operating the release

button, and apply as firmly as

possible on a downhill or uphill

slope.
To release the parking brake, pull

the lever up slightly, press the

release button and fully lower the

lever.
To reduce the operating forces of

the parking brake, depress the

foot brake at the same time.

Control indicator R 3 92.

Brake assist

If brake pedal is depressed quickly

and forcefully, maximum brake force

is automatically applied.
Operation of brake assist might

become apparent by a pulse in the

brake pedal and a greater resistance

when depressing the brake pedal.
Maintain steady pressure on the

brake pedal as long as full braking is

required. Maximum brake force is

automatically reduced when brake

pedal is released.

Hill start assist

The system helps prevent unintended

movement when driving away on

inclines.
When releasing the brake pedal after

stopping on an incline, brakes remain

on for further two seconds. The

brakes release automatically as soon

as the vehicle begins to accelerate.

Ride control systems

Electronic Stability Control

and Traction Control system

Electronic Stability Control improves

driving stability when necessary,

regardless of the type of road surface

or tyre grip.
As soon as the vehicle starts to

swerve (understeer/oversteer),

engine output is reduced and the

wheels are braked individually.
Electronic Stability Control operates

in combination with the Traction

Control system. It prevents the driven

wheels from spinning.
The Traction Control system is a

component of the Electronic Stability

Control.
Traction Control improves driving

stability when necessary, regardless

of the type of road surface or tyre grip,

by preventing the driven wheels from

spinning.
As soon as the driven wheels starts to

spin, engine output is reduced and

the wheel spinning the most is braked

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Driving and operating

151

individually. This considerably

improves the driving stability of the

vehicle on slippery road surfaces.

Electronic Stability Control and

Traction Control are operational after

each engine start as soon as the

control indicator b extinguishes.
When Electronic Stability Control and

Traction Control operate, b flashes.

9 Warning

Do not let this special safety

feature tempt you into taking risks

when driving.
Adapt speed to the road

conditions.

Control indicator b 3 93.

Deactivation

Electronic Stability Control and

Traction Control can be deactivated,

everytime it is required: press a.
Control indicator a illuminates.
Control indicator a 3 93.
A status message appears in the

Driver Information Centre when

Electronic Stability Control Traction

Control are deactivated.
Electronic Stability Control and

Traction Control are reactivated by

pressing the a button again, by

applying the brake or in the case that

the vehicle is driven faster than 50

km/h.
a

 extinguishes when Electronic

Stability Control and Traction Control

are reactivated.
Electronic Stability Control and

Traction Control are also reactivated

the next time the ignition is switched

on.

Fault

If there is a fault in the system, the

control indicator b illuminates

continuously and a message appears

in the Driver Information Centre. The

system is not operational.
Have the cause of the fault remedied

by a workshop.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

152

Driving and operating

Driver assistance

systems

9 Warning

Driver assistance systems are

developed to support the driver

and not to replace the driver's

attention.
The driver stays in full control of

the vehicle and accepts full

responsibility when driving the

vehicle.
When using driver assistance

systems, always take care

regarding the current traffic

situation and follow applicable

traffic rules.

Cruise control

The cruise control can store and

maintain speeds above 40 km/h.

Additionally at least the third gear

must be engaged on manual

transmission, on automatic

transmission position D or the second

or a higher gear in position M must be

selected.
Deviations from the stored speeds

may occur when driving uphill or

downhill.
The system maintains the vehicle

speed at the preset speed by the

driver, without any action on the

accelerator pedal.
The preset speed can be exceeded

temporarily by pressing the

accelerator pedal.
The status and preset speed is

displayed in the Driver Information

Centre.
Do not use the cruise control if it is not

advisable to maintain a constant

speed.
Activating in first gear is not possible.
Control indicator m 3 95.

Switching on

Press m on the steering wheel:

symbol m and Pause are indicated in

the Driver Information Centre. The

system is still not active.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Driving and operating

153

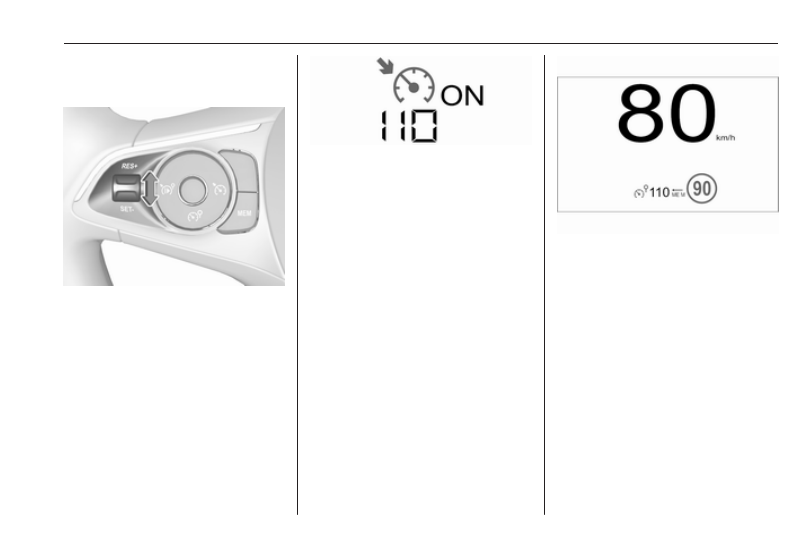

Activation

Setting speed by the driver

Accelerate to the desired speed and

press toggle switch once briefly to

RES/+ or SET/-. The current speed is

stored and maintained. Accelerator

pedal can be released.
The preset speed can then be

changed by pressing toggle switch to

RES/+ to increase or SET/- to

decrease the speed. Short press

changes speed in small steps, long

press in large steps.

Speed value is indicated in the Driver

Information Centre.

Adopting speed by the traffic sign

assistant

The intelligent speed adaptation

informs the driver when a speed limit

is detected by the traffic sign

assistant. If the cruise control is

active, the recognised speed limit will

be displayed in the Driver Information

Centre and "MEM" illuminates.

Press MEM on the steering wheel to

request saving of the suggested

speed.
Press MEM on the steering wheel

once more to confirm and save the

new speed setting.
This speed is the new value for the

cruise control.
This function can be deactivated or

activated in the personalisation

menu, 3 103.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

154

Driving and operating

Exceeding the set speed

Vehicle speed can be increased by

depressing the accelerator pedal.

When the accelerator pedal is

released, the previously stored speed

is resumed.

Deactivation

Press Ñ: cruise control is in pause

mode, Pause is indicated. The

vehicle is driven without cruise

control.
Cruise control is deactivated, but not

switched off. Last stored speed

remains in memory for later speed

resume.
Cruise control is deactivated

automatically:

● The brake pedal is depressed.
● The clutch pedal is depressed.
● Vehicle speed is below 40 km/h.
● The Traction Control system or

Electronic Stability Control is

operating.

● The selector lever is in N.

Resume stored speed

Press toggle switch to RES/+ or Ñ at

a speed above 40 km/h. The stored

speed will be obtained.

Switching off

Press m: the cruise control mode is

deselected and the cruise control

indication extinguishes in the Driver

Information Centre.
Pressing ß to activate the speed

limiter deactivates cruise control.
Switching off the ignition cancels any

programmed speed value.

Fault

In the event of a cruise control fault,

the speed is cleared resulting in

flashing of the dashes.

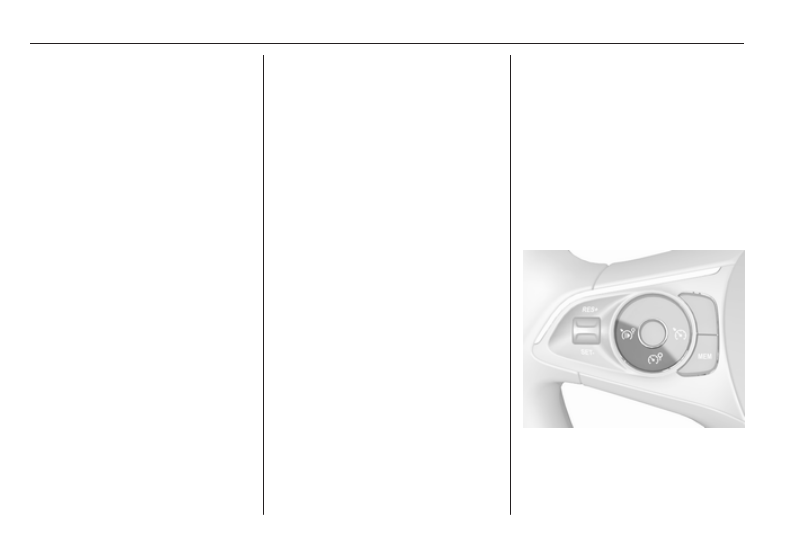

Speed limiter

The speed limiter prevents the

vehicle exceeding a preset maximum

speed.
The maximum speed can be set at

speeds above 30 km/h.

The driver can accelerate the vehicle

up to the preset speed. Deviations

from the limited speed may occur

when driving downhill.
The preset speed can be exceeded

temporarily by pressing the

accelerator pedal firmly.
The status and preset speed limit is

displayed in the Driver Information

Centre.

Switching on

Press ß, symbol ß and Pause are

indicated in the Driver Information

Centre. The system is still not active.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Driving and operating

155

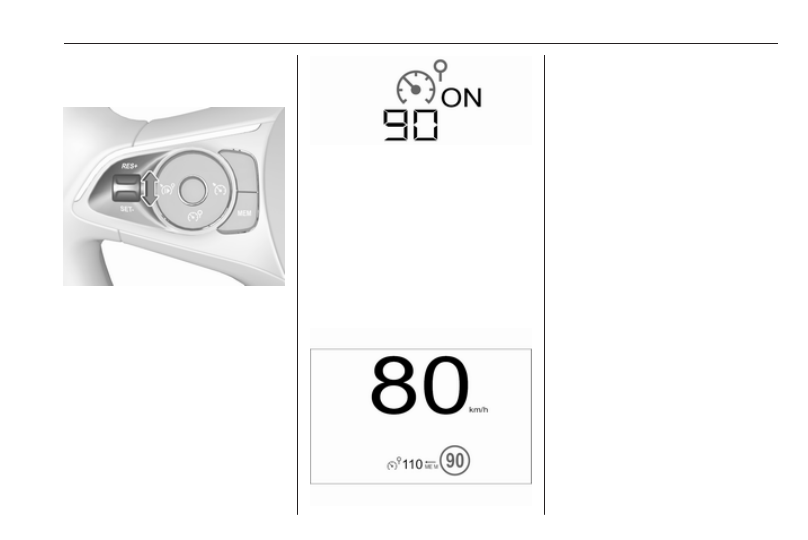

Activation

Setting speed by the driver

Press toggle switch once briefly to

RES/+ or SET/-.
Following the preset speed can be set

by pressing toggle switch to RES/+ to

increase or SET/- to decrease the

desired maximum speed. Short press

changes preset speed in small steps,

long press in large steps. Speed

value is indicated in the Driver

Information Centre.

Press Ñ to activate speed limiter.

Adopting speed by the traffic sign

assistant

The intelligent speed adaptation

informs the driver when a speed limit

is detected by the traffic sign

assistant. If the speed limiter is active,

the recognised speed limit will be

displayed in the Driver Information

Centre and "MEM" illuminates.

Press MEM on the steering wheel to

request saving of the suggested

speed.
Press MEM on the steering wheel

once more to confirm and save the

new speed setting.
This speed is the new value for the

speed limiter.
This function can be deactivated or

activated in the personalisation

menu, 3 103.

Exceeding the speed limit

In the event of an emergency, it is

possible to exceed the speed limit by

a "kickdown". In this case the preset

speed value flashes.
Release the accelerator pedal and

the speed limiter function is

reactivated once a speed lower than

the limit speed is obtained.

Deactivation

Press Ñ: speed limiter is in pause

mode, Pause is indicated. The

vehicle is driven without speed limit.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

156

Driving and operating

Speed limiter is deactivated, but not

switched off. Last stored speed

remains in memory for later speed

resume.

Resume limit speed

Press Ñ. The stored speed limit will

be obtained.

Switching off

Press ß, the speed limiter mode is

deselected and the speed limit

indication extinguishes in the Driver

Information Centre.
Pressing m to activate cruise control

deactivates speed limiter.
The preset speed remains in the

memory when the ignition is switched

off.

Fault

In the event of a speed limiter fault,

the speed is cleared resulting in

flashing of the dashes.
The speed limiter may not operate

correctly if traffic signs do not comply

with the Vienna Convention on Road

Signs and Signals (Wiener

Übereinkommen über

Straßenverkehrszeichen).

Forward collision alert

The forward collision alert may help to

avoid or reduce the harm caused by

front-end crashes.
The forward collision alert uses the

front camera in the windscreen to

detect a vehicle directly ahead, in

your path.
The system triggers different level of

alerts depending on the risk of

collision detected. The alerts are

displayed in the Driver Information

Centre.
Level 1: A visual alert is displayed.
Level 2: A visual alert is displayed and

an audible alert sounds.

Caution

The colour lighting of this control

indicator does not correspond to

local traffic laws on following

distance. The driver bears full

responsibility for maintaining safe

following distance according to

applicable traffic rules, weather

and road conditions etc. at all

times.

9 Warning

Forward collision alert is just a

warning system and does not

apply the brakes. When

approaching a vehicle ahead too

rapidly, it may not provide you

enough time to avoid a collision.
The driver accepts full

responsibility for the appropriate

following distance based on traffic,

weather and visibility conditions.
The complete attention of the

driver is always required while

driving. The driver must always be

ready to take action and apply the

brakes.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Driving and operating

157

When the time to a potential collision

with a vehicle in front gets too small

and a collision is imminent, a warning

is displayed in the Driver Information

Centre.
Simultaneously a warning chime

sounds. Depress the brake pedal and

steer the vehicle, if it is required by the

situation.

Operation conditions

The following condition must be

fullfilled for proper operation:
The speed must be between 5 km/h

and 140 km/h.

Activation

To use forward colision alert, active

safety braking has to be activated in

the vehicle personalisation 3 103.

Selecting the alert sensitivity

The alert sensitivity has to be set to

close, normal or distant in the vehicle

personalisation menu 3 103.

Deactivation

The system can only be deactivated

by deactivating the active emergency

braking in the vehicle personalisation

3

 103.

System limitations

Forward collision alert is designed to

warn on vehicles only, but may react

also to other objects.
In the following cases, forward

collision alert may not detect a vehicle

ahead or sensor performance is

limited:

● Driving on winding or hilly roads.
● During nighttime driving.
● Weather limits visibility, such as

fog, rain, or snow

● The windscreen is damaged or

affected by foreign items, e.g.

stickers.

Active emergency braking

Active emergency braking can help to

reduce the damage and injury from

crashes with vehicles, pedestrians

and obstacles directly ahead, when a

collision can no longer be avoided

either by manual braking or by

steering. Before the active

emergency braking applies, the driver

is warned by the forward collision

alert 3 156 or the front pedestrian

protection alert 3 159.
The feature uses various inputs (e.g.

camera sensor, brake pressure,

vehicle speed) to calculate the

probability of a frontal collision.

9 Warning

This system is not intended to

replace the driver responsibility for

driving the vehicle and looking

ahead. Its function is limited to

supplemental use only to reduce

the vehicle speed before a

collision.
The system may not react to

animals. After a sudden lane

change, the system needs a

certain time to detect the next

preceding vehicle.
The driver must always be ready

to take action and apply the brakes

and steer to avoid collisions.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

158

Driving and operating

Operation conditions

Active emergency braking is

equipped with a front camera and

operates in forward gear above

walking speed up to 85 km/h.

Activation

Active emergency braking can be

activated in the vehicle

personalisation menu 3 103.

Functionality

The system includes:

● brake preparation system
● emergency automatic braking
● forward looking brake assist
● forward collision alert
● front pedestrian protection

Brake preparation system

When approaching a vehicle ahead

or a pedestrian so quickly that a

collision is likely, the brake

preparation system slightly

pressurizes the brakes. This reduces

the response time, when a manual or

automatic braking is requested.

The brake system is prepared so that

braking can occur more rapidly.

Emergency automatic braking

After activation of brake preparation

system and just before the imminent

collision, this function automatically

applies limited braking to reduce the

impact speed of the collision or

prohibit a crash. Depending on the

situation, the vehicle may

automatically brake moderately or

hard. This front automatic braking can

only occur if a vehicle 3 156 or a

pedestrian 3 159 ahead is detected .
Emergency automatic braking may

slow the vehicle to a complete stop to

try to avoid a potential crash.

9 Warning

Emergency automatic braking is

an emergency crash preparation

feature and is not designed to

avoid crashes. Do not rely on the

system to brake the vehicle.

Emergency automatic braking will

not brake outside of its operating

speed range and only responds to

detected vehicles and

pedestrians.

Forward looking brake assist

In addition to the brake preparation

system and emergency automatic

braking, the forward looking brake

assist function makes the brake assist

more sensitive. Therefore, pressing

the brake pedal less strongly results

in immediate hard braking. This

function helps the driver brake

quicker and harder before the

imminent collision.

9 Warning

Active emergency braking is not

designed to apply hard

autonomous braking or to

automatically avoid a collision. It is

designed to reduce the vehicle

speed before a collision. It may not

react to animals. After a sudden

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Driving and operating

159

lane change, the system needs a

certain time to detect the next

preceding vehicle.
The complete attention of the

driver is always required while

driving. The driver must always be

ready to take action and apply the

brakes and steer to avoid

collisions.

The system is designed to work with

all occupants wearing their seat belts.

Forward collision alert
3

 156

Front pedestrian protection
3

 159.

Deactivation

Active emergency braking can be

deactivated in the vehicle

personalisation menu 3 103. If

deactivated a message is displayed

in the Driver Information Centre.

System limitations

In some cases, the active emergency

braking system may provide an

automatic braking in situations that

seem to be unnecessary, for instance

in parking garages, due to traffic signs

in a curve or due to vehicles in

another lane. This is normal

operation, the vehicle does not need

service. Firmly apply the accelerator

pedal to override the automatic

braking if the situation and the

surroundings permit.
In the following cases, active

emergency braking performance is

limited:

● Driving on winding or hilly roads.
● Detecting all vehicles, especially

vehicles with a trailer, tractors,

muddy vehicles, etc.

● Detecting a vehicle when

weather limits visibility, such as in

fog, rain, or snow.

● During nighttime driving.

● Weather limits visibility, such as

fog, rain, or snow.

● The windscreen is damaged or

affected by foreign items, e.g.

stickers.

Complete attention is always required

while driving, and you should be

ready to take action and apply the

brakes and/or steer the vehicle to

avoid crashes.

Fault

In case the system requires a service,

a message is displayed in the Driver

Information Centre.
If the system does not work as it

should do, vehicle messages are

displayed in the Driver Information

Centre.
Vehicle messages 3 102.

Front pedestrian protection

Front pedestrian protection may help

to avoid or reduce the harm caused

by front-end crashes with nearby

pedestrians when driving in a forward

gear.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

160

Driving and operating

Front pedestrian protection uses the

front camera in the windscreen to

detect a pedestrian directly ahead, in

your path.
The system triggers different level of

alerts depending on the risk of

collision detected. The alerts are

displayed in the Driver Information

Centre.
Level 1: A visual alert is displayed.
Level 2: A visual alert is displayed and

an audible alert sounds.

9 Danger

Front pedestrian braking does not

provide an alert or automatically

brake the vehicle, unless it detects

a pedestrian.
The system may not detect

pedestrians, including children,

when the pedestrian is not directly

ahead, not fully visible, not

standing upright, or when part of a

group.

Caution

The colour lighting of this control

indicator does not correspond to

local traffic laws on following

distance. The driver bears full

responsibility for maintaining safe

following distance according to

applicable traffic rules, weather

and road conditions etc. at all

times.

When the time to a potential collision

with a pedestrian in front gets too

small and a collision is imminent, a

warning is displayed in the Driver

Information Centre.
Simultaneously a warning chime

sounds. Depress the brake pedal and

steer the vehicle, if it is required by the

situation.

Operation conditions

The following condition must be

fullfilled for proper operation:
The speed must be between 5km/h

and 60 km/h.

Activation

To use the system, active safety

braking has to be activated in the

vehicle personalisation 3 103.

Selecting the alert sensitivity

The alert sensitivity has to be set to

close, normal or distant in the vehicle

personalisation menu 3 103.

Deactivation

The system can only be deactivated

by deactivating the active emergency

braking in the vehicle personalisation,

3

 103.

System limitations

Front pedestrian protection is

designed to warn on pedestrians

only, but may react also to other

objects.
In the following cases, the system

may not detect a pedestrian ahead or

sensor performance is limited:

● Driving on winding or hilly roads.
● During nighttime driving.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Driving and operating

161

● Weather limits visibility, such as

fog, rain, or snow

● The windscreen is damaged or

affected by foreign items, e.g.

stickers.

Parking assist

General information

When attaching a trailer or bike

carrier to the trailer hitch, the parking

assist is deactivated.

9 Warning

The driver bears full responsibility

for the parking manoeuvre.
Always check the surrounding

area when driving backwards or

forwards while using parking

assist system.

Rear parking assist

The rear parking assist makes

parking easier by measuring the

distance between the vehicle and

rear obstacles. It informs and warns

the driver by giving acoustic signals

and display indication.

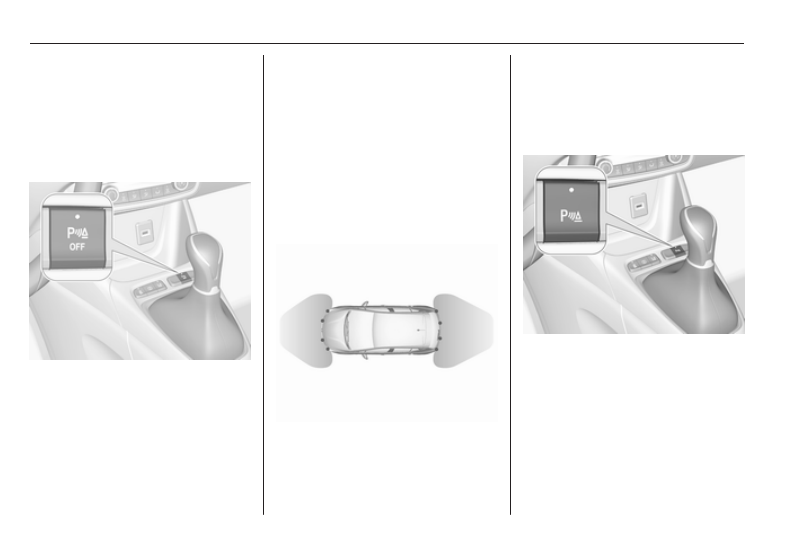

The system operates with ultrasonic

parking sensors in the rear bumper.

Activation

Rear parking assist is activated when

reverse gear is engaged and ignition

is switched on.
The system is ready to operate when

the LED in the parking assist button

r OFF does not illuminate.

Indication

The system warns the driver with

acoustic signals against potentially

hazardous obstacles behind the

vehicle in a distance range up to

50 cm while reverse gear is engaged.
Depending on which side of the

vehicle is closer to an obstacle, you

will hear acoustic warning signals in

the vehicle on the respective side.

The interval between the sounds

becomes shorter as the vehicle gets

closer to that obstacle. When the

distance is less than approx. 30 cm,

the sound is continuous.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

162

Driving and operating

Additionally, the distance to rear

obstacles is displayed by changing

distance lines in the Info Display

3

 98. When the obstacle is very close,

9 for Danger is displayed in the

screen.

Deactivation

The system is switched off when

reverse gear is disengaged. Press

r OFF to deactivate the system

manually. The LED in the button

illuminates when the system is

deactivated.

Front-rear parking assist

The front-rear parking assist

measures the distance between the

vehicle and obstacles in front and

behind the vehicle. It informs and

warns the driver by giving acoustic

signals and display indication.
It uses two different acoustic warning

signals for the front and rear

monitoring areas, each with a

different tone frequency.

The system operates with ultrasonic

parking sensors in the rear and front

bumper.

Activation

In addition to the rear parking assist,

the front parking assist is triggered

when an obstacle is detected in front

and the speed of the vehicle is still

below 10 km/h.

The system is ready to operate when

the LED in the parking assist button

r does not illuminate.
When the system is deactivated, the

LED in the button illuminates.

Indication

The system warns the driver with

acoustic signals against potentially

hazardous obstacles in front of the

vehicle and behind the vehicle.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Driving and operating

163

Depending on which side of the

vehicle is closer to an obstacle, you

will hear acoustic warning signals in

the vehicle on the respective side.

The interval between the sounds

becomes shorter as the vehicle gets

closer to that obstacle. When the

distance is less than approx. 30 cm,

the sound is continuous.

Additionally, the distance to rear and

front obstacles is displayed by

changing distance lines in the Info-

Display 3 98.

Deactivation

The system is deactivated

automatically when vehicle speed

exceeds 10 km/h or if the vehicle

stops for more than three seconds in

a forward gear or if no further

obstacles are detected.
Manual deactivation is also possible

by pressing the parking assist button

r.
When the system is deactivated

manually, the LED in the button

extinguishes and a message pops-up

in the Driver Information Centre.
After a manual deactivation, the front-

rear parking assist is activated again

if r is pressed or if reverse gear is

engaged.

System limitations

In the event of a fault or if the system

does not work temporarily, e.g.

because of high external noise level

or other interference factors, Service

in the cluster instrument illuminates.

A message is indicated in the Driver

Information Centre.

9

Warning

Under certain circumstances,

various reflective surfaces on

objects or clothing as well as

external noise sources may cause

the system to fail to detect

obstacles.
Special attention must be paid to

low obstacles which can damage

the lower part of the bumper.

Caution

Performance of the system can be

reduced when sensors are

covered, e.g. by ice or snow.
Performance of the parking assist

system can be reduced due to

heavy loading.
Special conditions apply if there

are taller vehicles in the vicinity

(e.g. off-road vehicles, mini vans,

vans). Object identification and

correct distance indication in the

upper part of these vehicles

cannot be guaranteed.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

164

Driving and operating

Objects with a very small reflection

cross-section, e.g. objects of

narrow size or soft materials, may

not be detected by the system.
Parking assist systems do not

detect objects outside the

detection range.

Advanced parking assist

9 Warning

The driver bears full responsibility

for accepting the parking slot

suggested by the system and the

parking manoeuvre.
Always check the surrounding

area in all directions when using

the advanced parking assist.

The advanced parking assist

measures a suitable parking slot

while passing, calculates the

trajectory and automatically steers

the vehicle while parking.

Advanced parking assist provides

assistance for the following

manoeuvres:

● Entry into a parallel parking slot.
● Entry into a perpendicular

parking slot.

● Exit from a parallel parking slot.

The driver must control acceleration,

braking and gear shifting, while

steering is done automatically. The

driver can take control at any time by

gripping the steering wheel.
It may be necessary to move forwards

and backwards more than once.
Instructions are given in the Info-

Display 3 98.
Advanced parking assist can only be

activated when driving forwards.

Advanced parking assist is always

combined with front-rear parking

assist.
The system has six ultrasonic parking

sensors each in both the rear and

front bumper.

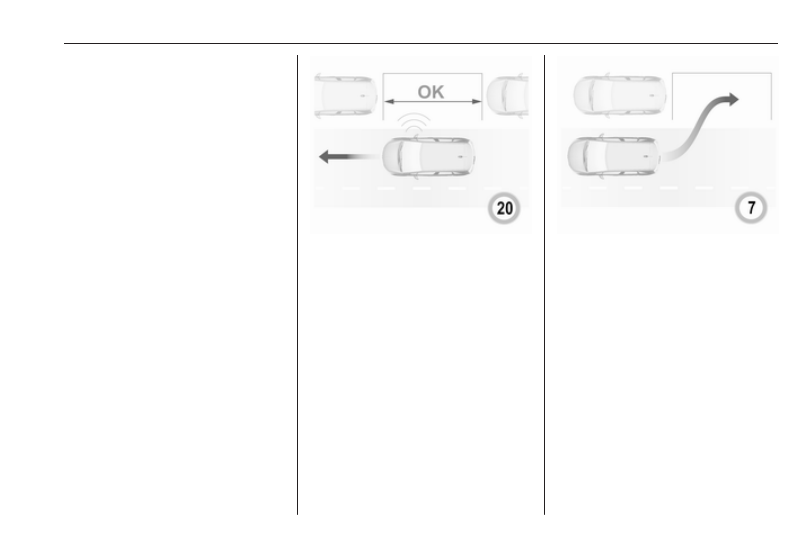

Entry into a parallel parking slot

Activation

7'' Colour-Info-Display: to search for a

parking slot, activate the system by

selecting Park Assist on the

homepage of the touch screen. Then

select Enter parallel parking space.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Driving and operating

165

8'' Colour-Info-Display: to search for a

parking slot, activate the system by

pressing Í. Select Driving functions

on the touch screen and then Park

Assist. Select Enter parallel parking

space.
$

 illuminates in the instrument cluster

to confirm the function.
Slow down the vehicle speed below

20 km/h.
Select parking side by switching on

turn signal indicator on the respective

side.
The allowed parallel distance

between the vehicle and a row of

parked cars is between 0.5 metres

and 1.5 metres.
The system will not identify slots that

are clearly smaller or larger than the

vehicle.

When a free slot is detected, a visual

feedback on the Colour-Info-Display

and a first acoustic signal is given.

Drive slowly forwards. When the

second acoustic signal is given, stop

the vehicle, select reverse gear,

release the steering wheel and start

moving without exceeding 7 km/h.

Move forwards and backwards while

observing the warnings of the Parking

assist until the end of manoeuvre is

indicated. When finished, $

extinguishes in the instrument cluster.

Entry into a perpendicular parking

slot

Activation

7'' Colour-Info-Display: to search for a

parking slot, activate the system by

selecting Park Assist on the

homepage of the touch screen. Then

select Enter perpendicular parking

space.

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     8      9      10      11     ..
