86

Instruments and controls

Indicates vehicle speed.

Odometer

The total recorded distance is

displayed in km.

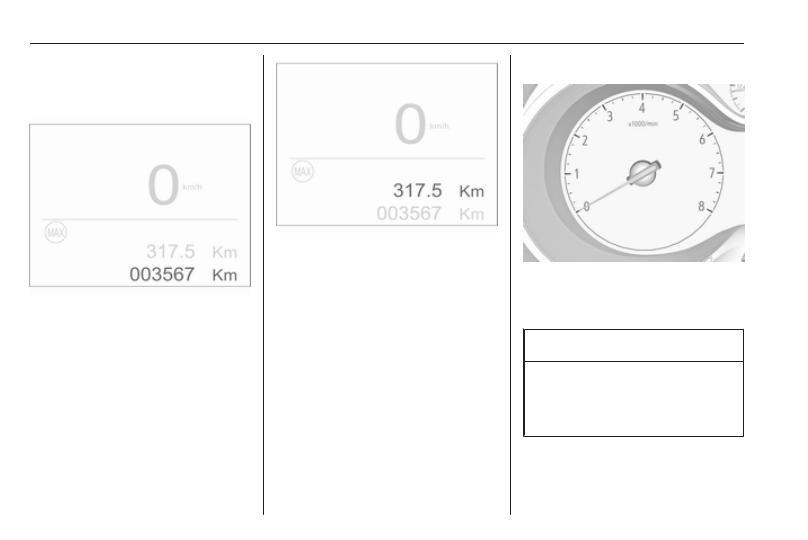

Trip odometer

The recorded distance since the last

reset is displayed in the Driver

Information Centre.

Trip odometer counts up to

9,999 km and then restarts at 0.
Press L for 2 seconds to reset trip

odometer.
Two trip odometer pages are

selectable in the trip/fuel information

menu for different trips 3 96.

Tachometer

Displays the engine speed.
Drive in a low engine speed range for

each gear as much as possible.

Caution

If the needle is in the red warning

zone, the maximum permitted

engine speed is exceeded. Engine

at risk.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

87

Fuel gauge

Displays the fuel level in the tank.
Control indicator o illuminates if the

level in the tank is low.
Never run the fuel tank dry.
Because of the fuel remaining in the

tank, the top-up quantity may be less

than the specified fuel tank capacity.

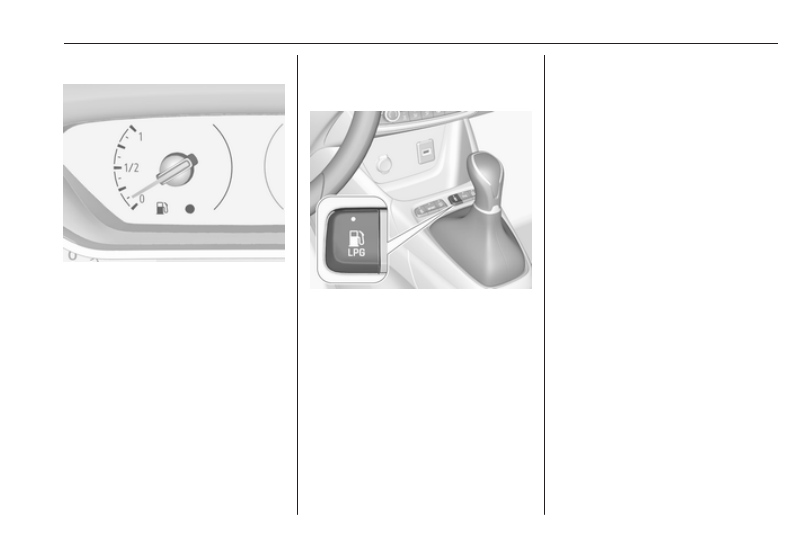

Fuel selector

Liquid gas operation, LPG

Pressing LPG switches between

petrol and liquid gas operation as

soon as the required parameters

(coolant temperature, gas

temperature and minimum engine

speed) have been reached. The

requirements are usually fulfilled after

approximately 60 seconds

(depending on exterior temperature)

and the first firm press on the

accelerator. The status LED shows

the current operating mode.

LED off : petrol operation

LED

flashes

: checking conditions for

fuel transition to liquid

gas operation.

Illuminates if conditions

are fulfilled.

LED illu‐

minates

: liquid gas operation

LED

flashes 5

times

and

extin‐

guishes

: liquid gas tank is empty

or failure in liquid gas

system. A message is

displayed in the Driver

Information Centre.

If the fuel tank is empty, the engine

will not start.
The selected fuel mode is stored and

reactivated at the next ignition cycle if

conditions allow.
As soon as the liquid gas tank is

empty, petrol operation is

automatically engaged until the

ignition is switched off.
When switching automatically

between petrol or gas operation, a

brief delay of engine tractive power

may be noticeable.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

88

Instruments and controls

Every six months, run the petrol tank

down until control indicator Y

illuminates, then refuel. This helps

maintain fuel quality and system

function for petrol operation.
Fill the tank completely at regular

intervals to prevent corrosion in the

tank.

Faults and remedies

If gas mode is not possible, check the

following:

● Is there enough liquid gas

present?

● Is there enough petrol present for

starting?

Due to extreme temperatures in

combination with the gas

composition, it may take slightly

longer before the system switches

from petrol to gas mode.
In extreme situations, the system may

also switch back to petrol mode if the

minimum requirements are not

fulfilled. If conditions allow, it may be

possible to manually switch back to

liquid gas operation.

Seek the assistance of a workshop in

the event of all other faults.

Caution

Repairs and adjustments may only

be made by trained specialists in

order to maintain the safety and

warranty on the LPG system.

Liquid gas is given a particular odour

(odorised) so that any leaks can be

detected easily.

9 Warning

If you smell gas in the vehicle or in

the immediate vicinity, switch to

petrol mode immediately. No

smoking. No naked flames or

ignition sources.

If the gas odour persists, do not start

the engine. Have the cause of the

fault remedied by a workshop.
When using underground car parks,

follow the instructions of the operator

and local laws.

Note

In the event of an accident, switch off

the ignition and lights.

Fuel for liquid gas operation 3 178.

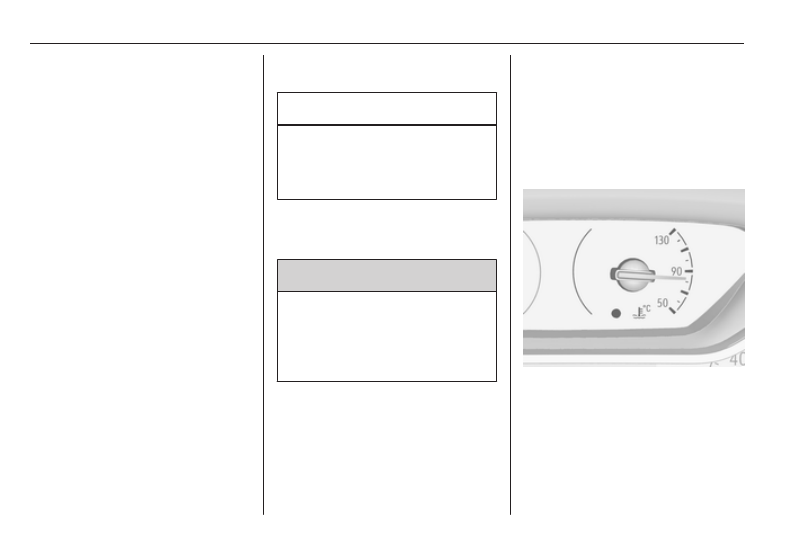

Engine coolant temperature

gauge

Displays the coolant temperature.
50 : engine operating temperature

not yet reached

90 : normal operating temperature

130 : temperature too high
Control indicator o illuminates if

engine coolant temperature is too

high.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

89

Caution

If engine coolant temperature is

too high, stop vehicle, switch off

engine. Danger to engine. Check

coolant level.

Engine oil level monitor

The state of the engine oil level is

displayed in the Driver Information

Centre for a few seconds following

the service information after switching

on the ignition.
A proper state of oil level is indicated

by the message Oil level correct.
If oil level is low, I flashes and Oil

level incorrect is indicated,

accompanied by the H indicator.

Confirm oil level by using the oil

dipstick and top up engine oil

respectively. Engine oil 3 188.
A fault of measurment is indicated by

the message Oil level measurment

invalid. Check oil level manually by

using the dipstick.

Service display

The service system informs when to

change the engine oil and filter or a

vehicle service is required. Based on

driving conditions, the interval at

which an engine oil and filter change

is required can vary considerably.

Service information3 224

A required service due is displayed in

the Driver Information Centre for

seven seconds after switching on the

ignition.
If no service is required for the next

3000 km or more, no service

information appears in the display.

If service due is required within the

next 3000 km, the remaining distance

or time duration is indicated for

several seconds. Simultaneously

symbol F lights up permamently as

reminder.
If service due is less than 1000 km,

F

 flashes and then lights up

permanently. Remaining distance or

time duration is indicated for several

seconds.
Overdued service is indicated by a

message in the Driver Information

Centre which indicates the overdued

distance. F flashes and then lights up

permanently until service is executed.

Reset of service interval

After each service, the service

indicator must be reset to ensure

proper functionality. It is

recommended to seek the assistance

of a workshop.
If service is executed by yourself,

operate as following:

● switch off ignition

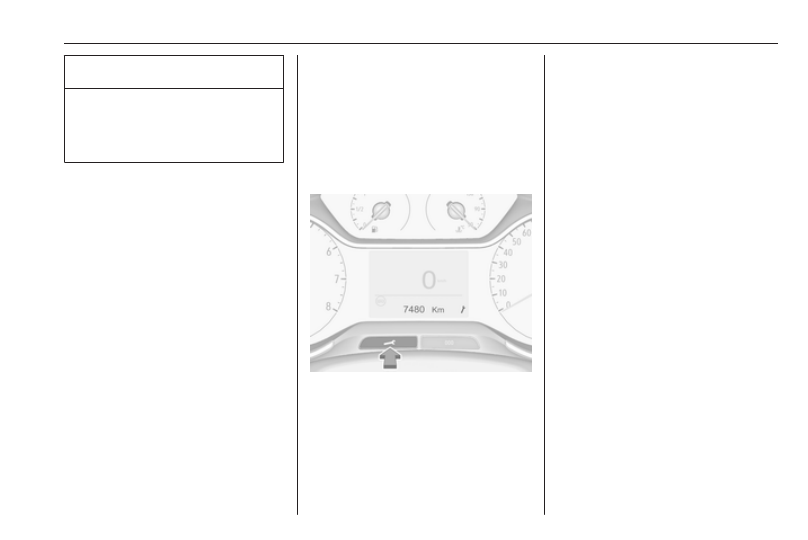

● press and hold button M or

CHECK

-------------------------------------------------------------------------------------------------------------------------------------------------------------

90

Instruments and controls

● switch on ignition; the distance

indication begins a countdown

● when the display indicates =0,

release the button. Symbol F

disappears

Retrieving service information

To retrieve the status of the service

information at any time press button

M

 or CHECK. The service

information is displayed for a few

seconds.
Service information 3 224.

Control indicators

The control indicators described are

not present in all vehicles. The

description applies to all instrument

versions. Depending on the

equipment, the position of the control

indicators may vary. When the

ignition is switched on, most control

indicators will illuminate briefly as a

functionality test.
The control indicator colours mean:
red

: danger, important reminder

yellow : warning, information, fault

green : confirmation of activation

blue

: confirmation of activation

white : confirmation of activation
See all control indicators on different

instrument clusters 3 82.

Turn signal

O

 illuminates or flashes green.

Illuminates briefly

The parking lights are switched on.

Flashes

A turn signal or the hazard warning

flashers are activated.
Rapid flashing: failure of a turn signal

light or associated fuse, failure of turn

signal light on trailer.
Bulb replacement 3 192, Fuses

3

 200.

Turn signals 3 115.

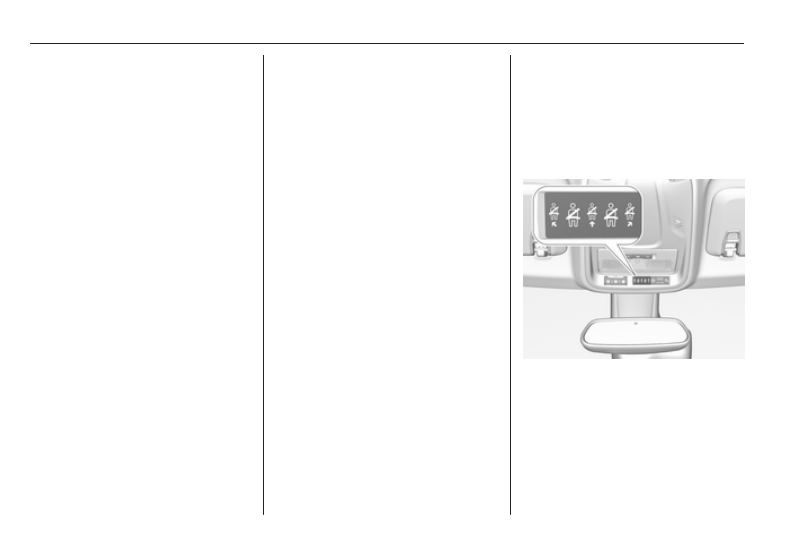

Seat belt reminder

Seat belt reminder on all seats

X

 illuminates or flashes red in the

instrument cluster together with the

indication in the roof console for each

seat belt.

● When the ignition is switched on,

X

 in the instrument cluster and

the symbol for the respective

seat in the roof console comes

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

91

on, if the seat belt of any

occupied seat has not been

fastened.

● After running up, X in the

instrument cluster and the

symbol for the respective seat in

the roof console flashes for a

certain time together with a

chime. After a certain time of

driving X illuminates constantly

until the seat belt of the

respective seat has been

fastened or if any passenger has

unfastened the seat belt.

Airbag and belt tensioners

v

 illuminates red.

When the ignition is switched on, the

control indicator illuminates for

approx. four seconds. If it does not

illuminate, does not go out after

four seconds or illuminates whilst

driving, there is a fault in the airbag

system. Seek the assistance of a

workshop. The airbags and belt

pretensioners may fail to trigger in the

event of an accident.

Deployment of the belt pretensioners

or airbags is indicated by continuous

illumination of v.

9 Warning

Have the cause of the fault

remedied immediately by a

workshop.

Belt pretensioners, airbag system

3

 49, 3 52.

Airbag deactivation

Ó

ON illuminates yellow.

The front passenger airbag is

activated.
*OFF illuminates yellow.
The front passenger airbag is

deactivated.
Airbag deactivation 3 57.

Charging system

p

 illuminates red.

Illuminates when the ignition is

switched on and extinguishes shortly

after the engine starts.

Illuminates when the engine is

running

Stop, switch off engine. Vehicle

battery is not charging. Engine

cooling may be interrupted. The

brake servo unit may cease to be

effective. Seek the assistance of a

workshop.

Malfunction indicator light

Z

 illuminates or flashes yellow.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

92

Instruments and controls

Illuminates when the ignition is

switched on and extinguishes shortly

after the engine starts.

Illuminates when the engine is

running

Fault in the emission control system.

The permitted emission limits may be

exceeded.
Seek the assistance of a workshop

immediately.

Flashes when the engine is

running

The engine management system has

a fault that could lead to catalytic

converter damage. Ease up on the

accelerator until the flashing stops.

Seek the assistance of a workshop

immediately.

Service vehicle soon

H

 illuminates yellow.

Illuminates briefly when the ignition is

switched on.

May illuminate together with other

control indicators and a

corresponding message in the Driver

Information Centre.
Seek the assistance of a workshop

immediately.

Stop engine

Y

 illuminates red.

Illuminates briefly when the ignition is

switched on.
Illuminates together with other control

indicators, accompanied by a warning

chime and a corresponding message

in the Driver Information Centre.
Stop engine immediately and seek

the assistance of a workshop.

System check

J

 illuminates yellow or red.

Illuminates yellow

A minor engine fault has been

detected.

Illuminates red

A major engine fault has been

detected.
Stop engine as soon as possible and

seek the assistance of a workshop.

Brake and clutch system

R

 illuminates red.

The brake and clutch fluid level is too

low, when manual parking brake is

not applied 3 190.

9 Warning

Stop. Do not continue your

journey. Consult a workshop.

Illuminates when the manual parking

brake is applied and ignition is

switched on 3 149.

Antilock brake system

(ABS)

u

 illuminates yellow.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

93

Illuminates for a few seconds after the

ignition is switched on. The system is

ready for operation when the control

indicator extinguishes.
If the control indicator does not go out

after a few seconds, or if it illuminates

while driving, there is a fault in the

ABS. The brake system remains

operational but without ABS

regulation.
Antilock brake system 3 149.

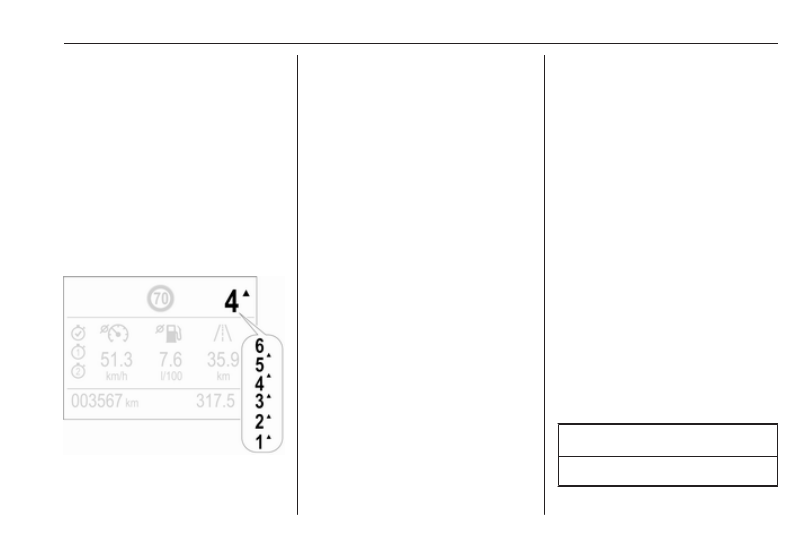

Gear shifting

R

 with the number of a higher gear is

indicated, when upshifting is

recommended for fuel saving

reasons.

Lane departure warning

)

 flashes yellow when the system

recognises an unintended lane

change.
Lane departure warning 3 174.

Electronic Stability Control

and Traction Control system

b

 illuminates or flashes yellow.

Illuminates

A fault in the system is present.

Continued driving is possible. Driving

stability, however, may deteriorate

depending on road surface

conditions.
Have the cause of the fault remedied

by a workshop.

Flashes

The system is actively engaged.

Engine output may be reduced and

the vehicle may be braked

automatically to a small degree.
Electronic Stability Control and

Traction Control system 3 150.

Electronic Stability Control

and Traction Control system

off

n

 illuminates yellow.

The systems are deactivated.

Engine coolant temperature

o

 illuminates red.

Illuminates when the engine is

running

Stop, switch off engine.

Caution

Coolant temperature too high.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

94

Instruments and controls

Check coolant level immediately

3

 189.

If there is sufficient coolant, consult a

workshop.

Preheating

!

 illuminates yellow.

Preheating of Diesel engine is

activated. Only activates when

outside temperature is low. Start the

engine when control indicator

extinguishes.

Diesel particle filter

%

 or H illuminates yellow.

The diesel particle filter requires

cleaning.
Continue driving until the control

indicator extinguishes.

Illuminates temporarily

Start of saturation of the particle filter.

Start cleaning process as soon as

possible by driving at a vehicle speed

of at least 60 km/h.

Illuminates constantly

Indication of a low additive level. Seek

the assistance of a workshop.
Diesel particle filter 3 141.

AdBlue

Y

 flashes or illuminates yellow.

Illuminates yellow

The remaining driving range is

between 600 km and 2400 km.
Have the AdBlue® topped-up as soon

as possible by a qualified workshop.

You can add up to 10 litres of

AdBlue® to its tank.

Flashes yellow

The remaining driving range is

between 0 and 600 km.
Top-up the AdBlue® as soon as

possible to avoid a breakdown by a

qualified workshop. You can add up

to 10 litres of AdBlue® to its tank.

Deflation detection system

w illuminates or flashes yellow.

Illuminates

Tyre pressure loss in one or more

wheels. Stop immediately and check

tyre pressure.

Flashes

Fault in system. Consult a workshop.

Engine oil pressure

I

 illuminates red.

Illuminates when the ignition is

switched on and extinguishes shortly

after the engine starts.

Illuminates when the engine is

running

Caution

Engine lubrication may be

interrupted. This may result in

damage to the engine and/or

locking of the drive wheels.

1. Depress clutch.
2. Select neutral gear.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

95

3. Move out of the flow of traffic as

quickly as possible without

impeding other vehicles.

4. Switch off ignition.

9 Warning

When the engine is off,

considerably more force is needed

to brake and steer.
During an Autostop, the brake

servo unit will still be operational.
Do not remove key until vehicle is

stationary, otherwise the steering

wheel lock could engage

unexpectedly.

Check oil level before seeking

assistance of a workshop 3 188.

Low fuel

o

 illuminates yellow.

Level in fuel tank is too low.
Refuelling 3 179.
Bleeding the diesel fuel system

3

 191.

Autostop

D

 illuminates or flashes green.

Illuminates green

Engine is in an Autostop.

Flashes green

Autostop is temporarily unavailable,

or Autostop mode is invoked

automatically.
Stop-start system 3 138.

Exterior light

8

 illuminates green.

The exterior lights are on 3 111.

High beam

C illuminates blue.
Illuminated when high beam is on or

during headlight flash 3 112.

High beam assist

f

 illuminates green.

The high beam assist is activated,

see Adaptive forward lighting 3 113.

Low beam

9

 illuminates green.

Illuminated when low beam is on.

Fog light

>

 illuminates green.

The front fog lights are on 3 115.

Rear fog light

ø

 illuminates yellow.

The rear fog light is on 3 116.

Rain sensor

<

 illuminates green.

Illuminated when rain sensor position

on wiper stalk is selected.

Side blind spot alert

B

 illuminates green.

The system is active.

Cruise control

m

 illuminates in the Driver

Information Centre.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

96

Instruments and controls

Cruise control 3 152.

Speed limiter

ß

 illuminates in the Driver

Information Centre.
Speed limiter 3 154.

Traffic sign assistant

L

 displays by the front camera

detected traffic signs in the Driver

Information Centre.
Traffic sign assistant 3 152.

Door open

h

 illuminates red.

A door or the tailgate is open.

Information displays

Driver Information Centre

The Driver Information Centre is

located in the instrument cluster.
Depending on the version and the

instrument cluster, the Driver

Information Centre is available as

Baselevel or Midlevel display.
Driver Information Centre indicates:

● overall and trip odometer
● digital speed indication
● trip/fuel information menu
● gear shift indication
● service information
● vehicle and warning messages
● driver assistance messages
● pop-up messages

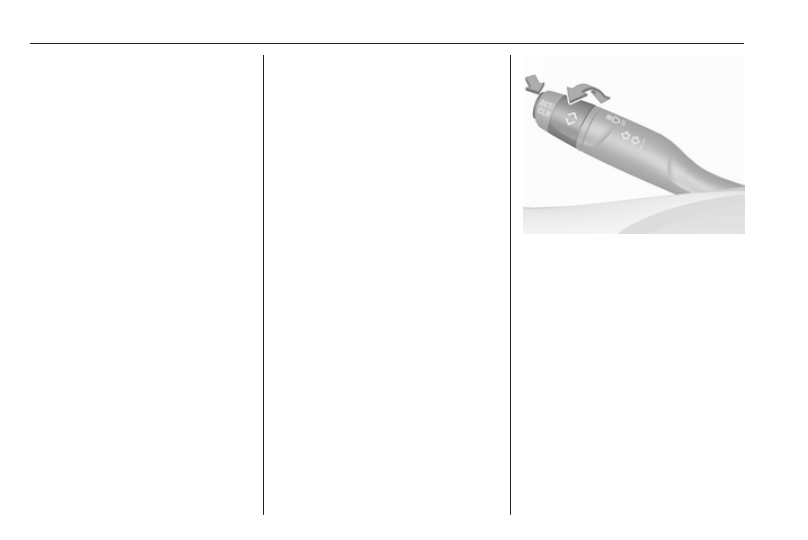

Selecting menus and functions

The menus and functions can be

selected via the buttons on the turn

signal lever.

Turn the adjuster wheel to select a

page in the Trip/fuel information

menu.
Press SET/CLR to confirm or reset a

function.
Vehicle and service messages are

popped up in the Driver Information

Centre if required. Scroll messages

by turning the adjuster wheel.

Confirm messages by pressing

SET/CLR. Vehicle messages 3 102.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

97

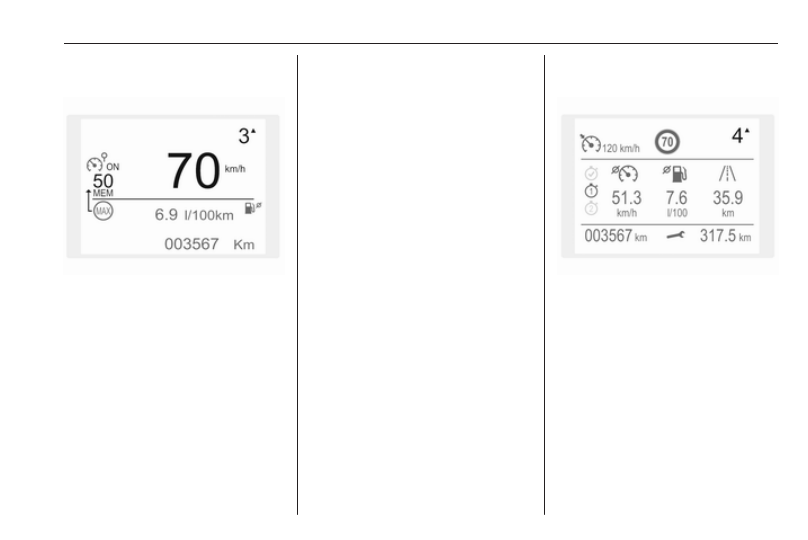

Trip/fuel information menu,

Baselevel display

Turn the adjuster wheel to select a

page:

Trip odometer

The recorded distance since the

reset.
Press L for 2 seconds to reset trip

odometer.

Average fuel consumption

Display of average consumption. The

measurement can be reset at any

time and starts with a default value.

To reset, press SET/CLR for a few

seconds.

Average speed

Display of average speed. The

measurement can be reset at any

time.
To reset, press SET/CLR for a few

seconds.

Fuel range

Range is calculated from current fuel

level and current consumption. The

display shows average values.
After refuelling, the range is updated

automatically after a brief delay.
When the level in the fuel tank is low,

a message appears on the display

and the control indicator o in the fuel

gauge illuminates 3 95.

Instantaneous Fuel Consumption

Display of the instantaneous

consumption.

Digital speed

Digital display of the instantaneous

speed.

Trip/fuel information menu,

Midlevel display

Differerent pages with combined

information can be selected.
Turn the adjuster wheel to select a

page.

Information page:

Fuel range
Range is calculated from current fuel

level and current consumption. The

display shows average values.
After refuelling, the range is updated

automatically after a brief delay.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

98

Instruments and controls

When the level in the fuel tank is low,

a message appears on the display

and the control indicator o in the fuel

gauge illuminates 3 95.
Instantaneous Fuel Consumption
Display of the instantaneous

consumption.

Trip 1 page:

Average speed
Display of average speed. The

measurement can be reset at any

time.
Average fuel consumption
Display of average consumption. The

measurement can be reset at any

time and starts with a default value.
Distance travelled
Displays the current distance for trip

1 since the reset.
The values of trip 1 page can be reset

by pressing SET/CLR for a few

seconds.

Trip 2 page:

Average speed

Display of average speed. The

measurement can be reset at any

time.
Average fuel consumption
Display of average consumption. The

measurement can be reset at any

time and starts with a default value.
Distance travelled
Displays the current distance for trip

2 since a certain reset.
The values of trip 2 page can be reset

by pressing SET/CLR for a few

seconds.

Digital speed page

Digital display of the instantaneous

speed.

Stop and Start time counter

A time counter calculates the time

spent in STOP mode during a

journey. It resets to zero every time

the ignition is switched on.

Compass page

Displays the geographic direction of

driving.

Blank page

No trip/fuel information is displayed.

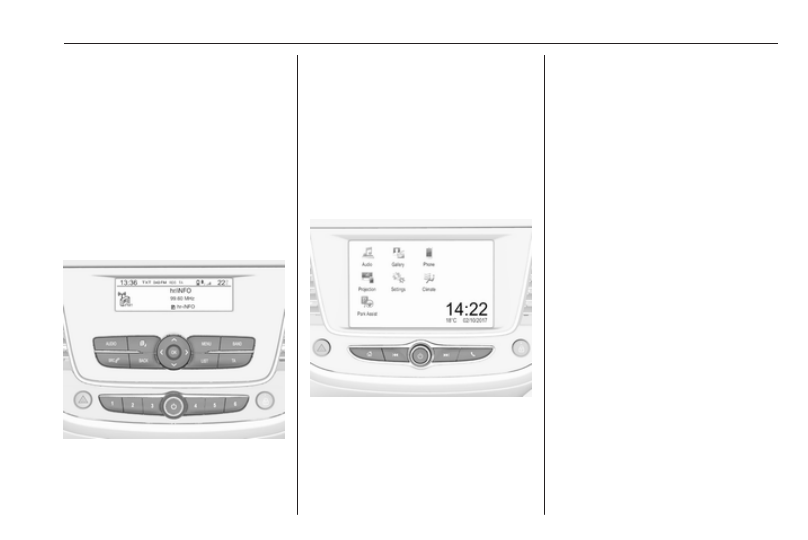

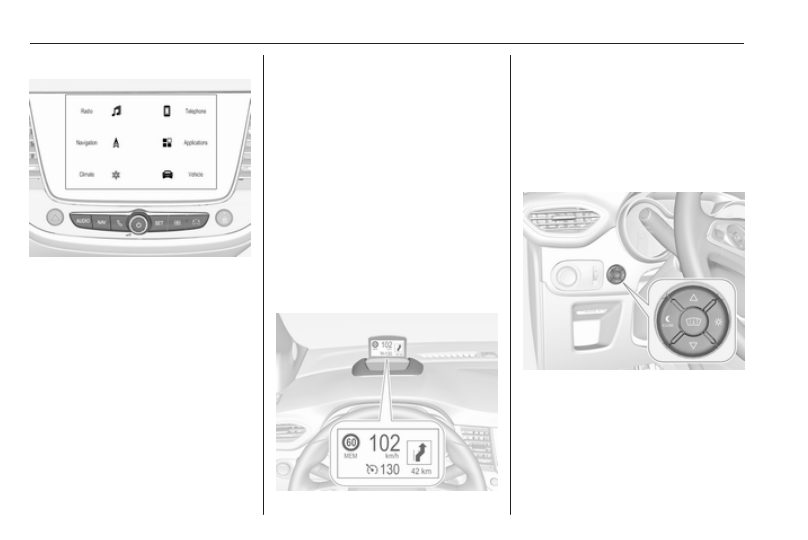

Info display

The Info-Display is located in the

instrument panel near the instrument

cluster.
Depending on the vehicle

configuration the vehicle has a

● Graphic-Info-Display

or

● 7'' Colour-Info-Display with

touchscreen functionality
or

● 8'' Colour-Info-Display with

touchscreen functionality

The Info displays can indicate:

● time 3 79
● outside temperature 3 78
● date 3 79
● Infotainment system, see

description in the Infotainment

manual

● indication of rear view camera

3

 173

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

99

● indication of panoramic view

system 3 170

● indication of parking assist

instructions 3 161

● navigation, see description in the

Infotainment manual

● vehicle and system messages

3

 102

● settings for vehicle

personalisation 3 103

Graphic-Info-Display

Press X to switch on the display.
Press MENU to select main menu

page.

Press èäåé to select a menu page.
Press OK to confirm a selection.
Press BACK to exit a menu without

changing a setting.

7'' Colour-Info-Display

Selecting menus and settings

Menus and settings are accessed via

the display.

Press X to switch on the display.
Press ; to display the homepage.
Touch required menu display icon

with the finger.
Touch a respective icon to confirm a

selection.

Touch 9 to return to the next higher

menu level.
Press ; to return to the homepage.
For further information, see

Infotainment manual.
Vehicle personalisation 3 103.

8'' Colour-Info-Display

Selecting menus and settings

There are three options to operate the

display:

● via buttons below the display
● by touching the touchscreen with

the finger

● via speech recognition

-------------------------------------------------------------------------------------------------------------------------------------------------------------

100

Instruments and controls

Button and touch operation

Press X to switch on the display.
Press SET to select system settings

(units, language, time and date).
Press Í to select vehicle settings or

driving functions.
Touch required menu display icon or

a function with the finger.
Confirm a required function or

selection by touching.
Touch r on the display to exit a

menu without changing a setting.
For further information, see

Infotainment manual.

Speech recognition

Description see Infotainment manual.
Vehicle personalisation 3 103.

Head-up display

The Head-up display (HUD) displays

driver information concerning the

instrument cluster onto a foldable

projection plane on the driver's side.
The information appears as an image

projected from a lense in the

instrument panel onto the projection

plane directly ahead in driver's view.

The image appears focused out

toward the front of the vehicle.

Head-up display views:

● vehicle speed
● speed limits by the traffic sign

assistant

● set speed of speed limiter
● set speed of cruise control
● navigation information.

Adjust position of Head-up

display image

1. Adjust the driver's seat.
2. Start the engine.
3. Press ä or å to centre the image.

It can only be adjusted up and

down, not side to side.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

101

9 Warning

If the head-up display image is too

bright or too high in your field of

view, it may obstruct your view

when it is dark outside. Be sure to

keep the head-up display image

dim and placed low in your field of

view.

Adjust brightness

The Head-up display image will

automatically dim and brighten to

compensate for outside lighting.

Brightness can also be adjusted

manually as needed:
Press e to brighten the display. Press

æ

 to dim the display.

The image can temporarily light up

depending on angel and position of

sunlight.

Switching off

Press æ and hold to turn the Head-up

display off.

Language

Preferred language can be set in

vehicle personalisation menu 3 103.

Units

Units can be changed in vehicle

personalisation menu 3 103.

Care of Head-up display

Clean the screen of the Head-up

display with a soft cloth sprayed with

glass cleaner. Wipe the lens gently,

then dry it.

System limitations

Head-up display may not operate

properly when:

● The lens in the instrument panel

is covered by objects or not

clean.

● Display brightness is too dim or

bright.

● Image is not adjusted to the

proper height.

● The driver wears polarized

sunglasses.

If the head-up image is not correct for

other reasons, contact a workshop.

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     4      5      6      7     ..
