Storage

The cover can also be stored behind

the rear seats.

Double load floor

The double load floor can be inserted

in the load compartment in two

positions:

● lower position above the spare

wheel well cover

● upper position interlocked with

the grab handle into back panel

trim

To remove, press the handle to

unlock the load floor and lift it up while

using the handle.
If mounted in the upper position, the

space between the load floor and the

spare wheel well cover can be used

as a storage compartment.
In this position, if the rear seat

backrests are folded forwards, an

almost completely flat load bay is

created.
In the upper position, the double load

floor is able to withstand a maximum

load of 100 kg. In the lower position,

the double load floor is able to

withstand the maximum permissible

load.

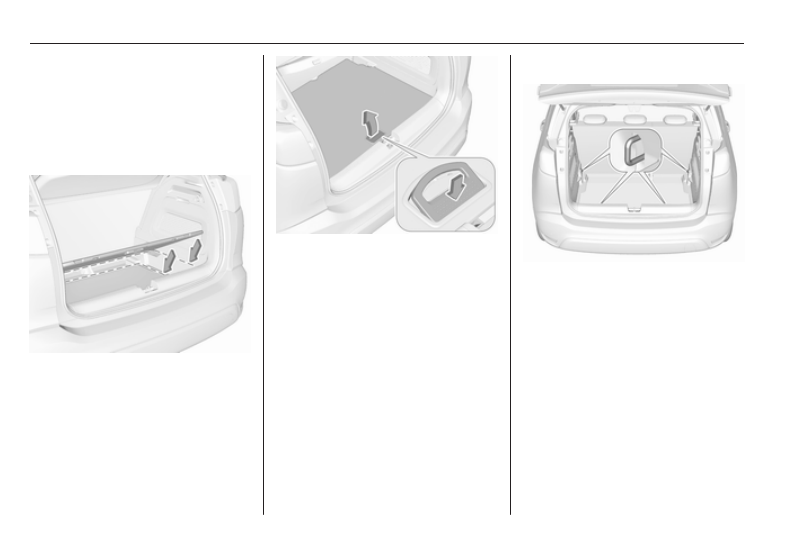

Lashing eyes

The lashing eyes are designed to

secure items against slippage, e.g.

using lashing straps or luggage net.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Storage

71

Warning triangle

Stow the warning triangle in the space

at the rear of the load compartment

and secure it with the velcro fastener.

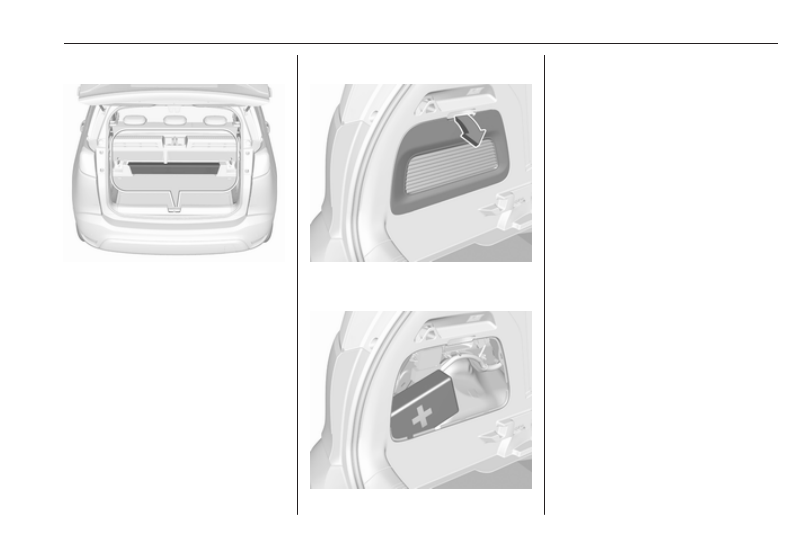

First aid kit

Fold down the cover on the left side

of the load compartment.

Stow the first aid kit in the stowage

compartment.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

72

Storage

Roof rack system

Roof rack

For safety reasons and to avoid

damage to the roof, the vehicle-

approved roof rack system is

recommended.
Follow the installation instructions

and remove the roof rack when not in

use.

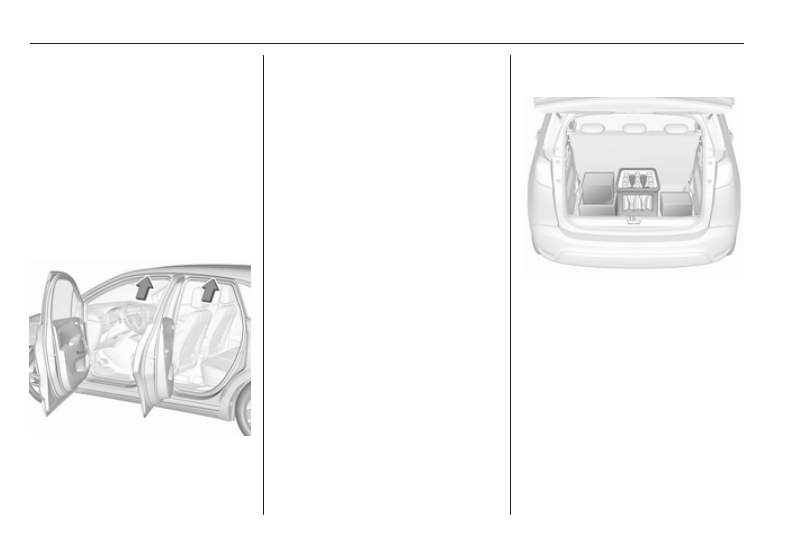

Mounting roof rack

Open all doors.
Mounting points are located in each

door frame of the vehicle body.

Detach the cover from each mounting

point and fasten the roof rack with the

attached screws.

Loading information

● Heavy objects in the load

compartment should be placed

against the seat backrests. Make

sure that the backrests are

securely engaged, i.e. no longer

showing the red marks on the

side near the release lever or on

the loop. If objects can be

stacked, heavier objects should

be placed at the bottom.

● Secure objects with lashing

straps attached to lashing eyes

3

 70.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Storage

73

● Secure loose objects in the load

compartment to prevent from

sliding.

● When transporting objects in the

load compartment, the backrests

of the rear seats must not be

angled forward.

● Do not allow the load to protrude

above the upper edge of the

backrests.

● Do not place any objects on the

load compartment cover or the

instrument panel, and do not

cover the sensor on top of the

instrument panel.

● The load must not obstruct the

operation of the pedals, parking

brake and gear selector, or

hinder the freedom of movement

of the driver. Do not place any

unsecured objects in the interior.

● Do not drive with an open load

compartment.

9 Warning

Always make sure that the load in

the vehicle is securely stowed.

Otherwise objects can be thrown

around inside the vehicle and

cause personal injury or damage

to the load or car.

● The payload is the difference

between the permitted gross

vehicle weight (see identification

plate 3 228) and the EC kerb

weight.
To calculate the payload, enter

the data for your vehicle in the

weights table at the front of this

manual.
The EC kerb weight includes

weights for the driver (68 kg),

luggage (7 kg) and all fluids (fuel

tank 90% full).
Optional equipment and

accessories increase the kerb

weight.

● Driving with a roof load increases

the sensitivity of the vehicle to

cross-winds and has a

detrimental effect on vehicle

handling due to the vehicle's

higher centre of gravity.

Distribute the load evenly and

secure it properly with retaining

straps. Adjust the tyre pressure

and vehicle speed according to

the load conditions. Check and

retighten the straps frequently.
Do not drive faster than

120 km/h.
The permissible roof load is

60 kg. The roof load is the

combined weight of the roof rack

and the load.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

74

Instruments and controls

Instruments and

controls

Controls ....................................... 75

Steering wheel adjustment ........ 75

Steering wheel controls ............. 75

Heated steering wheel ............... 75

Horn ........................................... 76

Windscreen wiper/washer ......... 76

Rear window wiper/washer ....... 78

Outside temperature .................. 78

Clock ......................................... 79

Power outlets ............................. 79

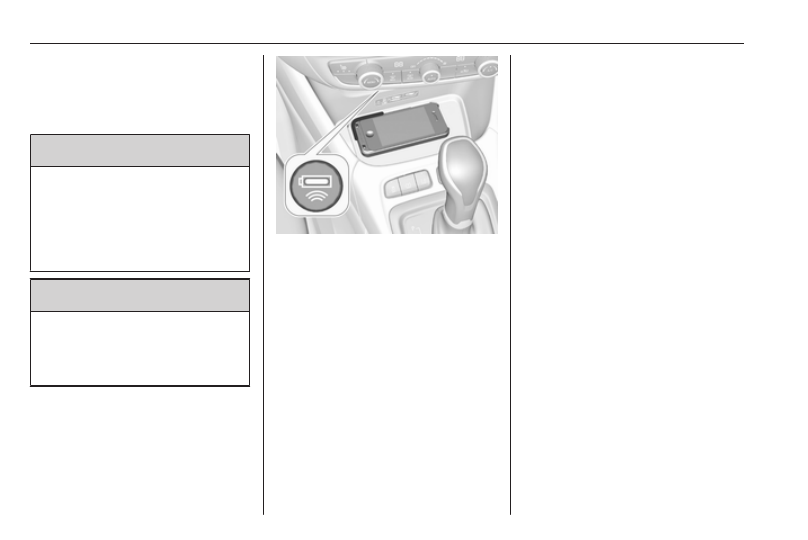

Inductive charging ..................... 80

Cigarette lighter ......................... 81

Ashtrays .................................... 81

Warning lights, gauges and indi‐

cators ........................................... 82

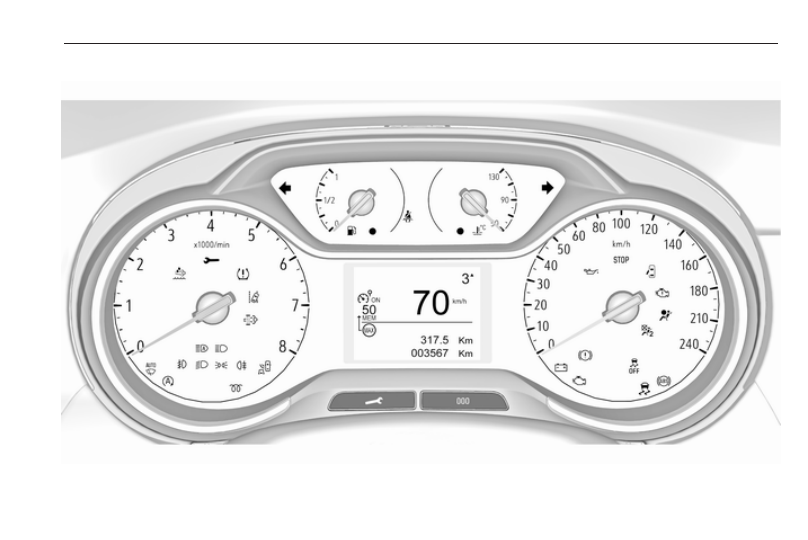

Instrument cluster ...................... 82

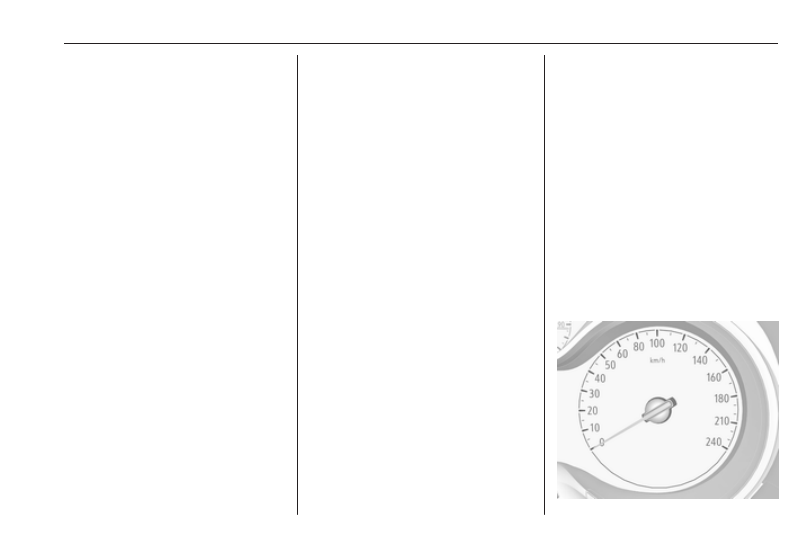

Speedometer ............................. 85

Odometer .................................. 86

Trip odometer ............................ 86

Tachometer ............................... 86

Fuel gauge ................................ 87

Fuel selector .............................. 87

Engine coolant temperature

gauge ....................................... 88

Engine oil level monitor ............. 89

Service display .......................... 89

Control indicators ...................... 90

Turn signal ................................. 90

Seat belt reminder ..................... 90

Airbag and belt tensioners ......... 91

Airbag deactivation .................... 91

Charging system ....................... 91

Malfunction indicator light .......... 91

Service vehicle soon ................. 92

Stop engine ............................... 92

System check ............................ 92

Brake and clutch system ........... 92

Antilock brake system (ABS) ..... 92

Gear shifting .............................. 93

Lane departure warning ............ 93

Electronic Stability Control and

Traction Control system ........... 93

Electronic Stability Control and

Traction Control system off ...... 93

Engine coolant temperature ...... 93

Preheating ................................. 94

Diesel particle filter .................... 94

AdBlue ....................................... 94

Deflation detection system ........ 94

Engine oil pressure .................... 94

Low fuel ..................................... 95

Autostop .................................... 95

Exterior light .............................. 95

High beam ................................. 95

High beam assist ....................... 95

Low beam .................................. 95

Fog light ..................................... 95

Rear fog light ............................. 95

Rain sensor ............................... 95

Cruise control ............................ 95

Speed limiter ............................. 96

Traffic sign assistant .................. 96

Door open .................................. 96

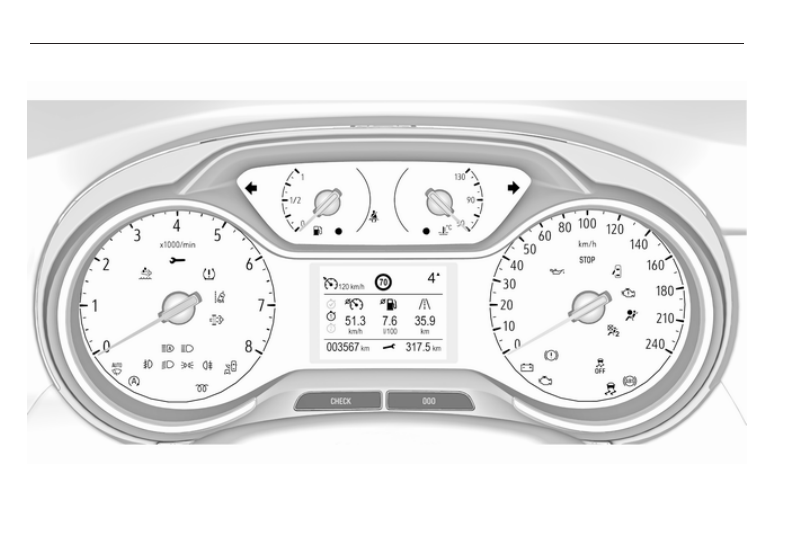

Information displays ..................... 96

Driver Information Centre .......... 96

Info display ................................ 98

Head-up display ...................... 100

Vehicle messages ...................... 102

Warning chimes ....................... 102

Battery voltage ........................ 102

Vehicle personalisation .............. 103
Telematics service ..................... 106

OnStar ..................................... 106

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

75

Controls

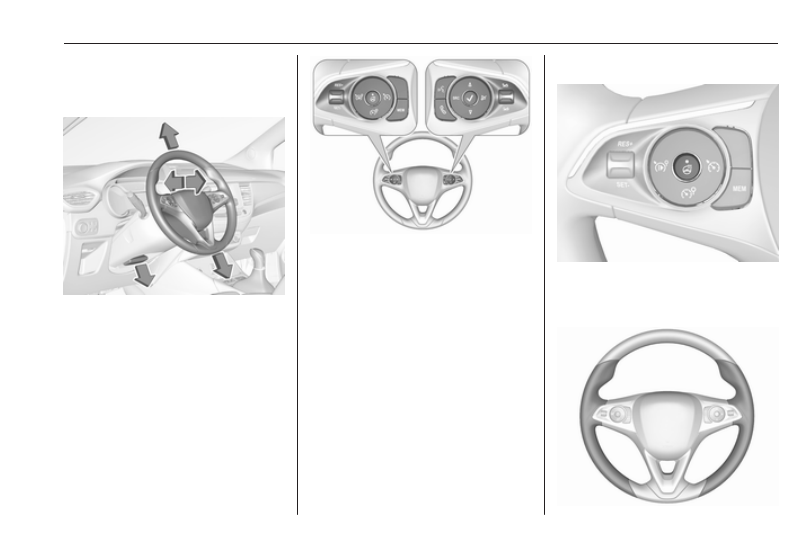

Steering wheel adjustment

Unlock lever, adjust steering wheel,

then engage lever and ensure it is

fully locked.
Do not adjust steering wheel unless

vehicle is stationary and steering

wheel lock has been released.

Steering wheel controls

Some driver assistance systems,

Infotainment system and a connected

mobile phone can be operated via the

controls on the steering wheel.

Driver assistance systems 3 152.
Further information is available in the

Infotainment manual.

Heated steering wheel

Activate heating by pressing *.

Activation is indicated by the LED in

the button.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

76

Instruments and controls

The recommended grip areas of the

steering wheel are heated quicker

and to a higher temperature than the

other areas.
Heating is operational when the

engine is running and during an

Autostop.
Stop-start system 3 138.

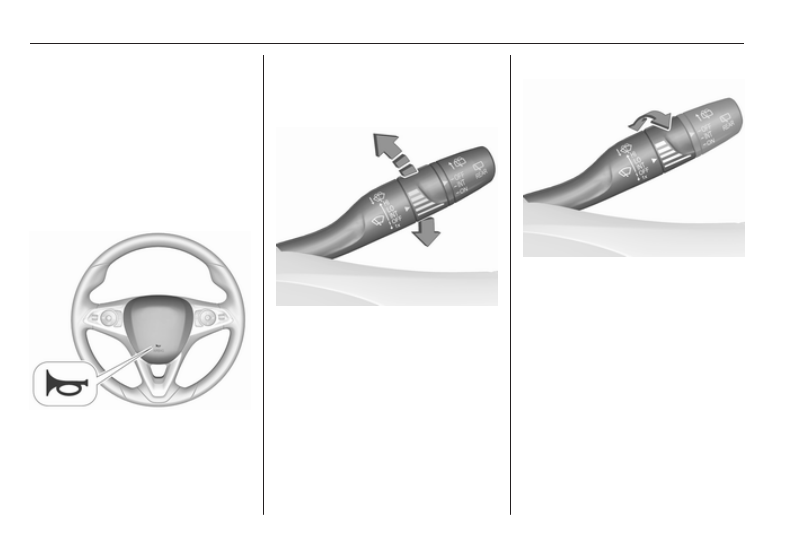

Horn

Press j.

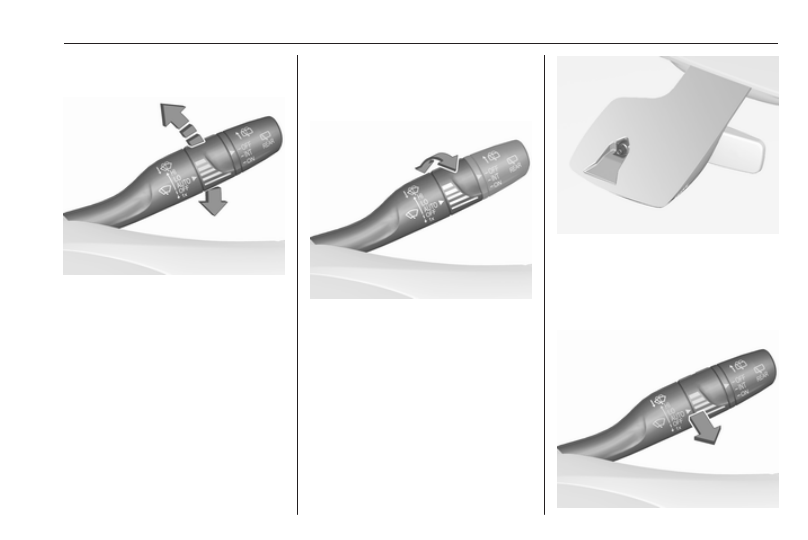

Windscreen wiper/washer

Windscreen wiper with adjustable

wiper interval

HI

: fast

LO : slow

INT : interval wiping

OFF : off
For a single wipe when the

windscreen wiper is off, press the

lever downwards to position 1x.
Do not use if the windscreen is frozen.
Switch off in car washes.

Adjustable wiper interval

Wiper lever in position INT.
Turn the adjuster wheel to adjust the

wiping frequency.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

77

Windscreen wiper with rain

sensor

HI

: fast

LO

: slow

AUTO : automatic wiping with rain

sensor

OFF : off
In AUTO position, the rain sensor

detects the amount of water on the

windscreen and automatically

regulates the frequency of the

windscreen wiper.
For a single wipe when the

windscreen wiper is off, press the

lever downwards to position 1x.
Do not use if the windscreen is frozen.

Switch off in car washes.

Adjustable sensitivity of the rain

sensor

Wiper lever in position AUTO.
Turn the adjuster wheel to adjust the

sensitivity of the rain sensor.

Keep the sensor free from dust, dirt

and ice.
Control indicator < 3 76.

Windscreen washer

-------------------------------------------------------------------------------------------------------------------------------------------------------------

78

Instruments and controls

Pull lever. Washer fluid is sprayed

onto the windscreen and the wiper

wipes a few times.
Washer fluid 3 189.

Rear window wiper/washer

Rear window wiper

Turn outer cap to activate the rear

window wiper:
OFF : off

INT : intermittent operation

ON : continuous operation
Do not use if the rear window is

frozen.

Switch off in car washes.
The rear window wiper comes on

automatically when the windscreen

wiper is switched on and reverse gear

is engaged.
Activation or deactivation of this

function can be changed in the

Vehicle personalisation menu 3 103.

Rear window washer

Push lever.
Washer fluid is sprayed onto the rear

window and the wiper wipes a few

times.

The rear window washer system is

deactivated when the fluid level is

low.
Washer fluid 3 189.

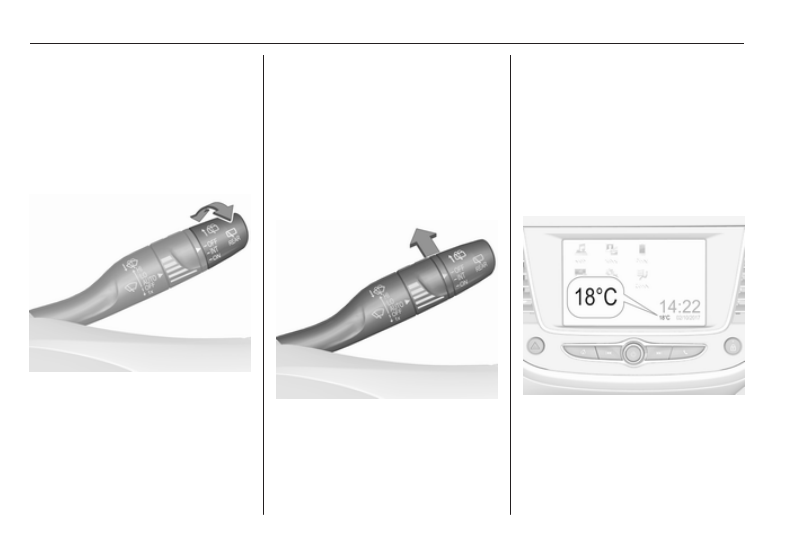

Outside temperature

A drop in temperature is indicated

immediately and a rise in temperature

after a time delay.

Illustration shows an example.
If outside temperature drops to 3 °C,

a warning message is displayed in the

Driver Information Centre.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

79

9 Warning

The road surface may already be

icy even though the display

indicates a few degrees above

0 °C.

Clock

Date and time are shown in the

Info-Display 3 98.
Setting date and time, see

Infotainment manual.

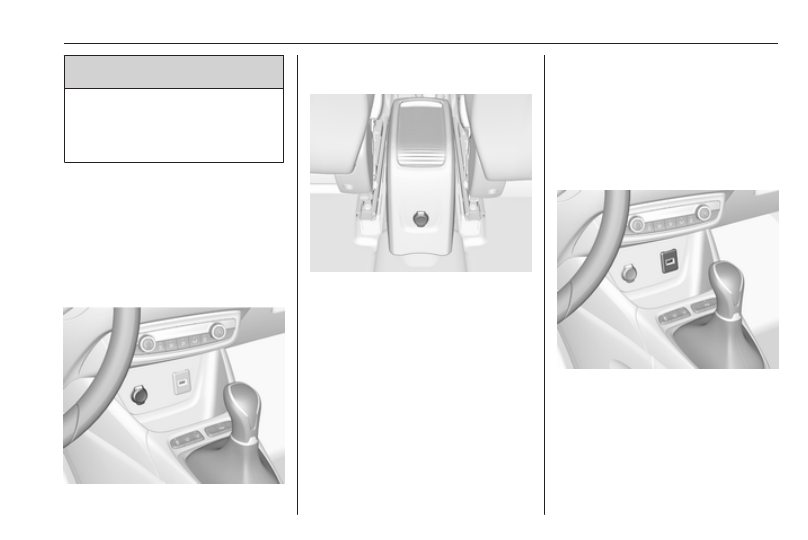

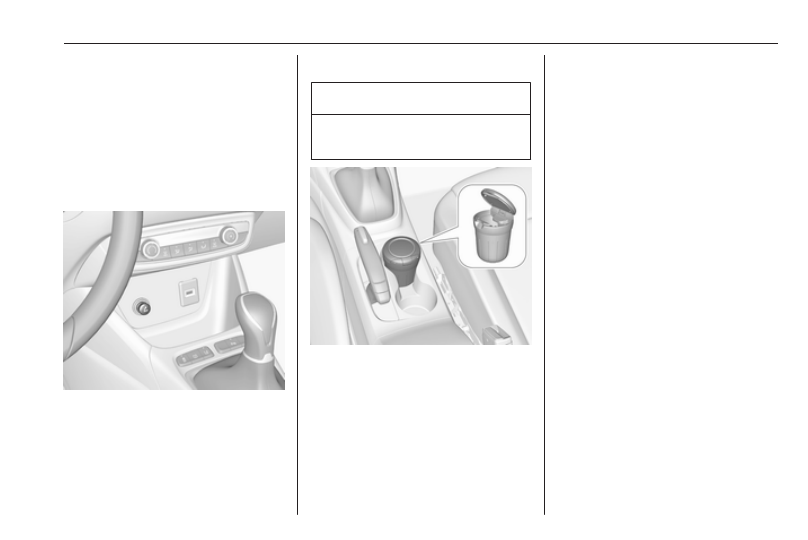

Power outlets

A 12 Volt power outlet is located in the

centre console.

Another power outlet is located in the

console between the front seats.
Do not exceed the maximum power

consumption of 120 watts.
With ignition off, the power outlet is

deactivated. Additionally, the power

outlet is deactivated in the event of

low vehicle battery voltage.
Electrical accessories that are

connected must comply with the

electromagnetic compatibility

requirements laid down in

DIN VDE 40 839.

Do not connect any current-delivering

accessories, e.g. electrical charging

devices or batteries.
Do not damage the outlets by using

unsuitable plugs.
Stop-start system 3 138.

USB charging port

One or two USB ports are located in

the centre console. Both USB ports

are prepared for charging devices.
When two USB ports are avilable, the

upper USB port can be used to

connect a phone for phone projection.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

80

Instruments and controls

Note

The sockets must always be kept

clean and dry.

Inductive charging

9 Warning

Inductive charging can affect the

operation of implanted

pacemakers or other medical

devices. If applicable, seek

medical advice before using the

inductive charging device.

9 Warning

Remove any metal objects from

the charging device before

charging a mobile phone, as these

objects could become very hot.

To charge a device, the ignition must

be switched on.
LED status on the charging device

(see arrow):

● Illuminates green:

- mobile phone with inductive

charging functionality was

recognised.

● Illuminates yellow:

- metall objects have been

detected in the charging area.

Remove objects to allow

charging.
- mobile phone was not placed

properly.

PMA or Qi compatible mobile phones

can be charged inductively.
A back cover with an integrated coil

(e.g. Samsung 4 and 5) or a jacket

(e.g. some iPhone models) may be

required to charge a mobile phone.
The mobile phone must be smaller

than 8 cm in width and 15 cm in length

to fit into the charging device.
Protective cover for the mobile phone

could have impact on the inductive

charging.
To charge a mobile phone:

1. Remove all objects from the

charging device.

2. Place the mobile phone with the

display facing upwards on the

charging device.

3. Ensure that the mobile phone is

located at the right bottom corner

of the charging device.

In the case that the yellow LED

illuminates:

1. Remove the mobile phone from

the charging device.

2. Rotate the mobile phone by 180°.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

81

3. Wait three seconds after the LED

has extinguished and place the

mobile phone on the charging

device again.

4. Ensure that the mobile phone is

located at the right bottom corner

of the charging device.

Cigarette lighter

The cigarette lighter is located is

located behind the storage cover

below the climate controls. Press

cover to open.
Press in cigarette lighter. It switches

off automatically once the element is

glowing. Pull out lighter.

Ashtrays

Caution

To be used only for ash and not for

combustible rubbish.

A portable ashtray can be placed in

the cupholders.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

82

Instruments and controls

Warning lights, gauges

and indicators

Instrument cluster

Depending on the version, two

instrument clusters are available:

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

83

Baselevel instrument cluster

-------------------------------------------------------------------------------------------------------------------------------------------------------------

84

Instruments and controls

Midlevel instrument cluster

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

85

Overview

O

Turn signal 3 90

X

Seat belt reminder 3 90

v

Airbag and belt tensioners

3

 91

V

Airbag deactivation 3 91

p

Charging system 3 91

Z

Malfunction indicator light

3

 91

H

Service vehicle soon 3 92

STOP Stop engine 3 92
J

System check 3 92

R

Brake and clutch system

3

 92

u

Antilock brake system (ABS)

3

 92

R

Gear shifting 3 93

)

Lane departure warning

3

 93

b

Electronic Stability Control

and Traction Control system

3

 93

a

Electronic Stability Control

and Traction Control system

off 3 93

!

Preheating 3 94

%

Diesel particle filter 3 94

Y

AdBlue 3 94

w

Deflation detection system

3

 94

I

Engine oil pressure 3 94
Engine oil level monitor

3

 89

Y

 o

Low fuel 3 95

W

 o Engine coolant temperature

high 3 93

D

Autostop 3 95

8

Exterior light 3 95

9

Low beam 3 95

C

High beam 3 95

f

High beam assist 3 95

>

Fog light 3 95

ø

Rear fog light 3 95

<

Rain sensor 3 95

B

Side blind spot alert 3 169

m

Cruise control 3 95

ß

Speed limiter 3 96

L

Traffic sign assistant 3 96

h

Door open 3 96

Speedometer

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     3      4      5      6     ..
