Storage

Loading information

● Heavy objects in the load

compartment should be placed

against the seat backrests.

Ensure the backrests are

securely engaged. If objects can

be stacked, the heavier objects

should be placed at the bottom.

● Secure objects with lashing

straps attached to the lashing

eyes 3 69.

● Secure loose objects in load

compartment to prevent sliding.

● When transporting objects in the

load compartment, the backrests

of the rear seats must not be

angled forward.

● Do not allow the load to protrude

above the upper edge of the

backrests.

● Do not place any objects on the

load compartment cover or the

instrument panel, and do not

cover the sensor on top of the

instrument panel.

● The load must not obstruct the

operation of the pedals, parking

brake and gear selector, or

hinder the freedom of movement

of the driver. Do not place any

unsecured objects in the interior.

● Do not drive with an open load

compartment.

9 Warning

Always make sure that the load in

the vehicle is securely stowed.

Otherwise objects can be thrown

around inside the vehicle and

cause personal injury or damage

to the load or vehicle.

● The payload is the difference

between the permitted gross

vehicle weight (see identification

plate 3 208) and the EC kerb

weight.
To calculate the payload, enter

the data for your vehicle in the

weights table at the front of this

manual.
The EC kerb weight includes

weights for the driver (68 kg),

luggage (7 kg) and all fluids (fuel

tank 90% full).
Optional equipment and

accessories increase the kerb

weight.

● Driving with a roof load increases

the sensitivity of the vehicle to

cross-winds and has a

detrimental effect on vehicle

handling due to the vehicle’s

higher centre of gravity.

Distribute the load evenly and

secure it properly with retaining

straps. Adjust the tyre pressure

and vehicle speed according to

the load conditions. Check and

retighten the straps frequently.
Do not drive faster than

120 km/h.

● The permissible roof load is

75 kg. The roof load is the

combined weight of the roof rack

and the load.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

71

Instruments and

controls

Controls ....................................... 72

Steering wheel adjustment ........ 72

Steering wheel controls ............. 72

Heated steering wheel ............... 72

Horn ........................................... 73

Windscreen wiper/washer ......... 73

Rear window wiper/washer ....... 75

Outside temperature .................. 75

Clock ......................................... 76

Power outlets ............................. 77

Warning lights, gauges and indi‐

cators ........................................... 78

Speedometer ............................. 78

Odometer .................................. 78

Trip odometer ............................ 78

Tachometer ............................... 79

Fuel gauge ................................ 79

Fuel selector .............................. 79

Engine coolant temperature

gauge ....................................... 80

Service display .......................... 80

Control indicators ...................... 81

Turn signal ................................. 84

Seat belt reminder ..................... 84

Airbag and belt tensioners ......... 84

Airbag deactivation .................... 84

Charging system ....................... 85

Malfunction indicator light .......... 85

Service vehicle soon ................. 85

Brake and clutch system ........... 85

Operate pedal ............................ 85

Antilock brake system (ABS) ..... 85

Upshift ....................................... 86

Descent control system ............. 86

Power steering .......................... 86

Lane departure warning ............ 86

Ultrasonic parking assist ........... 86

Electronic Stability Control off ... 86

Electronic Stability Control and

Traction Control system ........... 87

Traction Control system off ....... 87

Preheating ................................. 87

Diesel particle filter .................... 87

Tyre pressure monitoring

system ...................................... 87

Engine oil pressure .................... 87

Low fuel ..................................... 88

Immobiliser ................................ 88

Exterior light .............................. 88

High beam ................................. 88

Adaptive forward lighting ........... 88

Fog light ..................................... 89

Rear fog light ............................. 89

Cruise control ............................ 89

Vehicle detected ahead ............. 89

Bonnet open .............................. 89

Door open .................................. 89

Information displays ..................... 89

Driver Information Centre .......... 89

Graphic-Info-Display, Colour-

Info-Display .............................. 93

Vehicle messages ........................ 94

Warning chimes ......................... 96

Battery voltage .......................... 96

Trip computer ............................... 97
Vehicle personalisation .............. 100
OnStar ....................................... 103

-------------------------------------------------------------------------------------------------------------------------------------------------------------

72

Instruments and controls

Controls

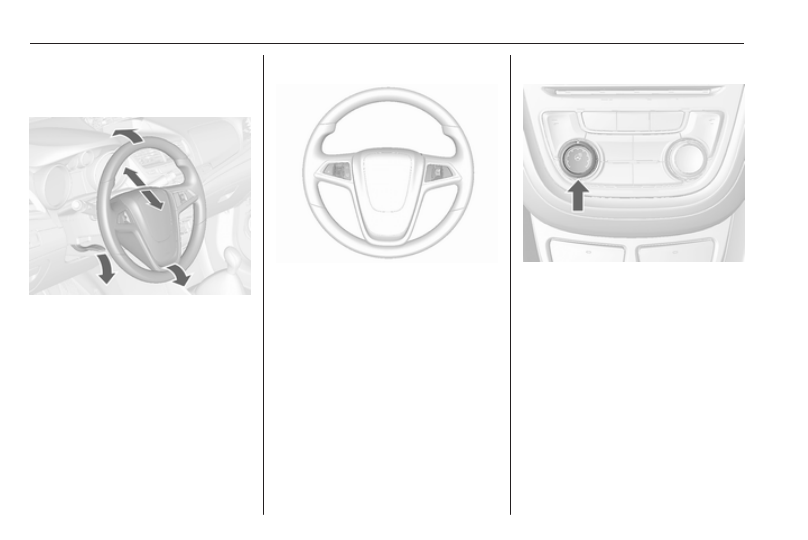

Steering wheel adjustment

Unlock lever, adjust steering wheel,

then engage lever and ensure it is

fully locked.
Do not adjust steering wheel unless

vehicle is stationary and steering

wheel lock has been released.

Steering wheel controls

The Infotainment system and the

cruise control can be operated via the

controls on the steering wheel.
Further information is available in the

Infotainment manual.
Cruise control 3 140

Heated steering wheel

Activate heating by pressing *.

Activation is indicated by the LED in

the button.
Heating is operational when the

engine is running.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

73

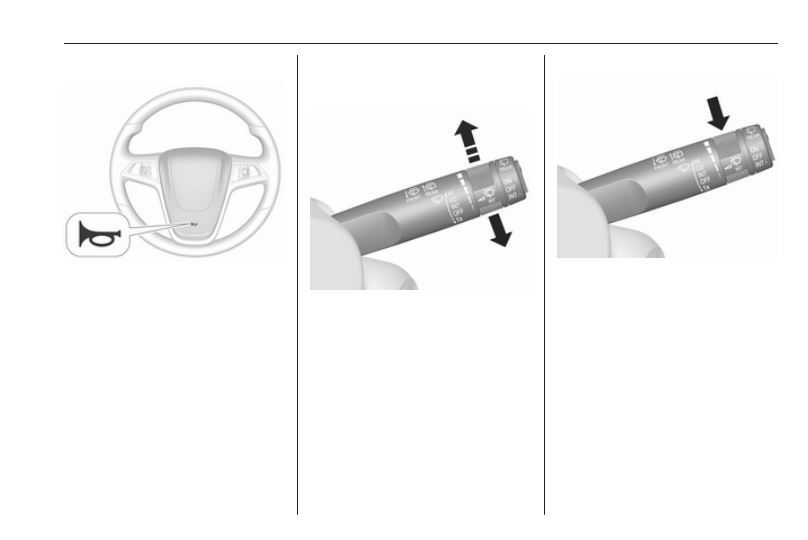

Horn

Press j.

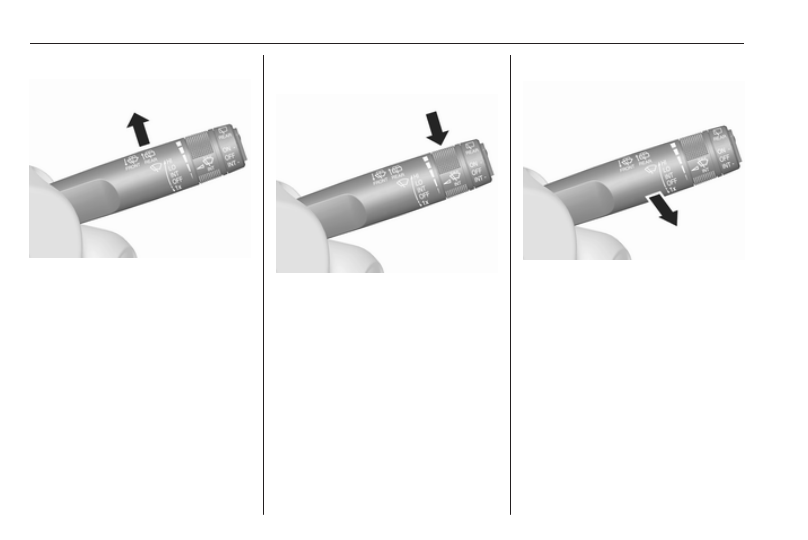

Windscreen wiper/washer

Windscreen wiper

HI

: fast

LO : slow

INT : interval wiping or automatic

wiping with rain sensor

OFF : off
For a single wipe when the

windscreen wiper is off, press the

lever down to position 1x.
Do not use if the windscreen is frozen.
Switch off in car washes.

Adjustable wiper interval

Wiper lever in position INT.
Turn the adjuster wheel to adjust the

desired wipe interval:
short interval

: turn adjuster

wheel upwards

long interval

: turn adjuster

wheel downwards

-------------------------------------------------------------------------------------------------------------------------------------------------------------

74

Instruments and controls

Automatic wiping with rain sensor

INT : automatic wiping with rain

sensor

The rain sensor detects the amount of

water on the windscreen and

automatically regulates the frequency

of the windscreen wiper.

Adjustable sensitivity of the rain

sensor

Turn the adjuster wheel to adjust the

sensitivity:
low sensitivity : turn adjuster

wheel downwards

high sensitivity : turn adjuster

wheel upwards

Keep the sensor free from dust, dirt

and ice.

Windscreen washer

Pull lever. Washer fluid is sprayed

onto the windscreen and the wiper

wipes a few times.
Washer fluid 3 168

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

75

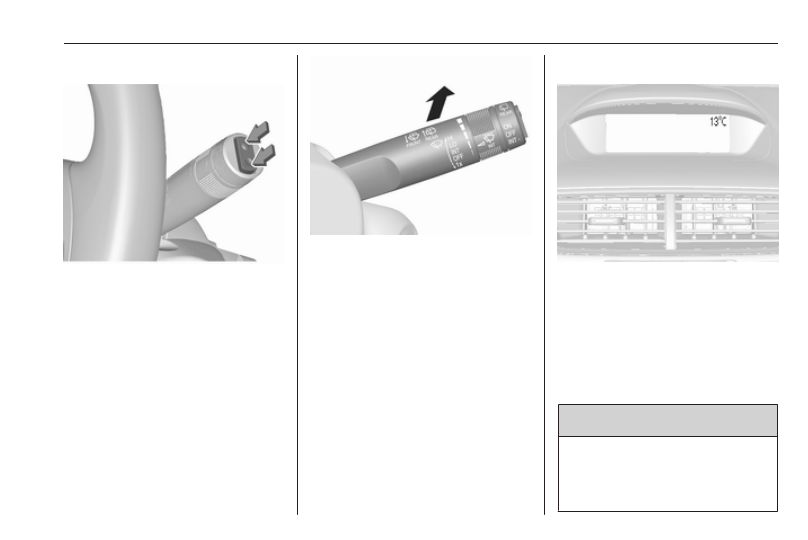

Rear window wiper/washer

Press the rocker switch to activate the

rear window wiper:
upper switch

: continuous

operation

lower switch

: intermittent

operation

middle position : off

Push lever. Washer fluid is sprayed

onto the rear window and the wiper

wipes a few times.
Do not use if the rear window is

frozen.
Switch off in car washes.
The rear window wiper comes on

automatically when the windscreen

wiper is switched on and reverse gear

is engaged.
Activation or deactivation of this

function can be changed in the menu

Settings in the Info-Display.
Washer fluid 3 168
Vehicle personalisation 3 100.

Outside temperature

A drop in temperature is indicated

immediately and a rise in temperature

after a time delay.
If outside temperature drops to

0.5 °C, a warning message is

displayed in the Driver Information

Centre with Uplevel-Display or

Uplevel-Combi-Display.

9 Warning

The road surface may already be

icy even though the display

indicates a few degrees above

0 °C.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

76

Instruments and controls

Clock

Date and time are shown in the

Info-Display.

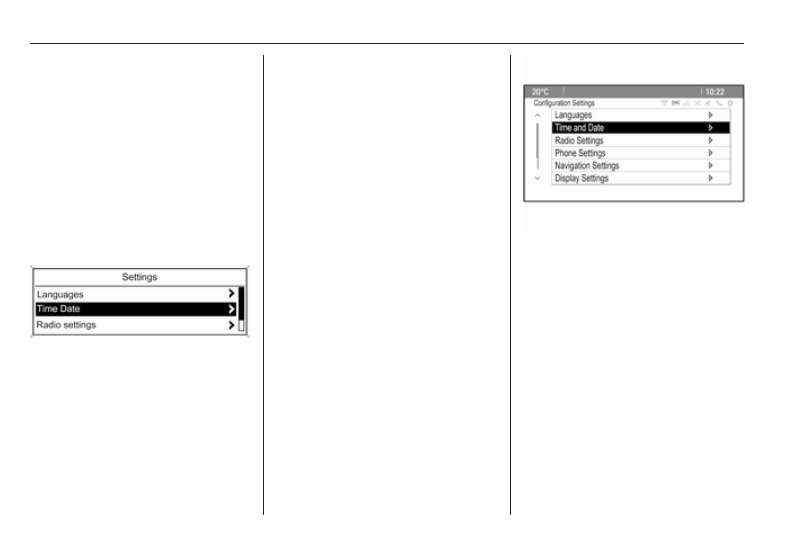

Set date and time

CD 400
Press CONFIG. The menu Settings is

displayed.
Select Time Date.

Selectable setting options:

● Set time: Changes the time

shown on the display.

● Set date: Changes the date

shown on the display.

● Set time format: Changes

indication of hours between 12 h

and 24 h.

● Set date format: Changes

indication of date between MM/

DD/YYYY and DD/MM/YYYY.

● Display clock: Switches on/off

indication of time on the display.

● RDS clock synchronization: The

RDS signal of most VHF

transmitters automatically sets

the time. RDS time

synchronisation can take a few

minutes. Some transmitters do

not send a correct time signal. In

such cases, it is recommended to

switch off automatic time

synchronisation.

Vehicle personalisation 3 100.

Time and date settings

CD 600/Navi 950
Press CONFIG and then select the

Time and Date menu item to display

the respective submenu.

Note

If RDS Auto Time Adjust is activated,

time and date are automatically set

by the system.
See Infotainment manual for further

information.

Set time

To adjust the time settings, select the

Set Time menu item. Turn the

multifunction knob to adjust the first

setting.
Press the multifunction knob to

confirm the input. The coloured

background moves to the next

setting.
Adjust all settings.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

77

Set date

To adjust the time settings, select the

Set Date menu item. Turn the

multifunction knob to adjust the first

setting.
Press the multifunction knob to

confirm the input. The coloured

background moves to the next

setting.
Adjust all settings.

Time format

To choose the desired time format,

select 12 hr / 24 hr Format. Activate

12 Hour or 24 Hour.
Vehicle personalisation 3 100.

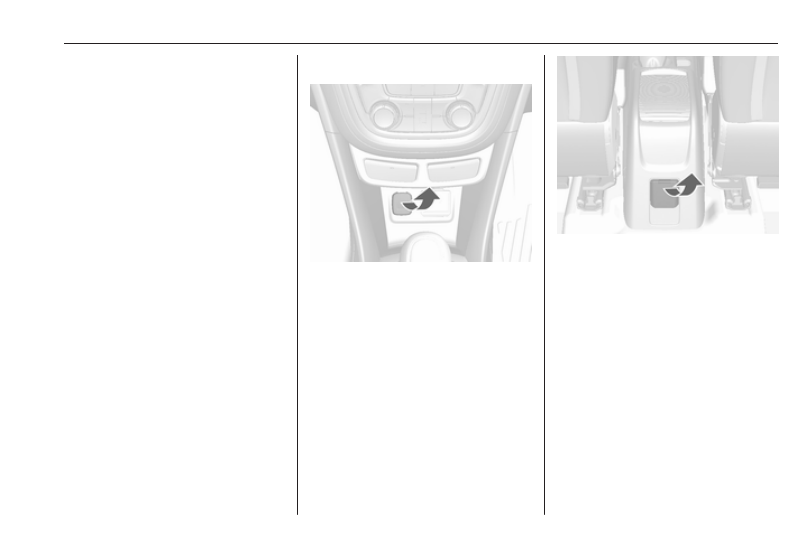

Power outlets

A 12 Volt power outlet is located in the

front console.
A further 12 Volt power outlet may be

located in the rear centre console.
Do not exceed the maximum power

consumption of 120 watts.
Depending on equipment, a 230 Volt

power outlet is located in the rear

centre console.

Do not exceed the maximum power

consumption of 150 watts.
With ignition off the power outlet is

deactivated.
Additionally the power outlet is

deactivated in the event of low battery

voltage.
Electrical accessories that are

connected must comply with the

electromagnetic compatibility

requirements laid down in

DIN VDE 40 839.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

78

Instruments and controls

Caution

Do not connect any current

delivering accessories, e.g.

electrical charging devices or

batteries.
Do not damage the outlets by

using unsuitable plugs.

Warning lights, gauges

and indicators

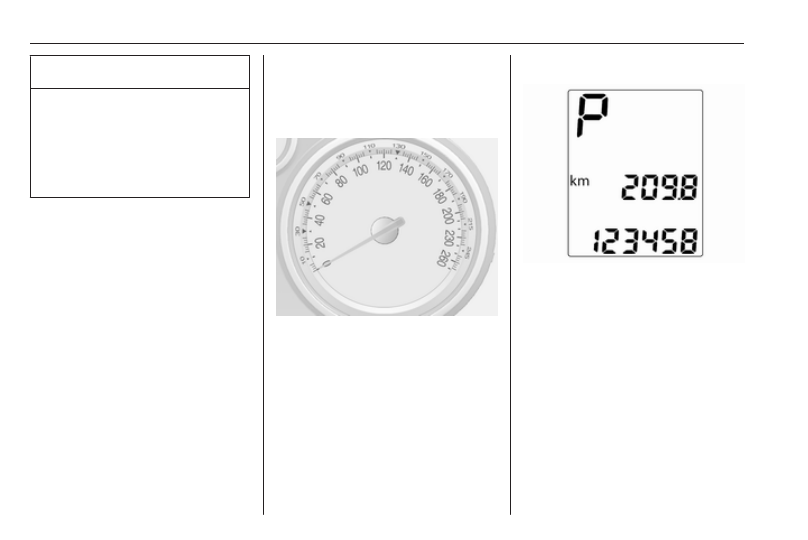

Speedometer

Indicates vehicle speed.

Odometer

The bottom line displays the recorded

distance.

Trip odometer

The top line displays the recorded

distance since the last reset.
To reset, press SET/CLR on the turn

signal lever for a few seconds

3

 89.

Trip odometer counts up to a distance

of 2000 km then resets to 0.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

79

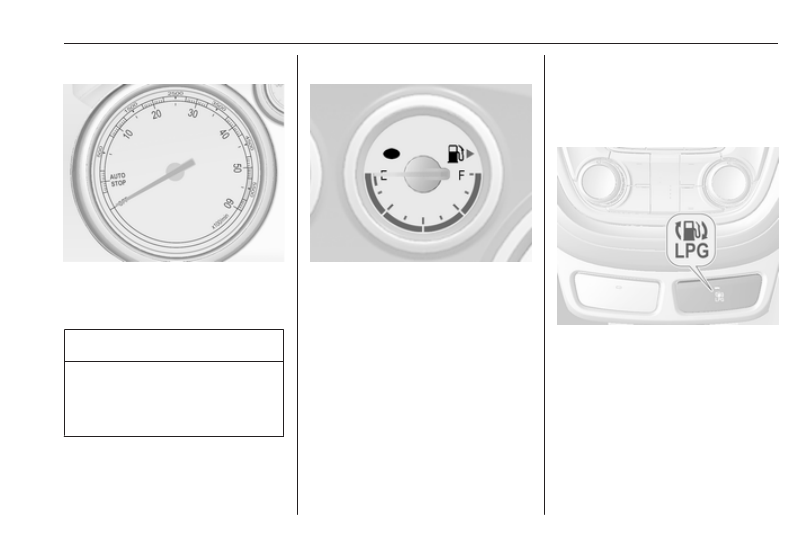

Tachometer

Displays the engine speed.
Drive in a low engine speed range for

each gear as much as possible.

Caution

If the needle is in the red warning

zone, the maximum permitted

engine speed is exceeded. Engine

at risk.

Fuel gauge

Displays the level in the fuel or gas

tank depending on the operation

mode.
The arrow indicates the vehicle side

where the fuel filler flap is located.
Control indicator i illuminates if the

level in the tank is low. Refuel

immediately if it flashes.
During liquid gas operation, the

system automatically switches over to

petrol operation when gas tanks are

empty 3 79.
Never run fuel tank dry.

Because of the fuel remaining in the

tank, the top-up quantity may be less

than the specified tank capacity.

Fuel selector

Press LPG to switch between petrol

and liquid gas operation. The LED in

the button shows the current

operating mode.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

80

Instruments and controls

LED off : petrol operation

LED

flashes

: checking conditions for

fuel transition to liquid

gas operation.

Illuminates if conditions

are fulfilled.

LED illu‐

minates

: liquid gas operation

LED

flashes

five

times

and

extin‐

guishes

: liquid gas tank is empty

or failure in liquid gas

system. A message is

displayed in the Driver

Information Centre.

As soon as the liquid gas tank is

empty, petrol operation is

automatically engaged until the

ignition is switched off.
Fuel for liquid gas operation 3 153.

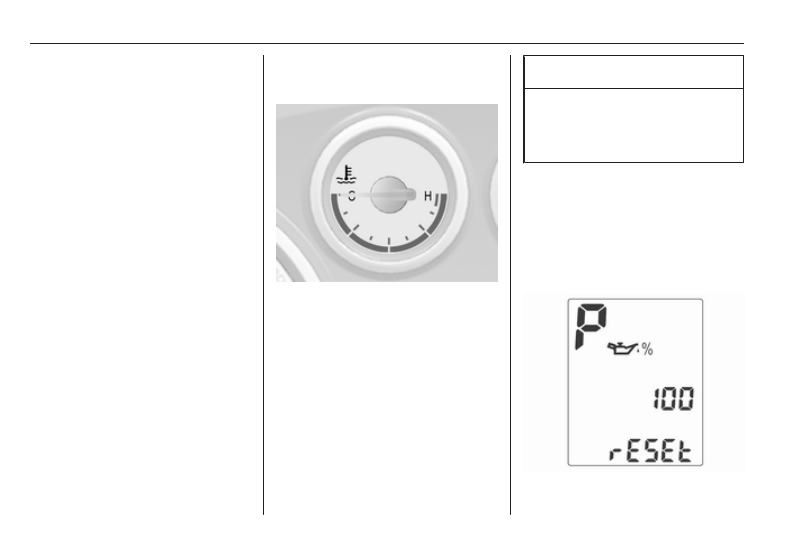

Engine coolant temperature

gauge

Displays the coolant temperature.
left area : engine operating

temperature not yet

reached

central

area

: normal operating

temperature

right area : temperature too high

Caution

If engine coolant temperature is

too high, stop vehicle, switch off

engine. Danger to engine. Check

coolant level.

Service display

The engine oil life system lets you

know when to change the engine oil

and filter. Based on driving

conditions, the interval at which an

engine oil and filter change will be

indicated can vary considerably.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

81

In the Uplevel-Display and Uplevel-

Combi-Display, the remaining oil life

duration is displayed in the Vehicle

Information Menu.
In the Midlevel-Display, the remaining

engine oil life duration is displayed by

control indicator I, therefore the

ignition must be switched on, with the

engine off.

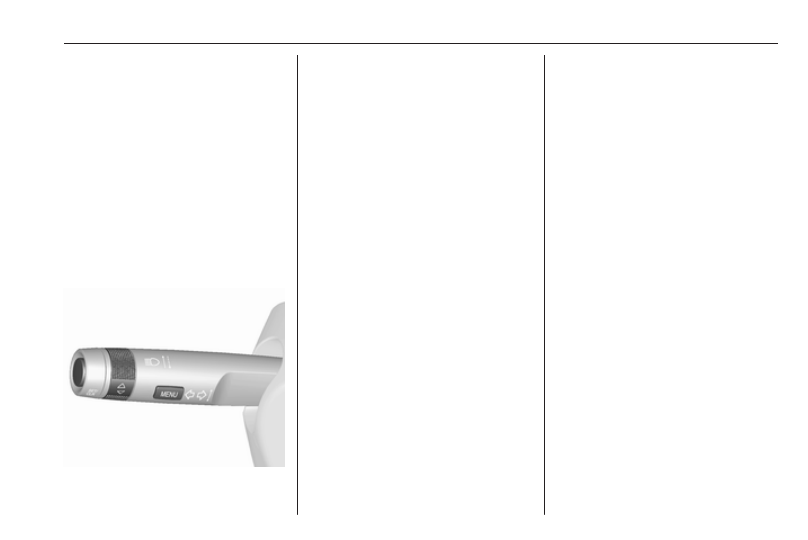

The menu and function can be

selected via the buttons on the turn

signal lever.
To display the remaining engine oil

life duration:

Press MENU to select the Vehicle

Information Menu.

Turn the adjuster wheel to select

Remaining Oil Life.
The system must be reset every time

the engine oil is changed to ensure

proper functionality. Seek the

assistance of a workshop.
Press SET/CLR to reset. Therefore

the ignition must be switched on, with

the engine off.
When the system has calculated that

engine oil life has been diminished,

Change Engine Oil Soon or a warning

code appears in the Driver

Information Centre. Have engine oil

and filter changed by a workshop

within one week or 500 km

(whichever occurs first).
Driver Information Centre 3 89.
Service information 3 205.

Control indicators

The control indicators described are

not present in all vehicles. The

description applies to all instrument

versions. Depending on the

equipment, the position of the control

indicators may vary. When the

ignition is switched on, most control

indicators will illuminate briefly as a

functionality test.
The control indicator colours mean:
red

: danger, important reminder

yellow : warning, information, fault

green : confirmation of activation

blue

: confirmation of activation

white : confirmation of activation

-------------------------------------------------------------------------------------------------------------------------------------------------------------

82

Instruments and controls

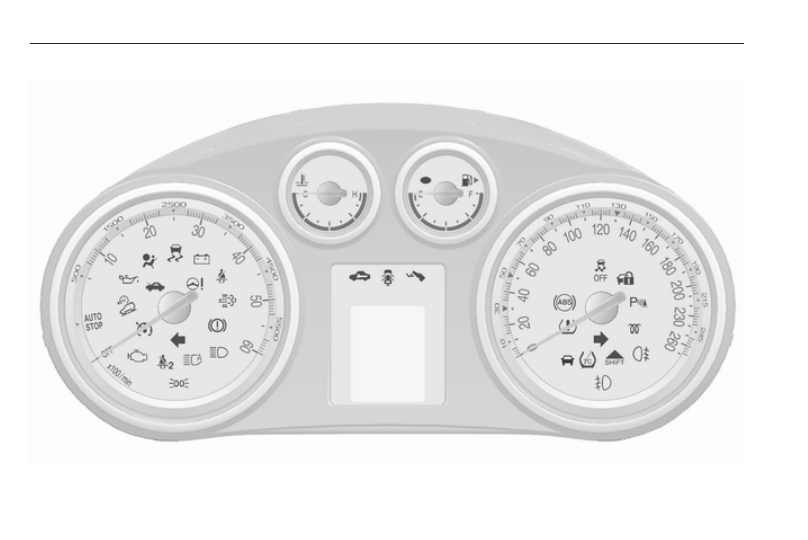

Control indicators in the instrument cluster

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

83

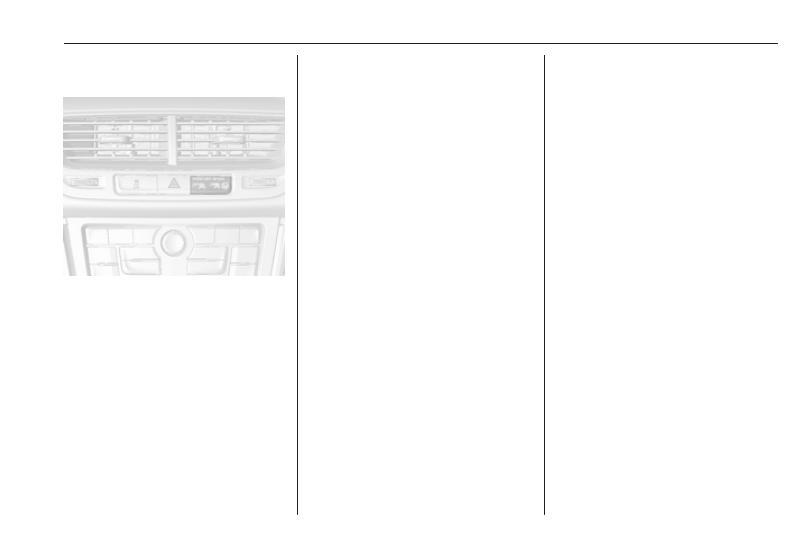

Control indicators in the centre

console

Overview

O

Turn signal 3 84

X

 /

k /

Seat belt reminder 3 84

v

Airbag and belt tensioners

3

 84

V

 /

*

Airbag deactivation 3 84

p

Charging system 3 85

Z

Malfunction indicator light

3

 85

g

Service vehicle soon 3 85

R

Brake and clutch system

3

 85

-

Operate pedal 3 85

u

Antilock brake system (ABS)

3

 85

[

Upshift 3 86

u

Descent control system

3

 86

c

Power steering 3 86

)

Lane departure warning

3

 86

r

Ultrasonic parking assist

3

 86

n

Electronic Stability Control off

3

 86

b

Electronic Stability Control

and Traction Control system

3

 87

k

Traction Control system off

3

 87

!

Preheating 3 87

%

Diesel particle filter 3 87

w

Tyre pressure monitoring

system 3 87

I

Engine oil pressure 3 87

i

Low fuel 3 88

d

Immobiliser 3 88

8

Exterior light 3 88

C

High beam 3 88

f

Adaptive forward lighting

3

 88

>

Fog light 3 89

r

Rear fog light 3 89

m

Cruise control 3 89

A

Vehicle detected ahead

3

 89

-------------------------------------------------------------------------------------------------------------------------------------------------------------

84

Instruments and controls

/

Bonnet open 3 89

h

Door open 3 89

Turn signal

O

 illuminates or flashes green.

Illuminates briefly

The parking lights are switched on.

Flashes

A turn signal or the hazard warning

flashers are activated.
Rapid flashing: failure of a turn signal

light or associated fuse, failure of turn

signal light on trailer.
Bulb replacement 3 172, Fuses

3

 179.

Turn signals 3 113.

Seat belt reminder

X

 for driver's seat illuminates or

flashes red.
k for front passenger seat illuminates

or flashes red when seat is occupied.

Y

 for rear seats illuminate in the

Driver Information Centre.
When the ignition is switched on, the

control indicator illuminates for

several seconds.
If seat belt becomes unfastened

when the vehicle is moving, the

control indicator illuminates.
If the seat belt is fastened, the control

indicator extinguishes.
Three-point seat belts 3 41.

Airbag and belt tensioners

v

 illuminates red.

When the ignition is switched on, the

control indicator illuminates for a few

seconds. If it does not illuminate,

does not go out after a few seconds

or illuminates whilst driving, there is a

fault in the airbag system. Seek the

assistance of a workshop. The

airbags and belt pretensioners may

fail to trigger in the event of an

accident.
Deployment of the belt pretensioners

or airbags is indicated by continuous

illumination of v.

9 Warning

Have the cause of the fault

remedied immediately by a

workshop.

Belt pretensioners, airbag system

3

 40, 3 43.

Airbag deactivation

V

 illuminates yellow.

The front passenger airbag is

activated.
* illuminates yellow.
The front passenger airbag is

deactivated 3 48.

9 Danger

Risk of fatal injury for a child using

a child restraint system together

with activated front passenger

airbag.
Risk of fatal injury for an adult

person with deactivated front

passenger airbag.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

85

Charging system

p

 illuminates red.

Illuminates when the ignition is

switched on and extinguishes shortly

after the engine starts.

Illuminates when the engine is

running

Stop, switch off engine. Battery is not

charging. Engine cooling may be

interrupted. The brake servo unit may

cease to be effective. Seek the

assistance of a workshop.

Malfunction indicator light

Z

 illuminates or flashes yellow.

Illuminates when the ignition is

switched on and extinguishes shortly

after the engine starts.

Illuminates when the engine is

running

Fault in the emission control system.

The permitted emission limits may be

exceeded. Seek the assistance of a

workshop immediately.

Flashes when the engine is

running

Fault that could lead to catalytic

converter damage. Ease up on the

accelerator until the flashing stops.

Seek the assistance of a workshop

immediately.

Service vehicle soon

g

 illuminates yellow.

Additionally a warning message or a

warning code is displayed.
The vehicle needs a service.
Seek the assistance of a workshop.
Vehicle messages 3 94.

Brake and clutch system

R

 illuminates red.

The brake and clutch fluid level is too

low, when manual parking brake is

not applied 3 169.

9 Warning

Stop. Do not continue your

journey. Consult a workshop.

Illuminates when the manual parking

brake is applied and ignition is

switched on 3 136.

Operate pedal

-

 illuminates or flashes yellow.

Illuminates

Clutch pedal must be depressed to

start the engine in Autostop mode.

Stop-start system 3 127.

Flashes

Clutch pedal must be depressed for a

main start of the engine 3 17, 3 126.

Antilock brake system

(ABS)

u

 illuminates yellow.

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     3      4      5      6     ..
