86

Instruments and controls

Illuminates for a few seconds after the

ignition is switched on. The system is

ready for operation when the control

indicator extinguishes.
If the control indicator does not

extinguish after a few seconds, or if it

illuminates while driving, there is a

fault in the ABS. The brake system

remains operational but without ABS

regulation.
Antilock brake system 3 136.

Upshift

[

 illuminates green or is shown as a

symbol in the Driver Information

Centre with Uplevel-Display or

Uplevel-Combi-Display when

upshifting is recommended for fuel

saving reasons.
ECO drive assistant 3 97.

Descent control system

u

 illuminates or flashes green.

Descent control system 3 139

Illuminates

The system is ready for operation.

Flashes

The system is activated.

Power steering

c

 illuminates yellow.

It illuminates when the ignition is

switched on and extinguishes shortly

after the engine starts.
If the indicator does not extinguish

after a few seconds, or if it illuminates

while driving, there is a failure in the

power steering system.
Seek the assistance of a workshop.

Lane departure warning

)

 illuminates green or yellow or

flashes yellow.

Illuminates green

System is switched on and ready to

operate.

Illuminates yellow

Failure in the system. Seek the

assistance of a workshop.

Flashes yellow

System recognises an unintended

lane change.

Ultrasonic parking assist

r illuminates yellow.
Fault in system
or
Fault due to sensors that are dirty or

covered by ice or snow
or
Interference due to external sources

of ultrasound. Once the source of

interference is removed, the system

will operate normally.
Have the cause of the fault in the

system remedied by a workshop.
Ultrasonic parking assist 3 144.

Electronic Stability Control

off

n

 illuminates yellow.

The system is deactivated.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

87

Electronic Stability Control

and Traction Control system

b

 illuminates or flashes yellow.

Illuminates

A fault in the system is present.

Continued driving is possible. Driving

stability, however, may deteriorate

depending on road surface

conditions.
Have the cause of the fault remedied

by a workshop.

Flashes

The system is actively engaged.

Engine output may be reduced and

the vehicle may be braked

automatically to a small degree.
Electronic Stability Control 3 138,

Traction Control system 3 137.

Traction Control system off

k

 illuminates yellow.

The system is deactivated.

Preheating

!

 illuminates yellow.

Preheating of diesel engine is

activated. Only activates when

outside temperature is low.

Diesel particle filter

%

 illuminates or flashes yellow.

The diesel particle filter requires

cleaning.
Continue driving until %

extinguishes. If possible, do not allow

engine speed to drop below

2000 rpm.

Illuminates

The diesel particle filter is full. Start

cleaning process as soon as

possible.

Flashes

The maximum filling level of the filter

is reached. Start cleaning process

immediately to avoid damage to the

engine.
Diesel particle filter 3 130, Stop-start

system 3 127.

Tyre pressure monitoring

system

w illuminates or flashes yellow.

Illuminates

Tyre pressure loss. Stop immediately

and check tyre pressure.

Flashes

Fault in system or tyre without

pressure sensor mounted (e.g. spare

wheel). After 60-90 seconds the

control indicator illuminates

continuously. Consult a workshop.
Tyre pressure monitor system

3

 186.

Engine oil pressure

I

 illuminates red.

Illuminates when the ignition is

switched on and extinguishes shortly

after the engine starts.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

88

Instruments and controls

Illuminates when the engine is

running

Caution

Engine lubrication may be

interrupted. This may result in

damage to the engine and/or

locking of the drive wheels.

1. Depress clutch.
2. Select neutral gear, set selector

lever to N.

3. Move out of the flow of traffic as

quickly as possible without

impeding other vehicles.

4. Switch off ignition.

9 Warning

When the engine is off,

considerably more force is needed

to brake and steer. During an

Autostop the brake servo unit will

still be operational.

Do not remove key until vehicle is

stationary, otherwise the steering

wheel lock could engage

unexpectedly.

Check oil level before seeking the

assistance of a workshop 3 166.

Low fuel

i

 illuminates or flashes yellow.

Illuminates

Level in fuel tank is too low.

Flashes

Fuel used up. Refuel immediately.

Never run the tank dry.
Refuelling 3 155.
Catalytic converter 3 131.
Bleeding the diesel fuel system

3

 171.

Immobiliser

d

 flashes yellow.

Fault in the immobiliser system. The

engine cannot be started.

Have the cause of the fault remedied

by a repairer.

Exterior light

8

 illuminates green.

The exterior lights are on 3 107.

High beam

C illuminates blue.
Illuminates when high beam is on or

during headlight flash 3 108, or when

high beam is on with high beam

assist, adaptive forward lighting

3

 110.

Adaptive forward lighting

f

 illuminates or flashes yellow.

Illuminates

The adaptive forward lighting system

needs a service.
Seek the assistance of a workshop.
Adaptive forward lighting 3 110.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

89

Flashes

System switched to symmetrical low

beam.
Control indicator f flashes for approx.

4 seconds after the ignition is

switched on as a reminder that the

system has been activated 3 109.
Automatic light control 3 108.

Fog light

>

 illuminates green.

The front fog lights are on 3 113.

Rear fog light

r

 illuminates yellow.

The rear fog light is on 3 113.

Cruise control

m

 illuminates white or green.

Illuminates white

The system is on.

Illuminates green

Cruise control is active.

Cruise control 3 140.

Vehicle detected ahead

A

 illuminates green.

A vehicle ahead is detected in the

same lane.
Forward collision alert 3 142.

Bonnet open

/

 illuminates when the bonnet is

open on vehicles with stop-start

system.
Stop-start system 3 127.

Door open

h

 illuminates red.

A door or the tailgate is open.

Information displays

Driver Information Centre

The Driver Information Centre is

located in the instrument cluster

between speedometer and

tachometer. It is available as

Midlevel-Display, Uplevel-Display or

Uplevel-Combi-Display.

Midlevel-Display indicates:

● overall odometer
● trip odometer
● some control indicators
● vehicle information

-------------------------------------------------------------------------------------------------------------------------------------------------------------

90

Instruments and controls

● trip/fuel information
● vehicle messages, displayed as

code numbers 3 94

In the Uplevel-Display the following

main menus can be selected by

pressing MENU on the turn signal

lever:

● Vehicle Information Menu
● Trip/Fuel Information Menu

In the Uplevel-Combi-Display, menu

pages can be selected by pressing

MENU on the turn signal lever. Menu

symbols are indicated in the top line

of the display:

● X Vehicle Information Menu
● W Trip/Fuel Information Menu
● s ECO Information Menu

Some of the displayed functions differ

when the vehicle is being driven or at

a standstill. Some functions are only

available when the vehicle is being

driven.
Vehicle personalisation 3 100.

Memorised settings 3 22.

Selecting menus and functions

The menus and functions can be

selected via the buttons on the turn

signal lever.

Press MENU to switch between the

menus or to return from a submenu to

the next higher menu level.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

91

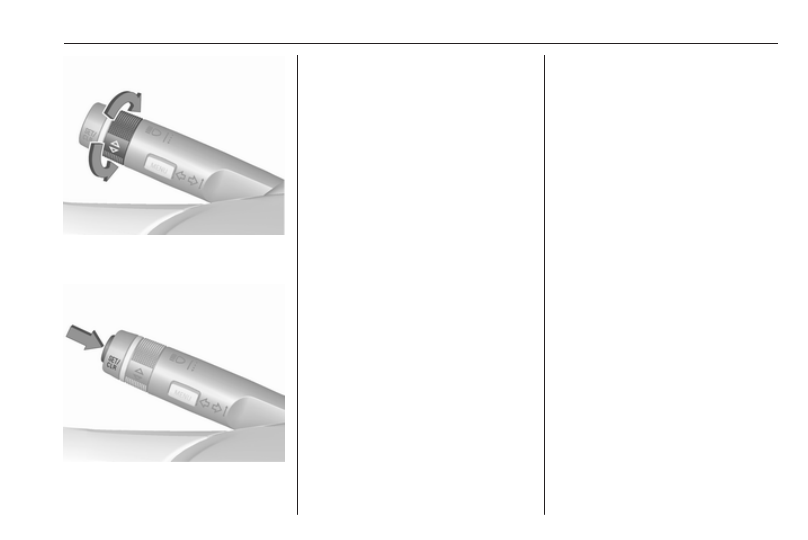

Turn the adjuster wheel to highlight a

menu option or to set a numeric value.

Press SET/CLR to select a function or

to confirm a message.

Vehicle Information Menu

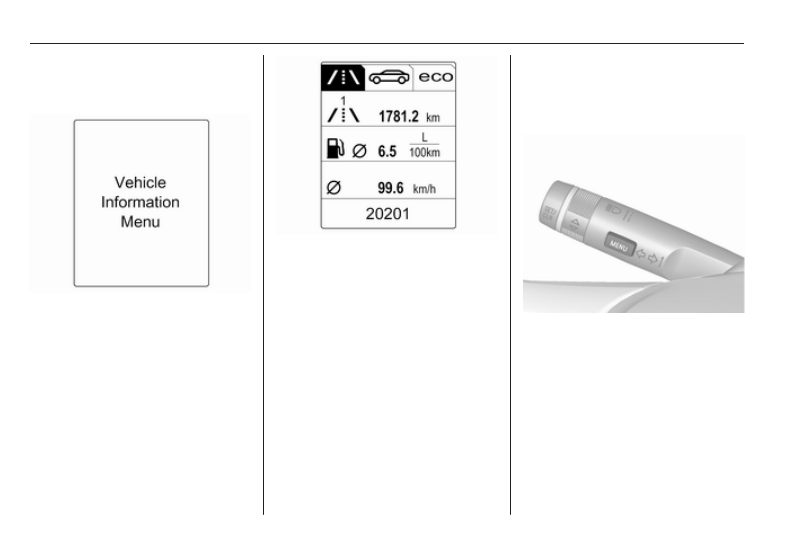

Press MENU to select the Vehicle

Information Menu, or on Uplevel-

Combi-Display select X.
Turn the adjuster wheel to select a

submenu. Press SET/CLR to confirm.
Follow the instructions given in the

submenus.
Possible submenus can be,

depending on version:

● Unit: displayed units can be

changed

● Tyre Pressure System: checks

tyre pressure of all wheels during

driving 3 186

● Tyre Load: select tyre pressure

category according to the actual

tyre inflation pressure 3 186

● Remaining Oil Life: indicates

when to change the engine oil

and filter 3 80

● Traffic Sign Assistant: displays

detected traffic signs for the

current route section 3 148

● Speed Warning: if exceeding the

preset speed a warning chime

will be activated

Selection and indication can be

different between Midlevel-Display,

Uplevel-Display and Uplevel-Combi-

Display.

Trip/Fuel Information Menu

Press MENU to select the Trip/Fuel

Information Menu, or select W on

Uplevel-Combi-Display.
Turn the adjuster wheel to select a

submenu. Press SET/CLR to confirm.

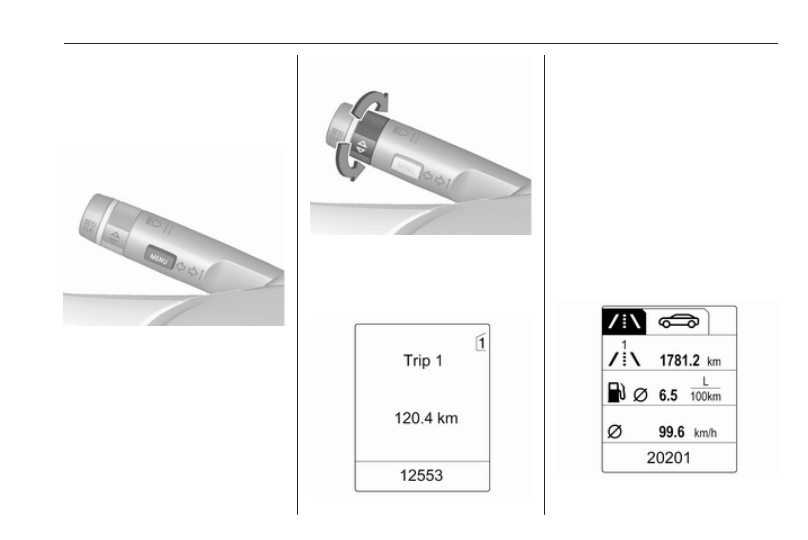

● trip odometer 1
● trip odometer 2
● digital speed

Trip odometer 2 and digital speed are

only available on vehicles with

Uplevel-Display or Uplevel-Combi-

Display.

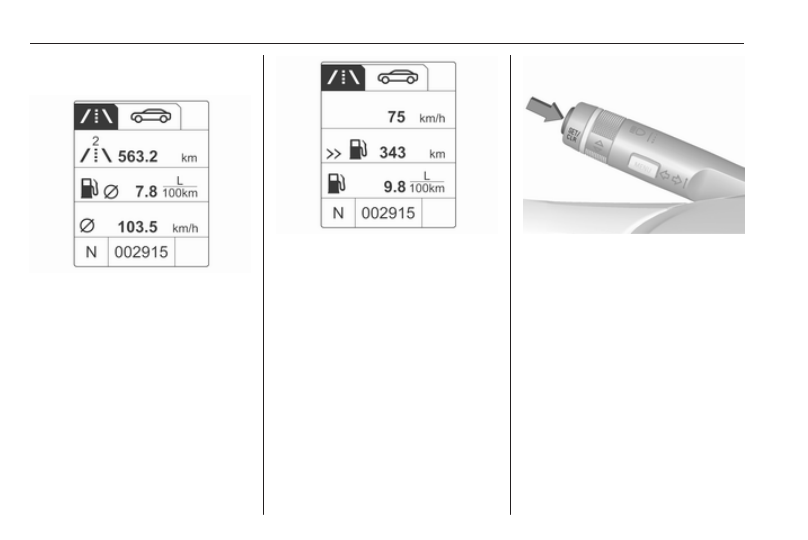

On vehicles with trip computer more

submenus are available.
Selection and indication can be

different between Midlevel-, Uplevel-,

and Uplevel-Combi-Display.
Trip/Fuel Information Menu, Trip

Computer 3 97.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

92

Instruments and controls

ECO Information Menu

Press MENU to select s in the top

line of the Uplevel-Combi-Display.
Turn the adjuster wheel to select a

submenu. Press SET/CLR to confirm.
Submenus are:

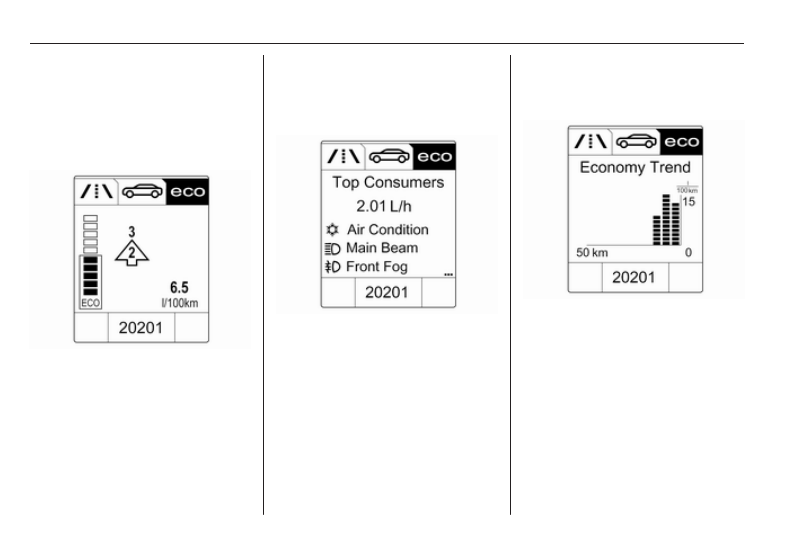

● Shift indication: Current gear is

indicated inside an arrow. The

illustration above recommends

upshifting for fuel saving

reasons.
Eco index display: The current

fuel consumption is indicated on

a segment display. For

economical driving, adapt your

driving style to keep the filled

segments within the Eco area.

The more segments are filled, the

higher the fuel consumption.

Simultaneously the current

consumption value is indicated.

● Top Consumers: List of top

comfort consumers currently

switched on is displayed in

descending order. Fuel saving

potential is indicated. A switched-

off consumer disappears from

the list and the consumption

value will be updated.
During sporadic driving

conditions, the heated rear

window is activated automatically

to increase engine load. In this

event, the heated rear window is

indicated as one of the top

consumers, without activation by

the driver.

● Economy Trend: Displays the

average consumption

development over a distance of

50 km. Filled segments display

the consumption in 5 km steps

and shows the effect of

topography or driving behaviour

on fuel consumption.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

93

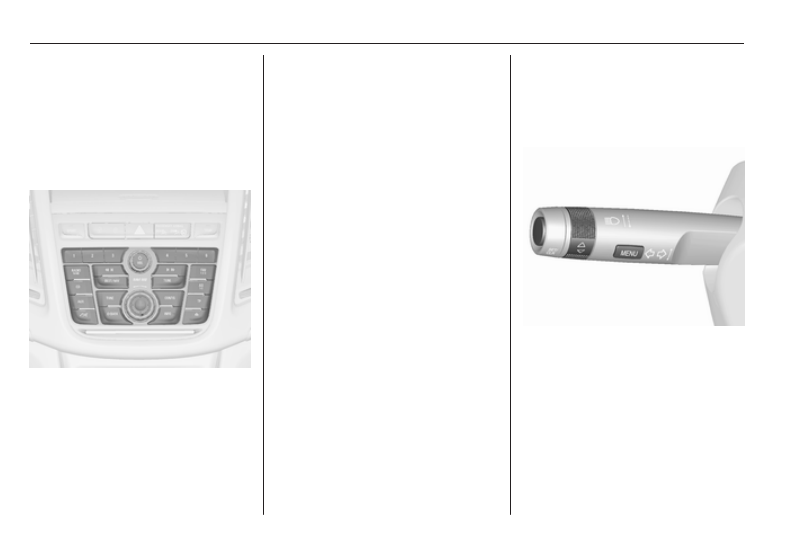

Graphic-Info-Display,

Colour-Info-Display

Depending on the vehicle

configuration the vehicle has a

Graphic-Info-Display or Colour-Info-

Display. The Info-Display is located in

the instrument panel above the

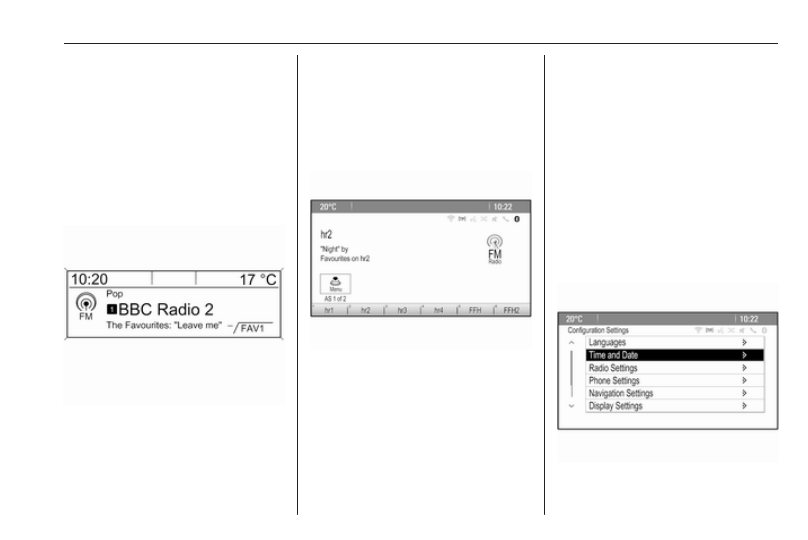

Infotainment system.

Graphic-Info-Display

Graphic-Info-Display indicates:

● time 3 76
● outside temperature 3 75
● date 3 76

● Infotainment system, see

description in the Infotainment

manual

● settings for vehicle

personalisation 3 100

Colour-Info-Display

The Colour-Info-Display indicates in

colour:

● time 3 76
● outside temperature 3 75
● date 3 76
● Infotainment system, see

description in the Infotainment

manual

● navigation, see description in the

Infotainment manual

● system settings
● vehicle messages 3 94
● settings for vehicle

personalisation 3 100

The type of information and how it is

displayed depends on the equipment

of the vehicle and the settings made.

Selecting menus and settings

Menus and settings are accessed via

the display.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

94

Instruments and controls

Selections are made via:

● menus
● function buttons and

multifunction knob of the

Infotainment system

Selecting with the Infotainment

system

Select a function via the Infotainment

system buttons. The menu of the

selected function is displayed.
The multifunction knob is used to

select an item and to confirm.

Multifunction knob

The multifunction knob is the central

control element for the menus:
Turn

● to mark a menu option
● to set a numeric value or to

display a menu option

Press (the outer ring)

● to select or activate the marked

option

● to confirm a set value
● to switch a system function on/off

BACK
Press BACK to:

● exit a menu without changing

settings

● return from a submenu to a

higher menu level

● delete the last character in a

character sequence

Press and hold BACK for a few

seconds to delete the entire entry.
Vehicle personalisation 3 100.

Vehicle messages

Messages are indicated mainly in the

Driver Information Centre, in some

cases together with a warning chime.

Press SET/CLR, MENU or turn the

adjuster wheel to confirm a message.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

95

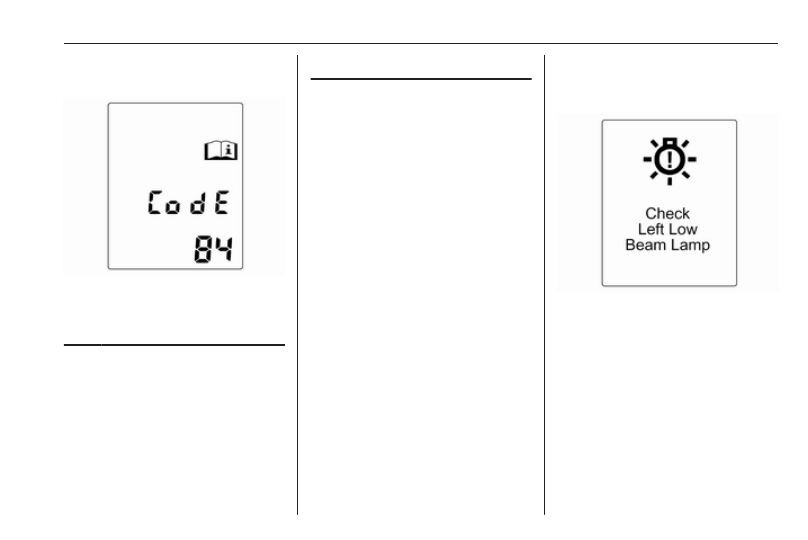

Vehicle messages on the

Midlevel-Display

The vehicle messages are displayed

as code numbers.
No. Vehicle message
10

Brakes overheated

16

Brake light failure

25

Left front turn signal failure

26

Left rear turn signal failure

27

Right front turn signal failure

28

Right rear turn signal failure

No. Vehicle message
53

Tighten fuel filler cap

54

Water in diesel fuel filter

S68 Service power steering
S73 Service all-wheel drive system
S75 Service air conditioning
S79 Top up engine oil
S81 Service transmission
S82 Change engine oil soon
S84 Engine power is reduced
S89 Service vehicle soon
128 Bonnet open
134 Parking assist fault, clean

bumper

S136 Service parking assist
174 Low battery

Note

"S" means "Service vehicle soon".

Seek the assistance of a workshop

immediately.

Vehicle messages on the

Uplevel-Display and Uplevel-

Combi-Display

The vehicle messages are displayed

as text. Follow the instructions given

in the messages.
The system displays messages

regarding the following topics:

● service messages
● anti-theft alarm system
● brakes
● drive systems
● ride control systems
● driver assistance systems

-------------------------------------------------------------------------------------------------------------------------------------------------------------

96

Instruments and controls

● cruise control
● speed limiter
● parking assist systems
● lighting, bulb replacement
● adaptive forward lighting
● doors, windows
● traffic sign assistant
● lane departure warning
● load compartment, boot lid
● radio remote control
● seat belts
● airbag systems
● engine and transmission
● tyre pressure
● diesel particle filter
● vehicle battery status

Warning chimes

When starting the engine or whilst

driving

Only one warning chime will sound at

a time.

The warning chime regarding

unfastened seat belts has priority

over any other warning chime.

● If the door or bonnet is open.
● If seat belt is not fastened.
● If a certain speed is exceeded

with parking brake applied.

● If a warning message or a

warning code appears in the

Driver Information Centre.

● If the parking assist detects an

object.

● If the fuel level is low.

When the vehicle is parked and/or

the driver's door is opened

● With exterior lights on.

During an Autostop

● If the driver's door is opened.

Battery voltage

When the battery voltage is running

low, a warning message or warning

code 174 will appear in the Driver

Information Centre.

1. Switch off immediately any

electrical consumers which are

not required for a safe ride, e.g.

seat heating, heated rear window

or other main consumers.

2. Charge the battery by driving

continuously for a while or by

using a charging device.

The warning message or warning

code will disappear after the engine

has been started twice consecutively

without a voltage drop.
If the battery cannot be recharged,

have the cause of the fault remedied

by a workshop.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

97

Trip computer

The menus and functions can be

selected via the buttons on the turn

signal lever 3 89.

Press MENU to select the Trip/Fuel

Information Menu, or select W on

the Uplevel-Combi-Display.

Trip/Fuel Information Menu on

Uplevel-Display
Turn the adjuster wheel to select one

of the submenus:

● trip odometer 1
● trip odometer 2
● range
● average consumption
● instantaneous consumption
● average speed
● digital speed
● traffic sign assistant
● route guidance

Trip/Fuel Information Menu on

Uplevel-Combi-Display
Turn the adjuster wheel to select the

submenus:

● trip odometer 1

-------------------------------------------------------------------------------------------------------------------------------------------------------------

98

Instruments and controls

● average consumption 1
● average speed 1

● trip odometer 2
● average consumption 2
● average speed 2

● digital speed
● range
● instantaneous consumption
● route guidance

Trip computer 1 and 2

The information of two trip computers

can be reset separately for odometer,

average consumption and average

speed by pressing SET/CLR, making

it possible to display different trip

information for different drivers.

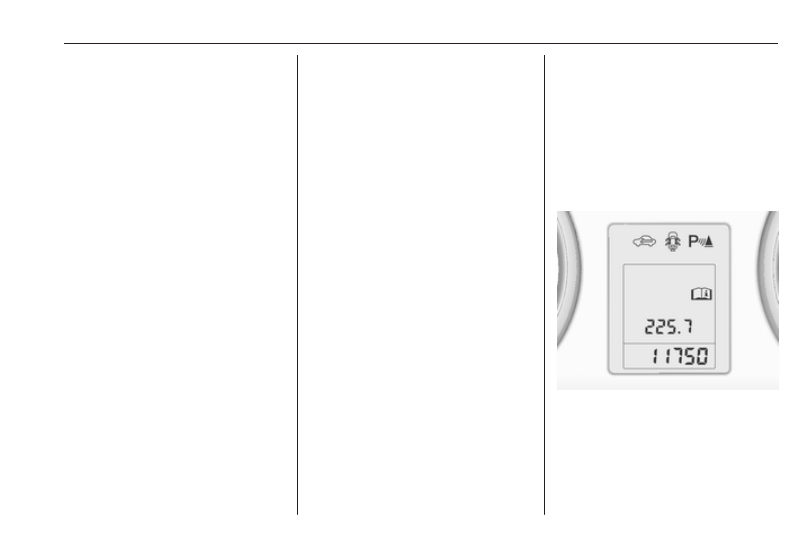

Trip odometer

Trip odometer displays the recorded

distance since a certain reset.
Trip odometer counts up to a distance

of 2000 km and then restarts at 0.
To reset, press SET/CLR for a few

seconds.

Range

Range is calculated from current fuel

tank level and current consumption.

The display shows average values.
After refuelling, the range is updated

automatically after a brief delay.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

99

When the fuel level in the tank is low,

a message appears on vehicles with

Uplevel-Display or Uplevel-Combi-

Display.
When the tank must be refuelled

immediately, a warning code or

warning message is displayed on

vehicles with Midlevel- and Uplevel-

Display or Uplevel-Combi-Display.
Additionally, the control indicator i

in the fuel gauge illuminates or

flashes 3 88.

Range LPG version

On vehicles with LPG engines and

Uplevel-Display: Display of

approximate range available with the

remaining fuel in each respective fuel

tank of petrol and LPG fuel, along with

a total range of both fuel types

together. Switch between the modes

by pressing SET/CLR.

Average consumption

Display of average consumption. The

measurement can be reset at any

time and starts with a default value.
To reset, press SET/CLR for a few

seconds.

On vehicles with LPG engines and

Uplevel-Display: Average

consumption is indicated for the

currently selected mode (LPG or

petrol).

Instantaneous consumption

Display of the instantaneous

consumption.
On vehicles with LPG engines and

Uplevel-Display: Instantaneous

consumption is indicated for the

currently selected mode (LPG or

petrol).

Average speed

Display of average speed. The

measurement can be reset at any

time.
To reset, press SET/CLR for a few

seconds.

Digital speed

Digital display of the instantaneous

speed.

Route guidance

Additional to the navigation

information in the Colour-Info-

Display, route guidance is displayed

in the Driver Information Centre.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

100

Instruments and controls

Vehicle personalisation

The vehicle's behaviour can be

personalised by changing the settings

in the Info-Display.
Depending on vehicle equipment

some of the functions described

below may not be available.
Some functions are only displayed or

active when the engine is running.

Settings in the

Graphic-Info-Display

CD 400

Press CONFIG. The Settings menu is

displayed.

The following settings can be

selected by turning and pressing the

multifunction knob:

● Languages
● Time Date
● Radio settings
● Bluetooth settings
● Vehicle settings

In the corresponding submenus the

following settings can be changed:
Languages

Selection of the desired language.
Time Date

See 'Clock' 3 76.
Radio settings

See Infotainment manual for further

information.
Bluetooth settings

See Infotainment manual for further

information.
Vehicle settings

● Climate and air quality

Auto fan speed: Modifies the

speed fan regulation. Changed

setting will be active after

switching the ignition off and on

again.
Climate control mode: Activates

or deactivates cooling.
Auto demist: Supports

windscreen dehumidification by

automatically selecting the

necessary settings and auto air

conditioning mode.
Auto rear demist: Automatic

activation of the heated rear

window.

● Comfort settings

Chime volume: Changes the

volume of warning chimes.
Personalization by driver:

Activates or deactivates the

personalisation function.
Rear auto wipe in reverse:

Activates or deactivates

automatic switching on of the

rear window wiper when reverse

gear is engaged.

● Exterior ambient lighting

Exterior lighting by unlocking:
Activates or deactivates the entry

lighting.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

101

Duration upon exit of vehicle:
Activates or deactivates and

changes the duration of exit

lighting.

● Power door locks

Auto door lock: Activates or

deactivates the automatic door

unlocking function after switching

off ignition. Activates or

deactivates the automatic door

locking function after driving-off.
Stop door lock if door open:

Activates or deactivates the

automatic door locking function

while a door is open.
Delayed door lock: Activates or

deactivates the delayed door

locking function.

● Remote locking, unlocking,

starting
Remote unlock feedback:
Activates or deactivates the

hazard warning flasher feedback

whilst unlocking.
Remote door unlock: Changes

the configuration to unlock only

the driver's door or the whole

vehicle whilst unlocking.

● Restore factory settings:

Resets all settings to the default

settings.

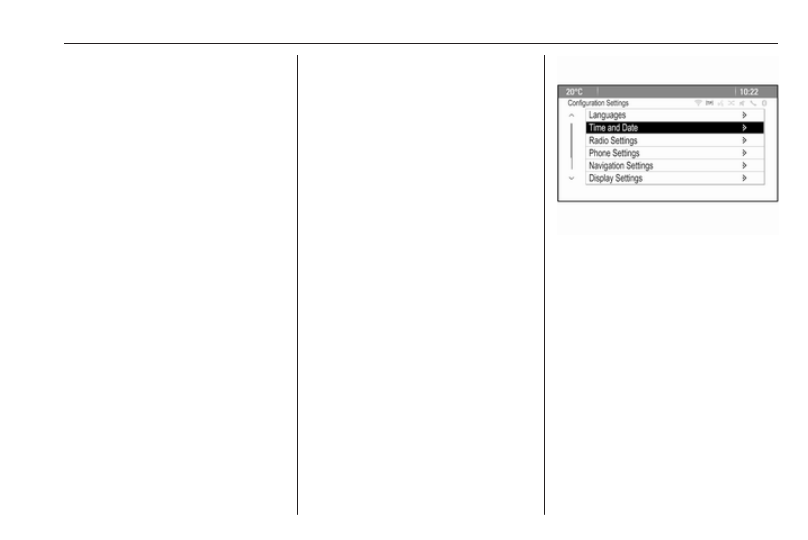

Settings in the Colour-Info-

Display

CD 600/Navi 650/Navi 950

Press CONFIG on the Infotainment

system faceplate to enter the

Configuration menu.
Turn the multifunction knob to scroll

upwards or downwards in the list.

Press the multifunction knob

(Navi 950 / Navi 650: press the outer

ring) to select a menu item.

● Languages
● Time and Date
● Radio Settings
● Phone Settings
● Navigation Settings
● Display Settings
● Vehicle Settings

In the corresponding submenus the

following settings can be changed:
Languages

Selection of the desired language.
Time and Date

See Infotainment manual for further

information.

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     4      5      6      7     ..
