10A–4 CRUISE CONTROL SYSTEM

Starter Switch

Removal

1. Disconnect the battery ground cable.

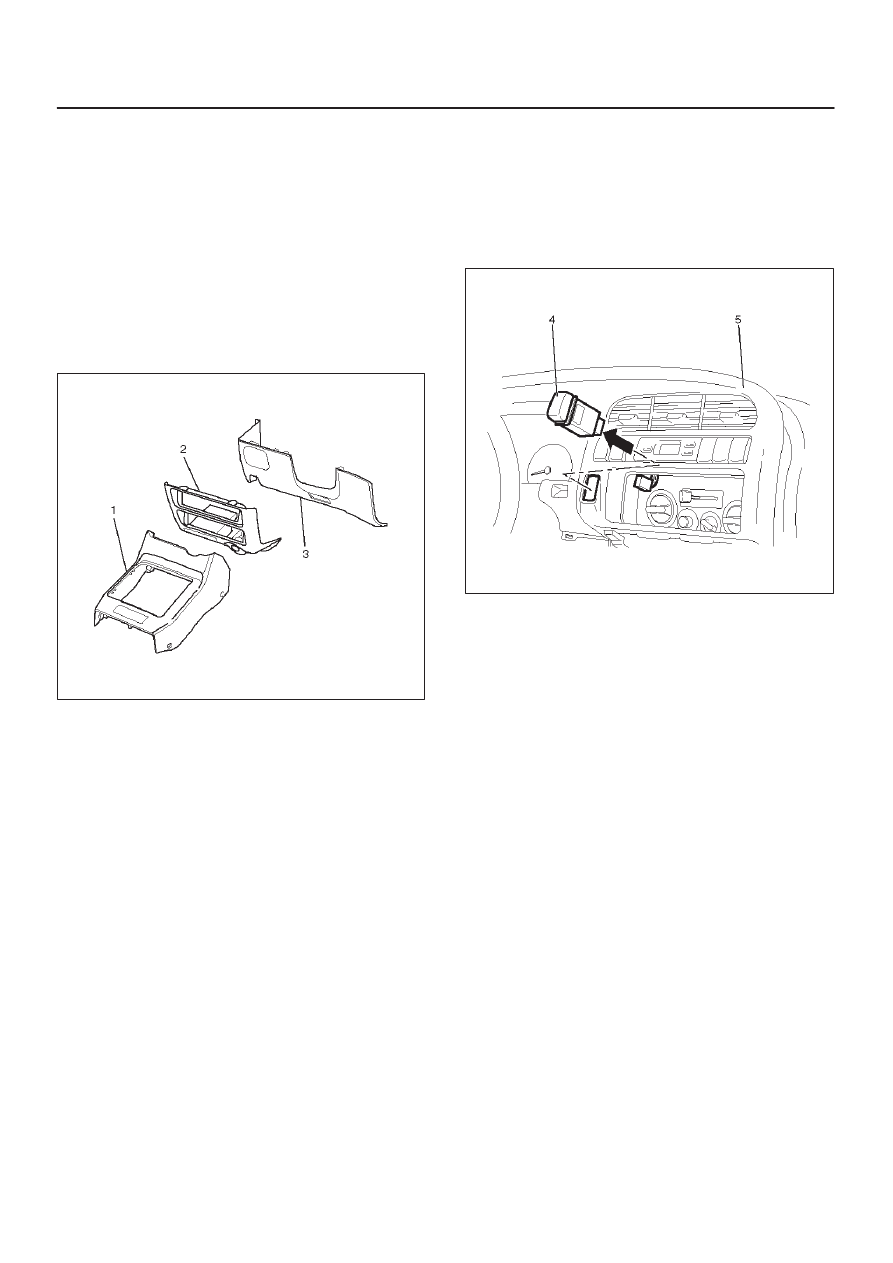

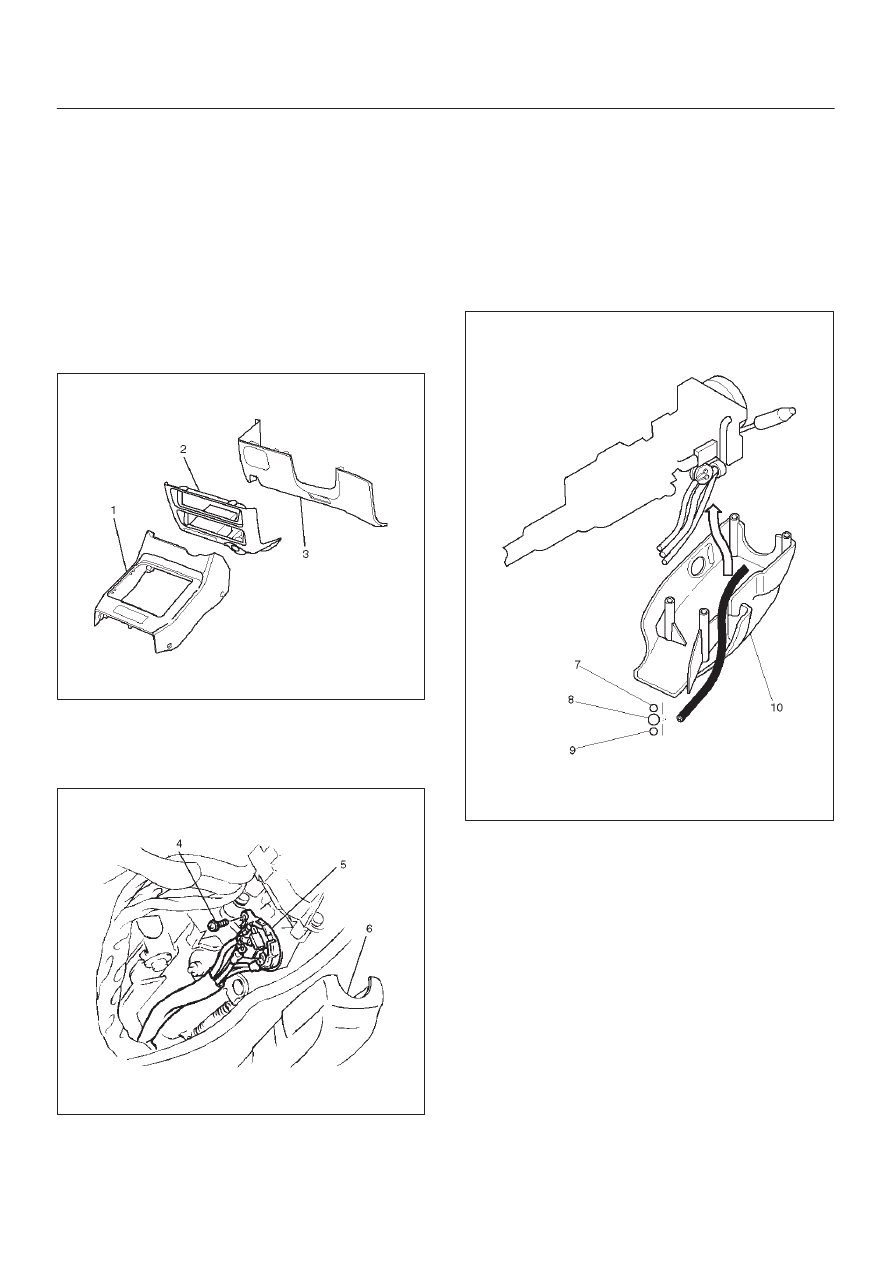

2. Remove the front console assembly (1).  Refer to the

Instrument Panel Assembly in Body Structure
section.

3. Remove the lower cluster assembly (2).  Refer to the

Instrument Panel Assembly in Body Structure
section.

4. Remove the instrument panel driver lower cover

assembly (3).  Refer to the Instrument Panel
Assembly in Body Structure section.

821RW024

5. Remove seven screws to remove the steering cowl

(6).

6. Disconnect the connector, remove the screw (4) and

then remove the starter switch (5).

431RW005

Installation

To install, follow the removal steps in the reverse order,
noting the following point.

1. When installing the steering cowl (10), be sure to pass

the harnesses through the route as shown in the
figure so that the starter switch harness (7), the
combination switch harness (8) and the inflator
module harness (9) will not catch.

825RW058

10A–5

CRUISE CONTROL SYSTEM

Cruise Control Main Switch

Removal

1. Disconnect the battery ground cable.
2. Remove the front console assembly (1).  Refer to the

Instrument Panel Assembly in Body Structure
section.

3. Remove the lower cluster assembly (2). Refer to the

Instrument Panel Assembly in Body Structure
section.

4. Remove the instrument panel driver lower cover

assembly (3).  Refer to the Instrument Panel
Assembly in Body Structure section.

821RW024

5. Remove the instrument panel cluster assembly (5).

Refer to the Instrument Panel Assembly in Body
Structure section.

6. Disconnect the and push the lock from the side of the

instrument panel cluster assembly to remove the
cruise control main switch (4).

821RW079

Installation

To install, follow the removal steps in the reverse order,
noting the following point.

1. Push in the switch with your fingers until the switch is

locked securely.

Cruise Control Switch (Combination Switch)

Removal and Installation

Refer to the Lighting Switch (Combination Switch)
removal and installation steps of Lighting System in Body
and Accessories section.

10A–6 CRUISE CONTROL SYSTEM

Cruise Control Unit

Removal

1. Disconnect the battery ground cable.

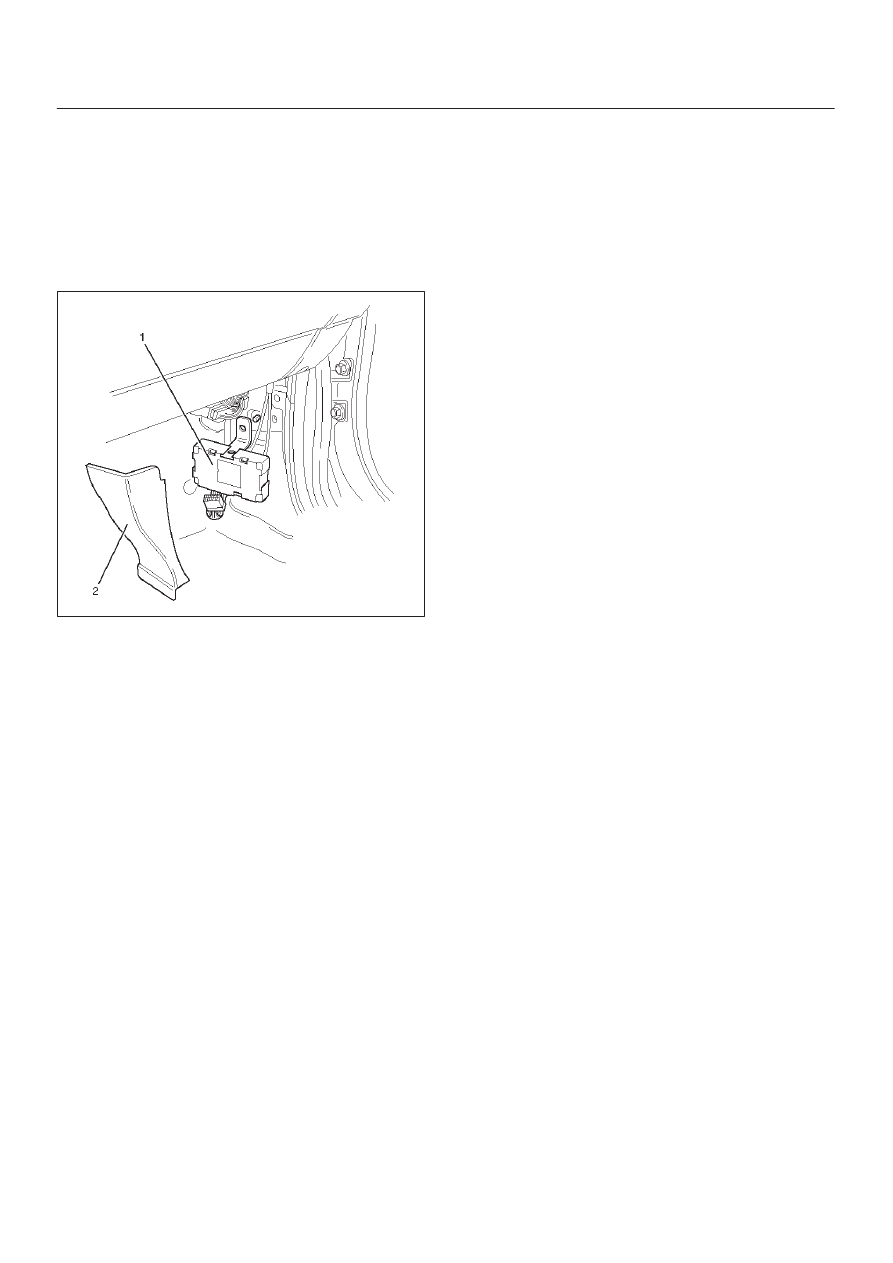

2. Remove the dash side trim panel (RH)(2).
3. Disconnect the connector.
4. Remove a fixing nut to remove the cruise control unit

(1).

825RW050

Installation

To install, follow the removal steps in the reverse order.

10A–7

CRUISE CONTROL SYSTEM

Cruise Actuator

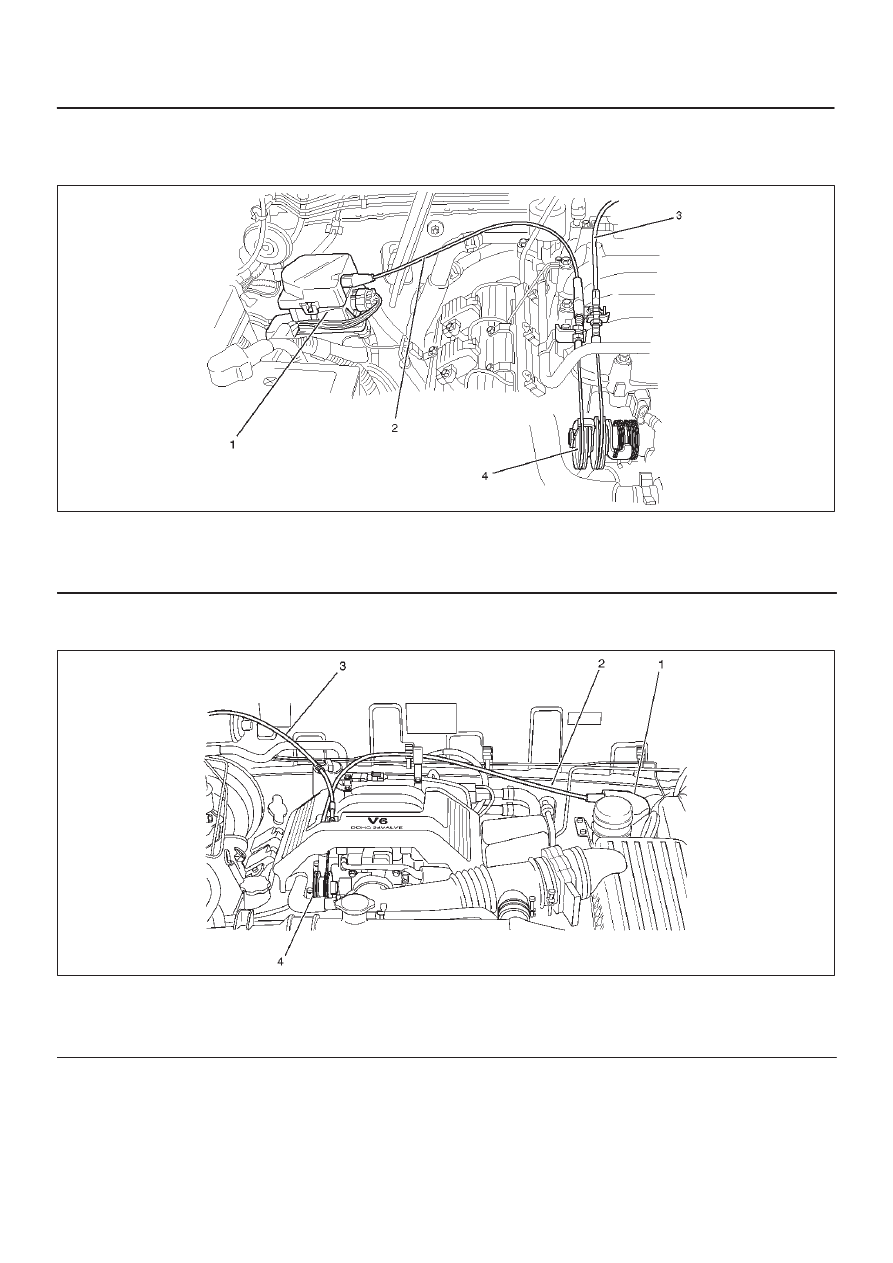

Actuator Cable Diagram (LHD)

825RW051

Legend

(1) Cruise Actuator Assembly
(2) Cruise Control Cable

(3) Accel Control Cable
(4) Cam Link (Cruise Control Side)

Actuator Cable Diagram (RHD)

825RW221

Legend

(1) Cruise Actuator Assembly
(2) Cruise Control Cable

(3) Accel Control Cable
(4) Cam Link (Cruise Control Side)
