8H–20 SECURITY AND LOCKS

Power Door Lock System

General Description

The circuit consists of the door lock (& power window)
switch, door lock actuator for the front and rear door,
tailgate lock actuator and the door lock key switch.  The
front door lock switch –LH is always provided with battery
voltage.
The key or the inside lock button on the both driver’s and
the front passenger’s door can activate the lock
mechanism of all the doors (including the tailgate).
When the driver’s door lock switch or the front
passenger’s door lock switch is turned on, current flows
for about one second to the door lock actuator of each
door connected in parallel with the front door lock (&
power window) switch –LH to activate the actuator to lock
and unlock the doors.

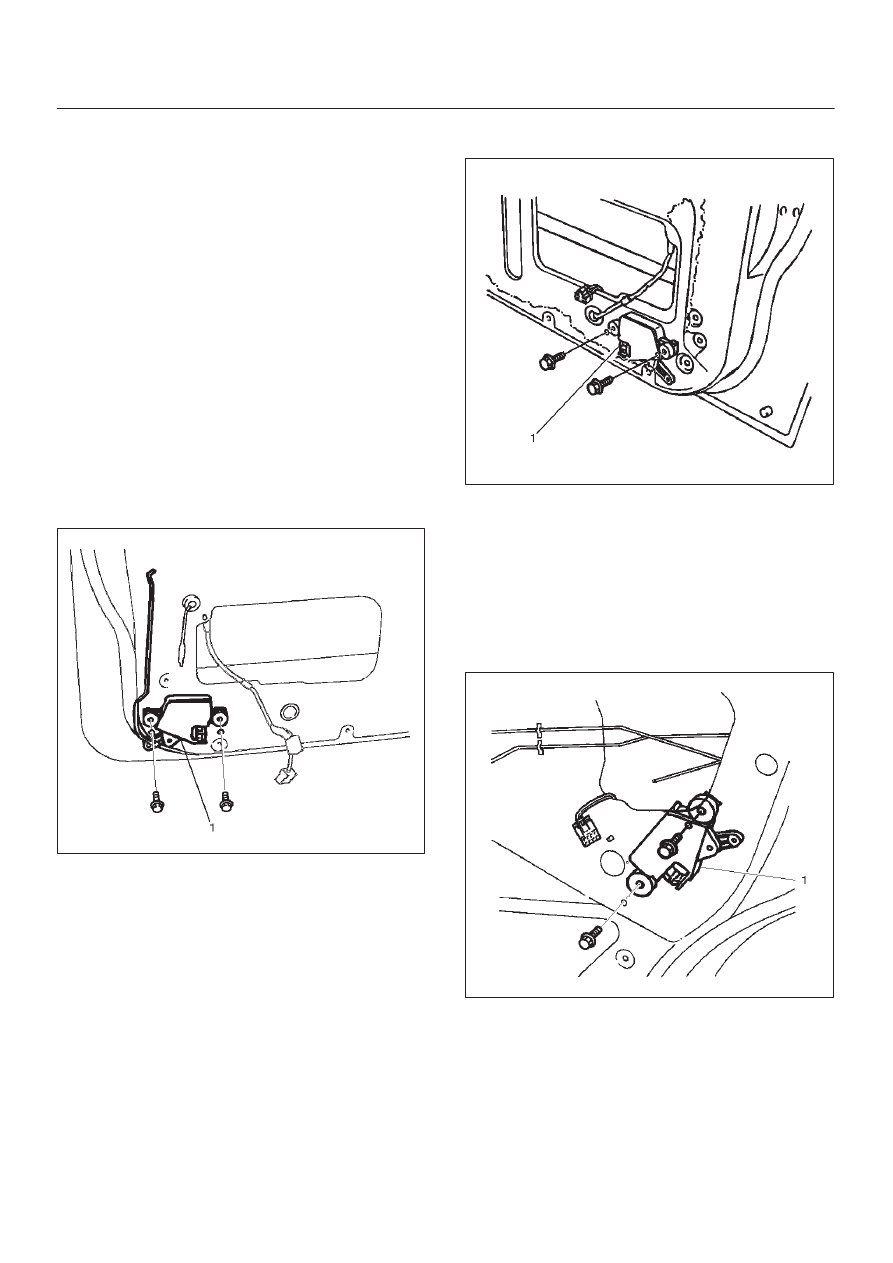

Front Door Lock Actuator Removal

1. Refer to the Front Door Lock Assembly removal

procedure in this section.

2. Remove the door lock actuator(1).

632RS021

632RS020

Front Door Lock Actuator Installation

To install, follow the removal steps in the reverse order.

Rear Door Lock Actuator Removal

1. Refer to the Rear Door Lock Assembly removal

procedure in this section.

2. Removal the door lock actuator(1).

632RS019

SECURITY AND LOCKS

8H–21

Rear Door Lock Actuator Installation

To install, follow the removal steps in the reverse order.

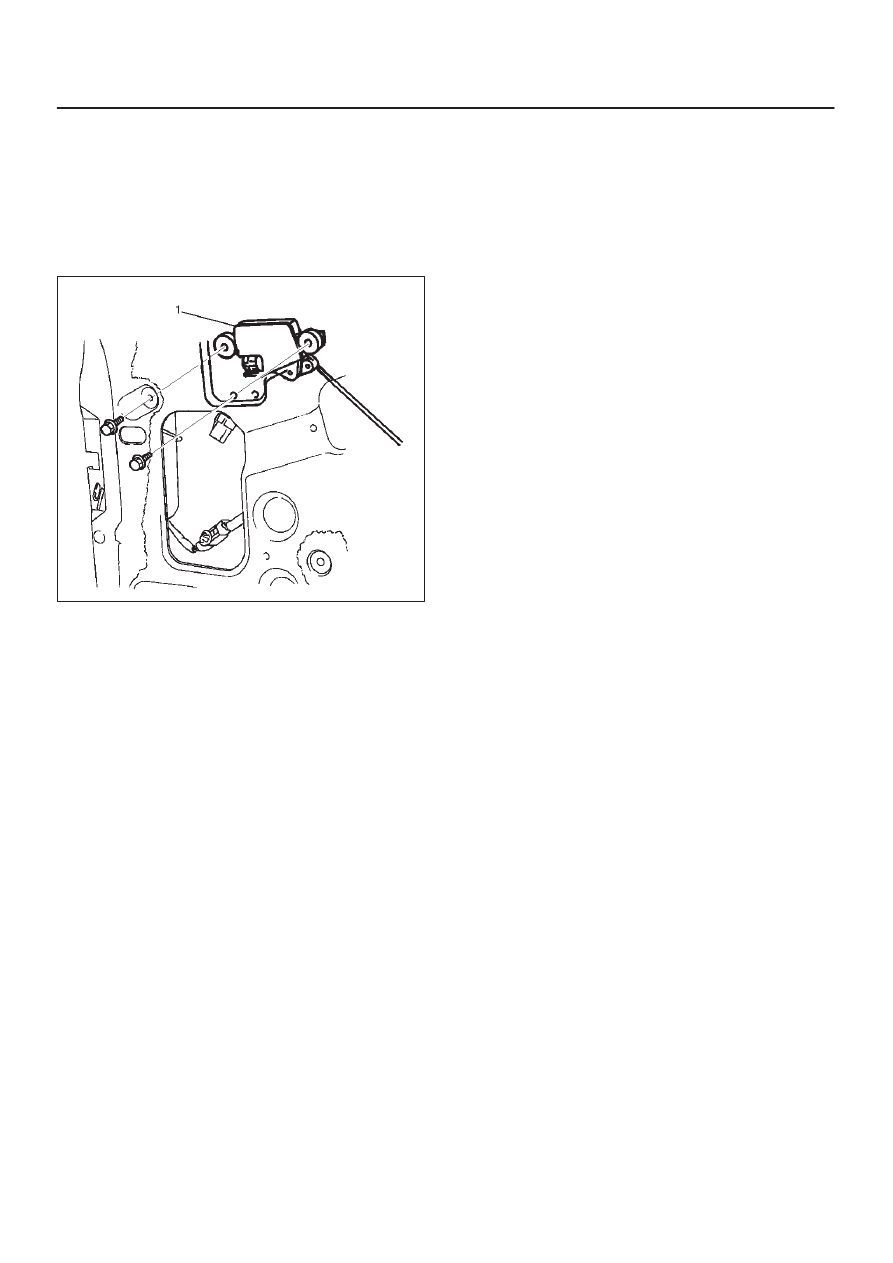

Tailgate Lock Actuator Removal

1. Refer to the Tailgate Lock Assembly removal

procedure in this section.

2. Remove the tailgate lock actuator(1).

632RS018

Tailgate Lock Actuator Installation

To install, follow the removal steps in the reverse order.

8H–22 SECURITY AND LOCKS

Anti-theft System

General Description

The circuit consists of the starter switch, anti-theft &
keyless entry control unit, anti-theft horn, front door and
tailgate key switch (detect and tamper switch), door lock
(& power window) switch, door lock actuator for each
door, engine hood switch, clutch start switch (M/T),
ANTI-THEFT indicator light and mode switch (A/T).
The system operates as follows: After locking the starter
switch and removing the starter key (this sets the alarm),
if the door is unlocked in any way other than with the
proper key, the headlights start flashing, the horn sounds,
and the starter circuit is disabled.  (However, the engine
hood and all the doors must be locked and closed.)
Once the system has been placed in the warning or alarm
condition, it can be released only when the starter switch
is shifted from “OFF” to “ACC” by the starter key, or when
the lock of the front door or the tailgate is released (to
activate the detect switch) by the starter key.

Anti-theft & Keyless Entry Control
Unit Removal

1. Disconnect the battery ground cable.
2. Remove the front console assembly.

D

Refer to the Instrument Panel Assembly in Body
Structure section.

3. Remove the lower cluster assembly.

D

Refer to the Instrument Panel Assembly in Body
Structure section.

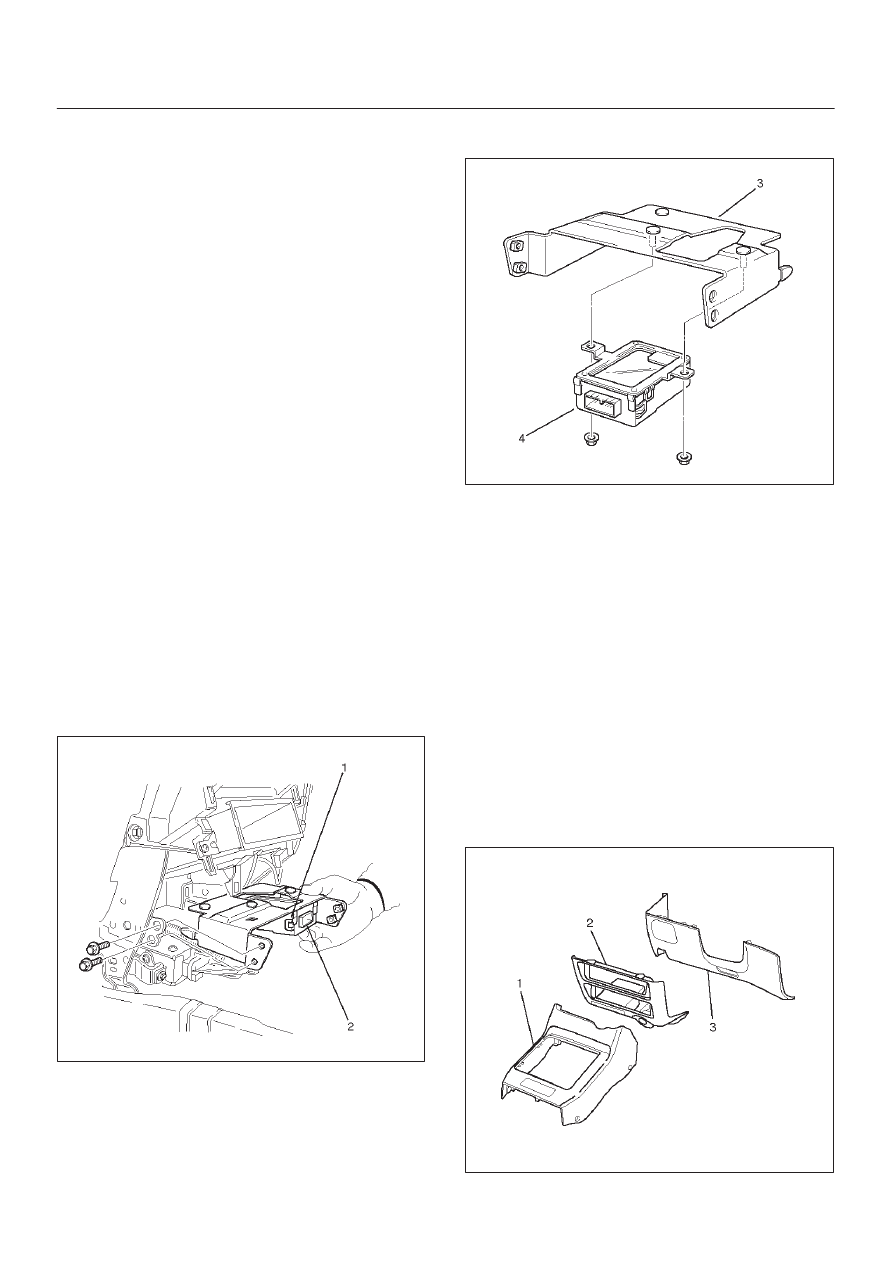

4. Disconnect the connector(2).
5. Remove four screws to remove the anti-theft &

keyless entry control unit with bracket(1).

825RW029

6. Remove two nuts from the anti-theft & keyless entry

control unit with bracket(3) to remove the anti-theft &
keyless entry controller(4).

825RW028

Anti-theft & Keyless Entry Control
Unit Installation

To install, follow the removal steps in the reverse order.

Anti-theft Indicator Removal

1. Disconnect the battery ground cable.
2. Remove the front console assembly(1).

Refer to the Instrument Panel Assembly in Body
Structure section.

3. Remove the lower cluster assembly(2).

Refer to the Instrument Panel Assembly in Body
Structure section.

4. Remove the instrument panel driver lower cover

assembly(3).
Refer to the Instrument Panel Assembly in Body
Structure section.

821RW024

SECURITY AND LOCKS

8H–23

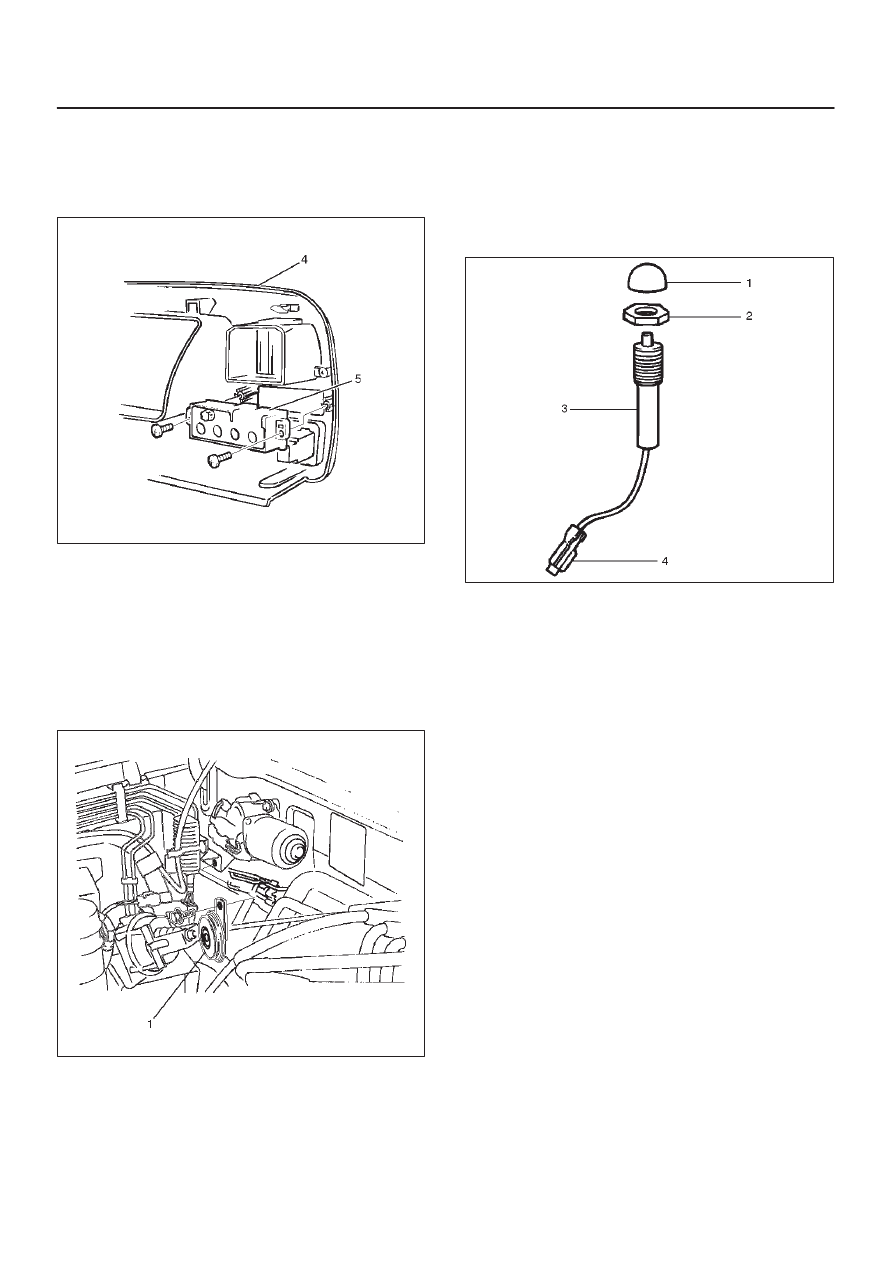

5. Remove the instrument panel cluster assembly(4).

Refer to the Instrument Panel Assembly in Body
Structure section.

6. Remove two screws and then remove the anti-theft

indicator(5).

821RW032

Anti-theft Indicator Installation

To install, follow the removal steps in the reverse order.

Anti-theft Horn Removal

1. Disconnect the battery ground cable.
2. Disconnect the connector and remove the fixing bolt

to remove the anti-theft horn(1).

828RS007

Anti-Theft Horn Installation

To install, follow the removal steps in the reverse order.

Engine Hood Switch Removal

1. Disconnect the battery ground cable.
2. Remove the cap(1).
3. Remove the lock nut(2).
4. Disconnect the connector(4).
5. Remove the engine hood switch(3).

828RS011

Engine Hood Switch Installation

To install, follow the removal steps in the reverse order.
