Opel Frontera UBS. Manual - part 812





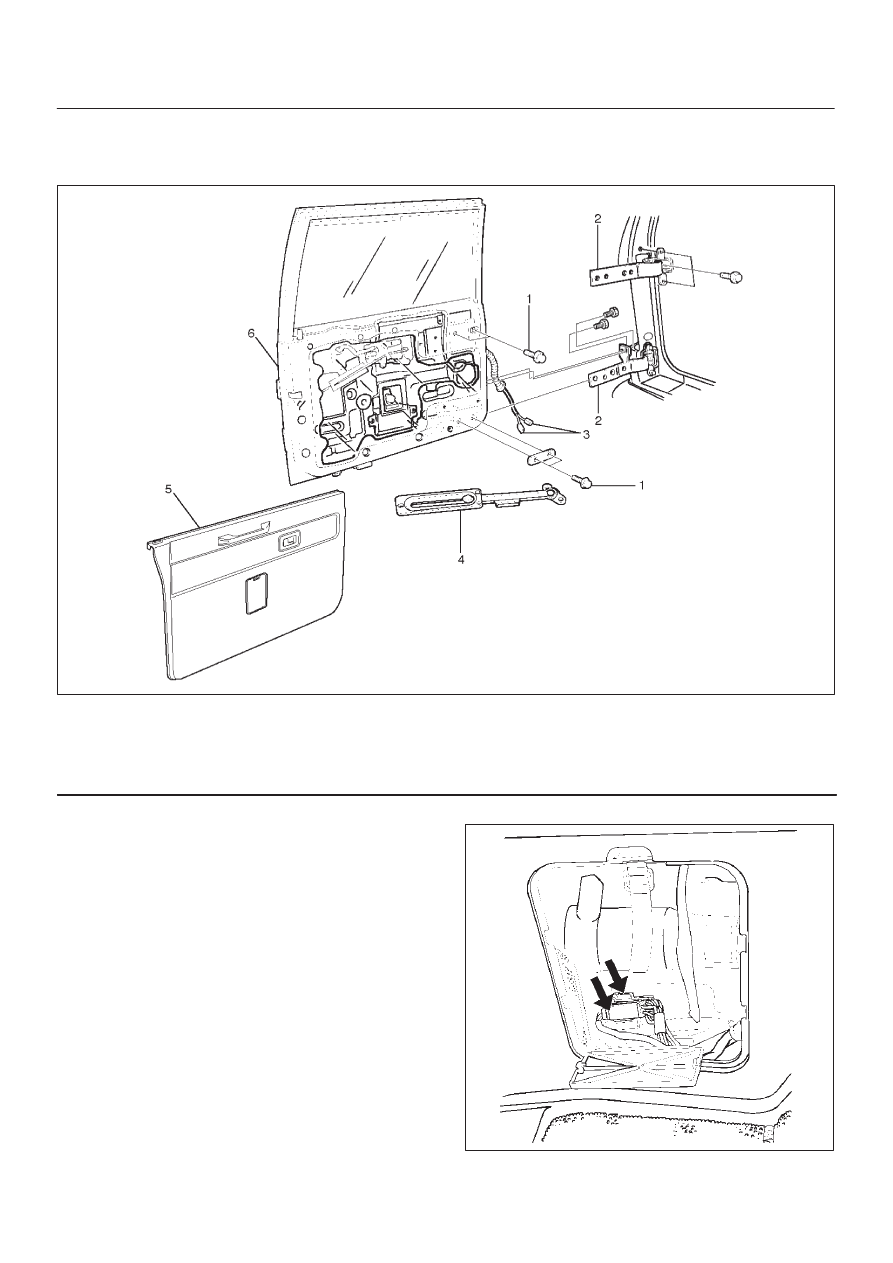

8F–76

BODY STRUCTURE

Tailgate Assembly (LH)

Parts Location

681RW008

Legend

(1) Tailgate Fixing Bolt
(2) Tailgate Hinge
(3) Tailgate Harness Connection

(4) Tailgate Stopper Assembly
(5) Tailgate Trim Panel (LH)
(6) Tailgate Assembly (LH)

Removal

1. Disconnect the battery ground cable.
2. Remove tailgate time panel (LH).

D

Refer to Exterior / Interrior Trim in this section.

3. Remove tailgate stopper assembly
4. Remove tailgate harness connection.

D

Open the luggage trim panel lid and disconnect the
tailgate harness connection.

810RS003

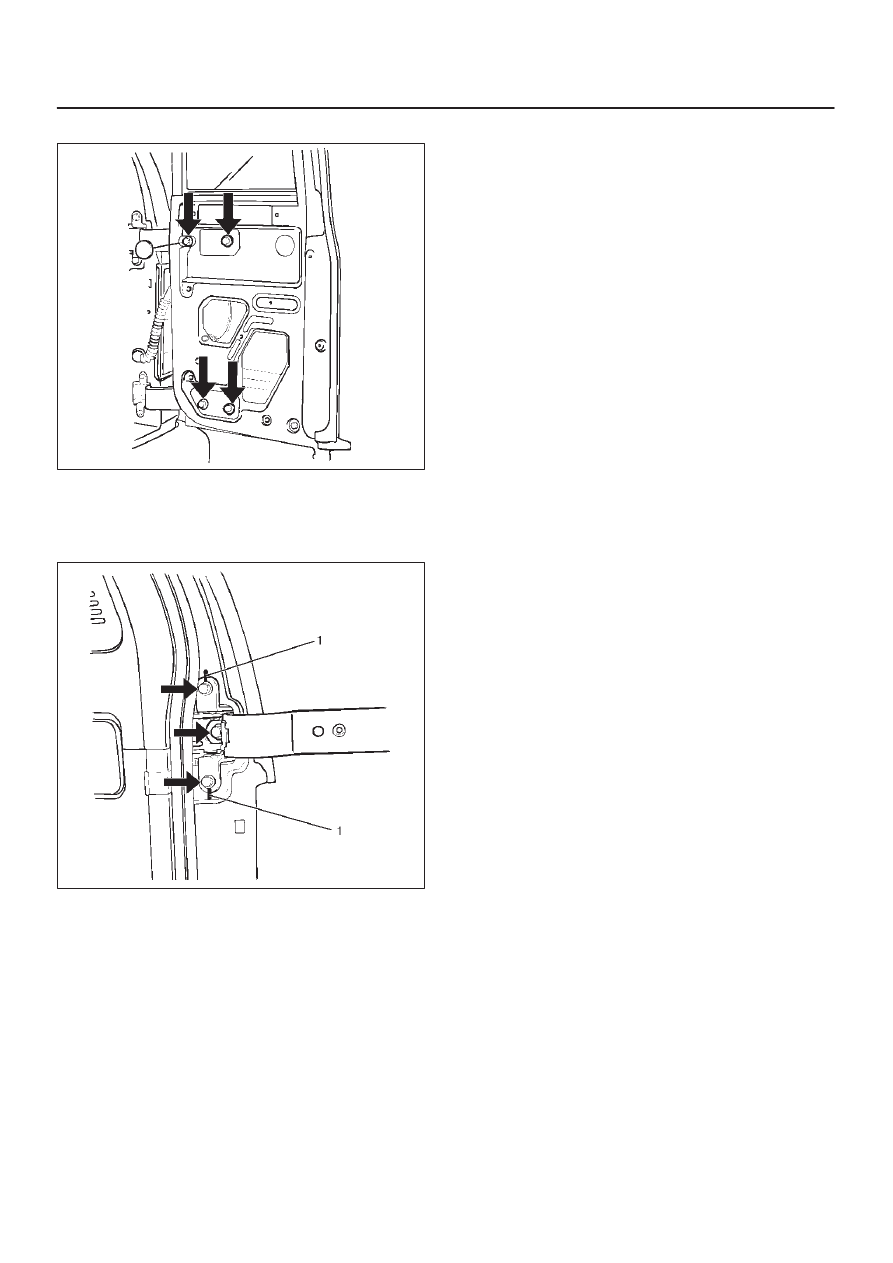

8F–77

BODY STRUCTURE

5. Remove tailgate fixing bolts.

681RS002

6. Remove tailgate assembly (LH).
7. Remove tailgate hinge.

D

Apply a setting mark (1) on the body side hinge and
remove the hinge fixing bolts.

681RW007

Installation

To install, follow the removal steps in the reverse order,
noting the following points.

1. Apply chassis grease to the tailgate hinge and the

tailgate stopper moving surface.

2. Align the tailgate fitting to the body by referring to

Body Dimension in this section.

3. Tighten the hinge bolts to the specified torque.

Torque : 34  N

m (3.5kg·m/25  lb ft)

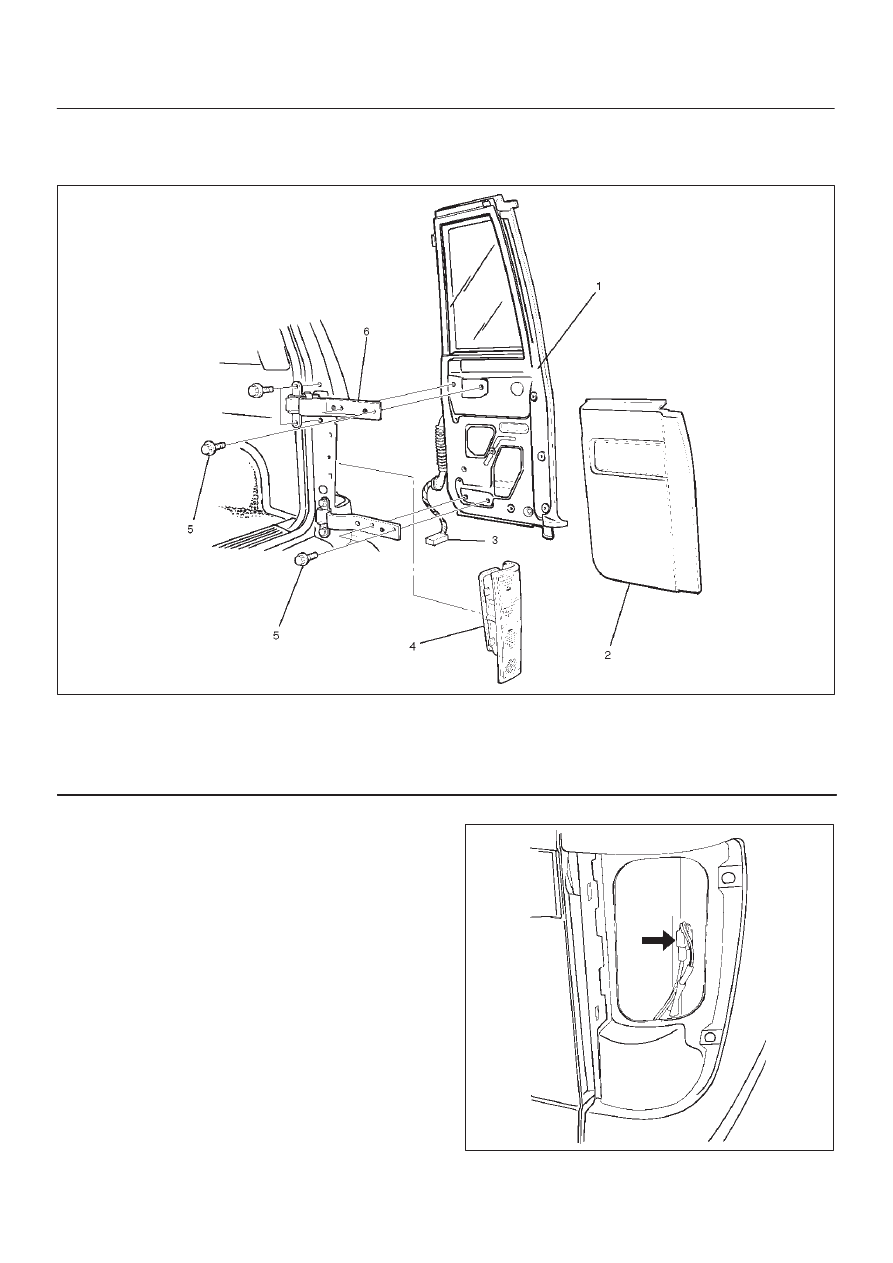

8F–78

BODY STRUCTURE

Tailgate Assembly (RH)

Parts Location

681RS004

Legend

(1) Tailgate Assembly (RH)
(2) Tailgate Trim Panel (RH)
(3) Tailgate Harness Connection

(4) Rear Combination Light (RH)
(5) Tailgate Fixing Bolt
(6) Tailgate Hinge

Removal

1. Disconnect the battery ground cable.
2. Remove rear combination light (RH).
3. Remove tailgate trim panel (RH).

D

Refer to Exterior / Interrior Trim in this section.

4. Remove tailgate harness connection.

D

Disconnect the tailgate harness connection.

810RS004

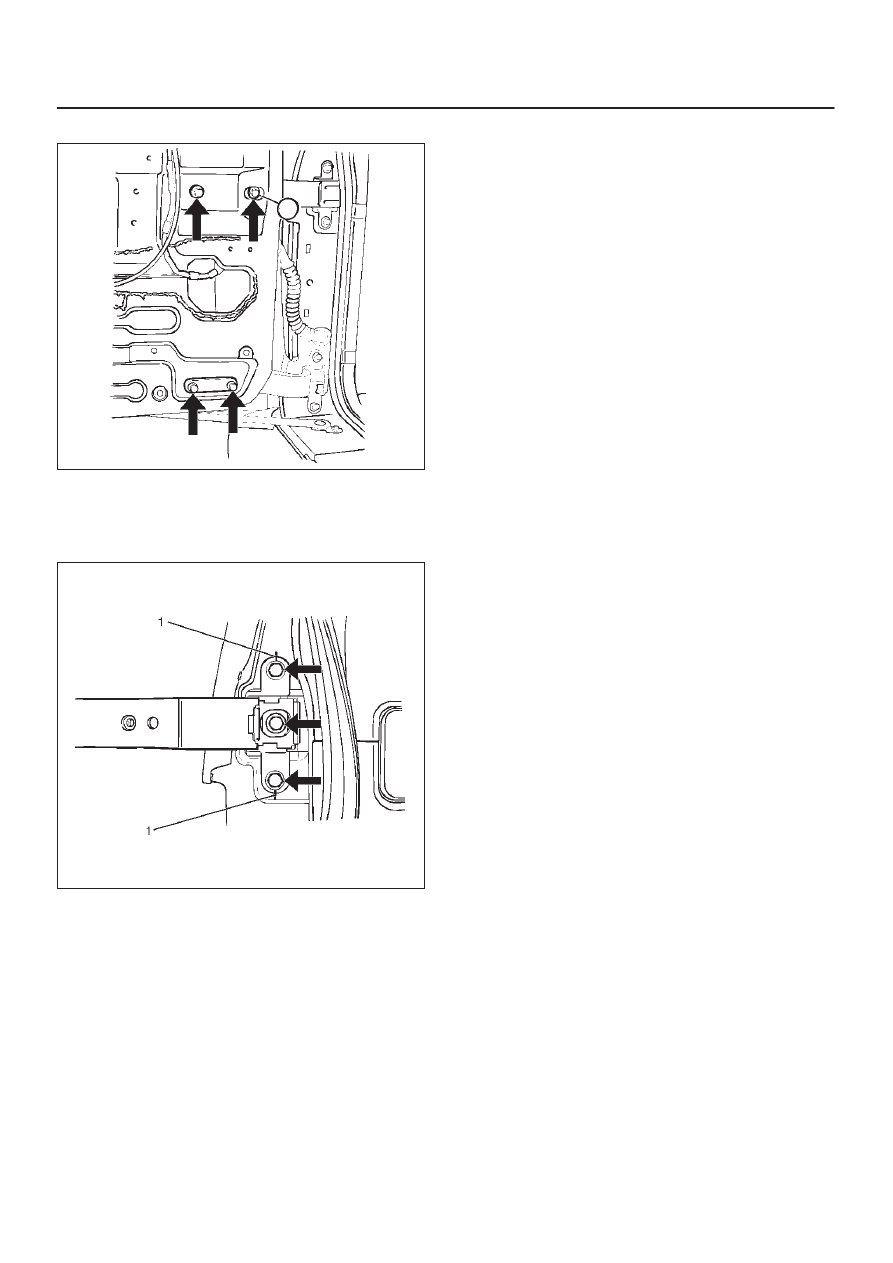

8F–79

BODY STRUCTURE

5. Remove tailgate fixing bolt.

681RS005

6. Remove tailgate assembly (RH).
7. Remove tailgate hinge.

D

Apply a setting mark (1) on the body side hinge and
remove the  hinge fixing bolts.

681RW006

Installation

To install, follow the removal steps in the reverse order,
noting the following point.

1. Apply chassis grease to the tailgate hinge moving

surface.

2. Align the tailgate fitting to the body. Refer to Body

Dimension in this section.

3. Tighten the hinge bolts to the specified torque.

Torque : 34 N

m (3.5kg·m/25  lb ft)
