8F–68

BODY STRUCTURE

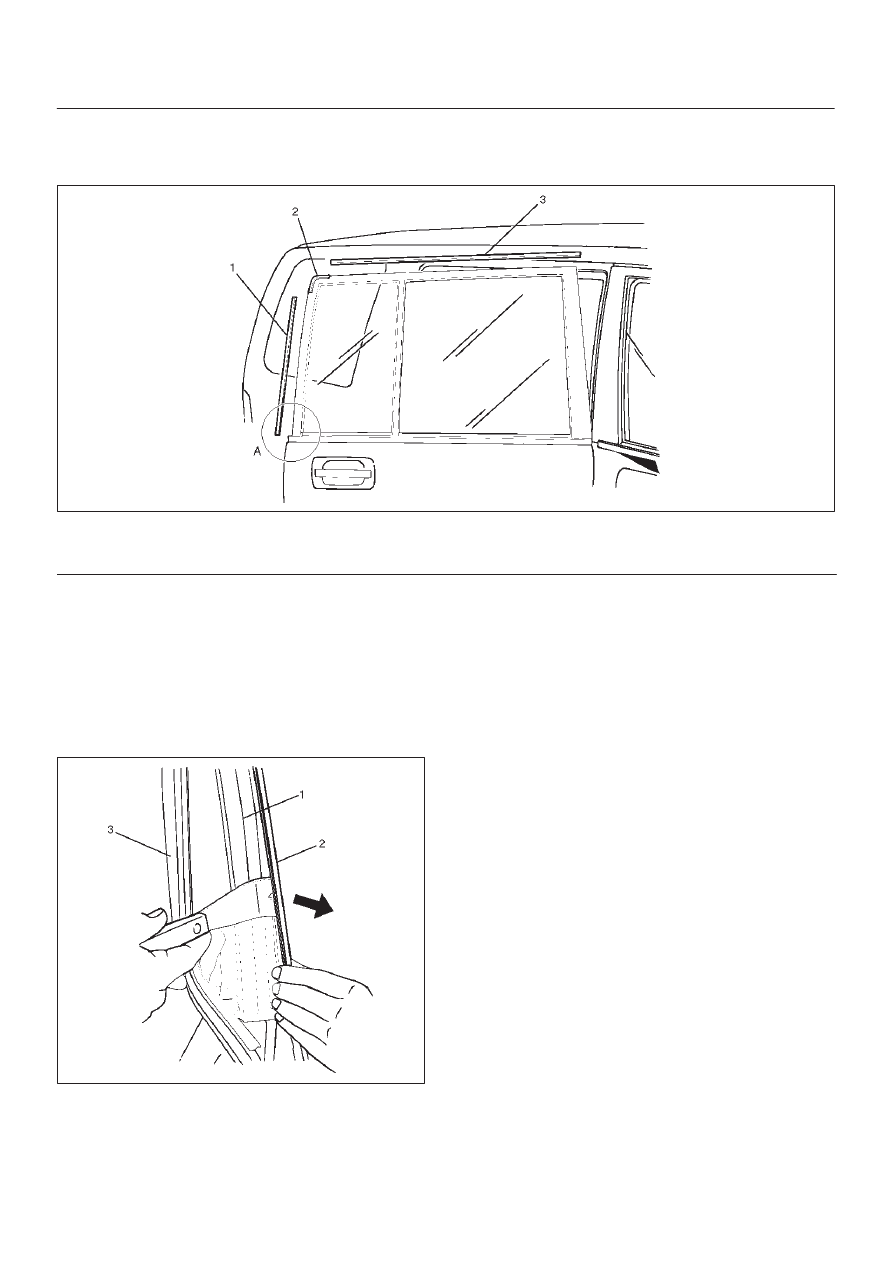

Rear Door Moulding

Parts Location

645RS003

Legend

(1) Rear Door Side Moulding

(2) Rear Door Corner Moulding
(3) Rear Door Upper Moulding

Removal

1. Disconnect the battery ground cable.
2. Remove rear door side moulding.
3. Remove rear door upper moulding.
4. Remove rear door corner moulding.

D

Avoiding the weatherstrip (3), pry the moulding (2)
out from the door frame (1).

645RS004

Installation

To install, follow the removal steps in the reverse order,
noting the following points.

1. Install each moulding with no clearance between

each piece of moulding.

2. Assemble the edge portion (A portion) of the

moulding so that the clearance between the rear side
moulding and the waist seal is 1 mm (0.04 in).

8F–69

BODY STRUCTURE

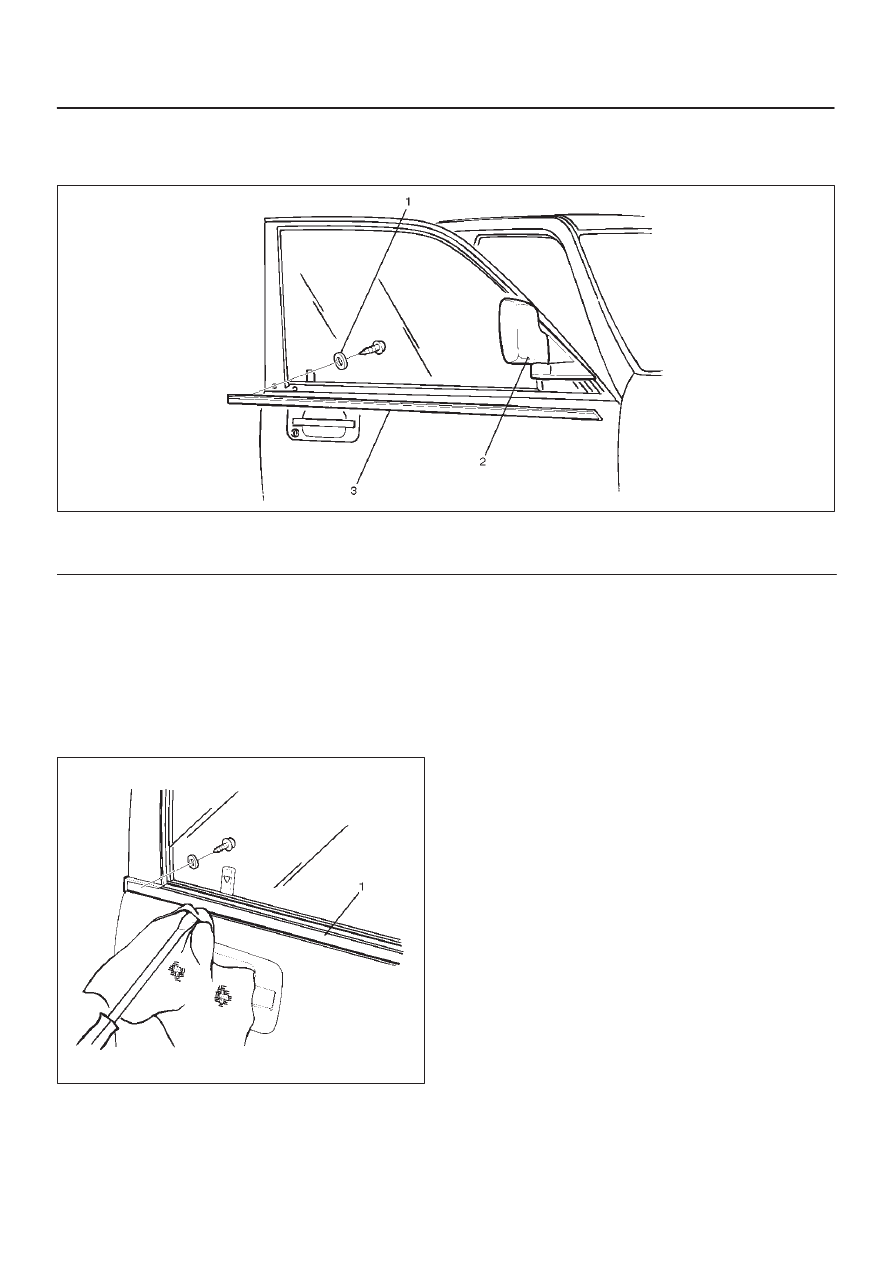

Front Door Waist Seal

Parts Location

631RS009

Legend

(1) Nylon Washer

(2) Door Mirror
(3) Front Door Waist Seal

Removal

1. Disconnect the battery ground cable.
2. Remove door mirror.

D

Refer to Exterior / Interrior Trim  in this section.

3. Remove front door waist seal.

D

Remove the fixing screw and pull out the waist seal
(1) from the door frame while prying it up.

631RS010

Installation

1. Install the front door waist seal.

D

Apply soap and water to the inside of the waist seal
and align the screw hole of the waist seal to the door
panel hole, and gently tap the seal with a rubber
hammer.
Be sure not to tap the seal hard. This may result in
deforming the seal.

2. Install the door mirror.

8F–70

BODY STRUCTURE

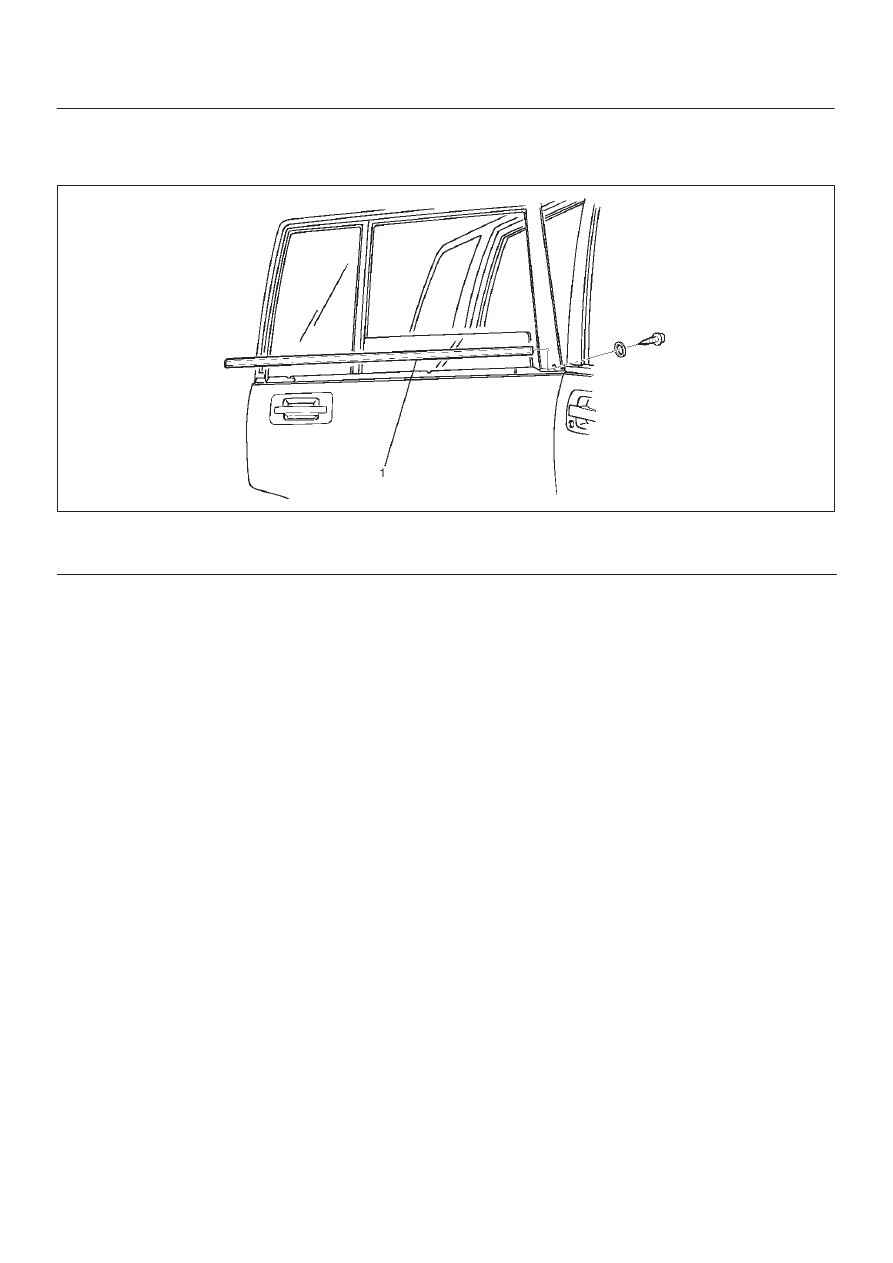

Rear Door Waist Seal

Parts Location

651RW013

Legend

(1) Rear Door Waist Seal

Removal and Installation

Refer to Front Door Waist Seal in this section.

8F–71

BODY STRUCTURE

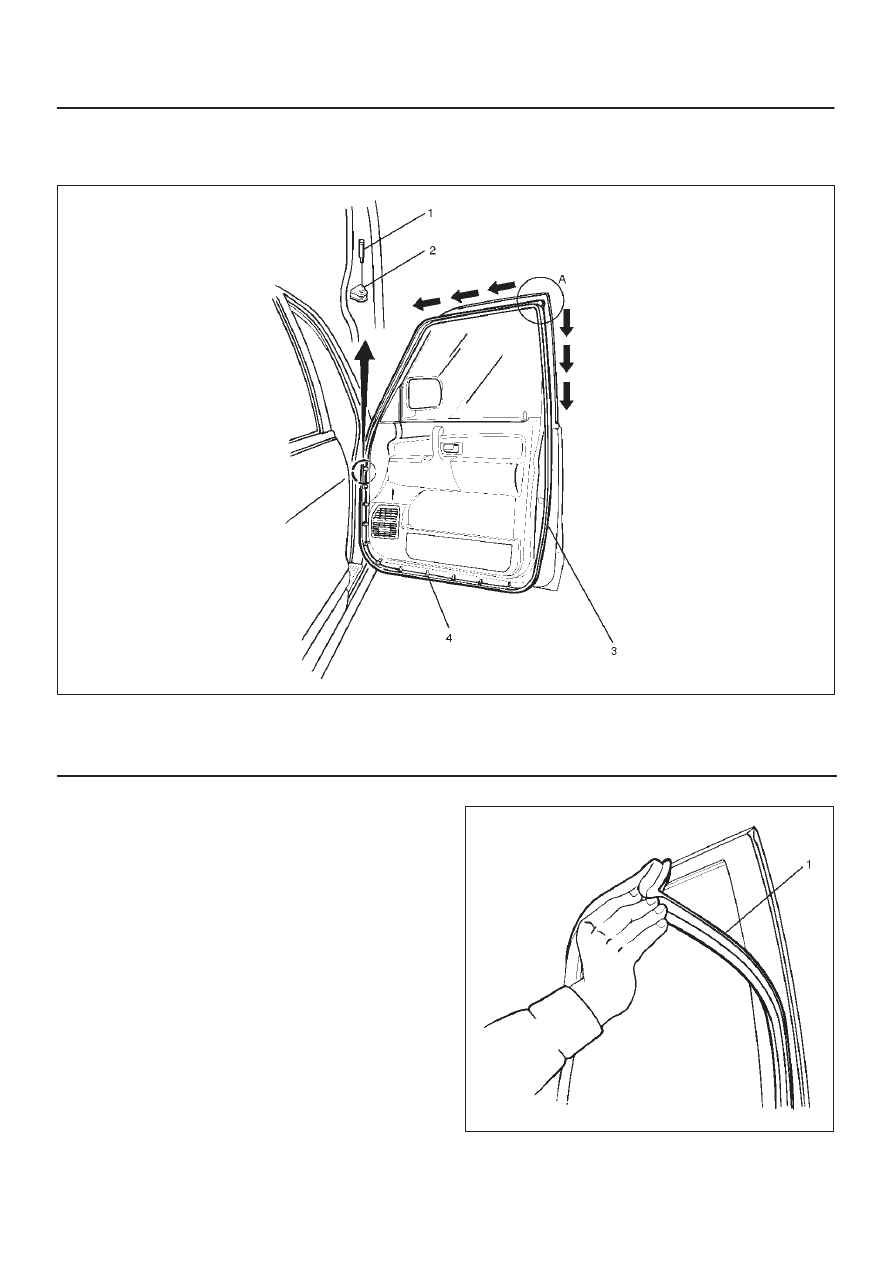

Front Door Weatherstrip

Parts Location

631RS008

Legend

(1) Check Arm Pin
(2) Bracket

(3) Weather Strip
(4) Clip

Removal

1. Remove check arm pin.
2. Remove front door weatherstrip.

D

 Pull the weatherstrip (1) out from the door frame.

631RS011
