Carefully remove the weatherstrip (2) from the door
panel.

631RW003

Installation

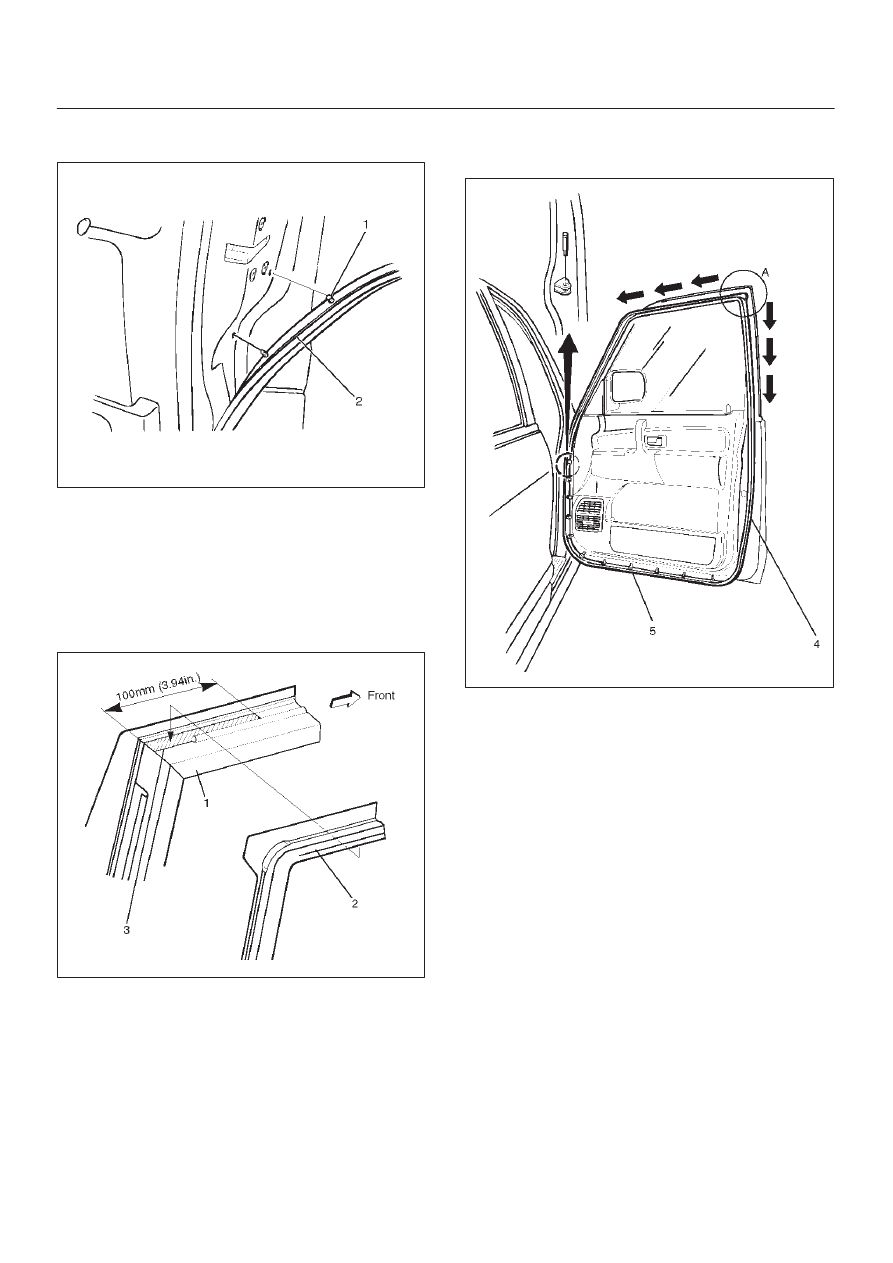

1. Install the front door weatherstrip.

D

Apply soapy water to the door frame groove.

D

Apply the sealing adhesive (3) to the upper A
portion of the door frame (1) and press it for
installation after assembling the weatherstrip (2).

631RS013

D

After positioning the weatherstrip (4) corner, insert
the weatherstrip into the door frame groove from A
point in the arrow–marked direction.

631RW009

D

Insert the weatherstrip clip (5) into the door panel up
to its base.

2. Install the check arm pin.

8F–73

BODY STRUCTURE

Rear Door Weatherstrip

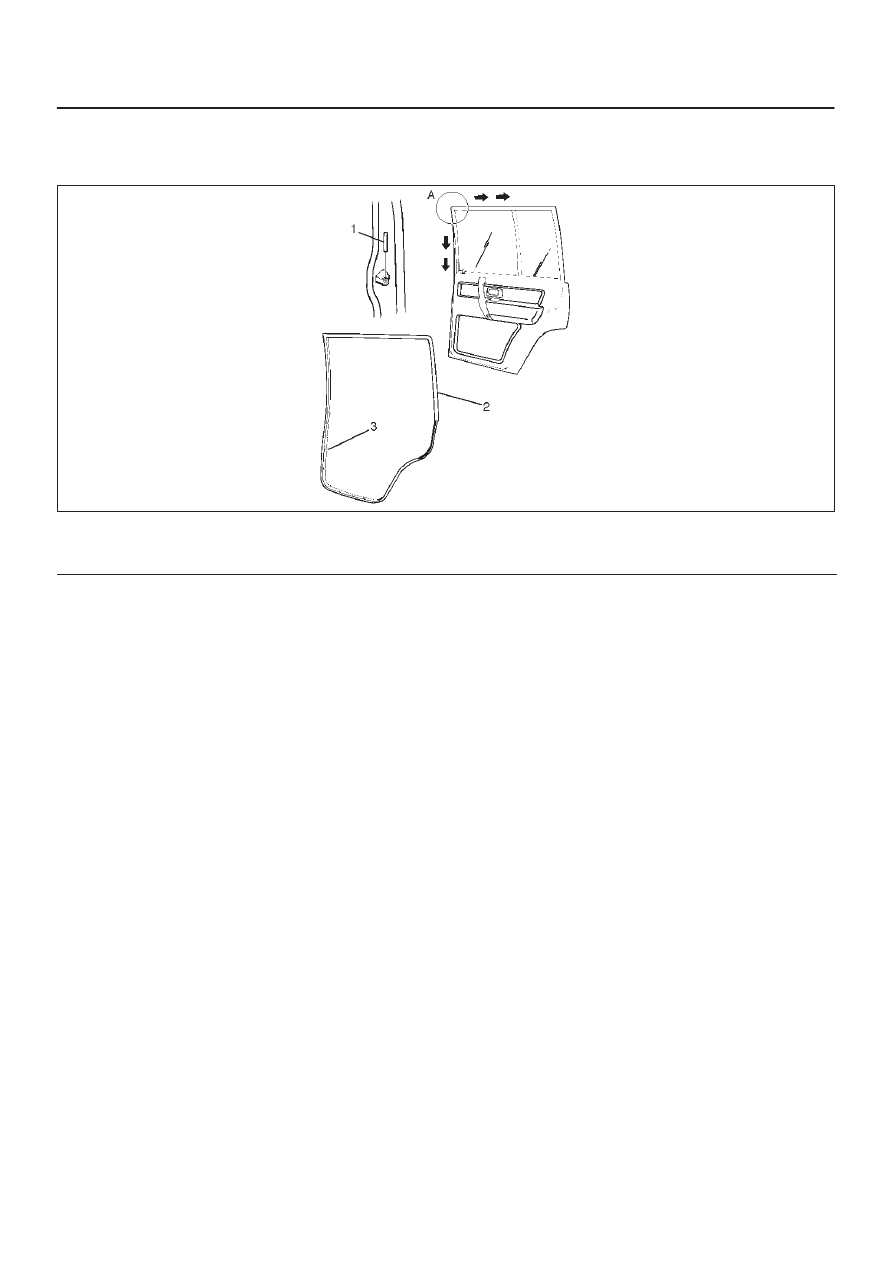

Parts Location

655RW010

Legend

(1) Check Arm Pin

(2) Rear Door Weather Strip
(3) Clip

Removal and Installation

Refer to Front Door Weatherstrip in this section.

8F–74

BODY STRUCTURE

Front Door Seal Finisher

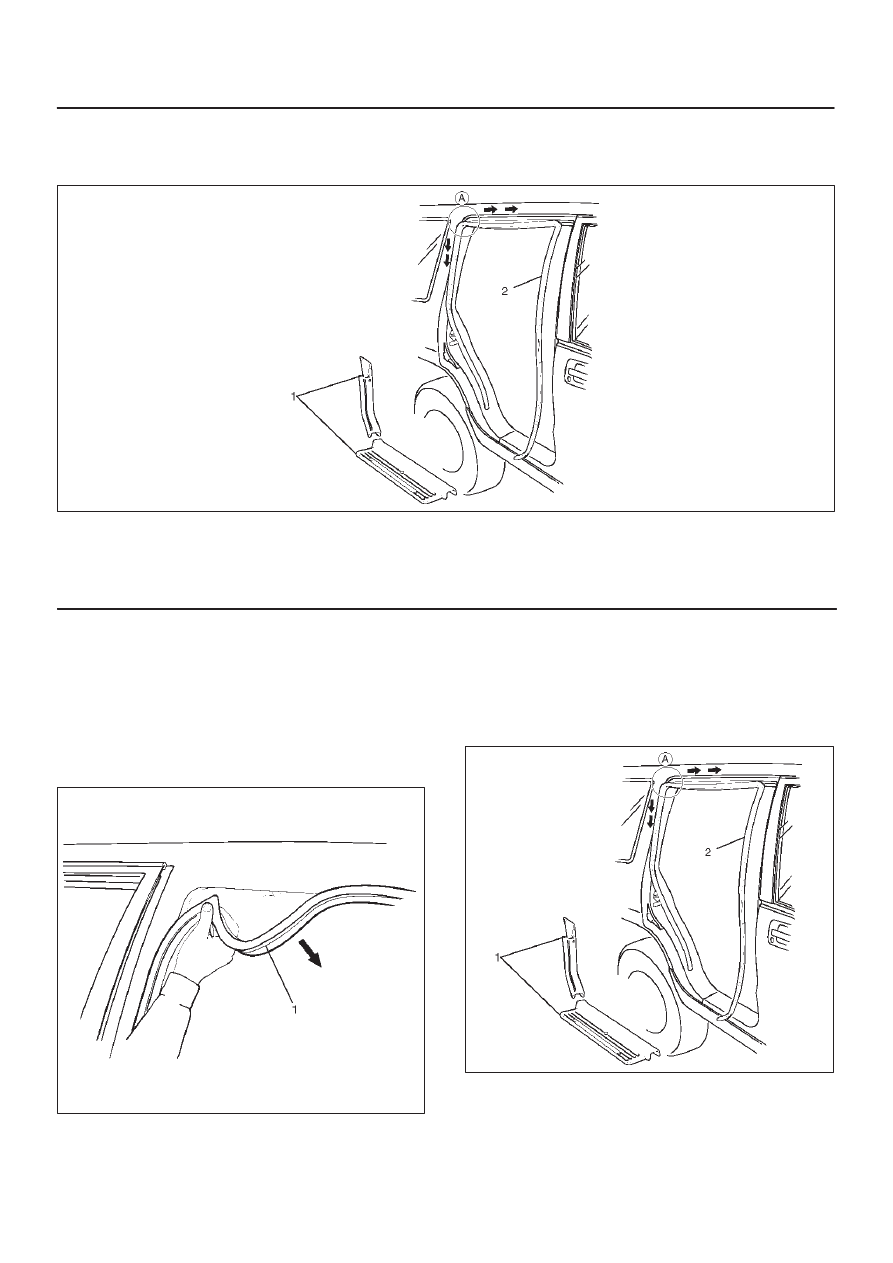

Parts Location

635RS002

Legend

(1) Front Door Sill Plate
(2) Front Door Seal Finisher

Removal

1. Disconnect the battery ground cable.
2. Remove front door sill plate.
3. Remove front door seal finisher (1).

D

Pull the finisher out from the body panel.

635RS003

Installation

1. Install the front door seal finisher (2).

D

Insert the finisher into the A corner and install the
finisher in the arrow–marked directions.

635RS002

2. Install the front door sill plate (1).

D

Take care not to allow the sill plate to distort or twist
the finisher.

8F–75

BODY STRUCTURE

Rear Door Seal Finisher

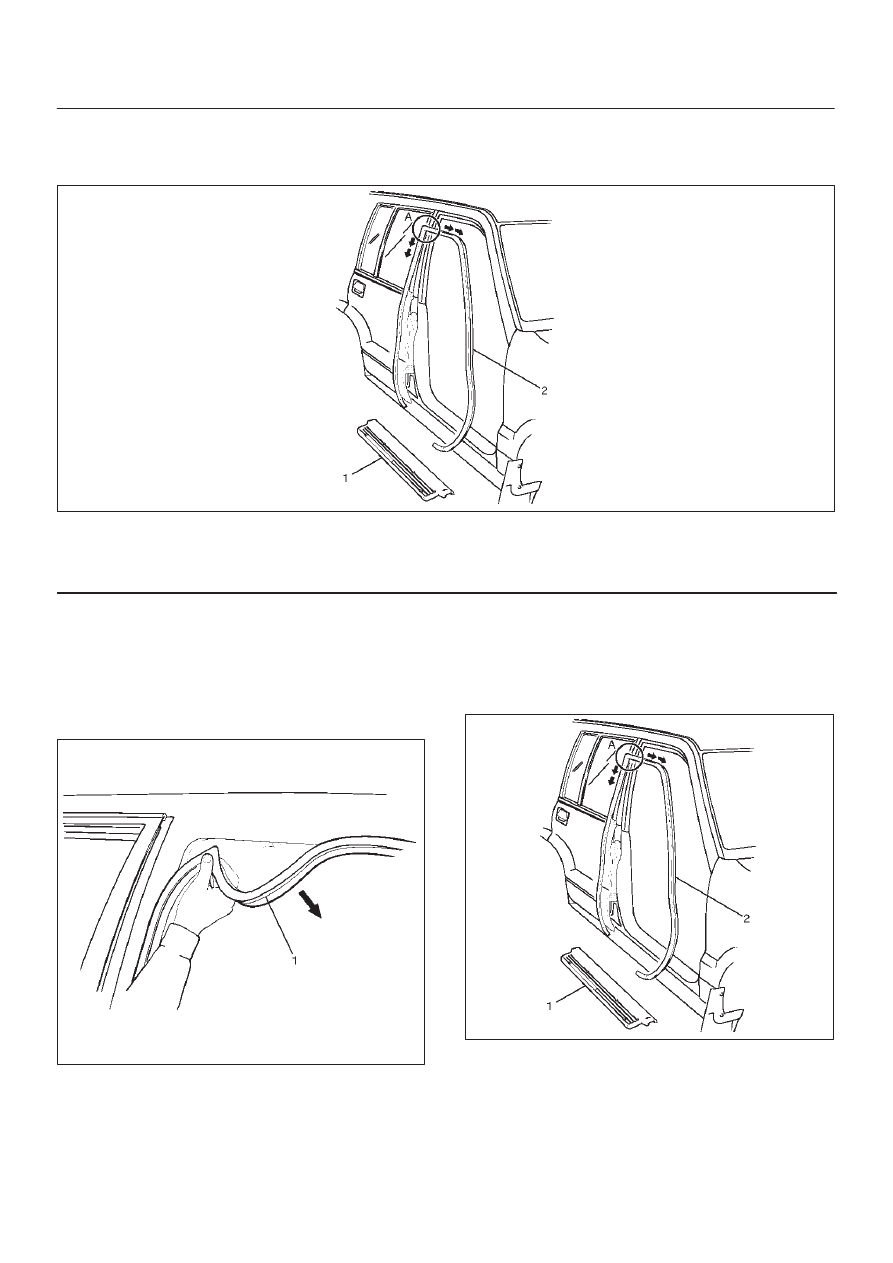

Parts Location

655RS002

Legend

(1) Rear Door Sill Plate and Luggage Side Lower

Cover

(2) Rear Door Seal Finisher

Removal

1. Disconnect the battery ground cable.
2. Remove rear door sill plate and the luggage side

lower cover.

3. Remove rear door seal finisher (1).

D

Pull the rear door seal finisher (1) out from the body
panel.

635RS003

Installation

1. Install the rear door seal finisher (2).

D

Insert the rear door seal finisher (2) into the A corner
and install the finisher in the arrow-marked
directions.

655RS002

2. Install the rear door sill plate and luggage side lower

cover.

D

Be careful not to allow the sill plate and the cover to
distort or twist the finisher.
