8E–14 METER AND GAUGE

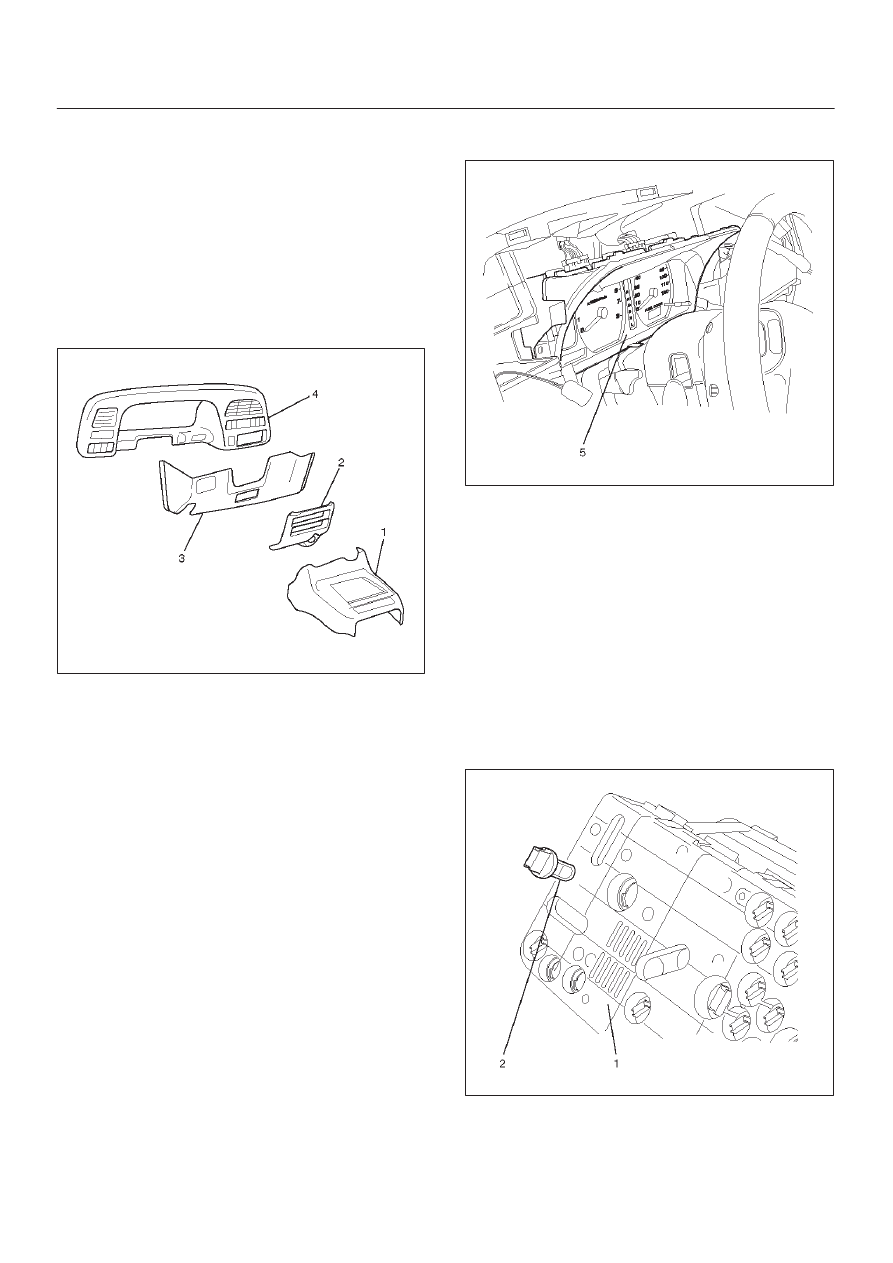

Removal

1. Disconnect the battery ground cable.
2. Remove the front console assembly(1).

Refer to the Instrument Panel Assembly in Body
Structure section.

3. Remove the lower cluster assembly(2).

Refer to the Instrument Panel Assembly in Body
Structure section.

4. Remove the instrument panel driver lower cover(3).

Refer to the Instrument Panel Assembly in Body
Structure section.

740RS004

5. Remove four fixing screws and disconnect the meter

connectors to remove the meter assembly(5).

825RW031

CAUTION: The removed meter assembly should be
placed upright or with its face side up.

Installation

To install, follow the removal steps in the reverse order.

Warning Light Bulb, Indicator Light Bulb, Illumination Light Bulb,

A/T Indicator Light Bulb

Removal

1. Disconnect the battery ground cable.
2. Remove the meter assembly(1).

Refer to the Meter Assembly removal steps in this
section.

3. Hold the bulb socket by hand and rotate it

counterclockwise to remove the socket & bulb(2)
from the meter body.

825RW032

Installation

To install, follow the removal steps in the reverse order.

METER AND GAUGE

8E–15

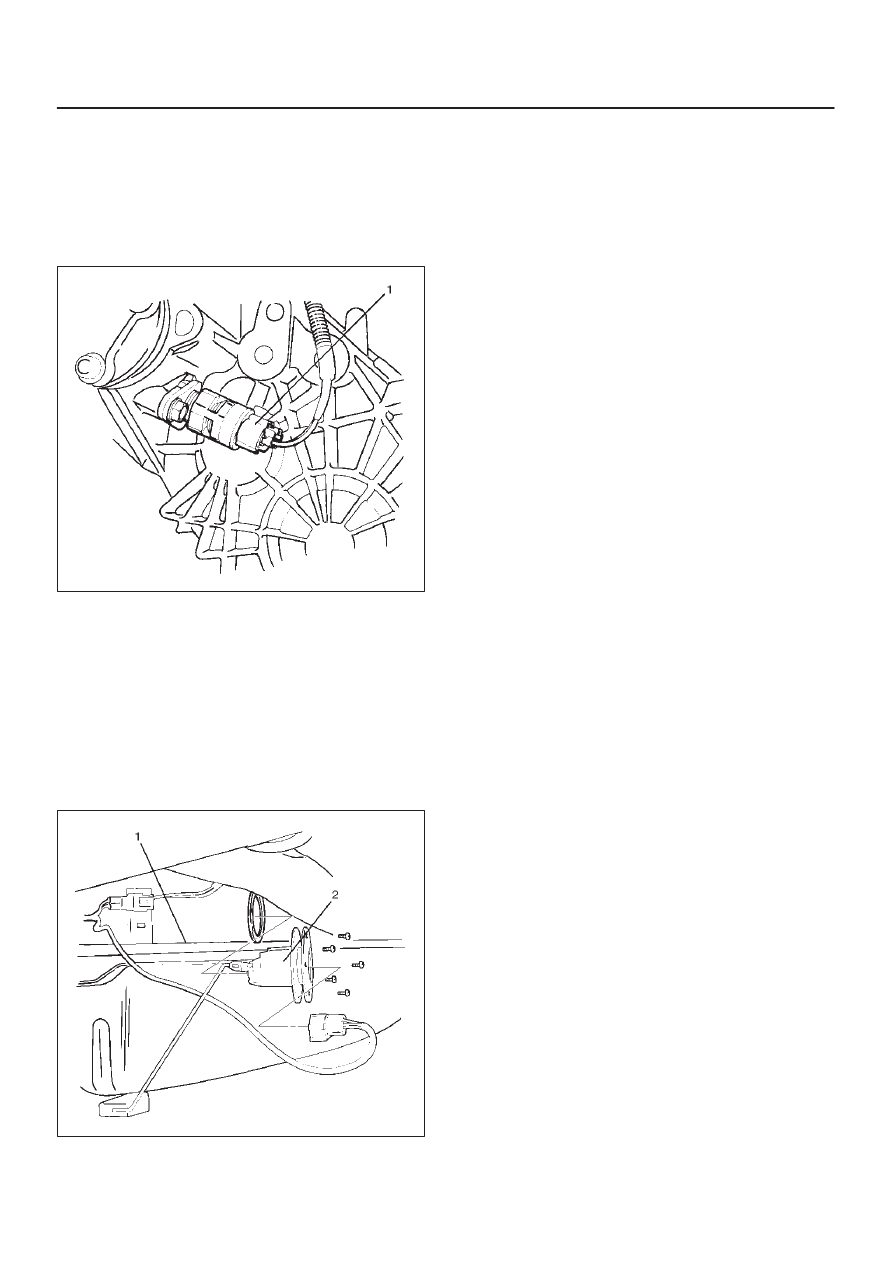

Vehicle Speed Sensor

Removal

1. Disconnect the battery ground cable.
2. Disconnect the connector, remove the vehicle speed

sensor body by rotating it and then remove the vehicle
speed sensor(1).

826RS009

Installation

To install, follow the removal steps in the reverse order,
noting the following point.

1. Tighten the vehicle speed sensor to the specified

torque.

Torque: 27 N·m (2.8 kg·m/20 lb ft)

Fuel Tank Unit

Removal

1. Disconnect the battery ground cable.
2. Remove the fuel tank(1).

Refer to the Fuel Tank removal steps in Engine
section

3. Disconnect the connectors, remove five screws and

then remove the fuel tank unit(2).

140RS006

Installation

To install, follow the removal steps in the reverse order.

8E–16 METER AND GAUGE

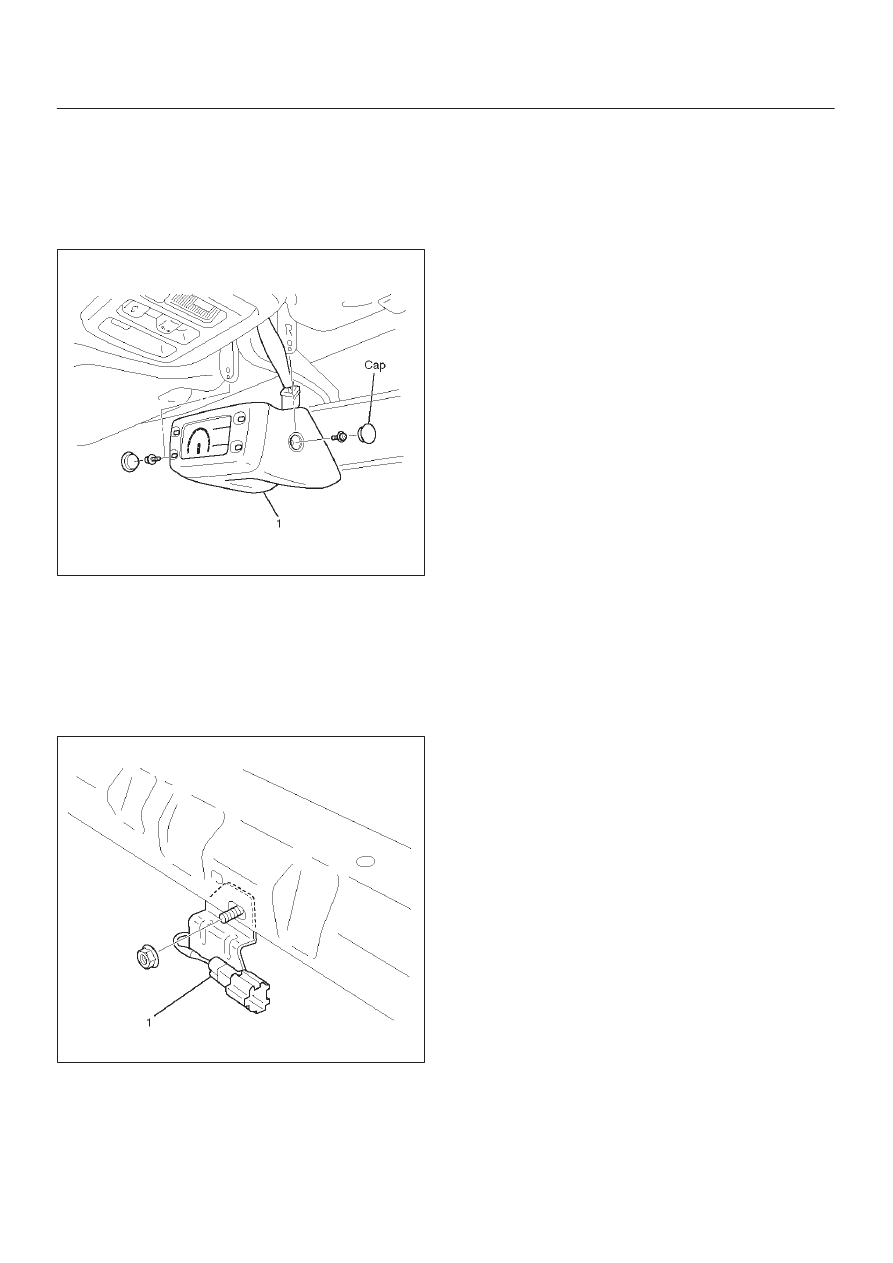

Multi Meter

Removal

1. Disconnect the battery ground cable.
2. Remove two caps, two screws and disconnect the

connector to remove the multi meter(1).

821RW036

Installation

To install, follow the removal steps in the reverse order.

Ambient Sensor

Removal

1. Disconnect the battery ground cable.
2. Disconnect the connector and remove the nut to

remove the ambient sensor(1).

821RW035

Installation

To install, follow the removal steps in the reverse order.

METER AND GAUGE

8E–17

Main Data and Specifications

Torque Specifications

Application

N·m

kg·m

Lb Ft

Lb In

Vehicle Speed Sensor Fixing

27

2.8

20

—
