8E–10 METER AND GAUGE

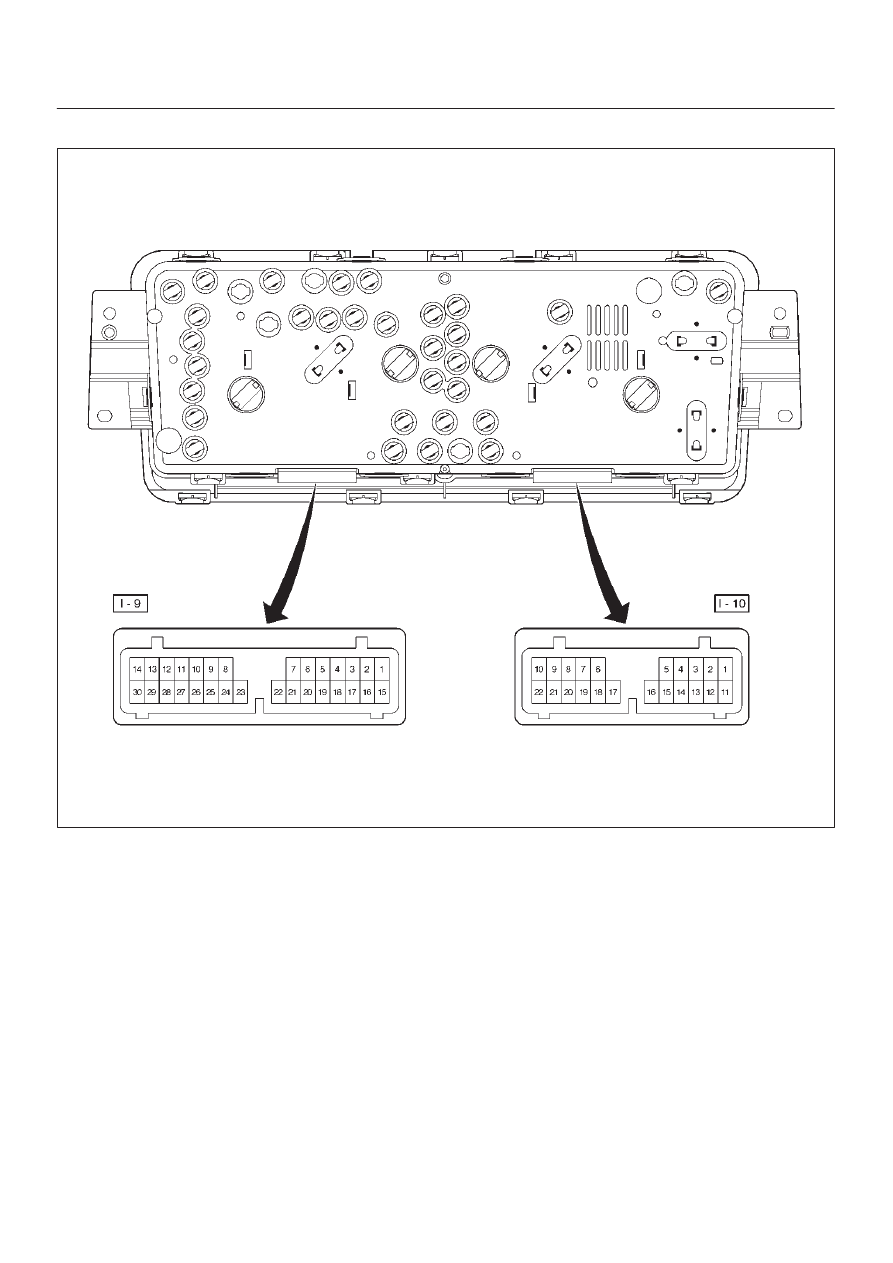

Meter Assembly–Gasoline W/TOD–1

825RW209

METER AND GAUGE

8E–11

Meter Assembly–Gasoline W/TOD–2

Connector No. I–9

Terminal

Function

1

—

2

Air bag warning light

3

A/T oil temp warning light

4

Charge warning light

5

Check engine warning light

6

Check trans warning light

7

Brake warning light

8

—

9

Tachometer

10

—

11

Turn signal indicator light (Left)

12

A/T shift indicator control unit

13

2 position (A/T)

14

D position (A/T)

15

Rear (TOD)

16

Auto (TOD)

17

Check (TOD)

18

Cruise set indicator light

19

Cruise main indicator light

20

Oil pressure warning light

21

Front “1” (TOD)

22

Front “2” (TOD)

23

Front “3” (TOD)

24

Cigarette lighter illumination light

25

Illumination controller

26

Starter switch

27

—

28

Winter drive indicator light

29

Power drive indicator light

30

—

Connector No. I–10

Terminal

Function

1

Turn signal indicator light (Right)

2

L position (A/T)

3

R position (A/T)

4

Check engine warning light

5

Speedometer

6

—

7

—

8

Battery (+)

9

Engine coolant temperature gauge

10

Ground

11

P position (A/T)

12

N position (A/T)

13

3 position (A/T)

14

High beam indicator light (–)

15

High beam indicator light (+)

16

ABS indicator light

17

—

18

Fuel warning light

19

—

20

Fuel gauge

21

Ground (Gauge)

22

—

8E–12 METER AND GAUGE

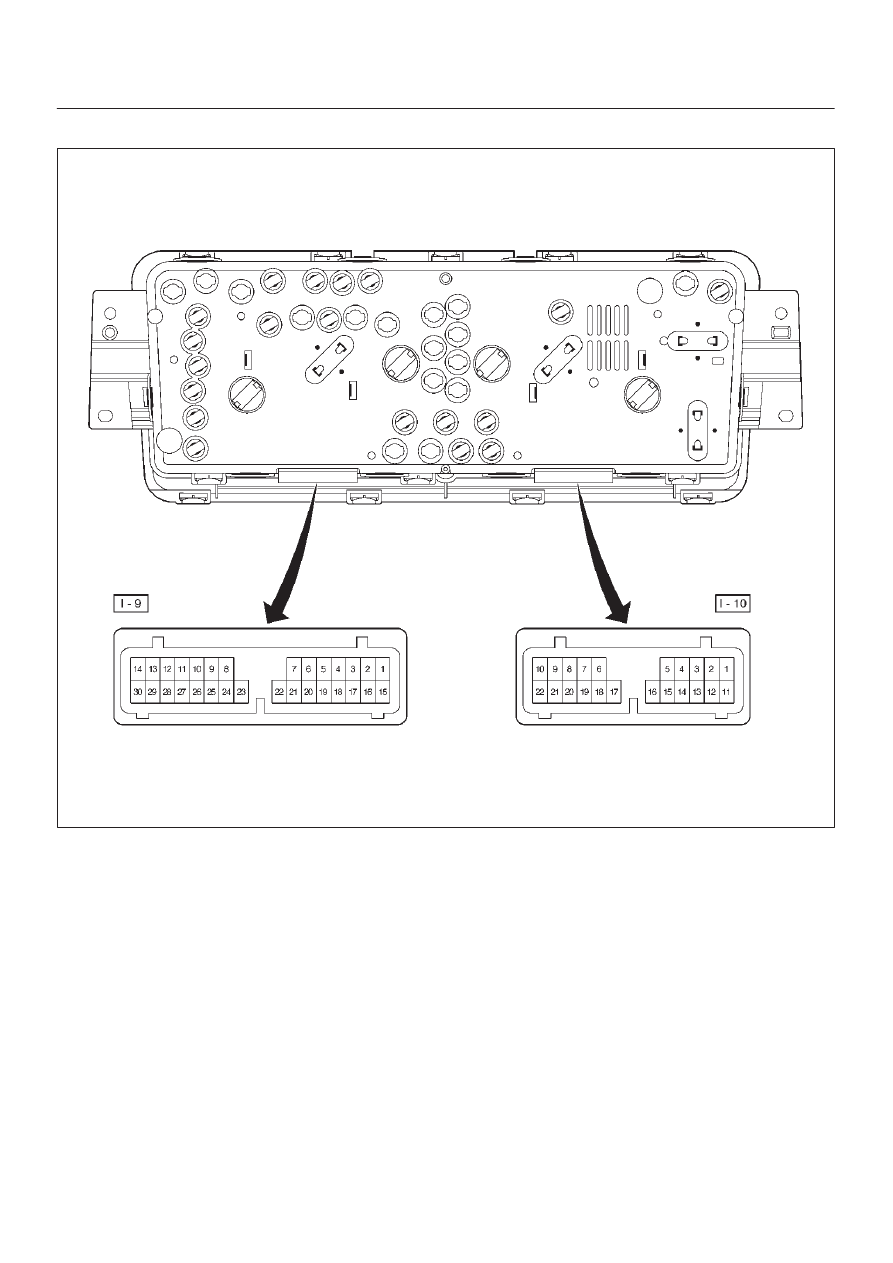

Meter Assembly–Diesel–1

825RW233

METER AND GAUGE

8E–13

Meter Assembly–Diesel–2

Connector No. I–9

Terminal

Function

1

—

2

Seat belt warning light

3

—

4

Brake warning light

5

—

6

Charge warning light

7

Cigarette lighter illumination light

8

Illumination controller

9

Tachometer

10

—

11

—

12

—

13

—

14

—

15

Starter switch

16

—

17

—

18

4WD indicator light

19

Ground (Gauge)

20

—

21

—

22

Oil pressure warning light

23

Water sedimenter

24

Air bag warning light

25

—

26

Glow indicator light

27

—

28

Turn signal indicator light (Left)

29

—

30

Ground

Connector No. I–10

Terminal

Function

1

Turn signal indicator light (Right)

2

—

3

—

4

Engine coolant temperature gauge

5

Speedometer

6

—

7

—

8

Battery (+)

9

—

10

—

11

—

12

—

13

—

14

High-beam indicator light (–)

15

High-beam indicator light (+)

16

ABS indicator light

17

—

18

Fuel warning light

19

Oil pressure gauge

20

Fuel gauge

21

—

22

—
