METER AND GAUGE

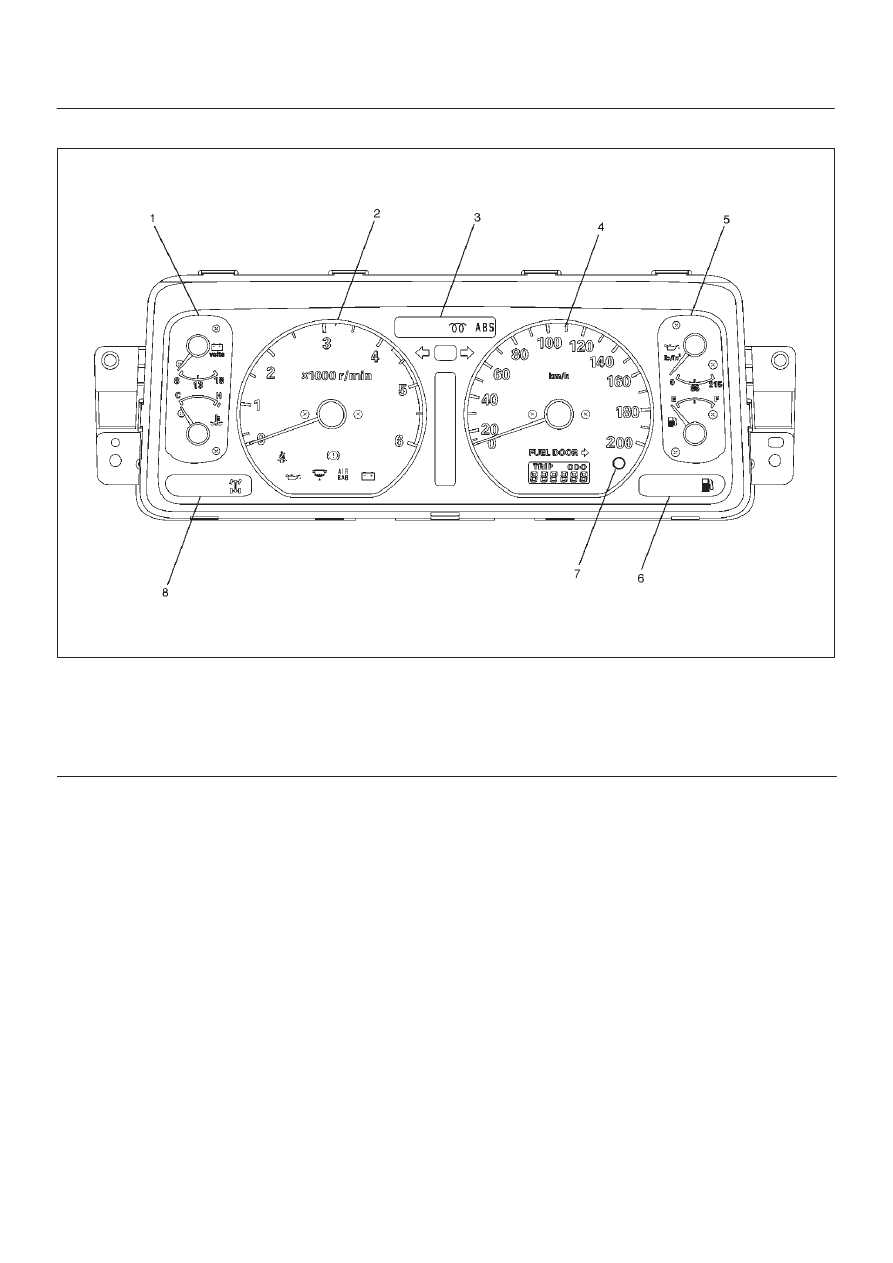

Meter Assembly–Diesel (Front View)

825RW211

Legend

(1) TOD Indicator
(2) Tachometer
(3) Warning Light Lens
(4) Speedometer

(5) Coolant Temperature Gauge & Fuel Gauge
(6) Warning Light Lens
(7) Reset Knob
(8) Warning Light Lens

METER AND GAUGE

8E–7

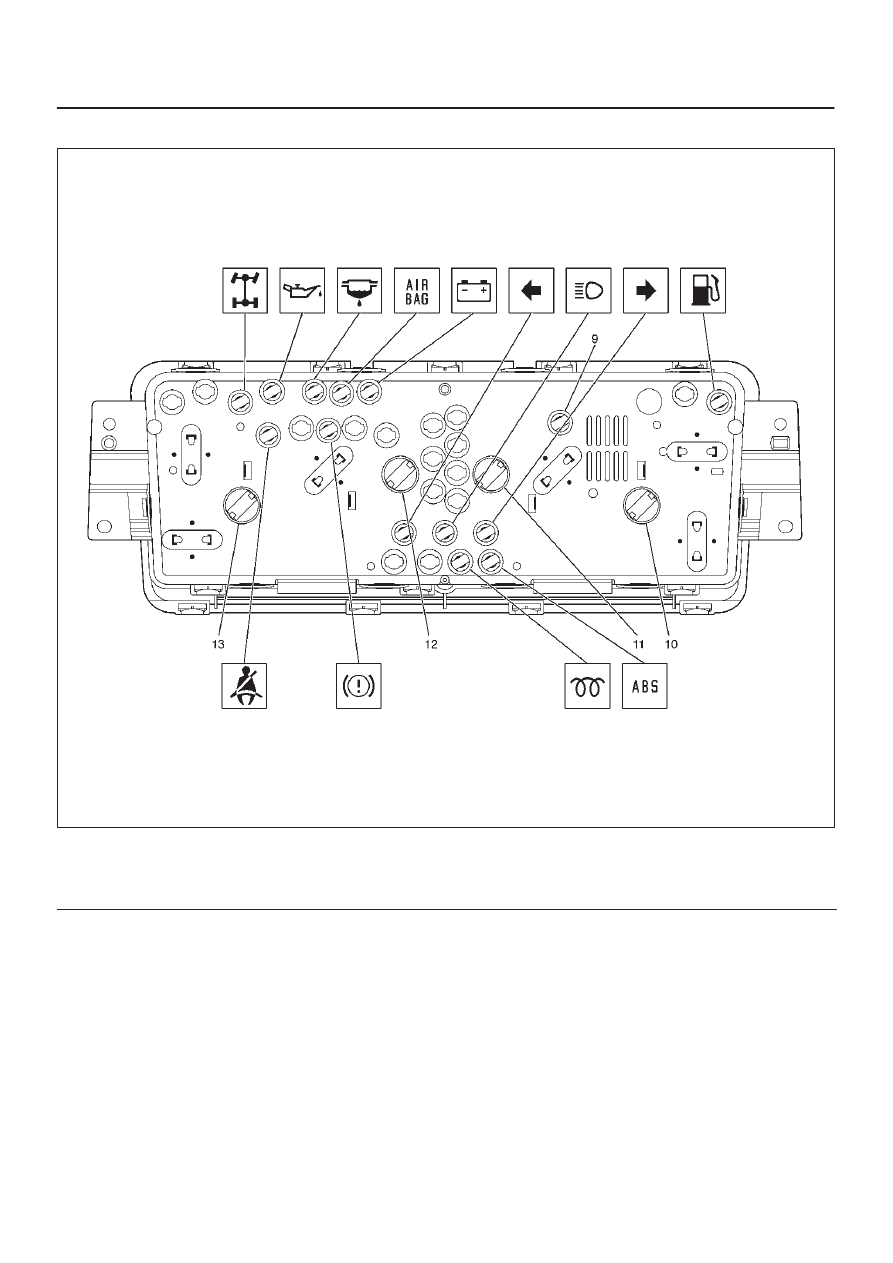

Meter Assembly–Diesel (Rear View)

825RW232

Legend

(9) LCD Light

(10) Illumination Light

(11) Illumination Light

(12) Illumination Light
(13) Illumination Light

8E–8

METER AND GAUGE

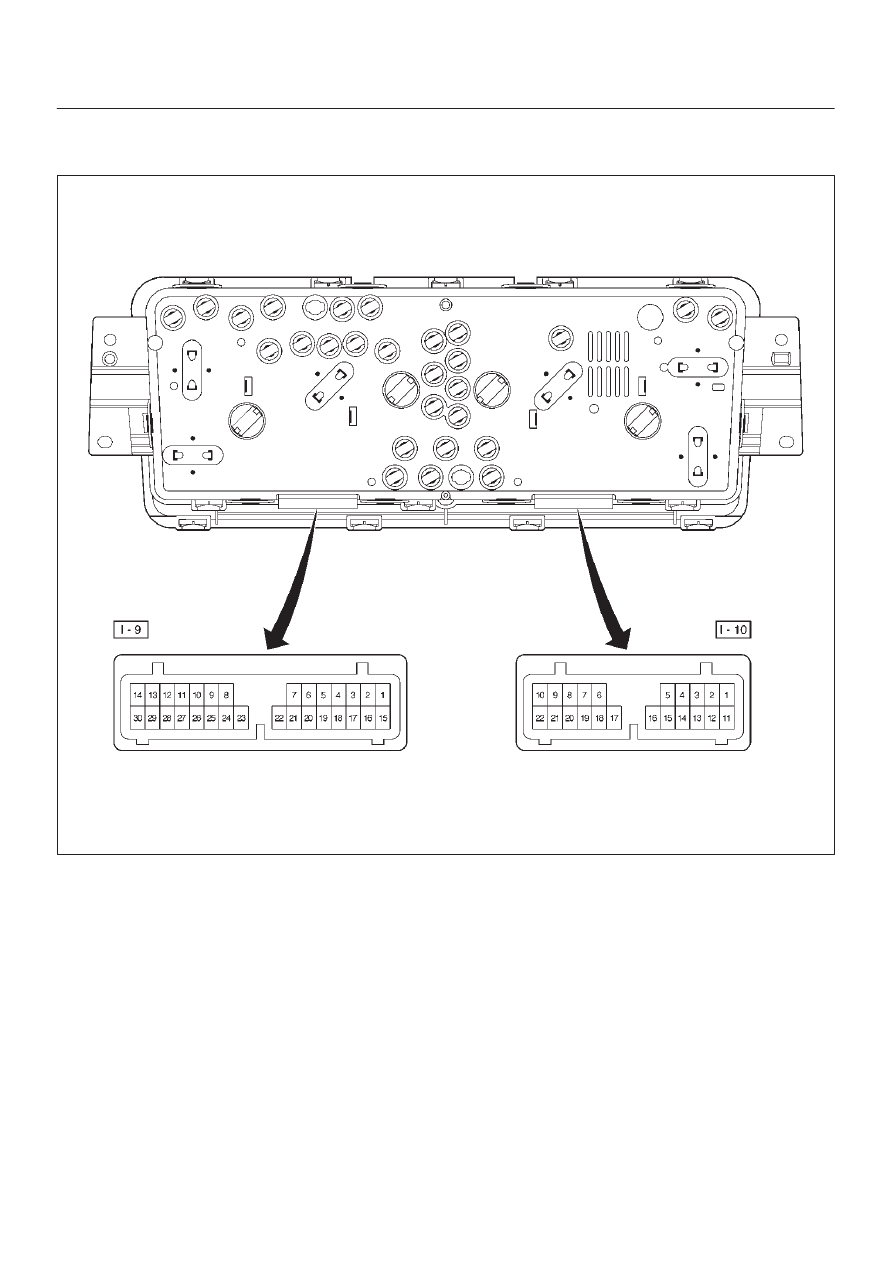

Table for Meter/Gauge Connector Terminal Connections

Meter Assembly–Gasoline W/O TOD–1

825RW206

METER AND GAUGE

8E–9

Meter Assembly–Gasoline W/O TOD–2

Connector No. I–9

Terminal

Function

1

A/T oil temp warning light

2

Seat belt warning light

3

Check trans warning light

4

Brake warning light

5

Check engine warning light

6

Charge warning light

7

Cigarette lighter illumination light

8

Illumination controller

9

Tachometer

10

D position (A/T)

11

—

12

A/T shift indicator control unit

13

—

14

2 position (A/T)

15

Starter switch

16

Cruise set indicator light

17

Cruise main indicator light

18

4WD indicator light

19

Ground (Gauge)

20

—

21

Winter drive indicator light

22

Oil pressure warning light

23

—

24

Air bag warning light

25

Power drive indicator light

26

—

27

—

28

Turn signal indicator light (Left)

29

—

30

Ground

Connector No. I–10

Terminal

Function

1

Turn signal indicator light (Right)

2

L position (A/T)

3

R position (A/T)

4

Engine coolant temperature gauge

5

Speedometer

6

—

7

—

8

Battery (+)

9

—

10

Rear fog light

11

P position (A/T)

12

N position (A/T)

13

3 position (A/T)

14

High-beam indicator light (–)

15

High-beam indicator light (+)

16

ABS indicator light

17

—

18

Fuel warning light

19

Oil pressure gauge

20

Fuel gauge

21

—

22

—
