Opel Frontera UBS. Manual - part 641





8C–4

ENTERTAINMENT

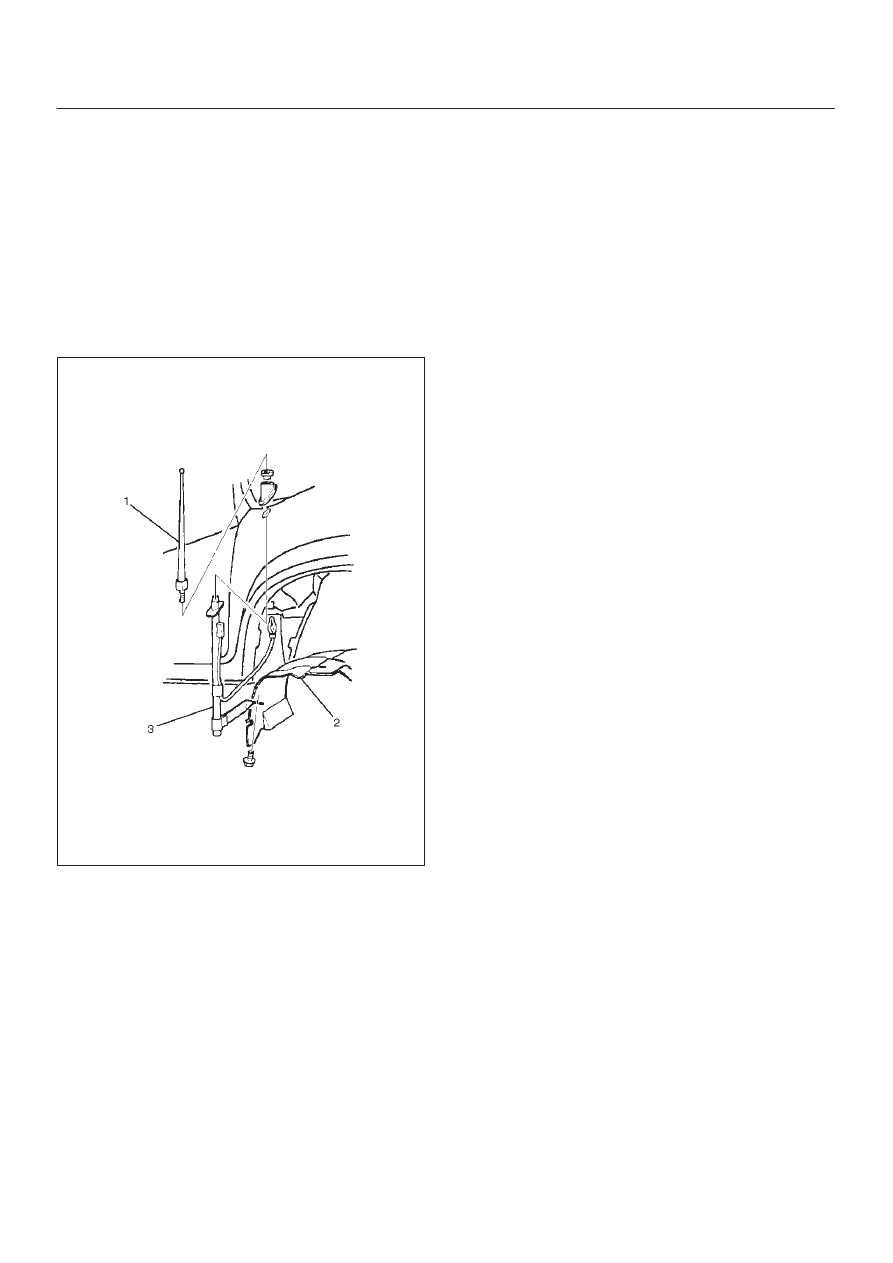

Rod Type Antenna

Removal

1. Disconnect the battery ground cable.
2. Turn the antenna rod(1) counterclockwise to remove

it.

3. Remove three screws and nine clips to remove the

fender inner liner(2).

4. Disconnect the feeder cable connector at the inside of

the vehicle, remove the housing bracket screw, turn
the lock nut counterclockwise to remove it together
with the base mold and then remove the housing(3).

890RS004

Installation

To install, follow the removal steps in the reverse order.

ENTERTAINMENT

8C–5

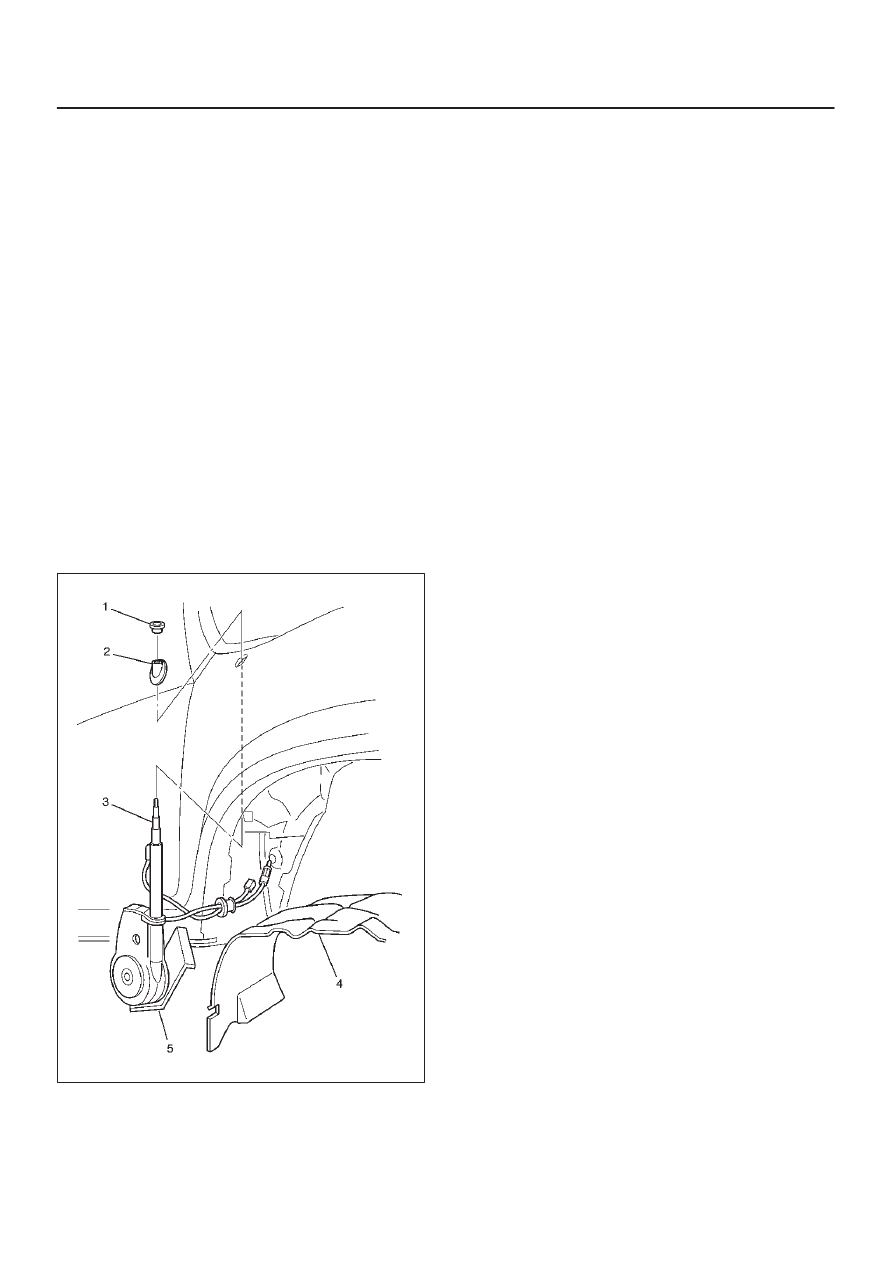

Auto Antenna

General Description

The auto antenna is interlocked with the radio switch. The
antenna rod goes up when the switch is on, and goes
down when the switch is off. The antenna rod also goes
down when the starter switch is turned off with the radio
on.
The antenna rod goes up or down when the cable
connected to the uppermost rod is let out or taken up by
the rotation of motor.
The motor is provided with a built-in limit switch. When the
up/down motion of the antenna is completed, the limit
switch is activated to cut off the circuit.

Removal

1. Disconnect the battery ground cable.
2. Remove three screws and nine clips to remove the

fender inner liner(4).

3. Disconnect the feeder cord and the antenna motor

connector at the inside of the vehicle.

4. Remove the lock nut(1) and base mold(2).
5. After taking off the clips and screws, remove the

motor bracket(5).

890RW075

Installation

To install, follow the removal steps in the reverse order.

8C–6

ENTERTAINMENT

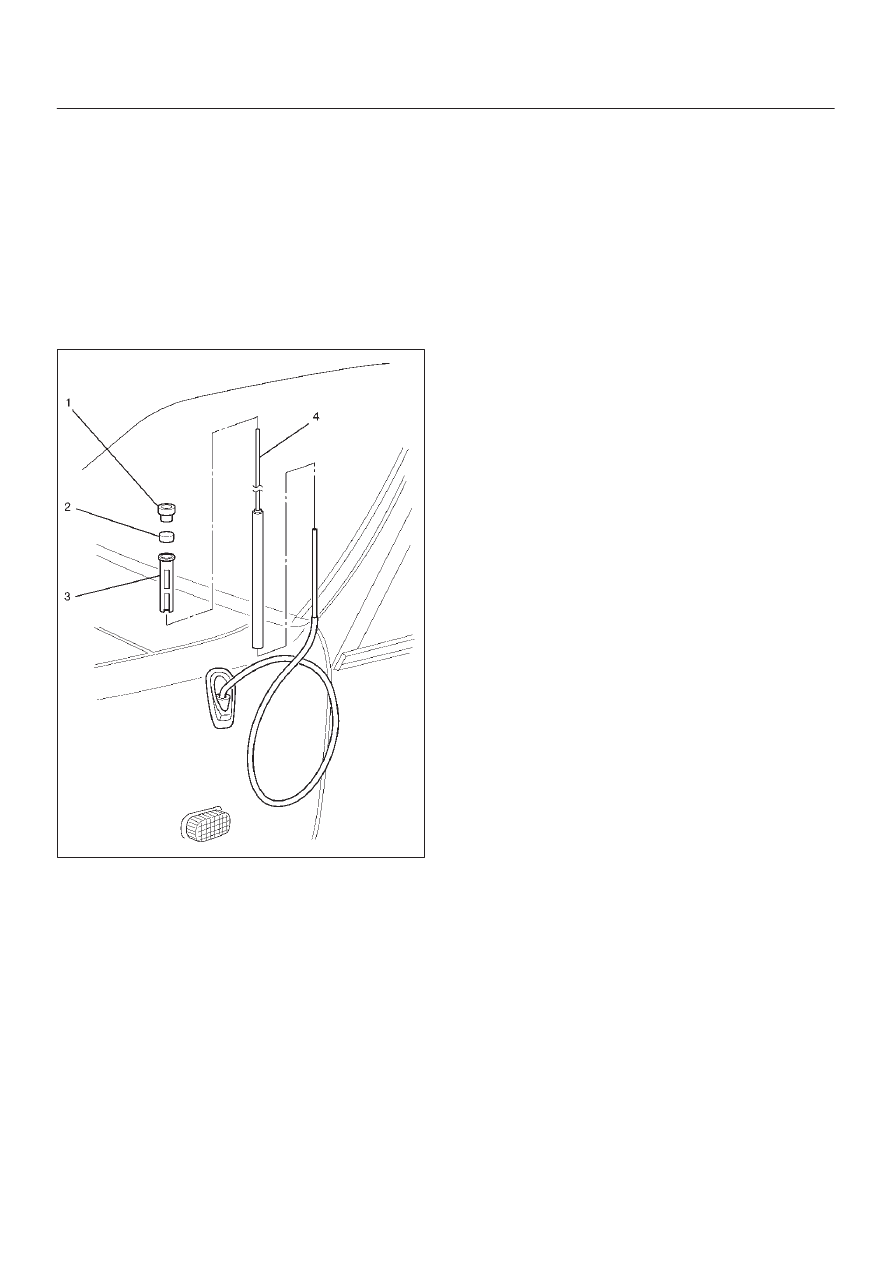

Antenna Rod

Removal

1. Disconnect the battery ground cable.
2. Remove the antenna nut(1).
3. Until the lower part of the antenna rod(4) is removed

from the bezel part, rotate the antenna motor in an
ascending way, and expand the rod.

4. Turn the antenna top(2) counterclockwise.
5. Remove the contact sleeve(3).
6. Remove the antenna rod(4).

890RW076

Installation

To install, follow the removal steps in the reverse order,
nothing the following points.

1. Rotate the antenna motor in a descend way, and push

in vertically until the antenna rod is in the complete
state of storage.

2. After ending the installation, confirm that the antenna

rod works correctly.

ENTERTAINMENT

8C–7

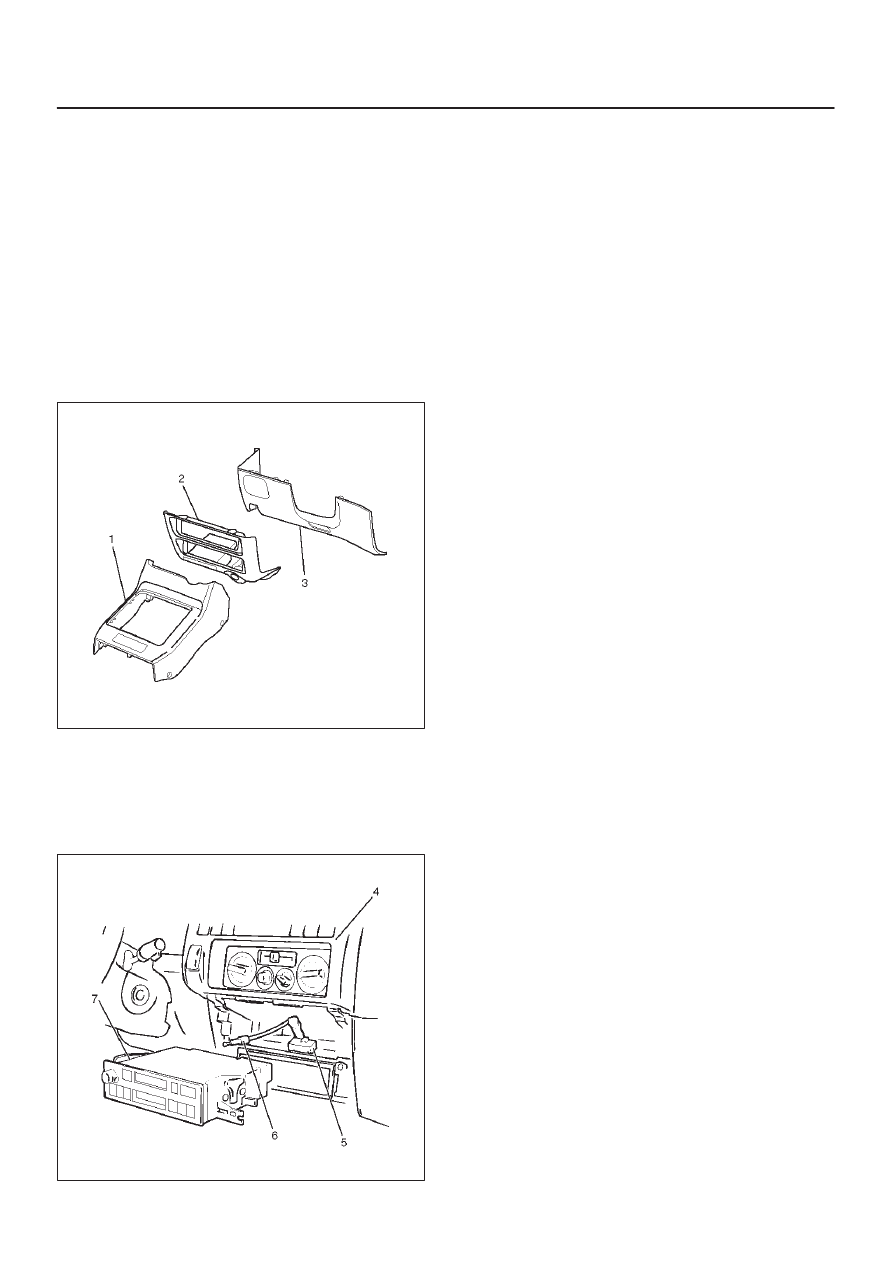

Radio

Removal

1. Disconnect the battery ground cable.
2. Remove the front console assembly (1).

Refer to the Instrument Panel Assembly in Body
Structure section.

3. Remove the lower cluster assembly (2).

Refer to the Instrument Panel Assembly in  Body
Structure section.

4. Remove the instrument panel driver lower cover

assembly (3).
Refer to the Instrument Panel Assembly in Body
Structure section.

821RW024

5. Remove the instrument panel cluster assembly(4).

Refer to the Instrument Panel Assembly in Body
Structure section.

6. Remove two screws and disconnect the radio

connector(5) and antenna feeder plug(6) to remove
the radio(7).

825RW039

Installation

To install, follow the removal steps in the reverse order.
