7A–37

AUTOMATIC TRANSMISSION (4L30–E)

Solenoid (Adapter Case Valve Body)

Removal

1. Raise the vehicle and support it on jack stands.
2. Disconnect  battery ground cable.
3. Drain fluid.
4. Remove transfer and exhaust protectors.
5. Remove exhaust pipe and disconnect oxygen sesnor

connector.

6. Remove adapter case oil pan twelve fixing 10 mm

screws, adapter case oil pan, and gasket.

NOTE: Oil pan still contains transmission fluid. Place a
large drain container under the oil pan and drain the fluid
carefully.

7. Disconnect wiring harness from force motor solenoid

and converter clutch solenoid. Pull only on
connectors, not on wiring harness.

8. Remove 11 mm bolt and converter clutch solenoid

with two O–rings.

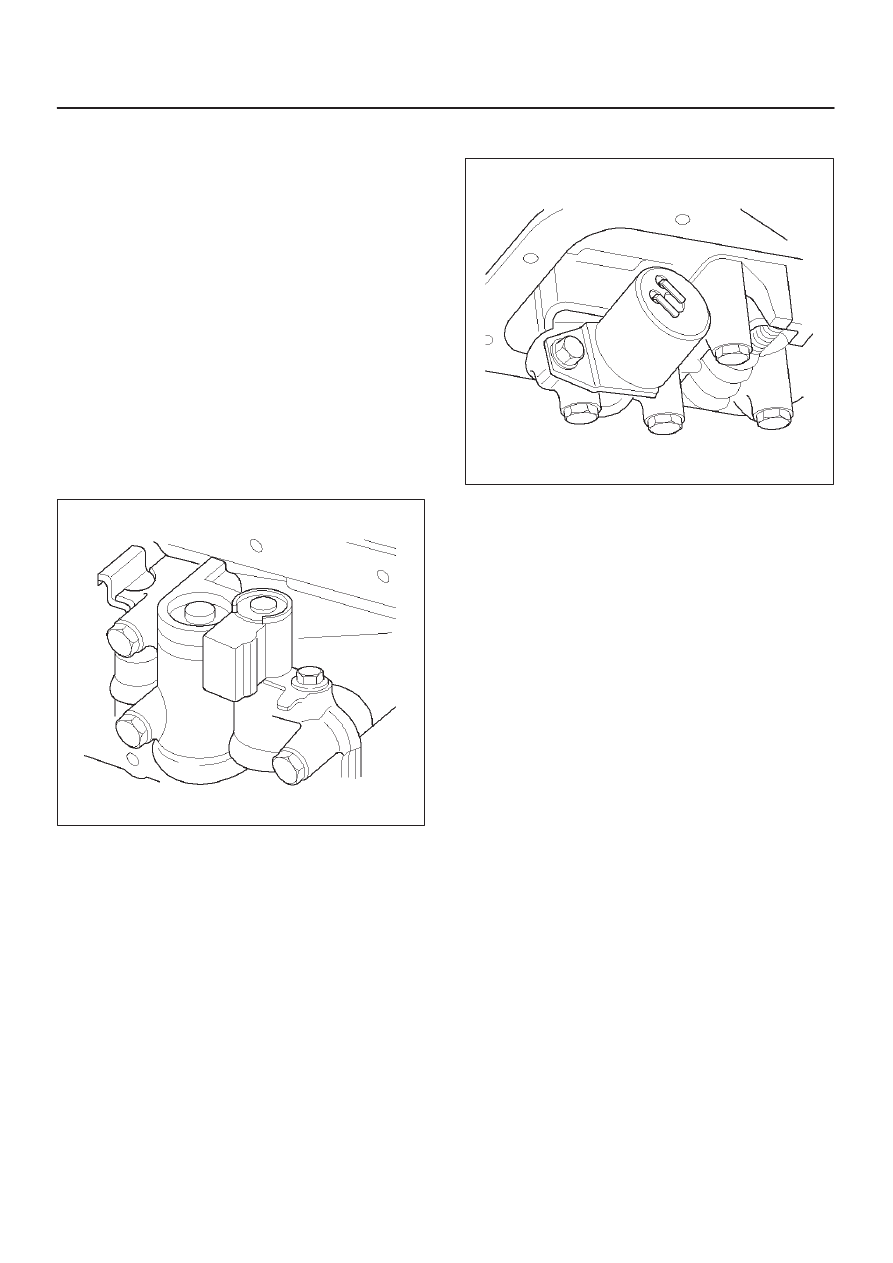

210RW011

9. Remove 11 mm bolt, retainer, and force motor

solenoid.

210RW009

Installation

1. Install force motor solenoid, retainer, and 11 mm bolt

to adapter case valve body. Tighten the bolt to the
specified torque.

Torque: 10  N

m (1.0 kg·m/87 lb in)

2. Install converter clutch solenoid with two O– rings,

and 11 mm bolt to adapter case valve body. Tighten
the bolt to the specified torque.

Torque : 10 N

m (1.0 kg·m/87 lb in)

3. Connect wiring harness assembly to solenoids.
4. Install adapter case oil pan, new gasket, and twelve

10 mm screws. Tighten the screws to the specified
torque.

Torque : 11 N

m (1.1 kg·m/96 lb in)

5. Install exhaust pipe and connect oxygen sensor

connector. Tighten the bolt to the specified torque.

Exhaust pipe flange bolt torque :
43 N

m (4.4 kg·m/32 lb ft)

6. Install transfer and exhaust protectors. Tighten the

bolt to the specified torque.

Torque : 37 N

m (3.8 kg·m/27 lb ft)

7. Fill transmission through overfill screw hole oil pan,

using ATF DEXRON

–III. Refer to Changing

Transmission Fluid in this section.

8. Connect battery ground cable.

7A–38

AUTOMATIC TRANSMISSION (4L30–E)

Valve Body Assembly (Main Case)

Removal

1. Raise the vehicle and support it on jack stands.
2. Disconnect battery ground cable.
3. Remove transfer and exhaust protectors.
4. Drain fluid.
5. Remove exhaust pipe and disconnect oxygen sensor

connector.

6. Support transfer case with a jack and remove third

crossmember.

7. Remove sixteen 10 mm screws, main case oil pan,

magnet and gasket.

8. Remove three 13 mm oil filter fixing screws, then

remove oil filter.

9. Remove two 13 mm manual detent fixing screws,

then remove roller and spring assembly.

10. Disconnect wiring harness from band control

solenoid and shift solenoids. Pull only on connectors,
not on wiring harness.

11. Remove four 13 mm servo cover fixing screws, then

remove servo cover and gasket.

12. Remove seven 13 mm valve body fixing screws.

D

Disconnect the ground wire from the main case
valve body.

13. Remove main case valve body with manual valve link

and transfer plate. Note the position of the link (long
end into valve, short end into range selector lever).

14. Remove transfer plate gasket from main case.
15. Remove two check balls from main case.

Installation

1. Install two check balls to main case.

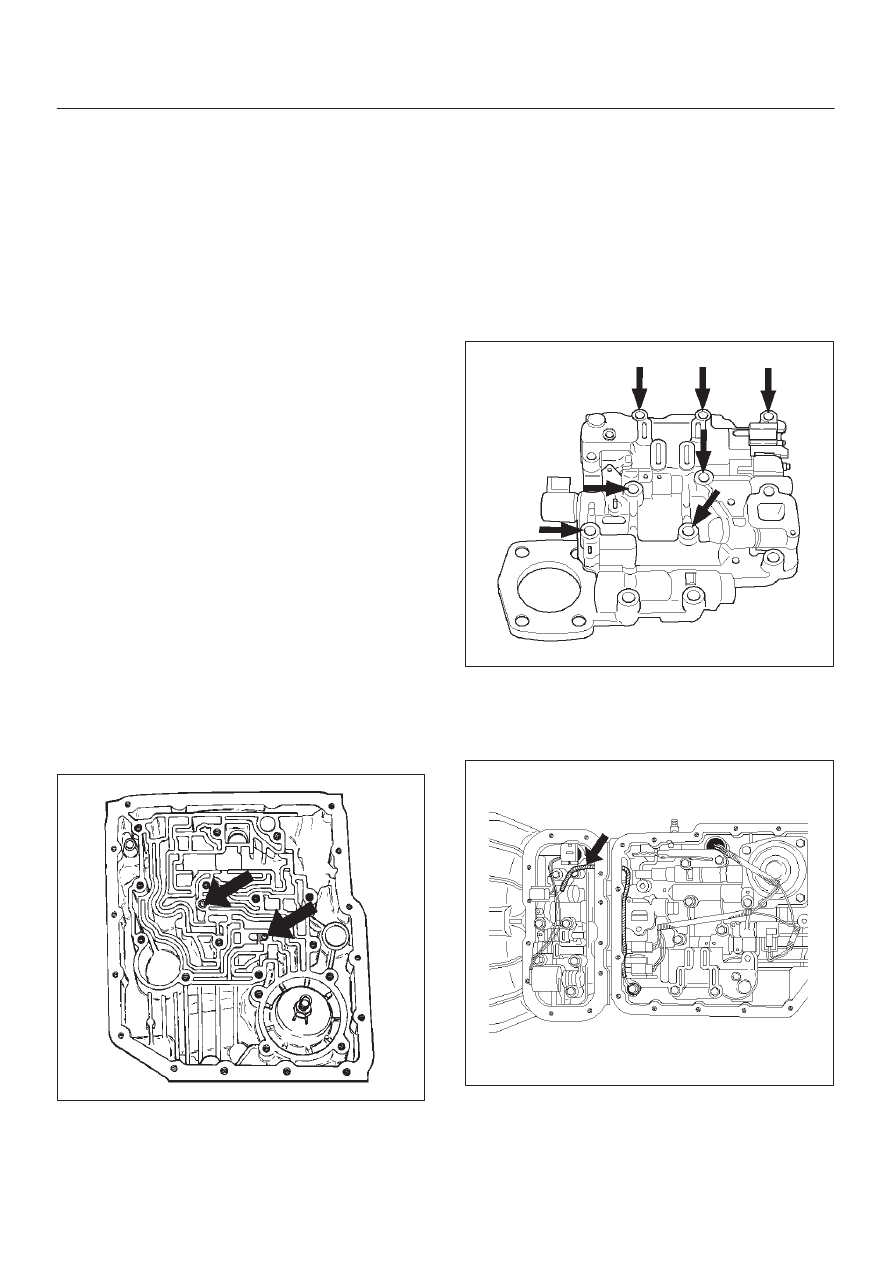

244RW002

2. Inspect electrical 4 pin connector and seal of main

case. Replace if necessary.

3. Use two 5–8840–0022–0 (J–25025–B) guide pin to

install main case.

D

Install valve body assembly and manual valve link.

NOTE: Valve must be extended as the short end of
manual valve link is connected to the range selector lever.
Long end of link goes into valve.

4. Install seven 13 mm screws, and tighten them to the

specified torque.

Torque: 20 N

m (2.0 kg·m/15 lb ft)

243RS008

5. Install 8.5 mm connector of ground wire the head of

this valve body bolt and reinstall it. Tighten the bolt to
the specified torque.

Torque: 20 N

m (2.0 kg·m/15 lb ft)

244RW001

6. Remove two guide pins from main case.
7. Install servo cover gasket, cover, and four 13 mm

screws.  Tighten the screws to the specified torque.

Torque: 25 N

m (2.6 kg·m/18 lb ft)

7A–39

AUTOMATIC TRANSMISSION (4L30–E)

8. Connect wiring harness to band control and shift

solenoids.

9. Install roller and spring assembly to manual detent.

D

Install two 13 mm screws, and tighten them to the
specified torque.

Torque: 20 N

m (2.0 kg·m/15 lb ft)

10. Install oil filter and three 13 mm screws. Tighten the

screws to the specified torque.

Torque : 20 N

m (2.0 kg·m/15 lb ft)

11. Install oil pan gasket, magnet, oil pan and sixteen 10

mm screws. Tighten the screws to the specified
torque.

Torque: 11 N

m (1.1 kg·m/96 lb in)

12. Install third crossmember and rear mount. Tighten the

bolts and nuts to the specified torque.

Torque

Third crossmember bolt:
50 N

m (5.1 kg·m/37 lb ft)

Rear mount nut: 50 N

m (5.1 kg·m/37 lb ft)

13. Install exhaust pipe and connect oxygen sensor

connector. Tighten the bolts to the specified torque.

Exhaust pipe flange bolt torque:
43 N

m (4.4 kg·m/32 lb ft)

14. Install transfer and exhaust protectors. Tighten the

bolts to the specified torque.

Torque: 37 N

m (3.8 kg·m/27 lb ft)

15. Fill transmission through overfill screw hole of oil pan,

using ATF DEXRON

–III, refer to Changing

Transmission Fluid in this section.

16. Connect  battery ground cable.

7A–40

AUTOMATIC TRANSMISSION (4L30–E)

Valve Body Assembly (Adapter Case)

Removal

1. Raise the vehicle and support it on jack stands.
2. Disconnect battery ground cable.
3. Drain fluid.
4. Remove transfer and exhaust protectors.
5. Remove exhaust pipe and disconnect oxygen sensor

connector.

6. Remove twelve 10 mm adapter case oil pan fixing

screws, adapter case oil pan, and gasket.

NOTE: Oil pan still contains transmission fluid. Place a
large drain container under the oil pan.
Drain the fluid carefully.

7. Disconnect wiring harness from force motor solenoid

and converter clutch solenoid. Pull only on
connectors, not on wiring harness.

8. Remove seven 13 mm screws from adapter case

valve body assembly, then remove  transfer plate, two
gaskets, and adapter case valve body.

Installation

1. Inspect electrical 5 pin connector and seal of adapter

case. Replace if necessary.

2. Install gasket, transfer plate, and gasket.
3. Install adapter case valve body and seven 13 mm

screws. Tighten the screws to the specified torque.

Torque: 20 N

m (2.0 kg·m/15 lb ft)

4. Connect wiring harness assembly to converter clutch

solenoid and force motor.

5. Install oil pan gasket, oil pan, and twelve 10 mm

screws. Tighten the screws to the specified torque.

Torque: 11 N

m (1.1 kg·m/96 lb in)

6. Install exhaust pipe and connect oxygen sensor

connector. Tighten the bolts to the specified torque.

Exhaust pipe flange bolt torque:
43 N

m (4.4 kg·m/32 lb ft)

7. Install transfer and exhaust protectors. Tighten the

bolts to the specified torque.

Torque: 37 N

m (3.8 kg·m/27 lb ft)

8. Fill transmission through the overfill screw hole of oil

pan, using ATF DEXRON

–III. Refer to Changing

Transmission Fluid in this section.

9. Connect battery ground cable.

Powertrain Control Module (PCM)

Removal

1. Disconnect battery ground cable.
2. Remove front console.
3. Disconnect PCM wiring harness connectors from

PCM.

4. Remove three PCM retaining screws.
5. Remove two brackets from PCM.

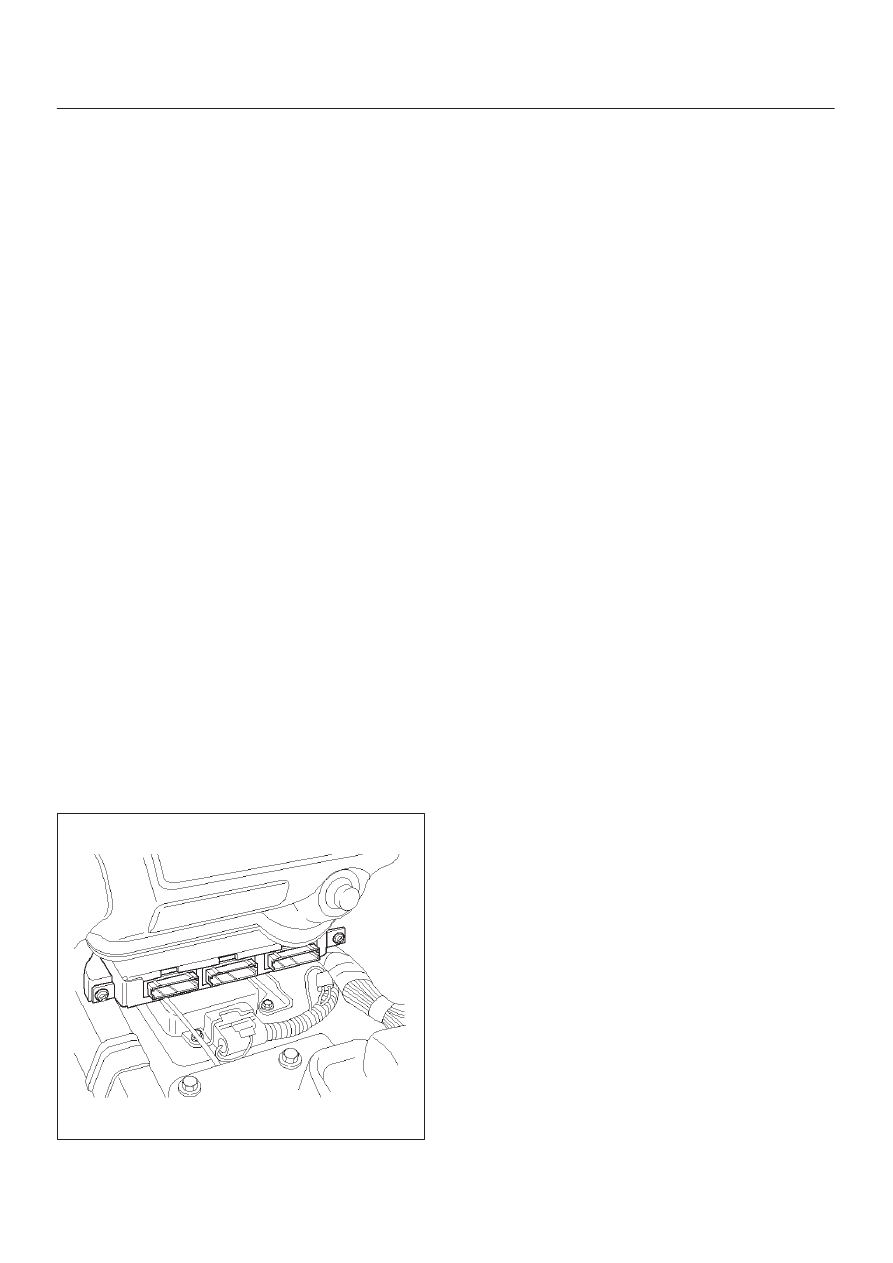

826RV006

Installation

1. Install two brackets to PCM.
2. Install three PCM retaining screws.
3. Connect PCM wiring harness connectors to PCM.
4. Install front console.
5. Connect battery ground cable.
