EXTERIOR/INTERIOR TRIM

8J–31

Mud Flaps (With Wheel Opening Extension)

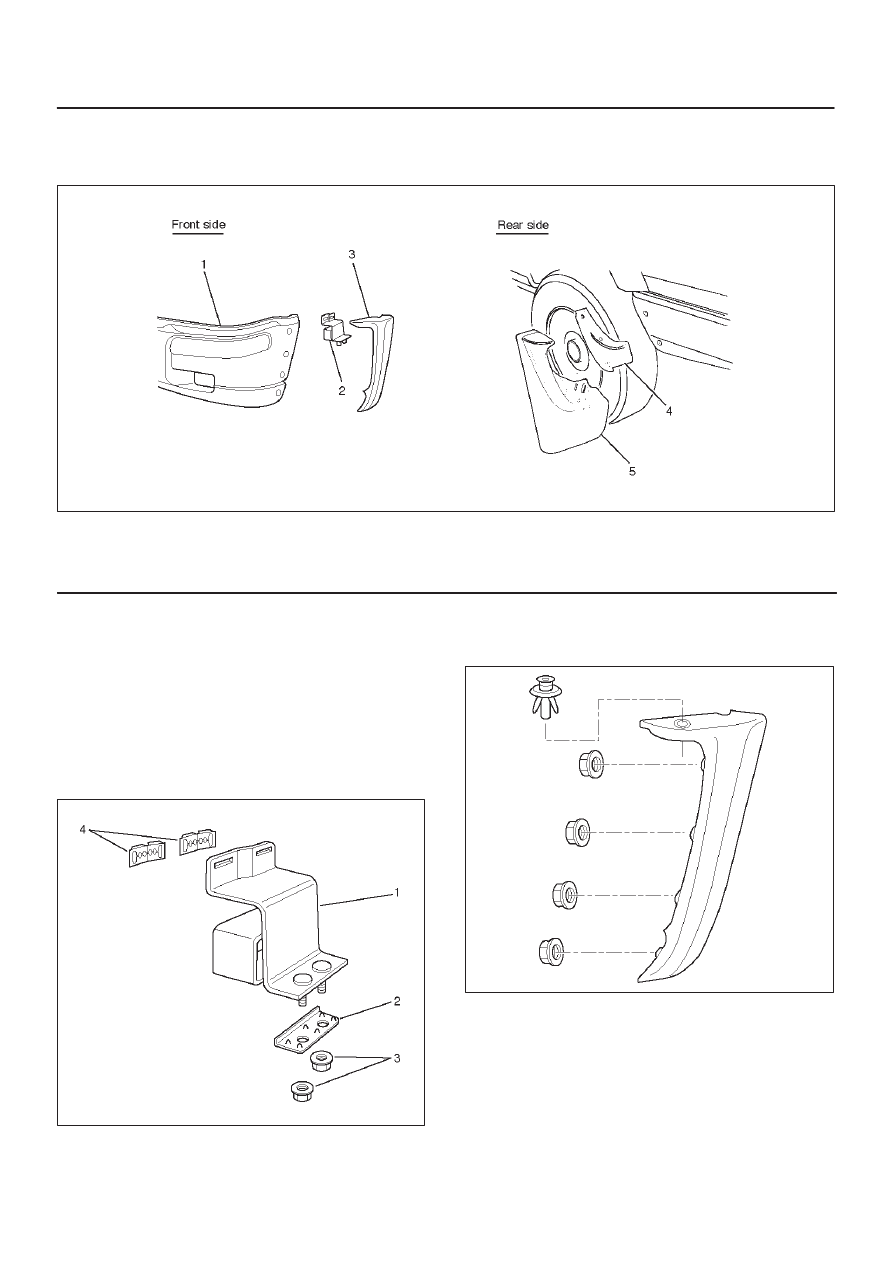

Mud Flaps (With Wheel Opening Extension) and Associated Parts

620RW003

Legend

(1) Front Bumper Assembly
(2) Front Bumper Slider

(3) Front Mud Flap
(4) Bumper Side Cover
(5) Rear Mud Flap

Removal

Front Side

1. Remove the front bumper assembly.

D

Disconnect the front fog light connector and remove
two bolts from both sides of the front bumper.

2. Remove the front bumper slider(1).

D

Remove two clips(4) and two nuts(3), release the
claw from the washer(2).

601RW009

3. Remove the front mud flap.

D

Remove four nuts and a clip.

601RW013

Rear Side

1. Remove the bumper side cover.
2. Remove the rear mud flap.

D

Remove four bolts and two nuts.

Installation

To install, follow the removal steps in the reverse order.

8J–32

EXTERIOR/INTERIOR TRIM

Ventilation Assembly

Ventilation Assembly and Associated Parts

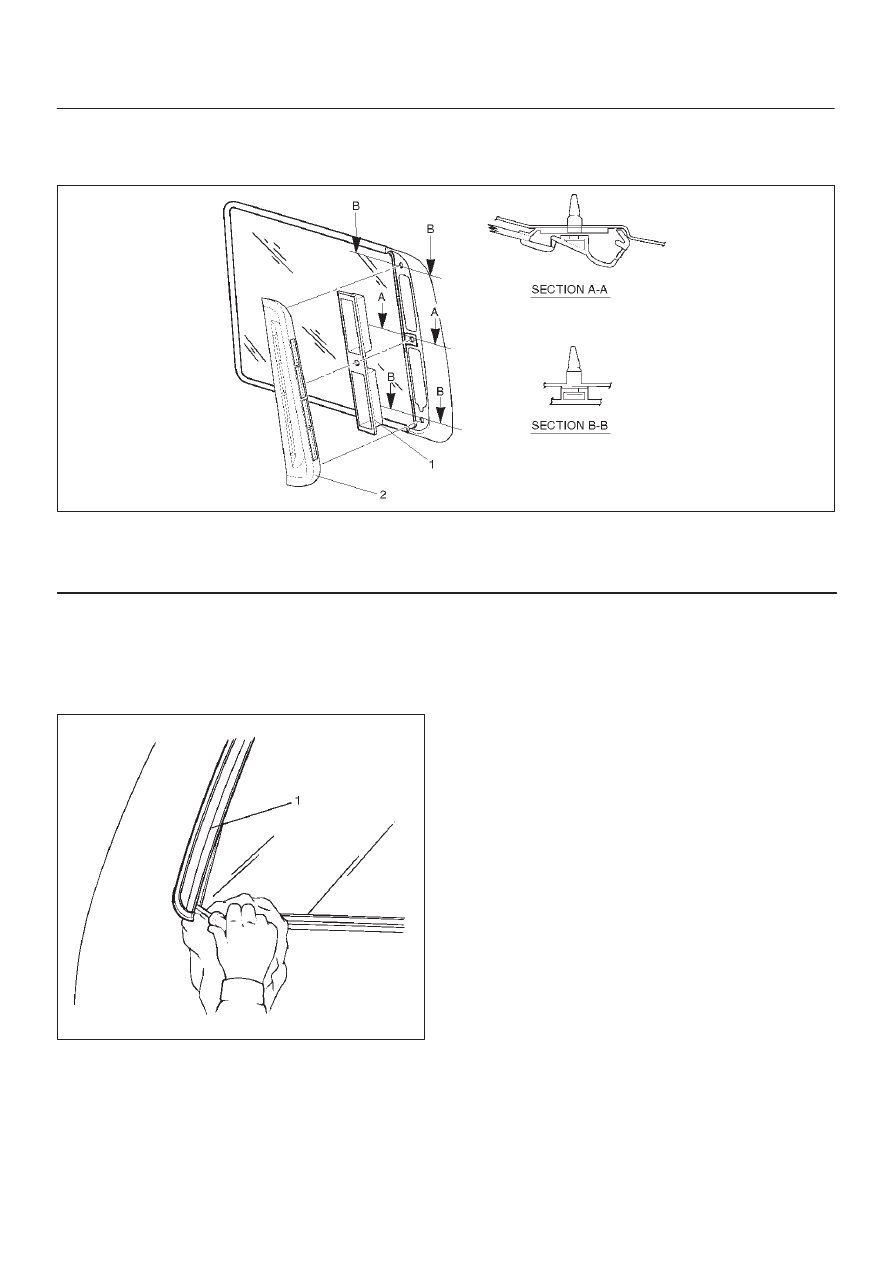

641RS001

Legend

(1) Outlet Valve Assembly
(2) Ventilation Assembly

Removal

1. Remove the ventilation assembly(1).

D

Pry the ventilation assembly retainers free from the
body panel.

641RS002

2. Remove the outlet valve assembly.

Installation

1. Install the outlet valve assembly.

D

Insert the upper and lower catches of the outlet
valve into the body panel flange and fix them
securely.

2. Install the ventilation assembly.

D

Fix the clips to the body panel securely so that the
ventilation assembly will not come off the body
panel.

EXTERIOR/INTERIOR TRIM

8J–33

Quarter Flipper Glass Assembly (SWB)

Quarter Flipper Glass Assembly and
Associated Parts

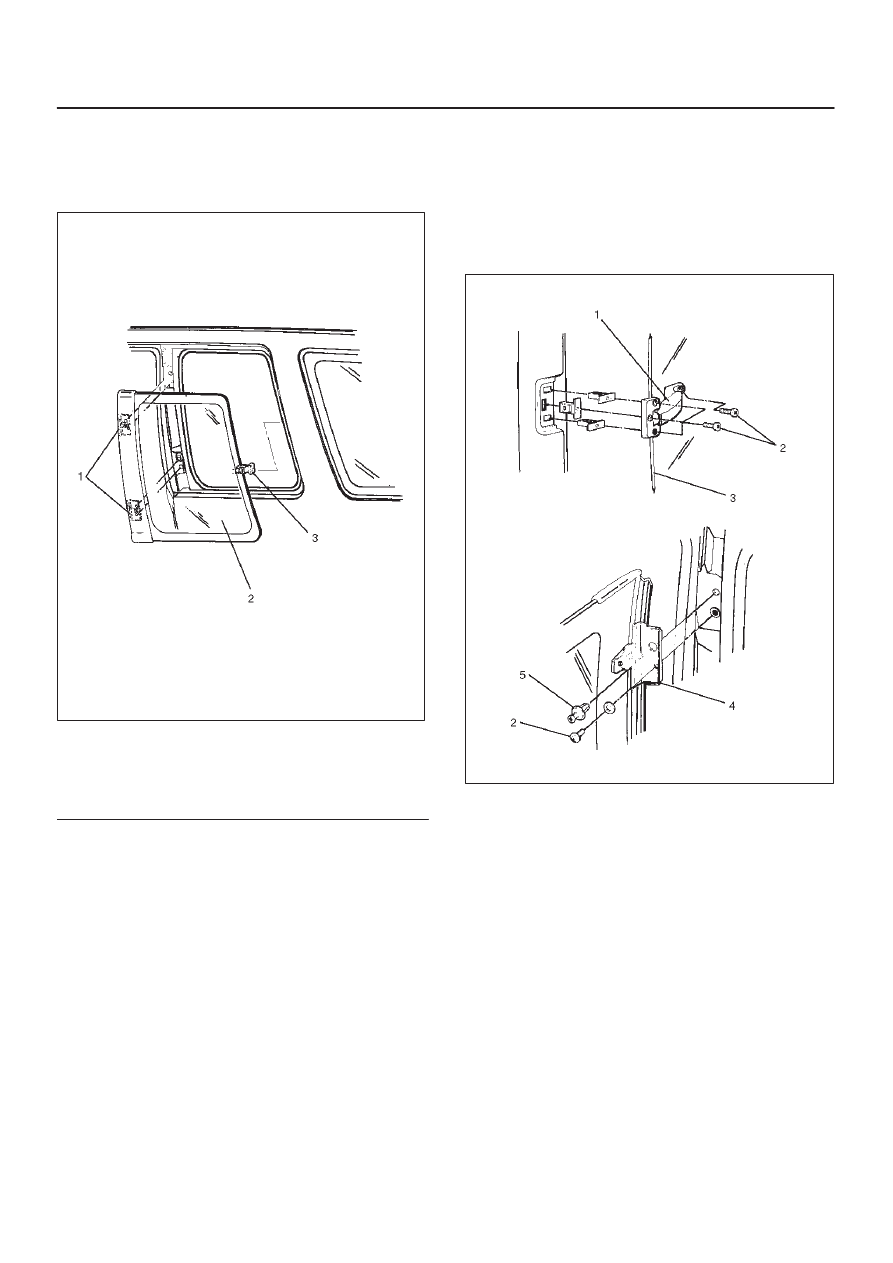

641RW003

Legend

(1) Hinge Assembly
(2) Quarter Flipper Glass Assembly
(3) Fastener

Removal

1. Remove the quarter flipper glass assembly (3).

D

Remove the fixing screws (2) and rivet (5).

2. Remove the fastener (1).
3. Remove the hinge assembly (4).

641RW002

Installation

To install, follow the removal steps in the reverse order.

8J–34

EXTERIOR/INTERIOR TRIM

Tailgate Trim Panel (LH)

Tailgate Trim Panel (LH) and Associated Parts

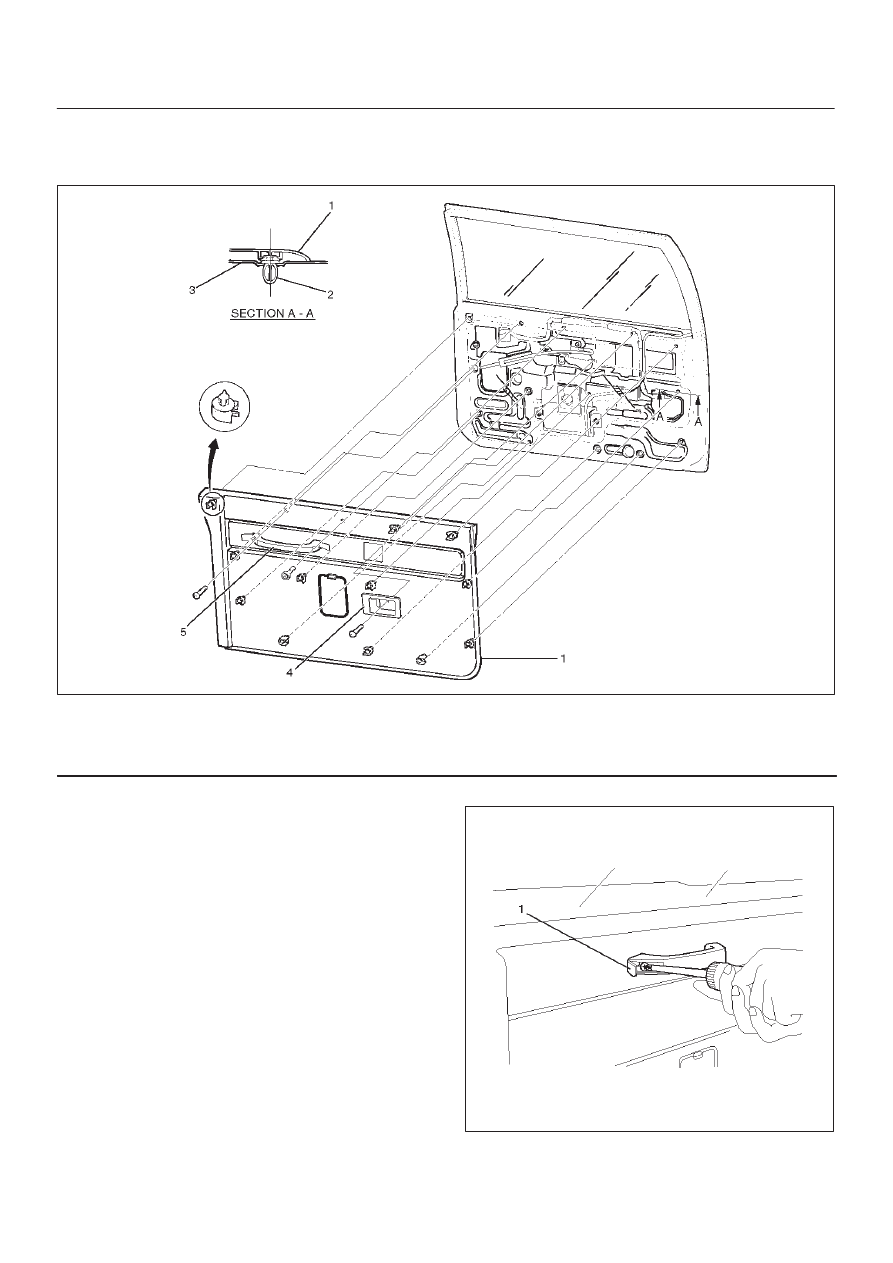

683RW017

Legend

(1) Tailgate Trim Panel (LH)
(2) Clip

(3) Tailgate Panel
(4) Inside Handle
(5) Tailgate Assist Grip

Removal

1. Disconnect the battery ground cable.
2. Remove the tailgate assist grip.

D

Open the assist covers (1) and remove two fixing
screws.

683RW019
