EXTERIOR/INTERIOR TRIM

8J–23

Front Pillar Trim Cover

Front Pillar Trim Cover and
Associated Parts

743RS003

Legend

(1) Roof Side Trim Panel
(2) Assist Grip
(3) Front Pillar Trim Panel

Removal

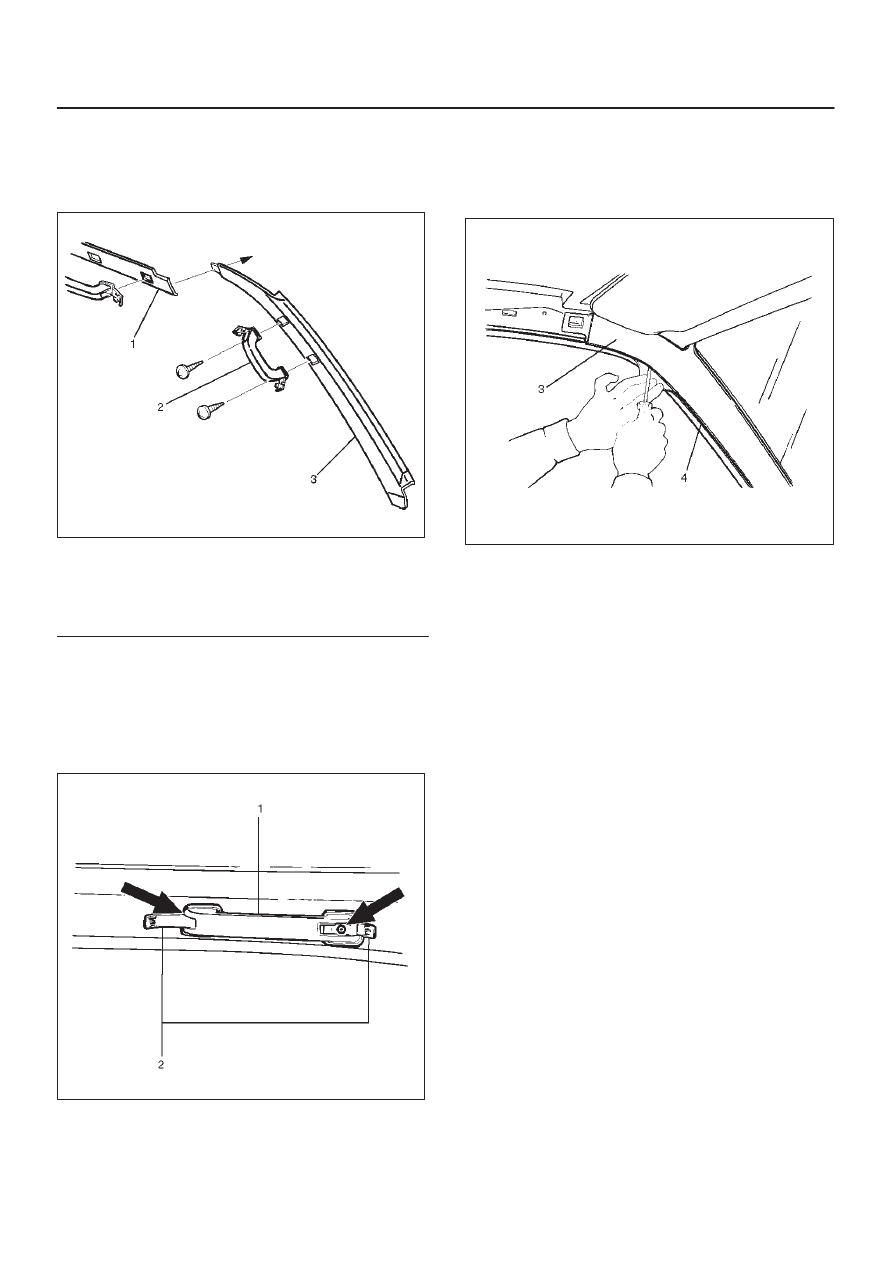

1. Remove the front pillar assist grip(1).

D

Open the both sides of the assist grip cover (2) and
remove the fixing screws and the front pillar assist
grip.

743RW003

2. Remove the front pillar trim cover (3).

D

Turn up the finisher (4) and pry the trim cover
retainers free from the body panel.

635RW001

Installation

To install, follow the removal steps in the reverse order.

8J–24

EXTERIOR/INTERIOR TRIM

Center Pillar Assist Grip

Parts Location

743RS004

Legend

(1) Center Pillar Assist Grip

Removal and Installation

Refer to the Center Pillar and Roof Side Trim Cover in this
section.

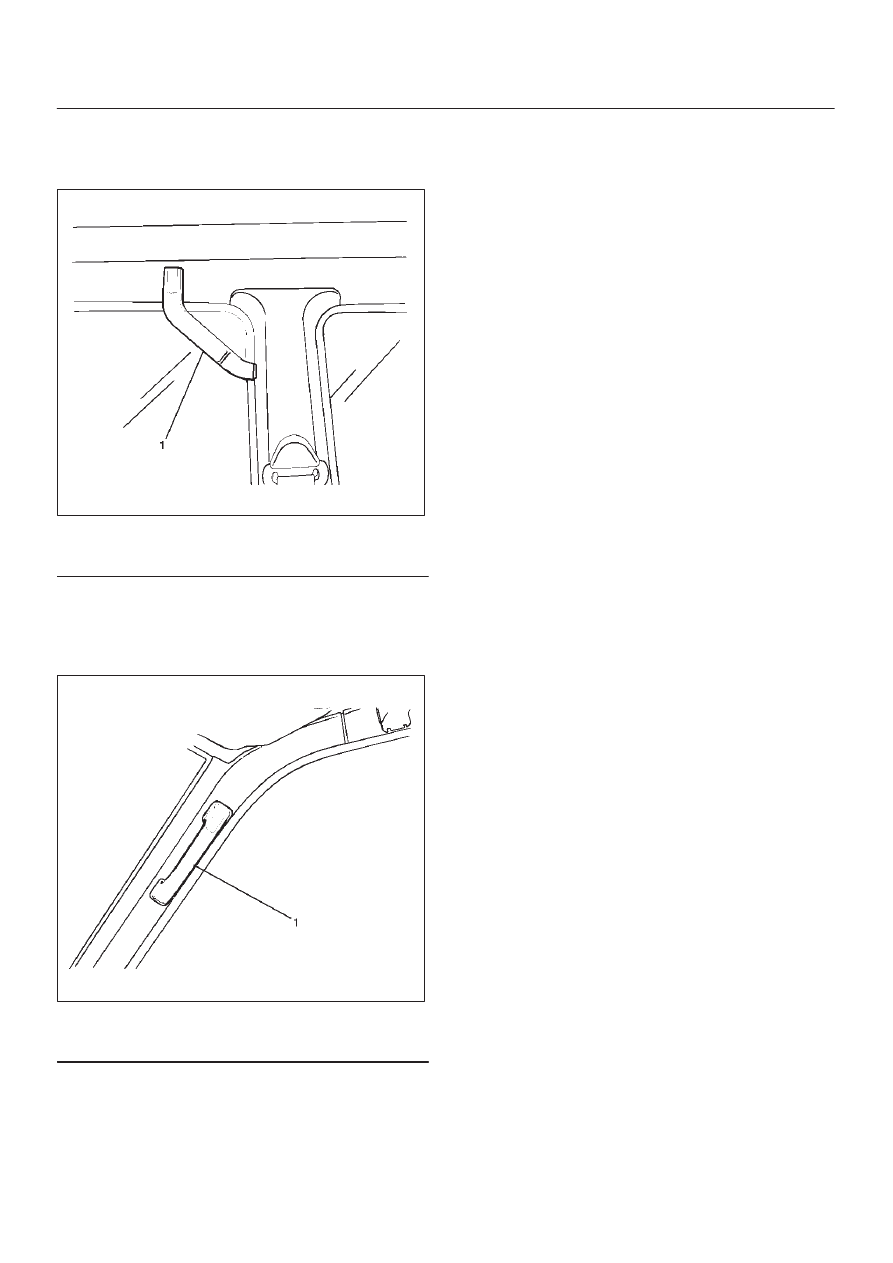

Assist Grip

Parts Location

743RS005

Legend

(1) Assist Grip

Removal and Installation

Refer to the Front Pillar Trim Cover in this section.

EXTERIOR/INTERIOR TRIM

8J–25

Fuel Filler Lid Opener Cable

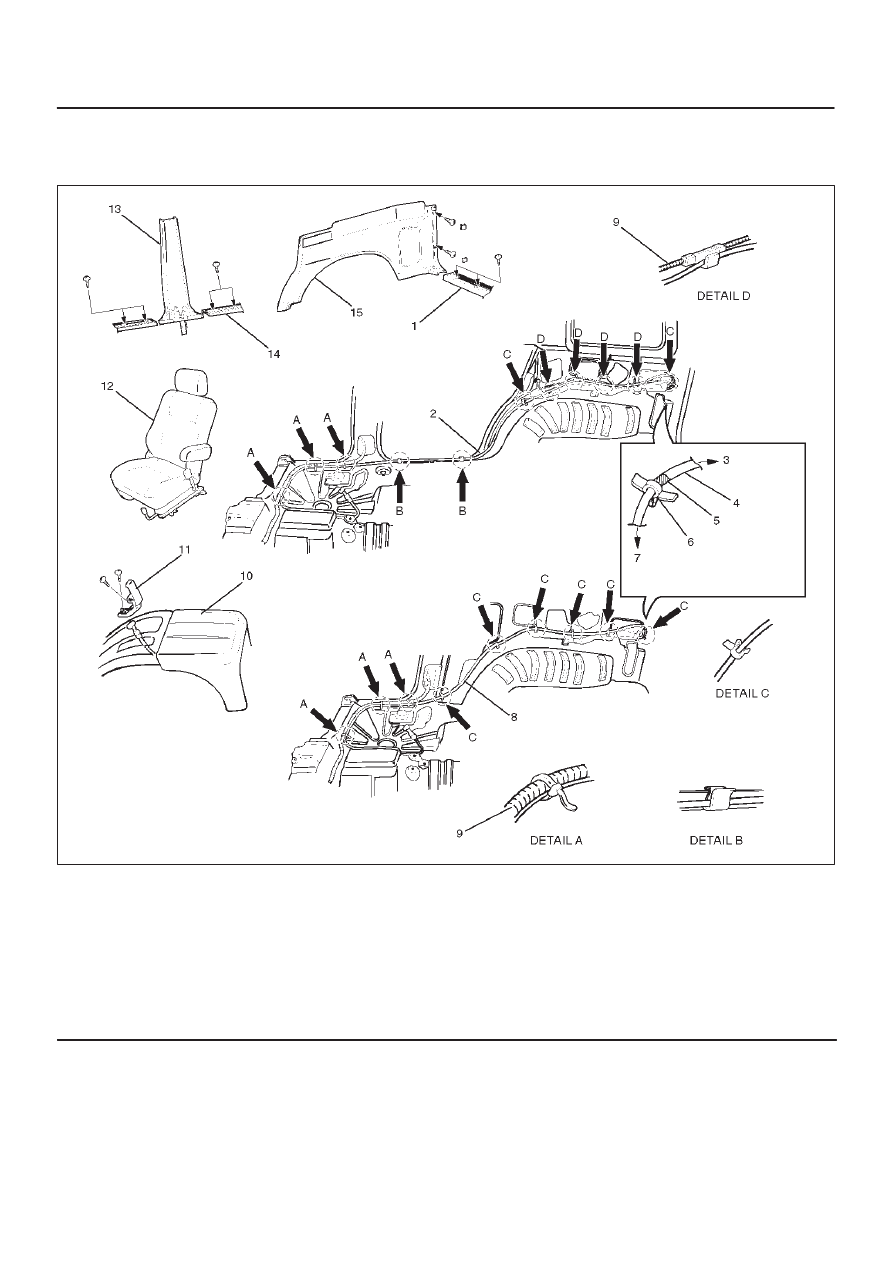

Fuel Filler Lid Opener Cable and Associated Parts

686RW008

Legend

(1) Rear End Floor Trim Cover
(2) Fuel Filler Lid Opener Cable (LWB)
(3) To Lever
(4) Cable
(5) Marking
(6) Clip
(7) To Door

(8) Fuel Filler Lid Opener Cable (SWB)
(9) Chassis Harness

(10) Center Console Assembly

(11) Fuel Filler Lid Opener

(12) Front Seat (RH)
(13) Center Pillar Lower Trim Cover
(14) Rear Door Sill Plate (RH)
(15) Luggage Side Trim Panel (RH)

Removal

1. Disconnect the battery ground cable.
2. Remove the front seat (RH).
3. Remove the rear door sill plate (RH).
4. Remove the center pillar lower trim cover.

5. Remove the rear end floor trim panel.
6. Remove the luggage side trim panel (RH).

D

Refer to the Luggage Side and Quarter Upper Trim
Cover in this section.

8J–26

EXTERIOR/INTERIOR TRIM

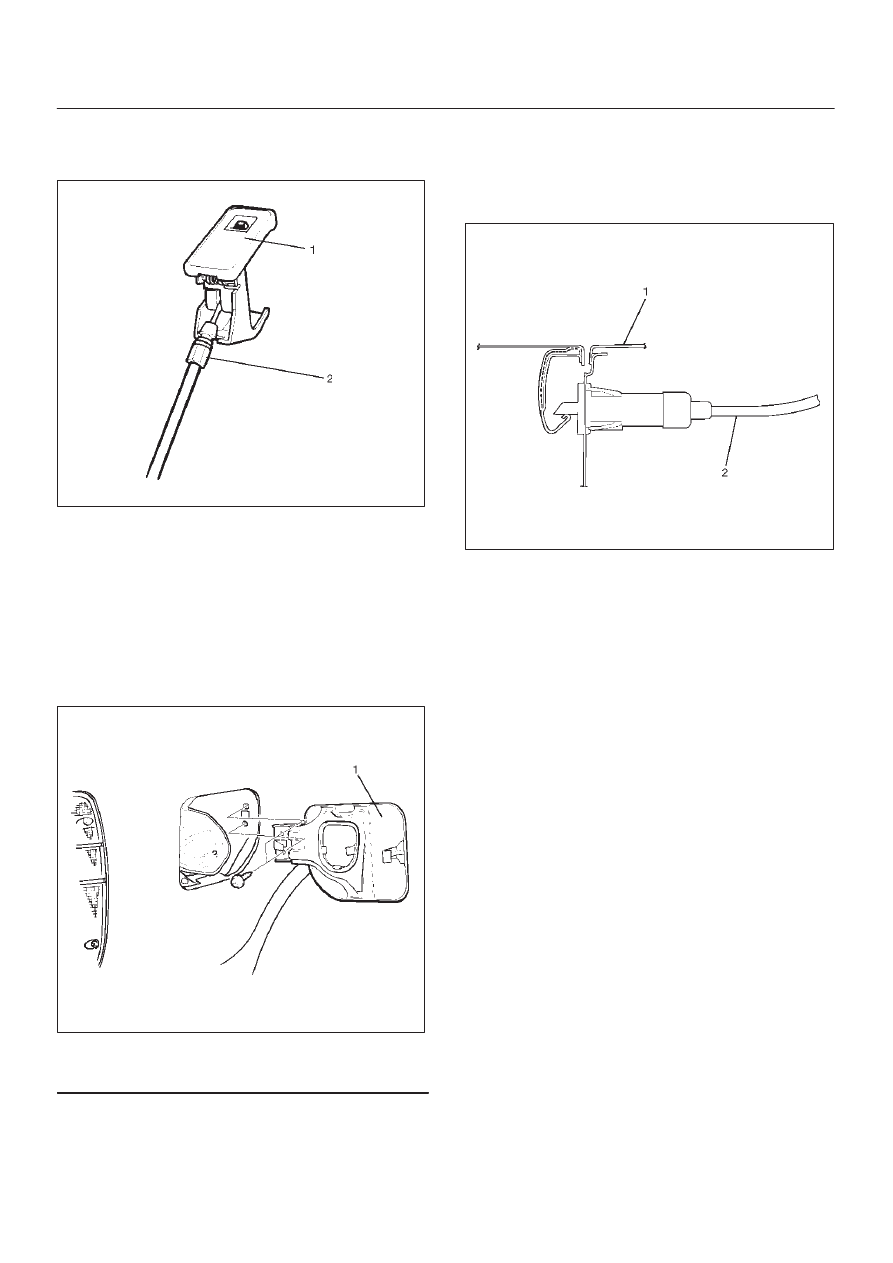

7. Remove the fuel filler lid opener(1).

D

Remove two opener fixing screws and disconnect
the cable(2).

686RW007

8. Remove the center console assembly.
9. Remove the fuel filler lid opener cable.

D

Roll up the floor carpet and remove the clips of the
chassis harness and body panel to pull out the
cable toward the fuel filler lid.

Installation

To install, follow the removal steps in the reverse order,
noting the following points.

1. Insert the opener cable(2) into the body panel(1)

securely.

686RS002

2. Install the cable and clips to its original position to the

chassis harness and the body panel.

3. Check that the opener operates smoothly.

Fuel Filler Door

Parts Location

686RS003

Legend

(1) Fuel Filler Door

Removal

1. Remove the fuel filler door.

Installation

1. Install the fuel filler door.
