EXTERIOR/INTERIOR TRIM

8J–19

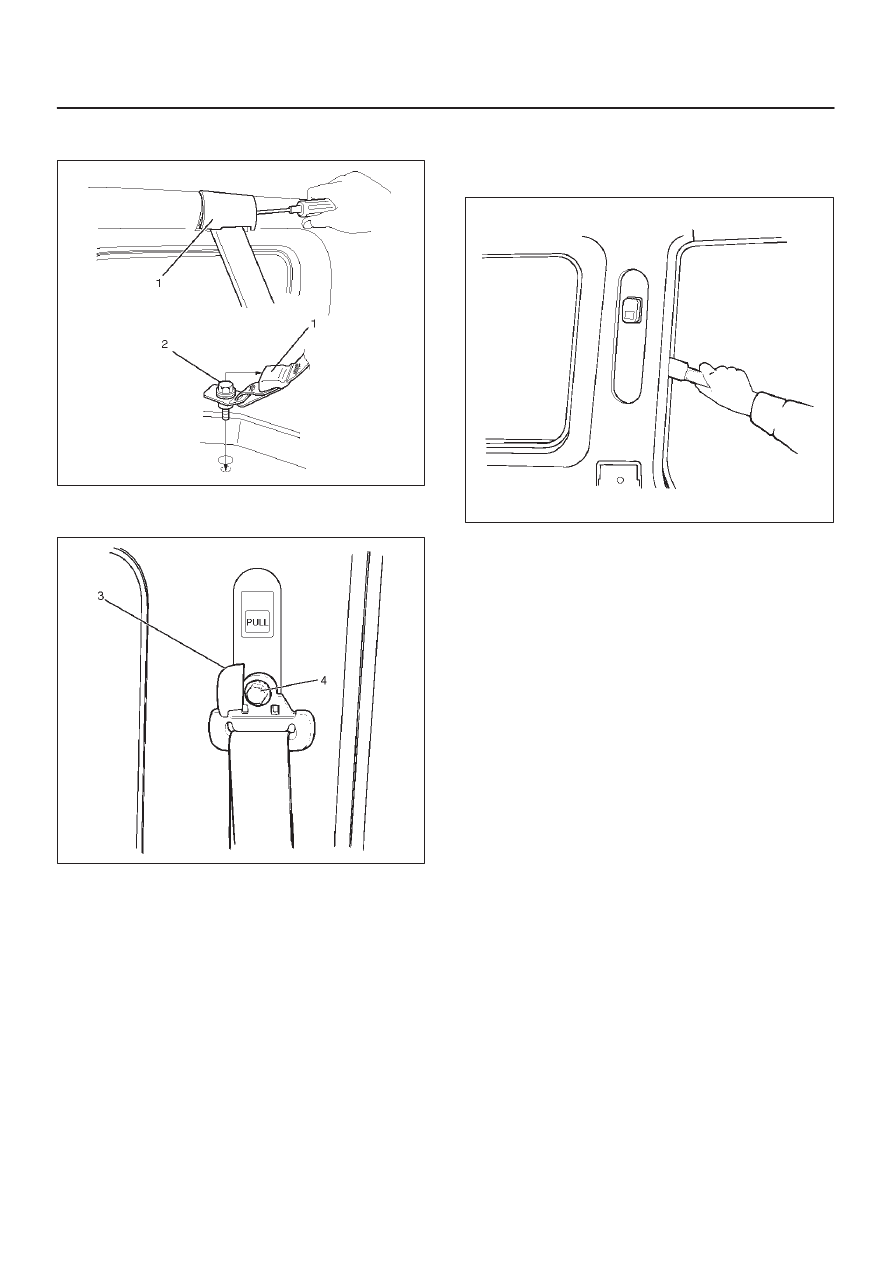

10. Remove the rear seat belt anchor bolt cover (1) and

the anchor bolt (2).

755RW037

11. Remove the front seat belt anchor bolt cover (3) and

the anchor bolt (4).

760RW006

12. Remove the quarter upper trim cover.

D

Remove the rear side clips of the trim cover and pry
the quarter upper trim cover retainers free from the
body panel.

687RW001

13. Remove the seat belt adjust shoulder anchor plate.

Installation

To install, follow the removal steps in the reverse order,
noting the following point.

1. Tighten the seat belt anchor bolts to the specified

torque.

Torque: 39 N·m (4.0kg·m/29 lb ft)

8J–20

EXTERIOR/INTERIOR TRIM

Center Pillar and Roof Side Trim Cover (LWB)

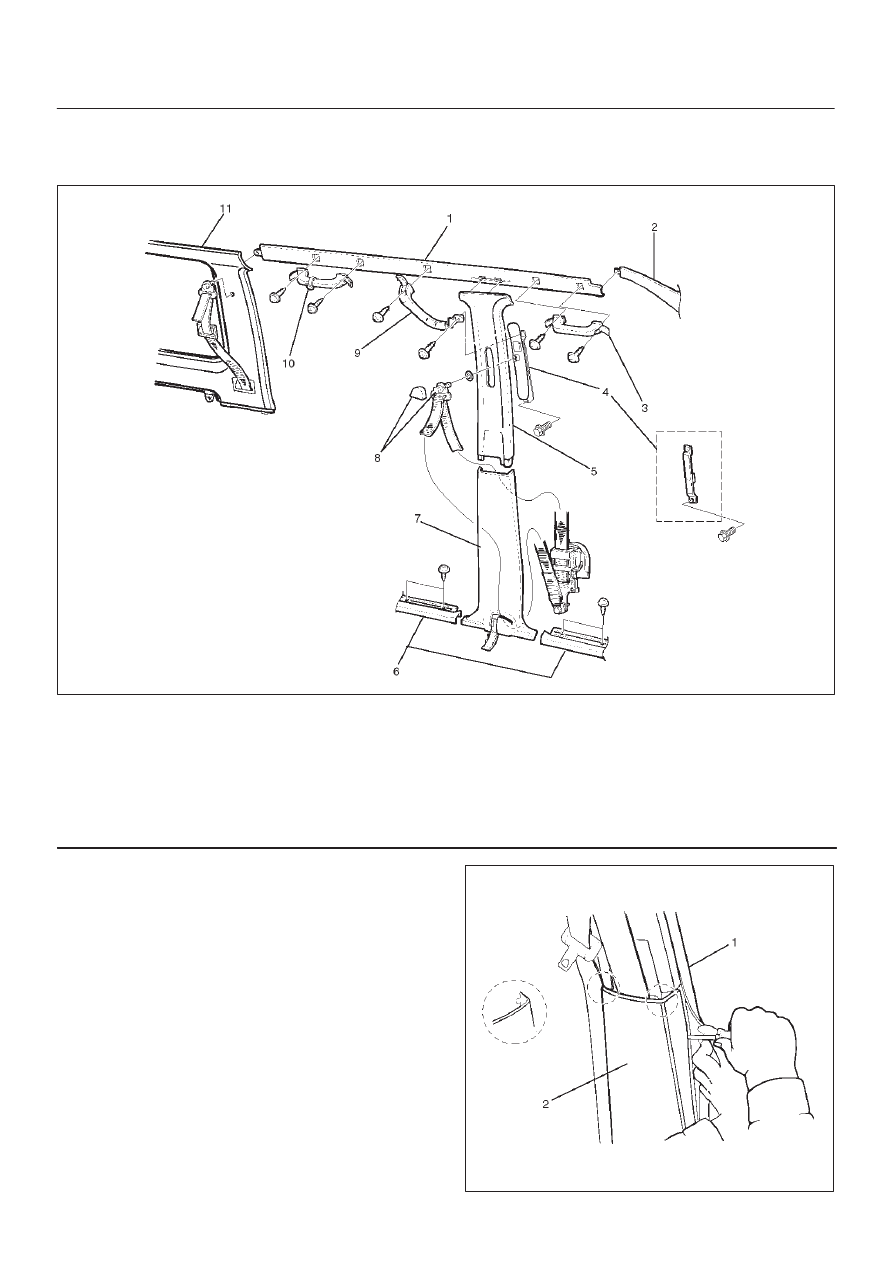

Center Pillar, Roof Side Trim Cover and Associated Parts

643RW007

Legend

(1) Roof Side Trim Cover
(2) Front Pillar Trim Cover
(3) Assist Grip (Passenger Seat Side)
(4) Adjust Shoulder Anchor Assembly/Seat Belt

Anchor Plate

(5) Center Pillar Upper Trim Plate

(6) Door Sill Plate (Front and Rear)
(7) Center Pillar Lower Trim Cover
(8) Front Seat Anchor Bolt Cover and Anchor Bolt
(9) Center Pillar Assist Grip

(10) Assist Grip

(11) Rear Quarter Upper Trim Cover

Removal

1. Disconnect the battery ground cable.
2. Remove the door sill plate (front and rear).
3. Remove the center pillar lower trim cover (2).

D

Turn up the finisher (1) and pry the trim cover
retainers free from the body panel, then slide the
trim cover downward.

643RS003

EXTERIOR/INTERIOR TRIM

8J–21

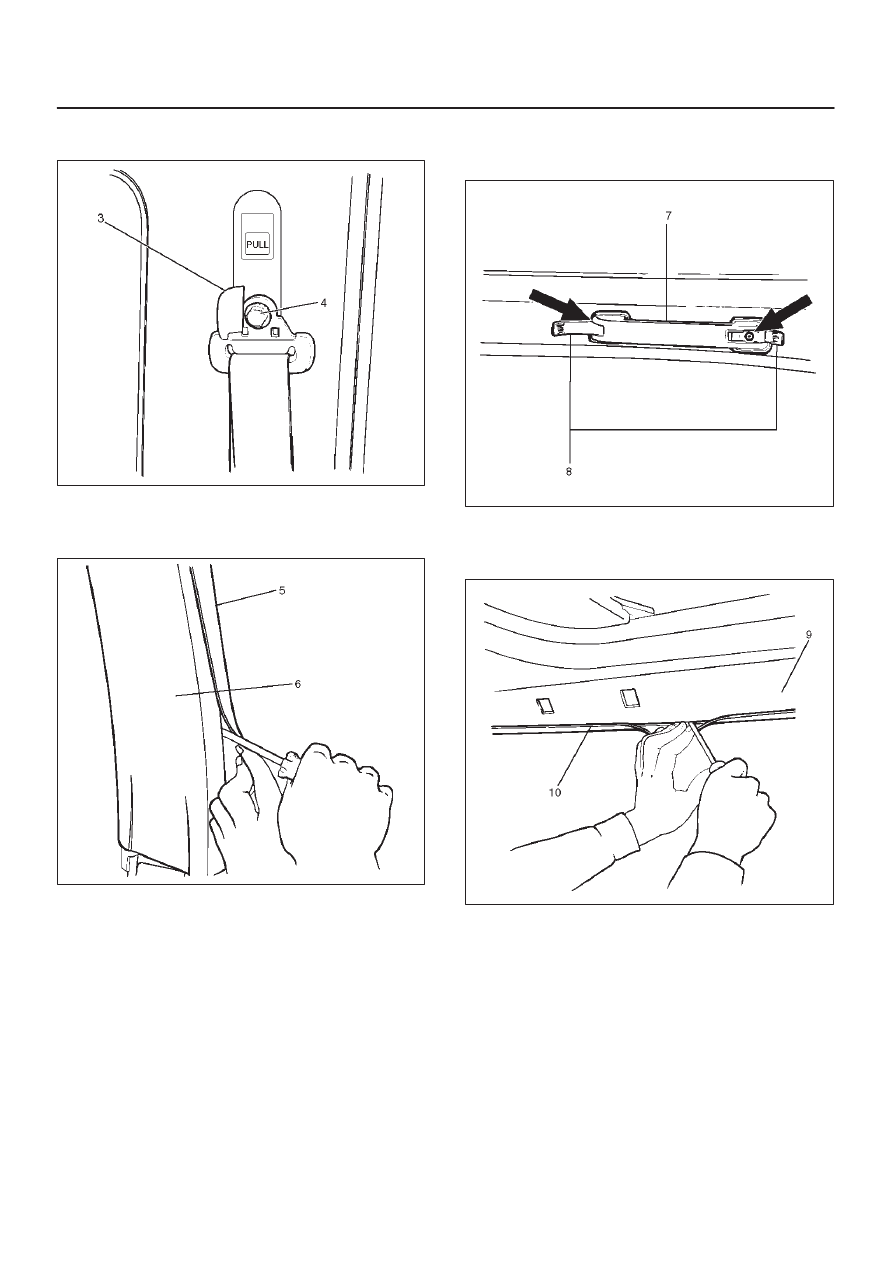

4. Remove the front seat belt anchor bolt cover (3) and

the anchor bolt (4).

760RW006

5. Remove the center pillar upper trim cover (6).

D

Turn up the finisher (5) and pry the trim cover
retainers free from the body panel.

643RS004

6. Remove the center pillar assist grip.
7. Remove the seat belt anchor plate/adjusut shoulder

anchor assembly.

8. Remove the assist grip (7).

D

Open the both side of the assist grip cover (8) and
remove two fixing screws.

743RW004

9. Remove the roof side trim cover (9).

D

Turn up the finisher (10) and pry the trim cover
retainers free from the body panel.

643RS005

Installation

To install, follow the removal steps in the reverse order,
noting the following point.

1. Install the seat belt anchor bolts to the specified

torque.

Torque: 39 N·m (4.0kg·m/29 lb ft)

8J–22

EXTERIOR/INTERIOR TRIM

Roof Side Trim Cover (SWB)

Roof Side Trim Cover and Associated
Parts

643RW006

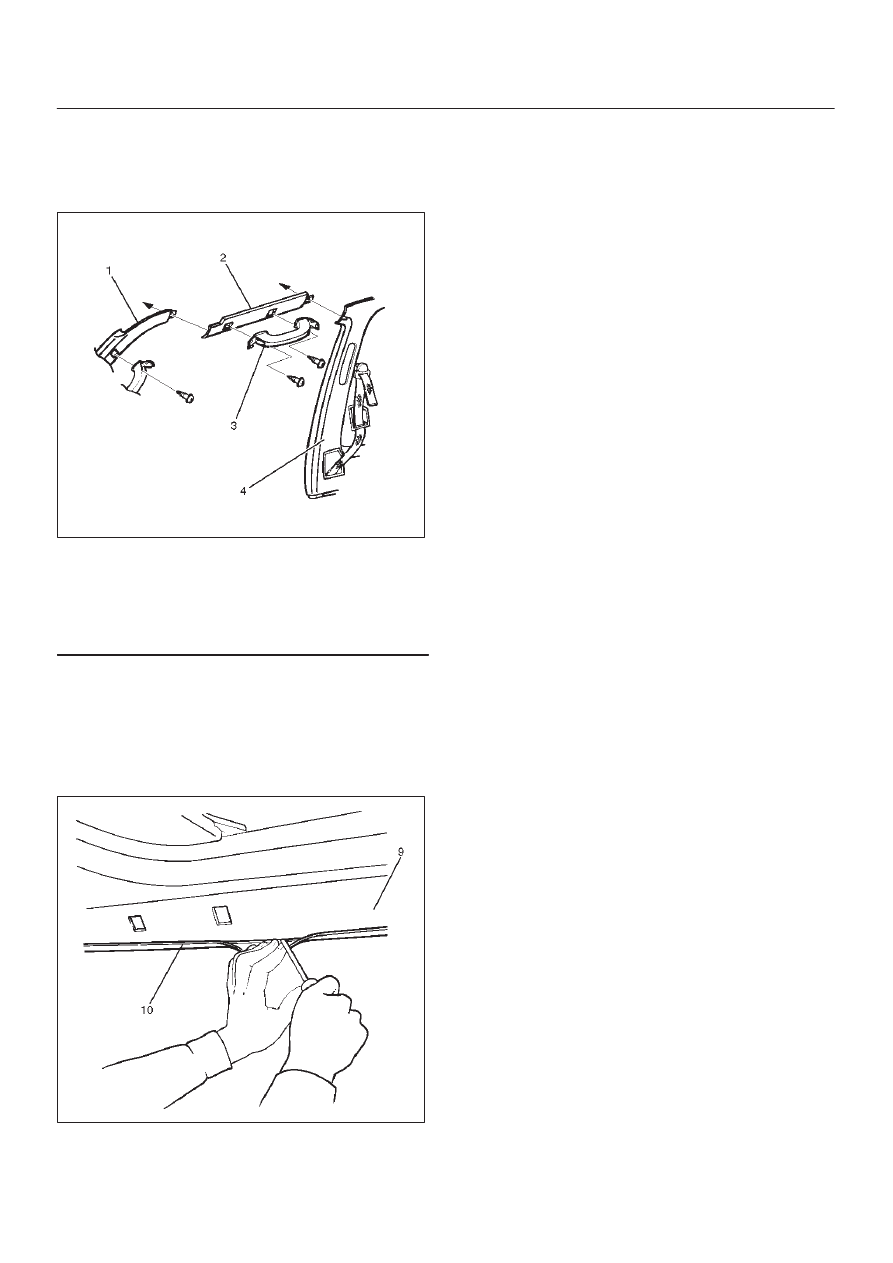

Legend

(1) Front Pillar Trim Cover
(2) Roof Side Trim Cover
(3) Assist Grip (Passenger Seat Side)
(4) Rear Quarter Upper Trim Cover

Removal

1. Remove the assist grip.
2. Remove the roof side trim cover (9).

D

Turn up the finisher (10) and pry the trim cover
retainers free from the body panel.

643RS005

Installation

To install, follow the removal steps in the reverse order.
