EXTERIOR/INTERIOR TRIM

8J–11

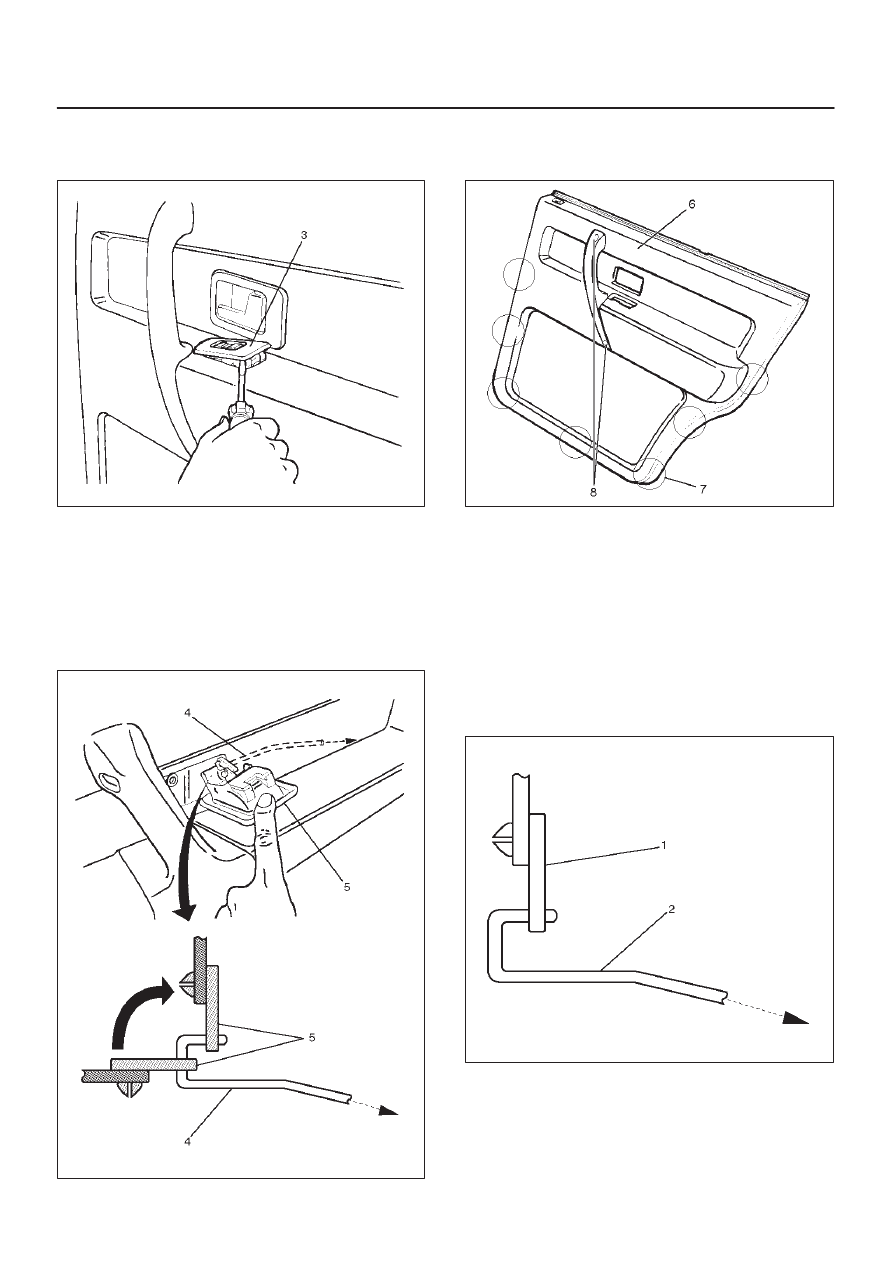

3. Remove the power window switch(3).

D

Pry the power window switch out and disconnect
the switch connector.

825RS084

4. Remove the inside handle fixing screw.

D

Remove the screw that fixes the inside handle(5),
slide the inside handle to the position illustrated,
and leave it there for the moment.

CAUTION: Take care not to impose excessive force
on the inside handle link(4), lest this link be
elongated, which could make it impossible to
operate the door with the inside handle.

632RW002

5. Remove the door trim panel(6).

D

Remove two fixing screws(8) to take off seven
clips(7) from the door panel.

655RW007

D

Lift the trim panel and unlock the engagement of the
waist seal section. Then, pass the inside lever
through the mounting hole of the trim panel, and
detach the trim panel.

6. Remove the inside handle.

Installation

To install, follow the removal steps in the reverse order,
noting the following point.

1. When installing the inside handle(1), assemble

temporarily to the inside handle link(2).

652RS006

8J–12

EXTERIOR/INTERIOR TRIM

2. Pass the inside handle through the mounting hole of

the trim panel.  Assemble the trim panel.  Engage
securely seven clips into the door panel.  Also, leave
the connector of the power window drawn out to its
prescribed position, so that it will not caught.

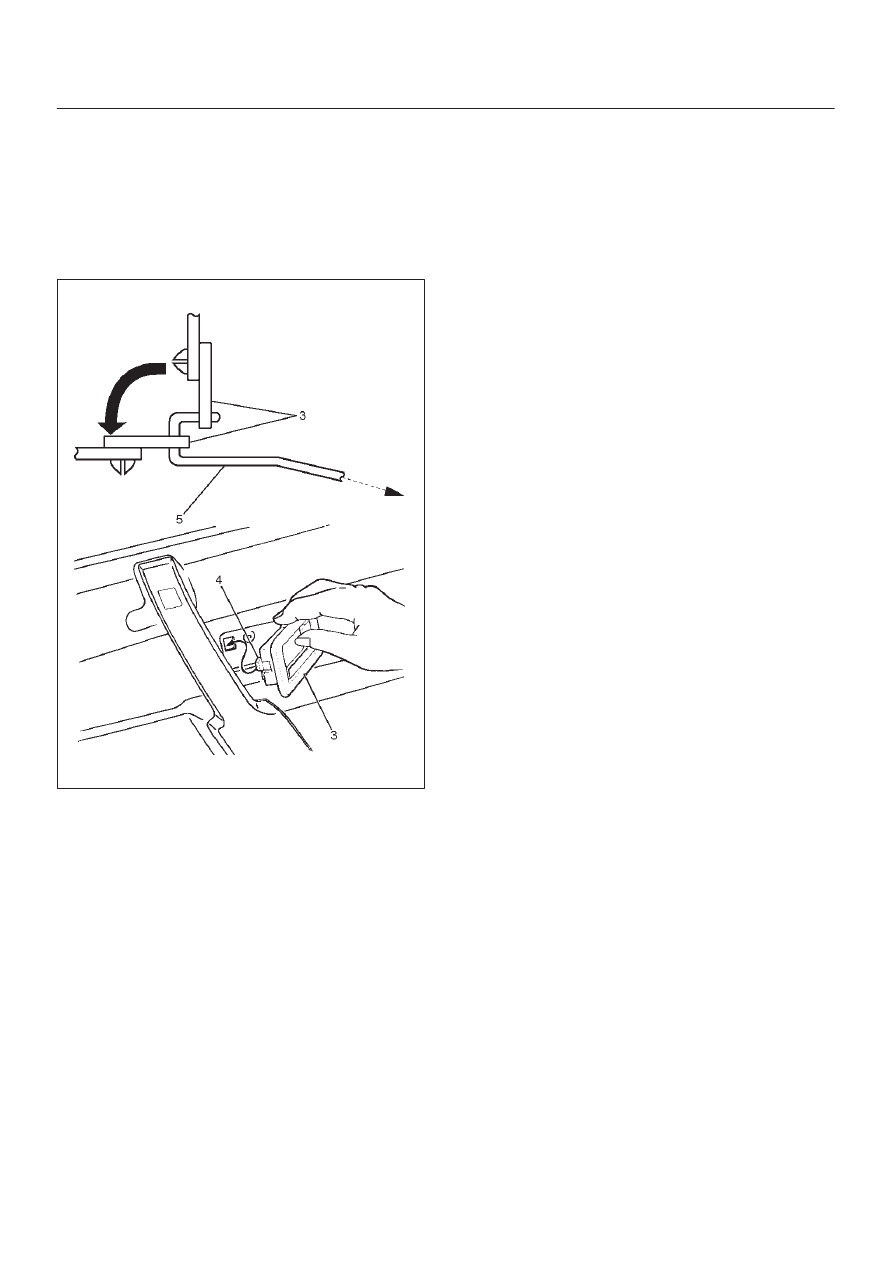

3. Put back the inside handle(3) to the original position

of the link(5).  Fit the claw(4) of the inside handle
securely into the hole of the door panel.  Fix the
handle with the screw.

632RW011

EXTERIOR/INTERIOR TRIM

8J–13

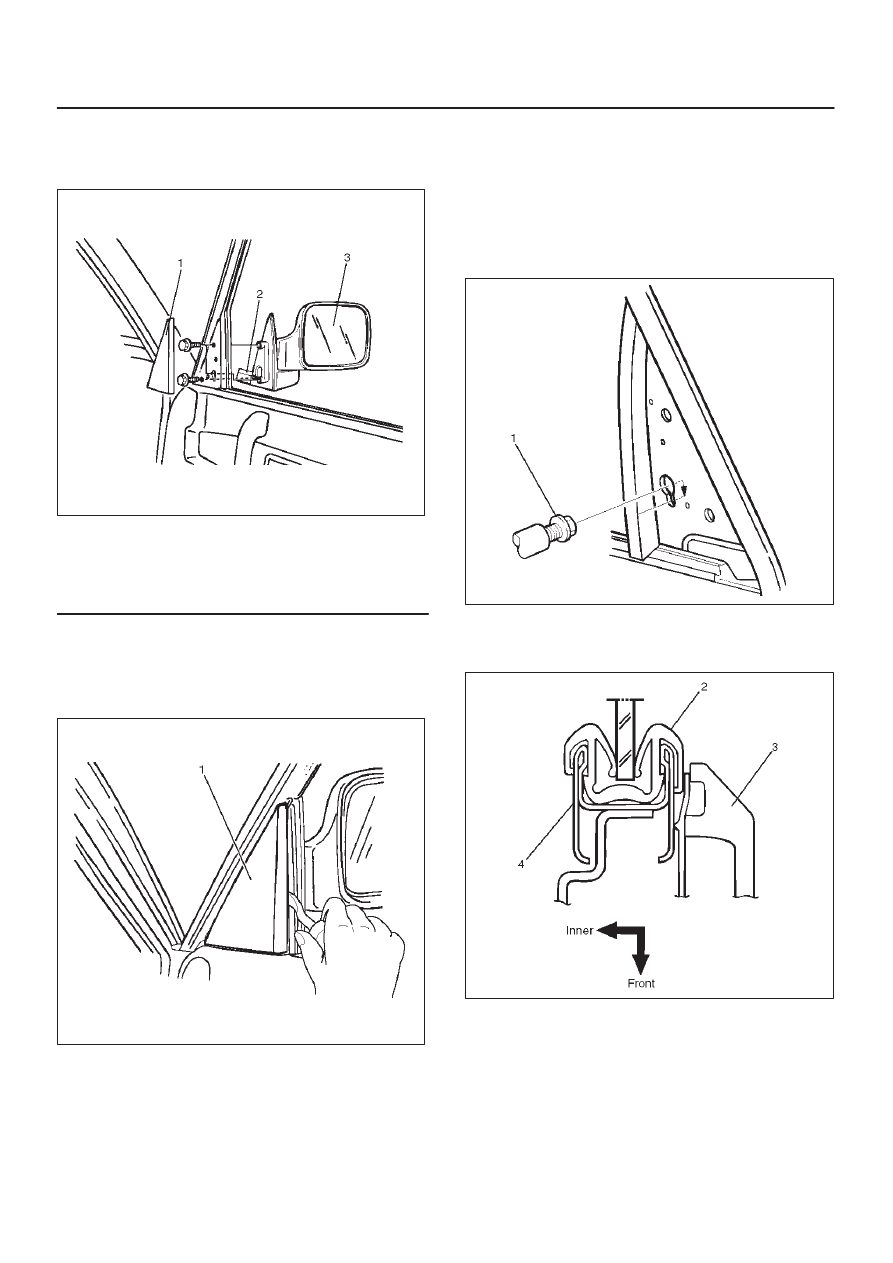

Door Mirror

Door Mirror and Associated Parts

720RS012

Legend

(1) Door Mirror Cover
(2) Door Mirror Connector
(3) Door Mirror

Removal

1. Disconnect the battery ground cable.
2. Remove the door mirror cover(1).

720RW011

3. Remove the door mirror connector.
4. Remove the door mirror.

Installation

To install, follow the removal steps in the reverse order,
noting the following points.

1. When you install the door mirror, install the bolt(1) to

the mirror temporarily, hook the bolt to the door side
hole and tighten the bolt from the inside.

720RS001

2. When installing the door mirror, hold the glass run

lip(2) between the door mirror base(3) and the center
sash(4).

A10RS001

3. Tighten the door mirror fixing bolts to the specified

torque.

Torque: 8 N·m (0.8kg·m/69 lb in)

8J–14

EXTERIOR/INTERIOR TRIM

Luggage Side and Quarter Upper Trim Cover (LWB)

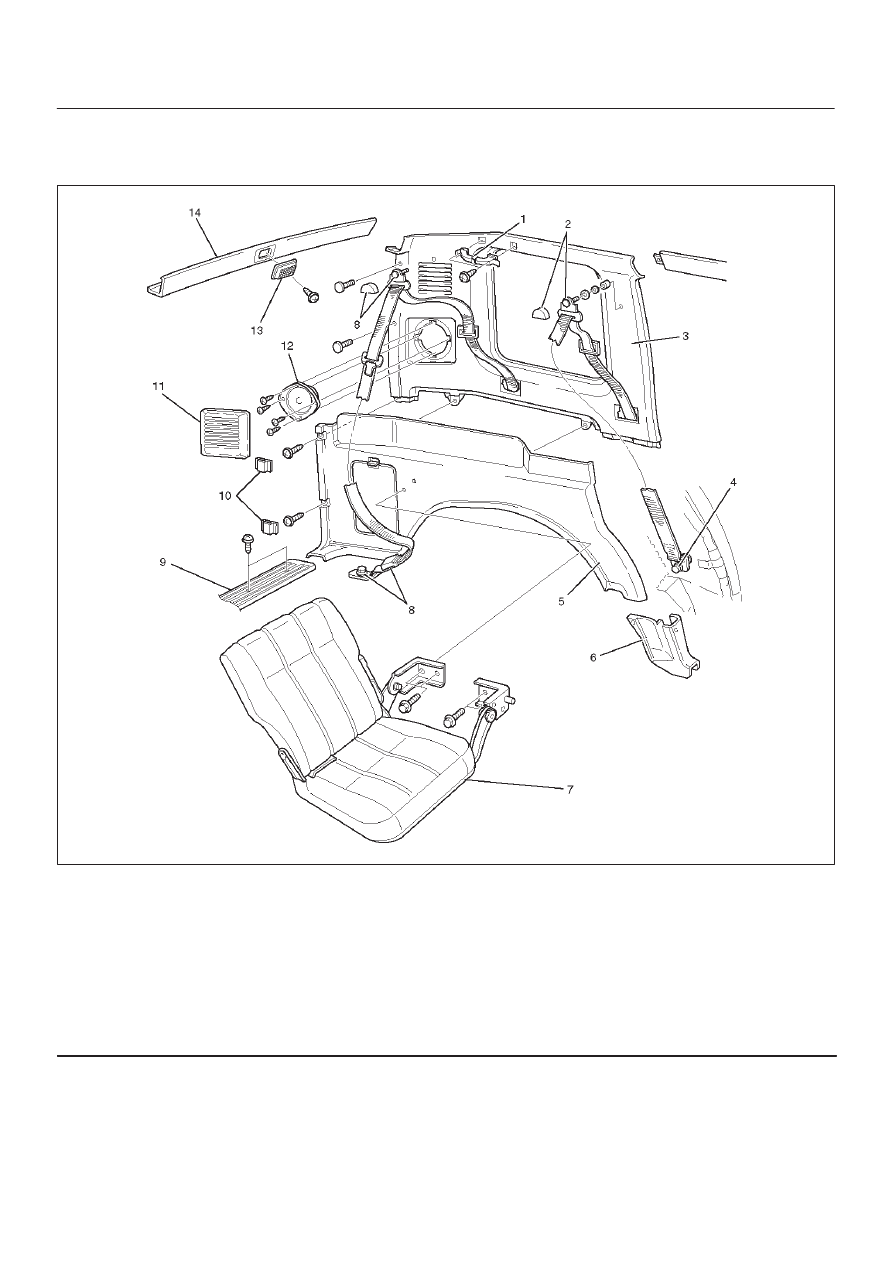

Luggage Side, Quarter Upper Trim Cover and Associated Parts

760RW017

Legend

(1) Assist Grip
(2) Rear Seat Belt Anchor Bolt Cover and Anchor

Bolt

(3) Quarter Upper Trim Cover
(4) Anchor Bolt
(5) Luggage Side Trim Cover
(6) Luggage Side Lower Cover
(7) Third Seat Assembly and seat Bracket

(8) Third Seat Belt Anchor Bolt Cover and Anchor

Bolt

(9) Rear End Floor Trim Cover

(10) Luggage Side Cap

(11) Speaker Grille

(12) Rear Speaker
(13) Luggage Room Light
(14) Rear Roof Trim Cover

Removal

1. Disconnect the battery ground cable.
2. Remove the third seat assembly and seat bracket.
3. Remove the rear end floor trim cover.

4. Remove the luggage side cap.
5. Remove the luggage side lower cover.
