EXTERIOR/INTERIOR TRIM

8J–7

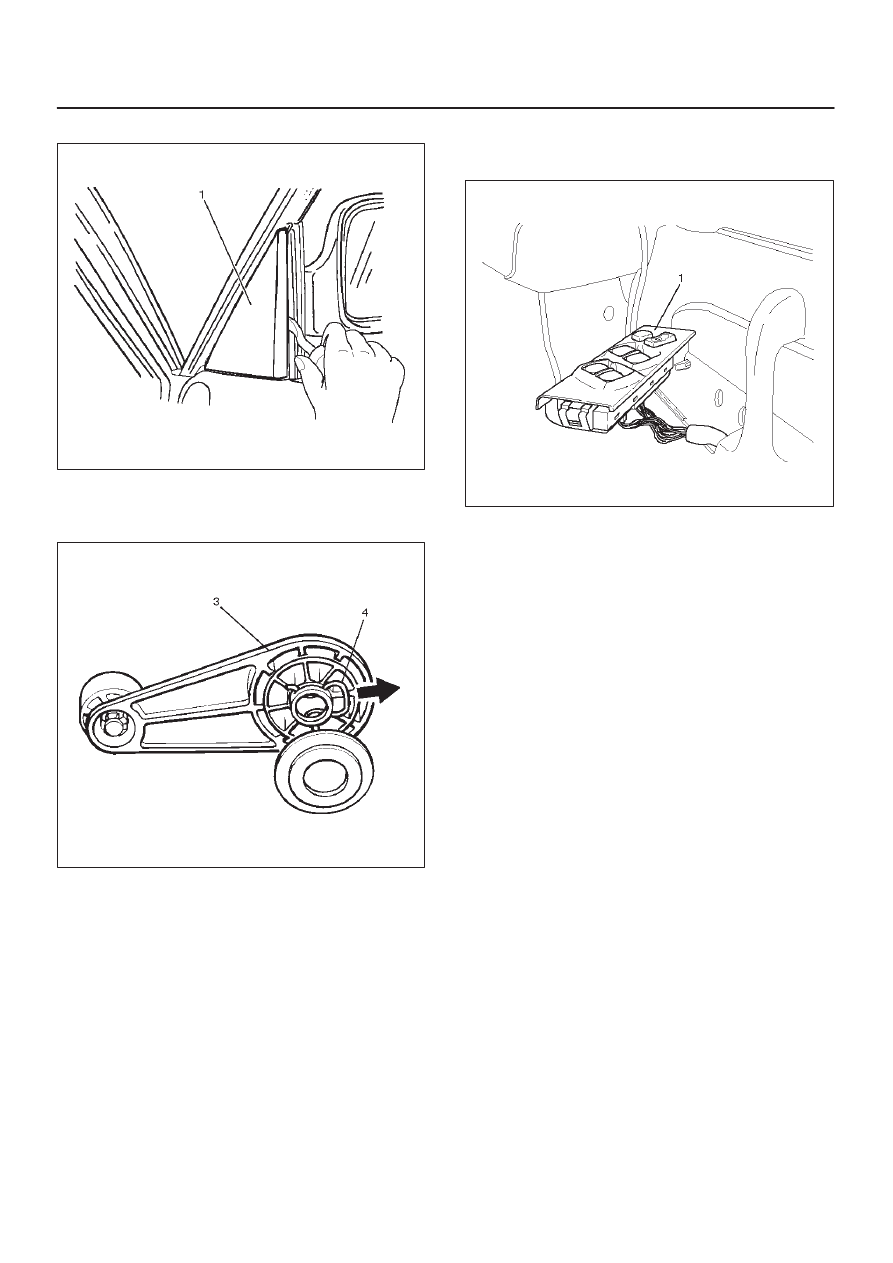

2. Remove the door mirror cover (1).

720RW011

3. Remove the regulator handle(3).

D

Pull the hook(4) out and remove the regulator
handle.

631RW001

4. Remove the power window switch(1).

D

Pry the power window switch out and disconnect
the switch connector.

825RW174

5. Remove the speaker cover.
6. Remove the front speaker.

D

Remove the front speaker fixing screws in order to
disconnect the speaker connector.

7. Remove the inside handle fixing screw.

D

Remove the screw that fixes the inside handle(7),
slide the inside handle to the position illustrated,
and leave it there for the moment.

CAUTION: Take care not to impose excessive force
on the inside handle link(6), lest this link is
elongated, which could make it impossible to
operate the door with the inside handle.

8J–8

EXTERIOR/INTERIOR TRIM

632RW001

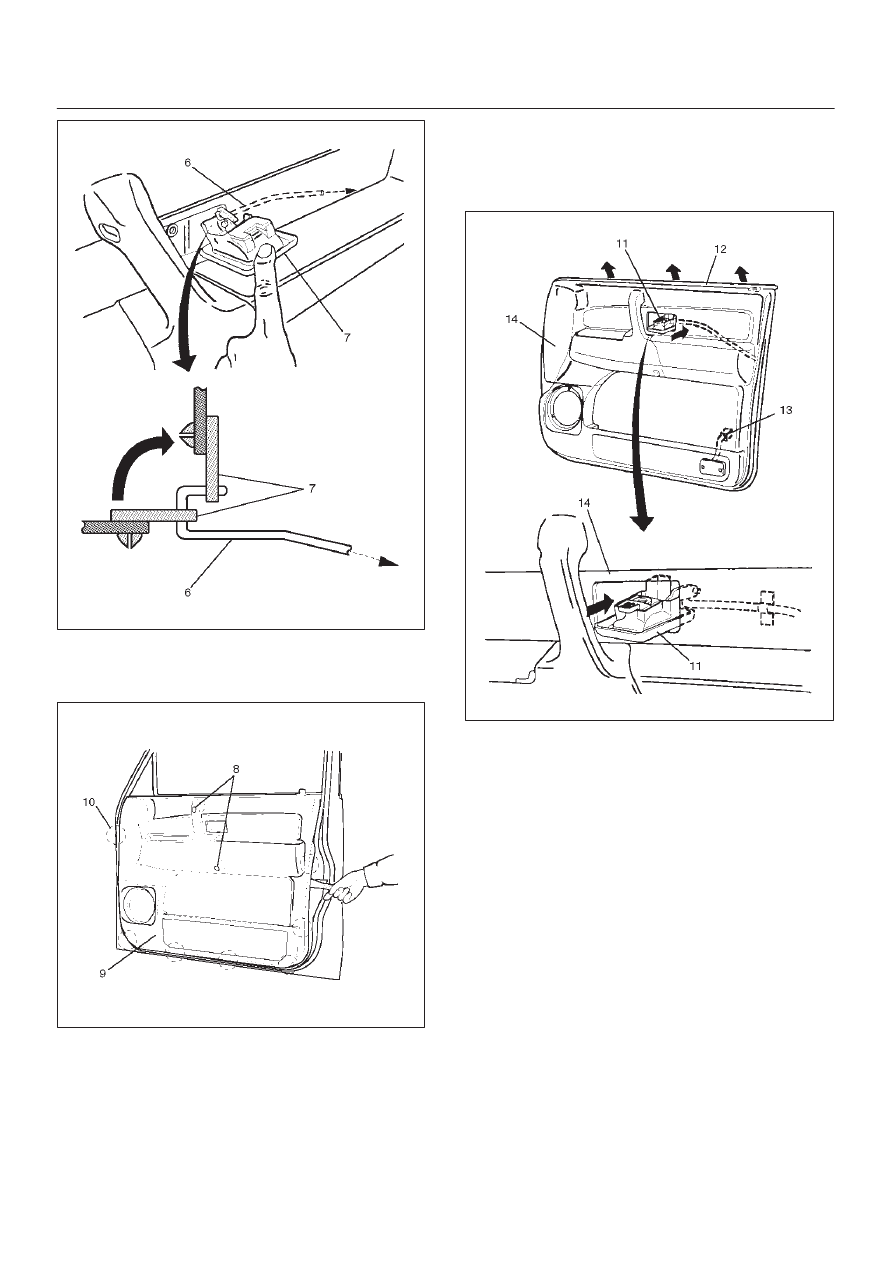

8. Remove the door trim panel(9).

D

Remove two fixing screws(8) in order to take off
seven clips(10) from the door panel.

635RS007

D

Disconnect the courtesy light connector(13) to lift
the door trim panel(14) and unlock the engagement
of the waist seal(12) section.  Then, pass the inside
handle(11) through the mounting hole of the trim
panel, and detach the trim panel.

632RS015

9. Remove the inside handle.

EXTERIOR/INTERIOR TRIM

8J–9

Installation

To install, follow the removal steps in the reverse order,
noting the following point.

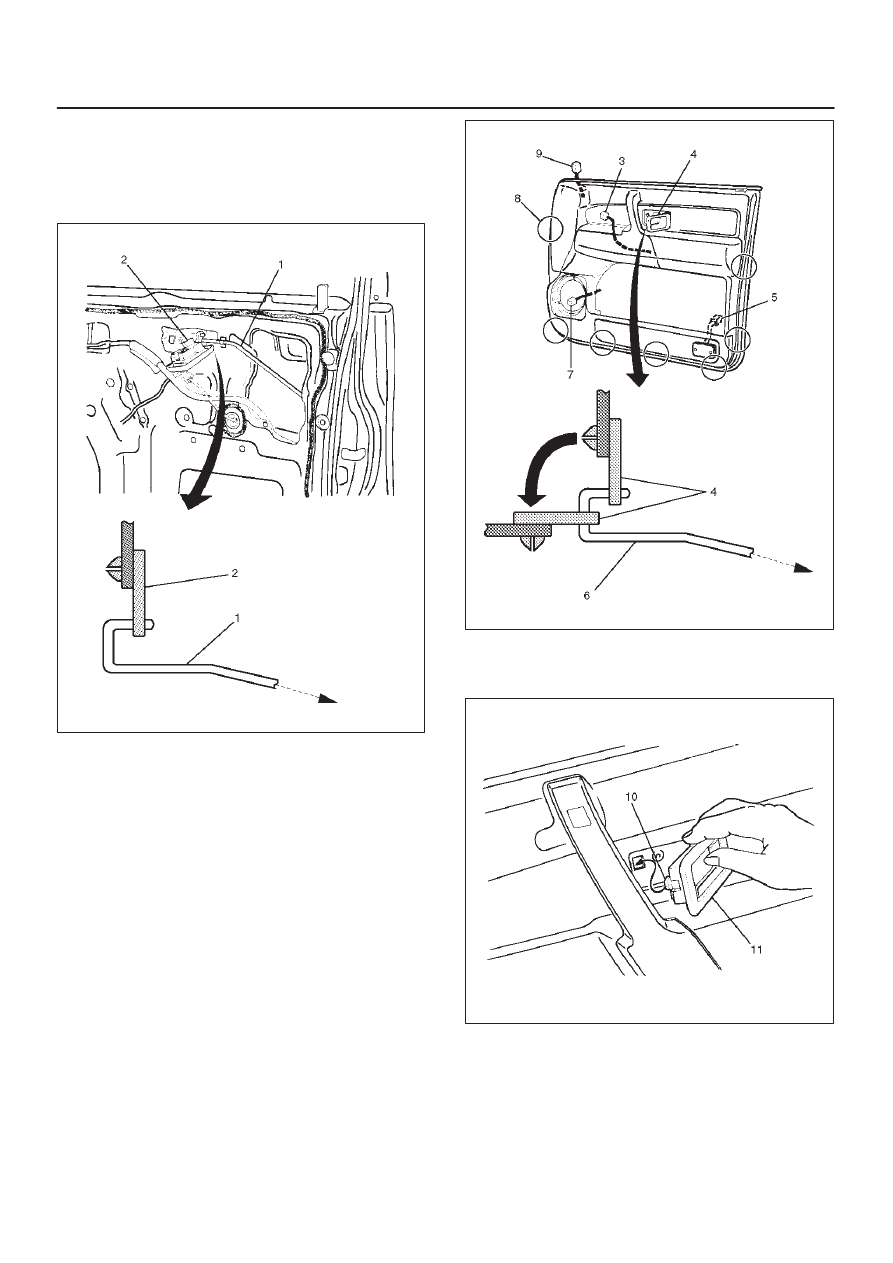

1. When installing the inside handle(2), assemble it

temporarily to the inside handle link(1).

632RS014

2. Pass the inside handle(4) through the mounting hole

of the trim panel and assemble the trim panel.
Engage seven clips(8) into the door panel.  Also,
connect the courtesy light connector(5) and leave the
connectors of the speaker(7), tweeter(9) and power
window(3) drawn out to their prescribed positions, so
that they will not be caught.
Then, put the inside handle(4) to the normal position
of the inside handle link(6).

632RW006

3. Fit the claw(10) of the inside handle(11) securely into

the hole of the door panel and fix the inside handle
with the screw.

632RW007

8J–10

EXTERIOR/INTERIOR TRIM

Rear Door Trim Panel

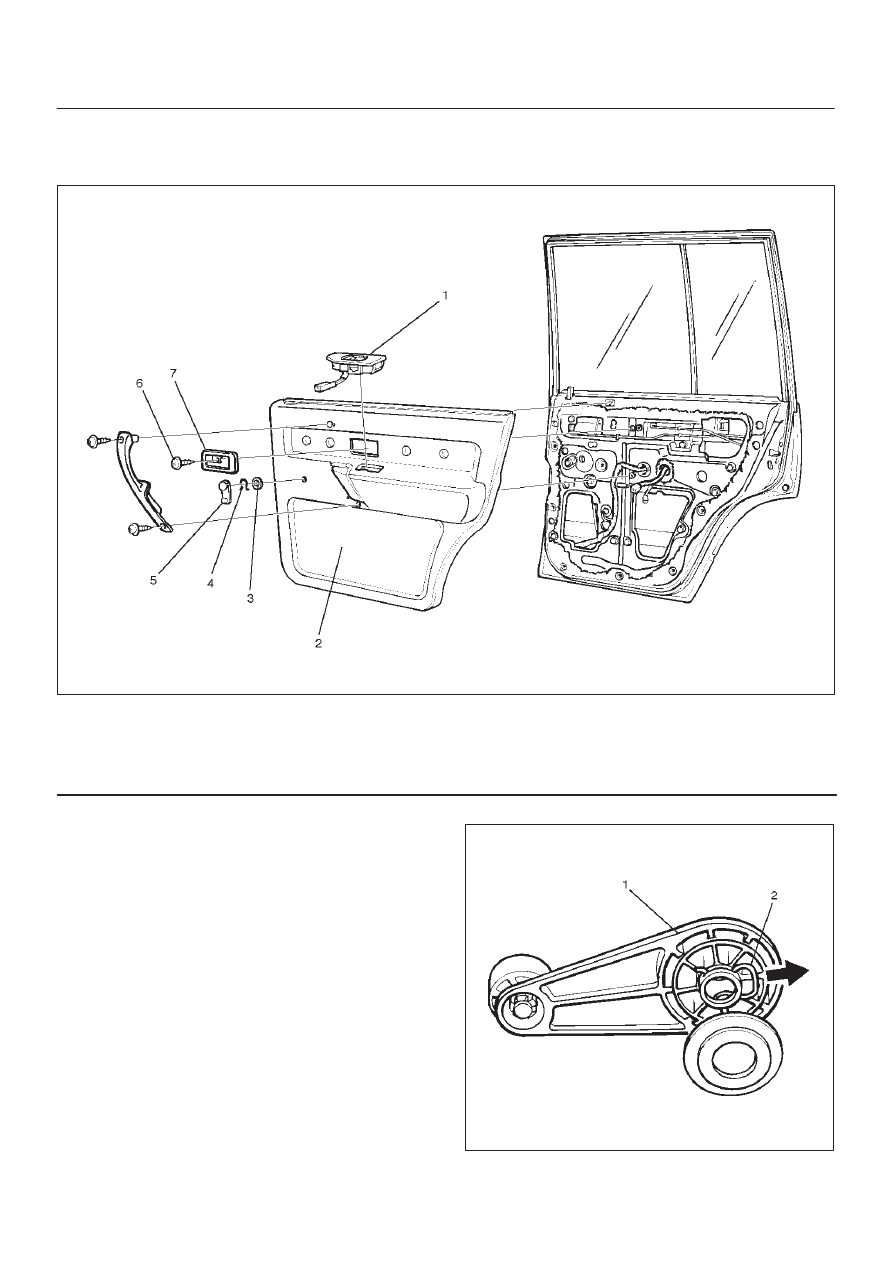

Rear Door Trim Panel and Associated Parts

655RW006

Legend

(1) Power Window Switch
(2) Door Trim Panel
(3) Washer

(4) Clip
(5) Regulator Handle
(6) Inside Handle Fixing Screw
(7) Inside Handle

Removal

1. Disconnect the battery ground cable.
2. Remove the regulator handle(1).

D

Pull the hook(2) out and remove the regulator
handle.

631RW002
