8A–10

LIGHTING SYSTEM

High Mount Stoplight

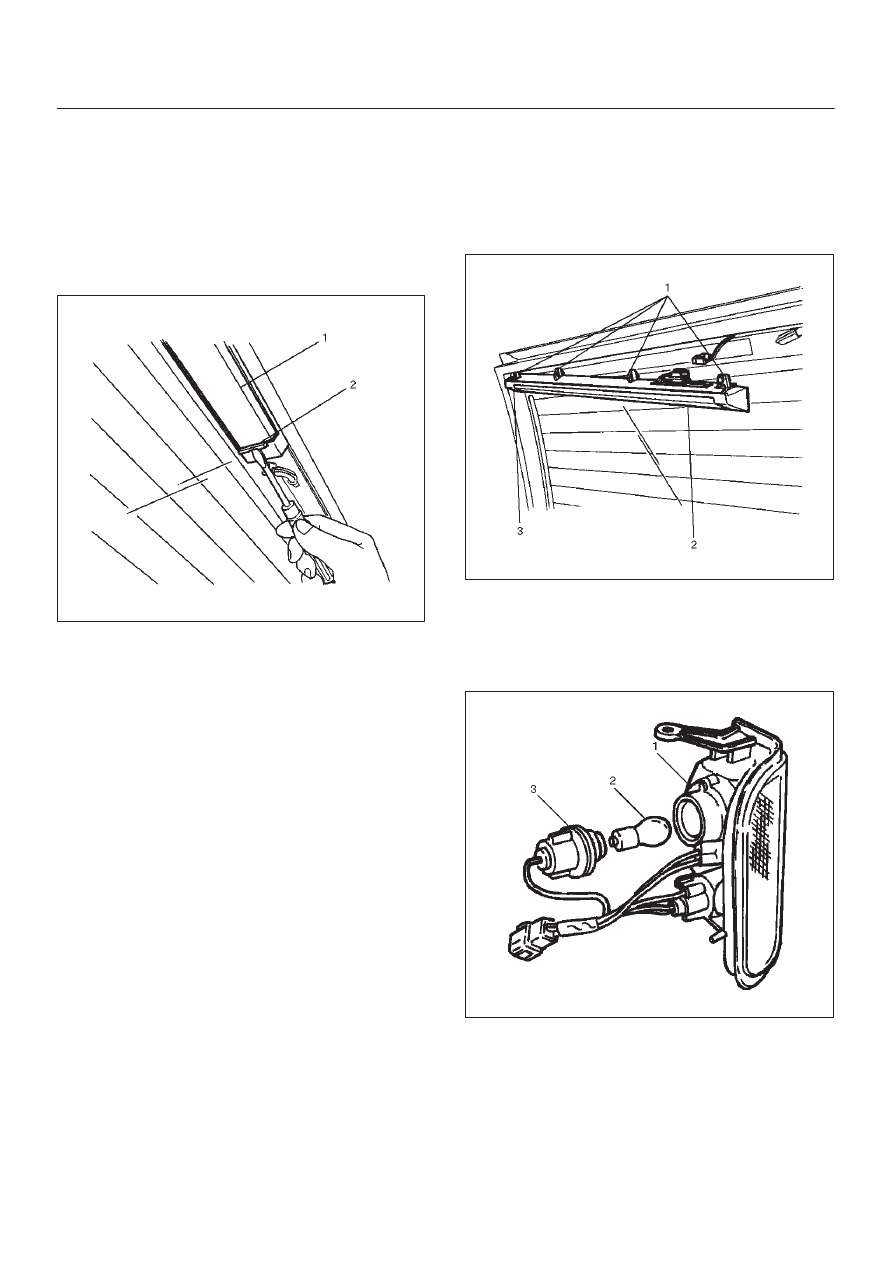

Removal

1.  Disconnect the battery ground cable.
2.  Remove the clips(2).
3.  Pull out the high mount stoplight(1).
4.  Remove the connector.
5.  Remove the high mount stoplight.

803RS003

Installation

1.  Insert the clips(1)(3) into the high mount stoplight(2).
2.  Reconnect the connector.
3.  Install the high mount stoplight.

803RS004

Front Turn Signal Light Bulb

Removal

1.  Disconnect the battery ground cable.
2. Remove the screw at the upper portion of the light

bracket, and remove the bracket from the fender.

3. Remove the front combination light(1).
4. Remove the turn signal light socket(3) by turning it

counterclockwise.

5. Remove the bulb(2) by turning it counterclockwise

while pushing it at the same time.

801RS002

Installation

To install, follow the removal steps in the reverse order.

LIGHTING SYSTEM

8A–11

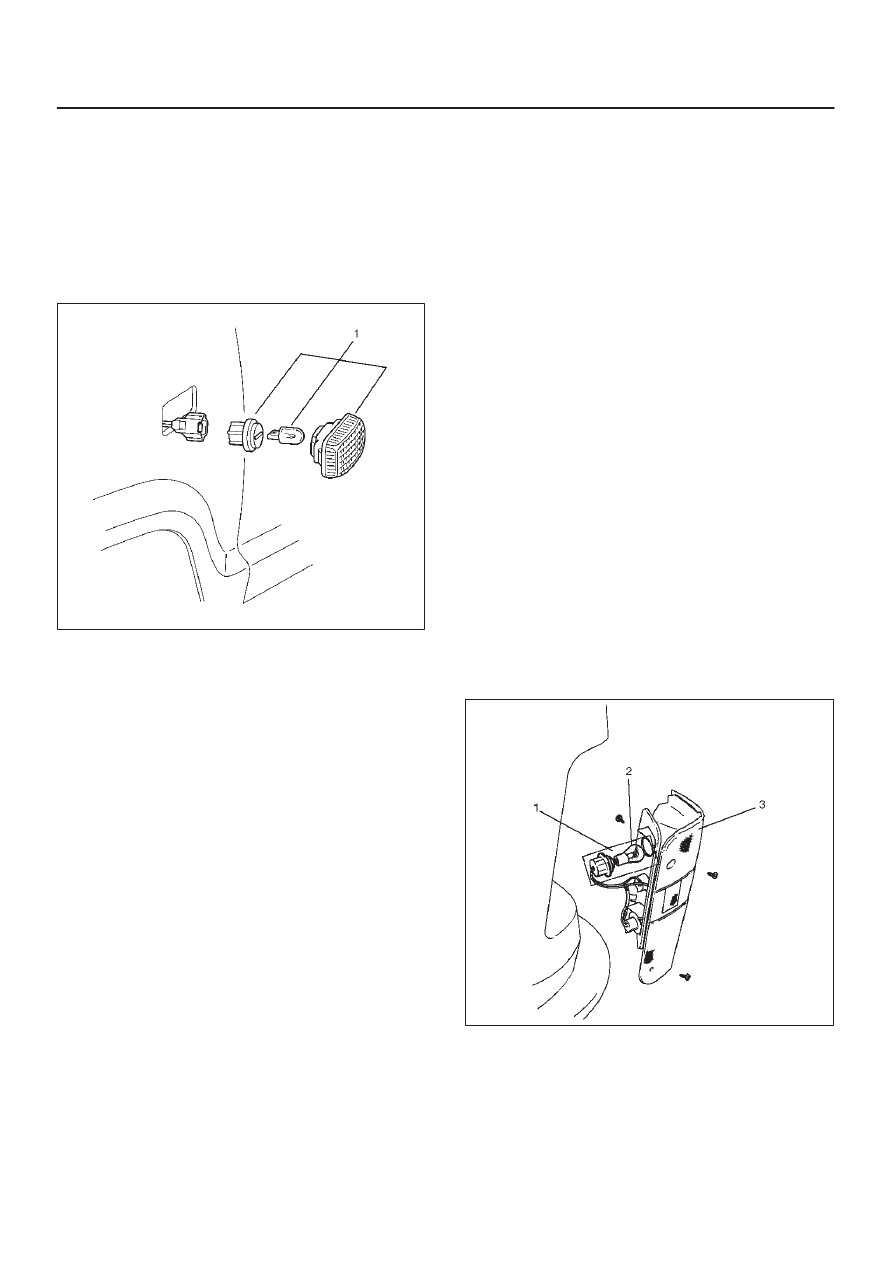

Side Turn Signal Light Bulb

Removal

1.  Disconnect the battery ground cable.
2. Pull the light/bulb(1) toward you while pushing the

light housing in the rear direction of the vehicle to
release its lock.

3. Remove the bulb by turning it counterclockwise while

pushing it at the same time.

801RW013

Installation

To install, follow the removal steps in the reverse order.

Rear Turn Signal Light Bulb

Removal

1. Disconnect the battery ground cable.
2. Remove the three screws and release the lock at two

positions.

3. Remove the rear combination light(3).
4. Remove the turn signal light socket/bulb(1) by turning

it counterclockwise.

5. Remove the bulb(2) by turning it counterclockwise

while pushing it at the same time.

803RS002

Installation

To install, follow the removal steps in the reverse order.

8A–12

LIGHTING SYSTEM

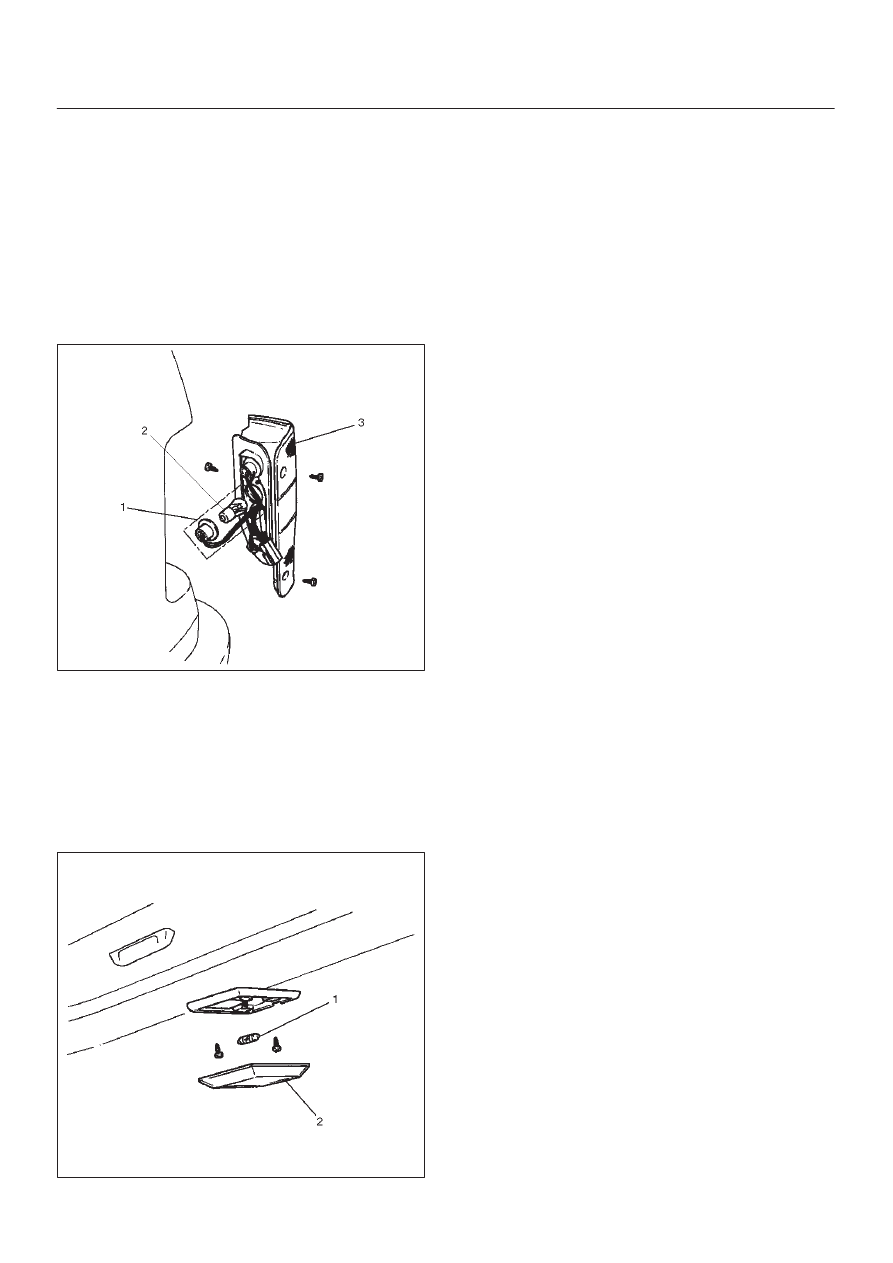

Backup Light Bulb

Removal

1. Disconnect the battery ground cable.
2. Remove three screws and release the lock at two

positions.

3. Remove the rear combination light(3).
4. Remove the backup light socket/bulb(1) by turning it

counterclockwise.

5. Remove the bulb(2) by turning it counterclockwise

while pushing it at the same time.

803RS001

Installation

To install, follow the removal steps in the reverse order.

Dome Light Bulb

Removal

1. Disconnect the battery ground cable.
2. Remove the lens(2) by releasing the locks at three

locations.

3. Remove the bulb(1).

805RS005

Installation

To install, follow the removal steps in the reverse order.

LIGHTING SYSTEM

8A–13

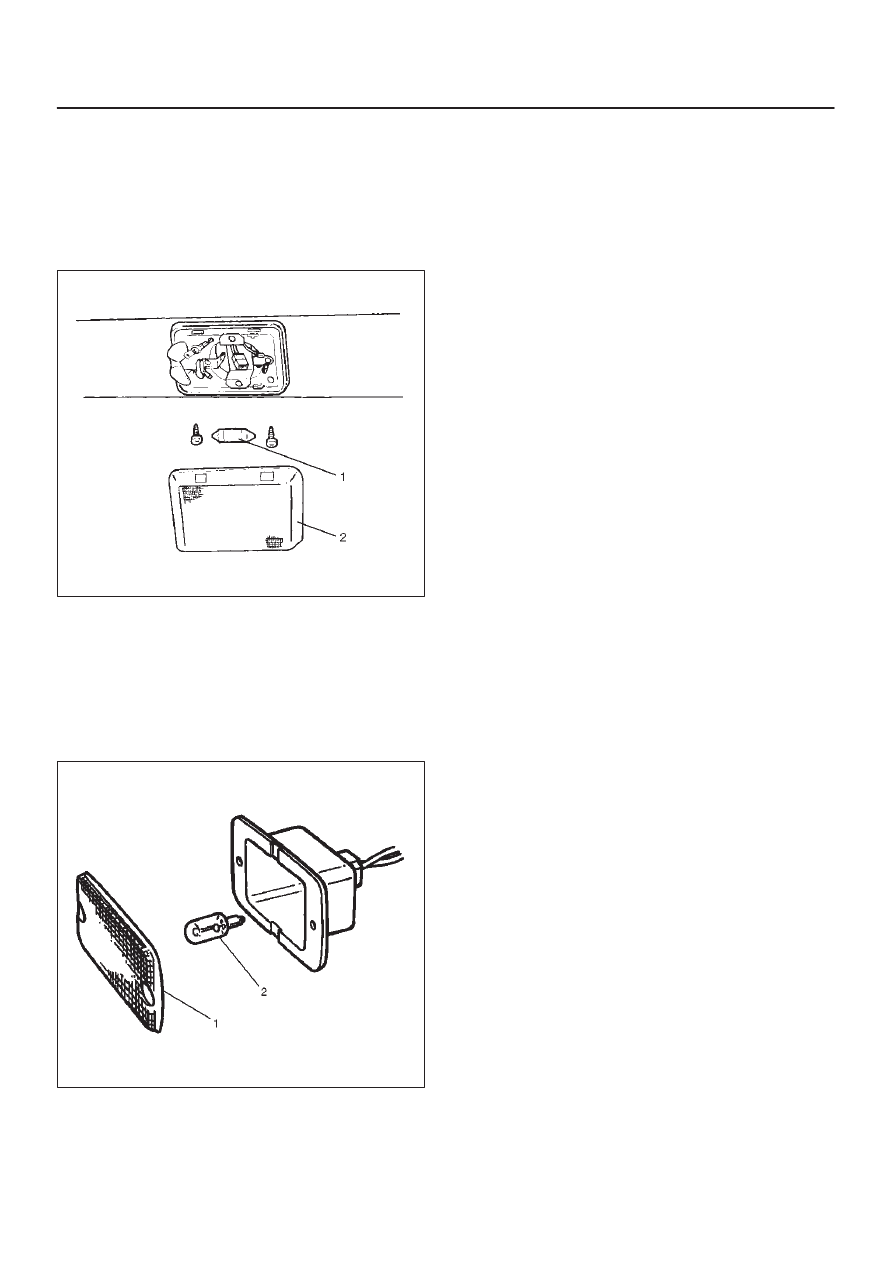

Luggage Room Light Bulb

Removal

1. Disconnect the battery ground cable.
2. Remove the lens(2) by releasing the locks at four

locations.

3. Remove the bulb(1).

803RS007

Installation

To install, follow the removal steps in the reverse order.

Courtesy Light Bulb

Removal

1. Disconnect the battery ground cable.
2. Remove two screws to remove the lens(1).
3. Pull out the bulb(2) from the socket.

805RS006

Installation

To install, follow the removal steps in the reverse order.
