LIGHTING SYSTEM

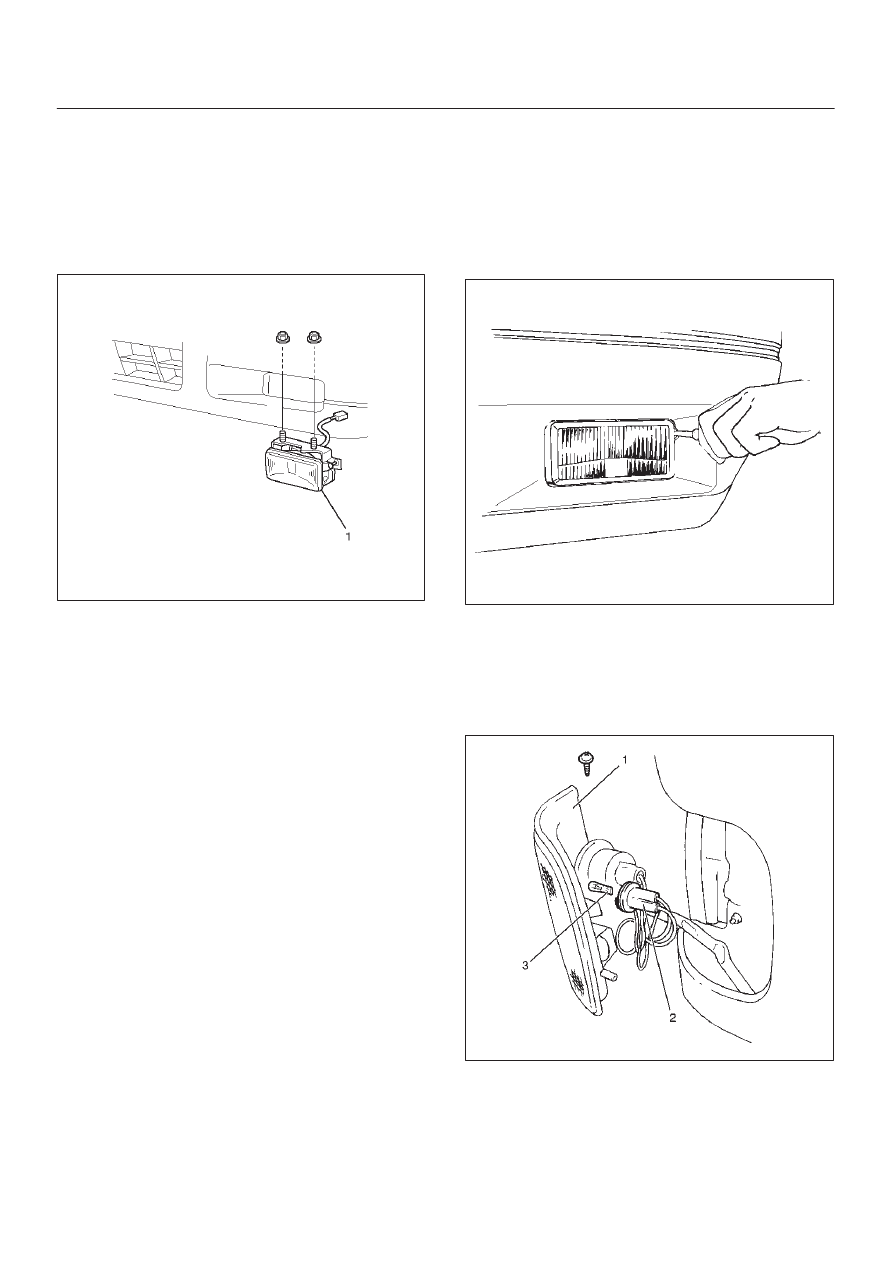

Fog Light Assembly

Removal

1. Disconnect the battery ground cable.
2. Remove two nuts from the bracket.
3. Disconnect the connector.
4. Remove the fog light assembly (1).

825RW104

Installation

To install, follow the removal steps in the reverse order.

CAUTION: After installing the fog light, be sure to
adjust the fog light aim.

Fog Light Adjustment

Turn the adjusting screw with a screwdriver to adjust the
aim of the fog light vertically.

801RW007

Clarence Light Bulb

Removal

1.  Disconnect the battery ground cable.
2.  Remove the screw at the upper portion of the light

bracket and then remove the bracket from the fender.

3.  Remove the front combination light assembly(1).
4. Remove the front side marker light socket(2) by

turning it counterclockwise.

5. Pull out the bulb(3) from the socket.

801RW015

Installation

To install, follow the removal steps in the reverse order.

LIGHTING SYSTEM

8A–7

Rear Fog Light Bulb (RHD)

Removal

1. Disconnect the battery ground cable.
2. Remove three screws and release locks at two

locations to remove the rear combination light
assembly(2).

3. Remove the socket(3) by turning it counterclockwise.
4. Turn the bulb(1) counterclockwise while pushing it to

remove it from the socket.

803RS005

Installation

To install, follow the removal steps in the reverse order.

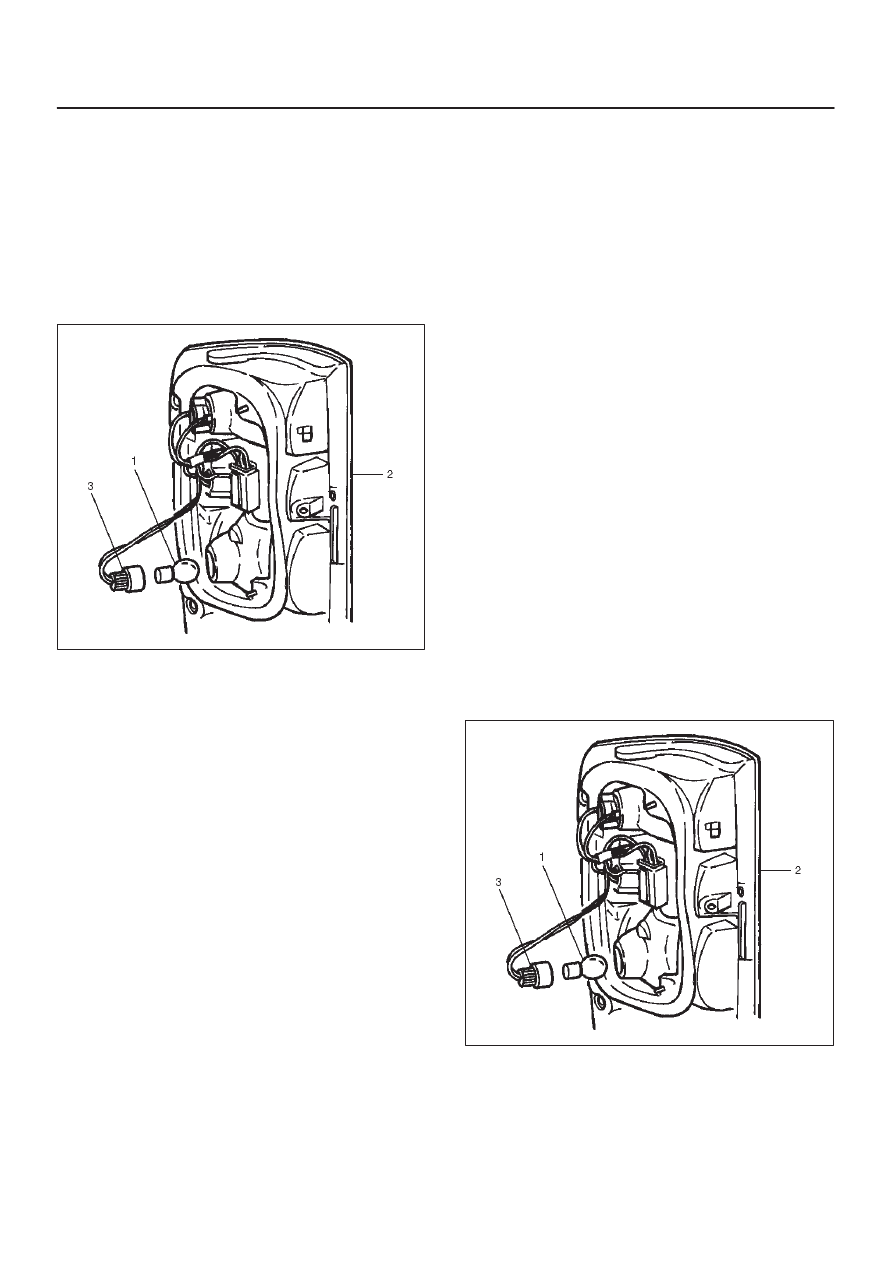

Taillight Bulb (Body)

Removal

1. Disconnect the battery ground cable.
2. Remove three screws and release locks at two

locations to remove the rear combination light
assembly(2).

3. Remove the socket(3) by turning it counterclockwise.
4. Turn the bulb(1) counterclockwise while pushing it to

remove it from the socket.

803RS005

Installation

To install, follow the removal steps in the reverse order.

8A–8

LIGHTING SYSTEM

Taillight Bulb (Bumper)

Removal

1. Disconnect the battery ground cable.
2. Remove two screws to remove the rear combination

light assembly(2).

3. Remove the socket(1) by turning it counterclockwise.
4. Remove the bulb(3) by turning it counterclockwise

while pushing.

803RW004

Installation

To install, follow the removal steps in the reverse order.

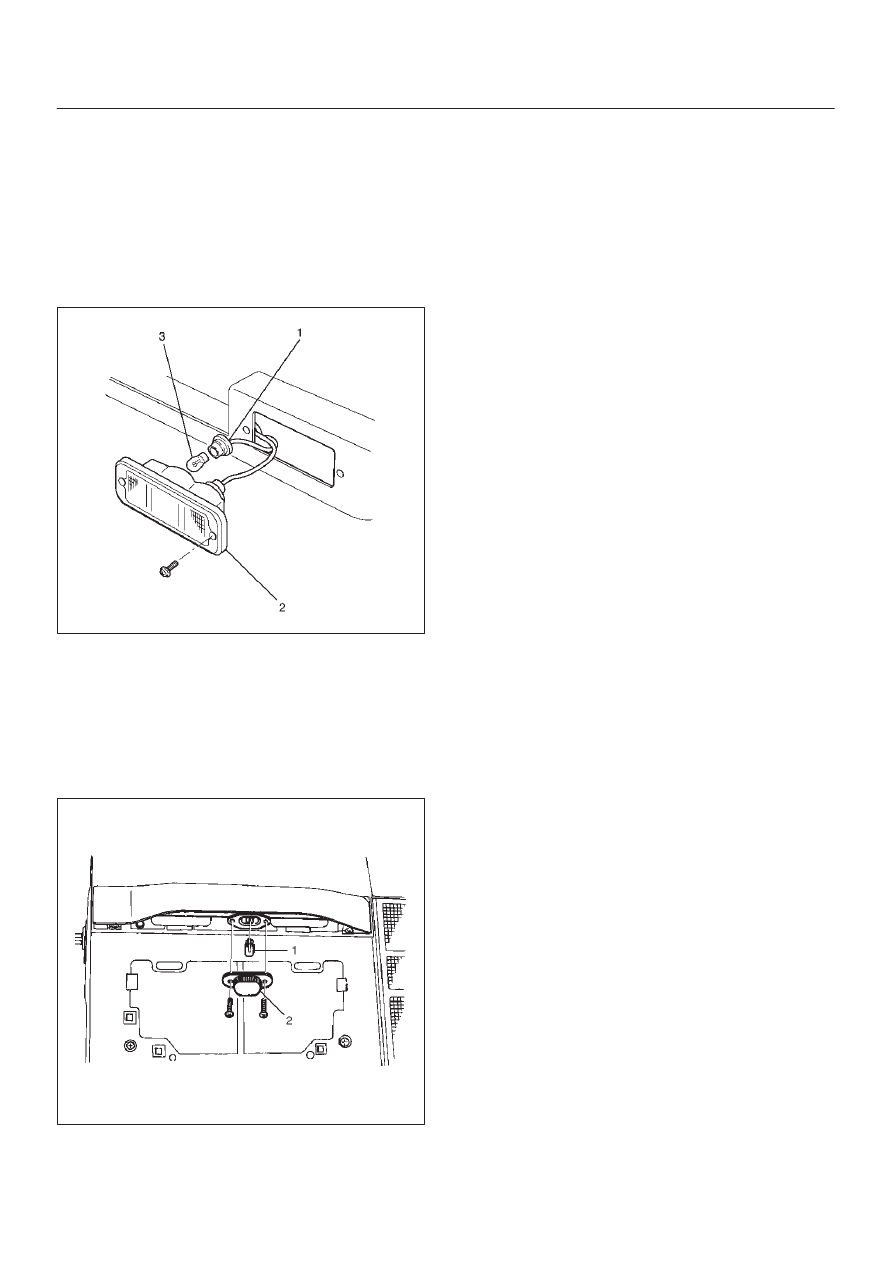

License Plate Light Bulb (Body)

Removal

1. Disconnect the battery ground cable.
2. Remove two screws to remove the lens(2).
3. Pull out the bulb(1) from the socket.

803RS006

Installation

To install, follow the removal steps in the reverse order.

LIGHTING SYSTEM

8A–9

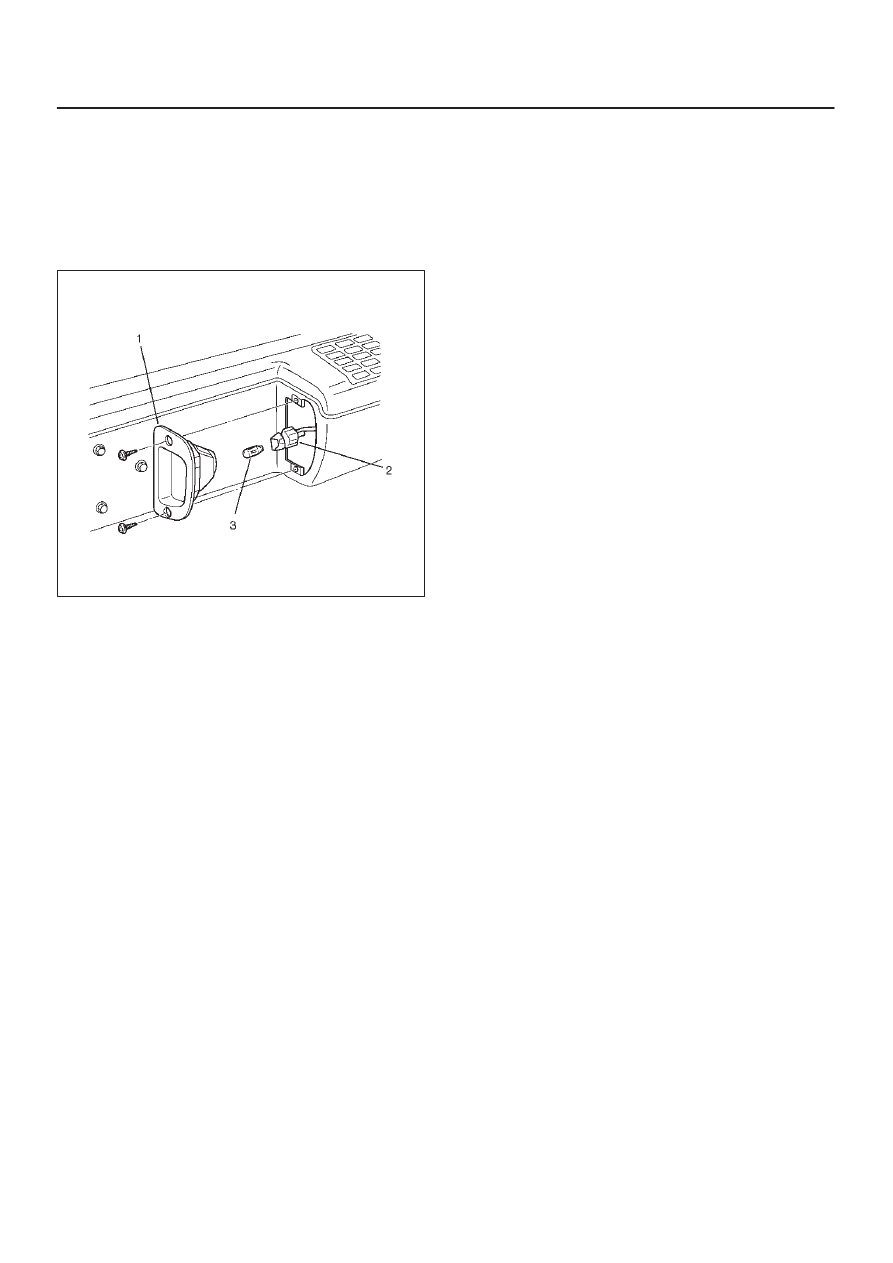

License Plate Light Bulb (Bumper)

Removal

1. Disconnect the battery ground cable.
2. Remove two screws to remove the license plate

light(1).

3. Pull out the bulb(3) from the socket(2).

803RW003

Installation

To install, follow the removal steps in the reverse order.

Stoplight Bulb

Removal and Installation

Refer to the Taillight Bulb in this section.
