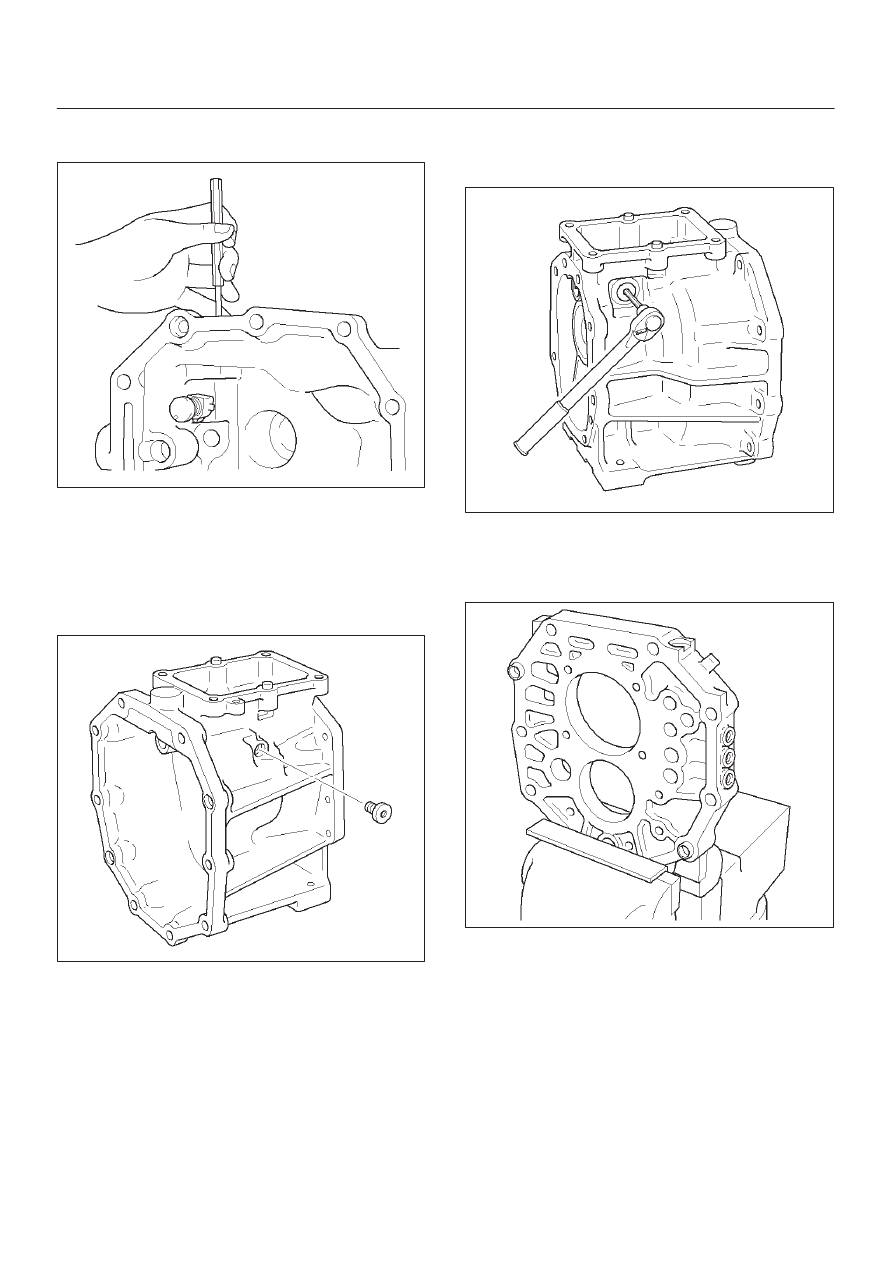

7B–52 MANUAL TRANSMISSION

5. Using a pin punch and hammer, drive in the

slotted spring pin.

226RW058

6. Clean up the plug and plug hole.

7. Apply sealant to the plug threads. (THREE BOND

1344 or equivalent)

8. Using a torx socket wrench(T40), install and

torque the plug.

Torque: 19 N·m (1.9 kg·m/14 lb ft)

220RW013

9. Using hexagon wrench, install and torque the

plug.

Torque: 37 N·m (3.8 kg·m/27 lb ft)

220RW014

19. Install the reverse shift arm No.1 and reverse shift

arm No.2.
1. Mount the intermediate plate through the

aluminum plate in a vise.

226RW057

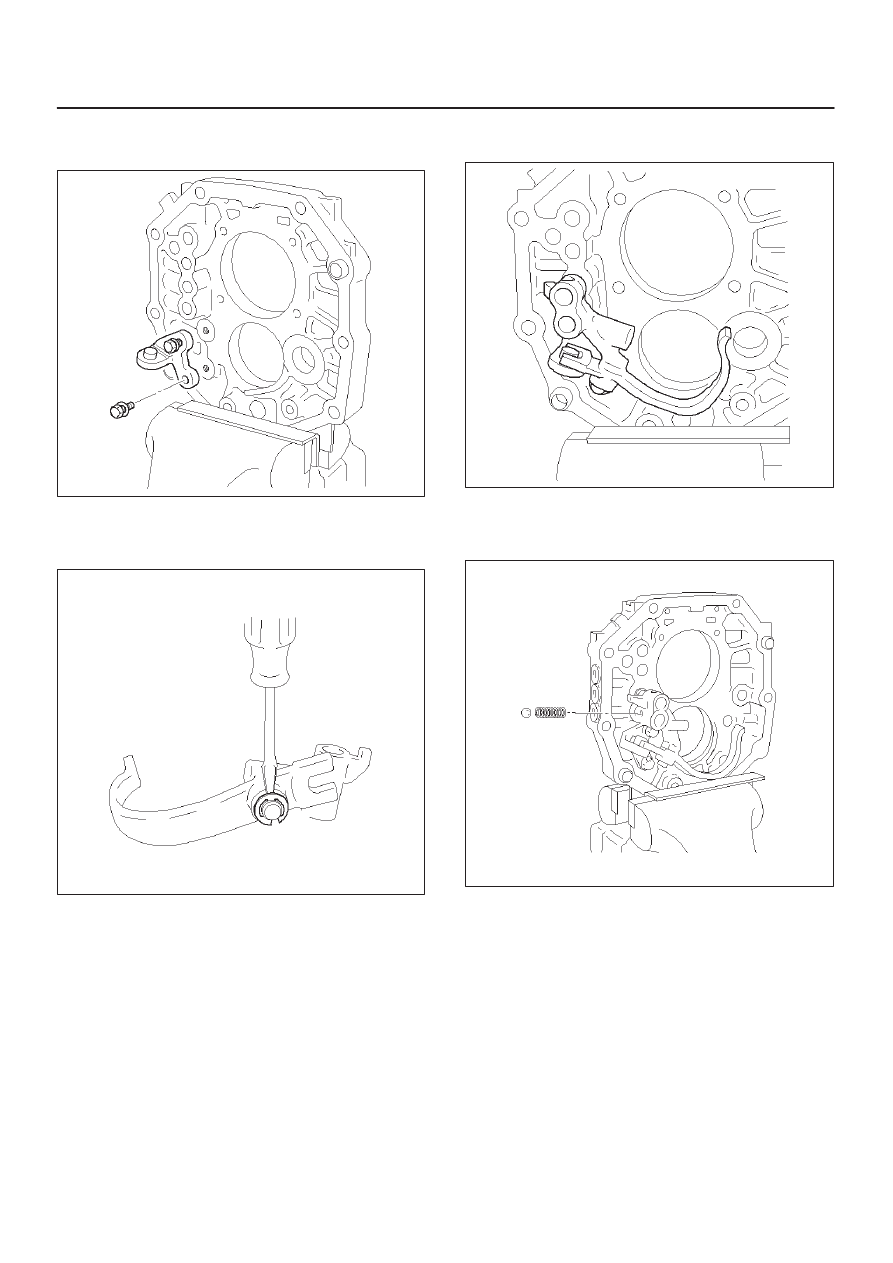

MANUAL TRANSMISSION

7B–53

2. Using 2 bolts, install reverse shift arm bracket.

Torque: 18 N·m (1.8 kg·m/13 lb ft)

226RW054

3. Install reverse shift arm No.2 to the reverse shift

arm No.1.  Using screwdriver and a hammer,
install the new E-ring.

226RW138

4. Install reverse shift arm No.2 to the reverse shift

arm bracket.

226RW012

20. Install the reverse shift rod.

1. Install the reverse shift arm No.1 compression

spring and ball to the reverse shift arm No.1.

226RW125

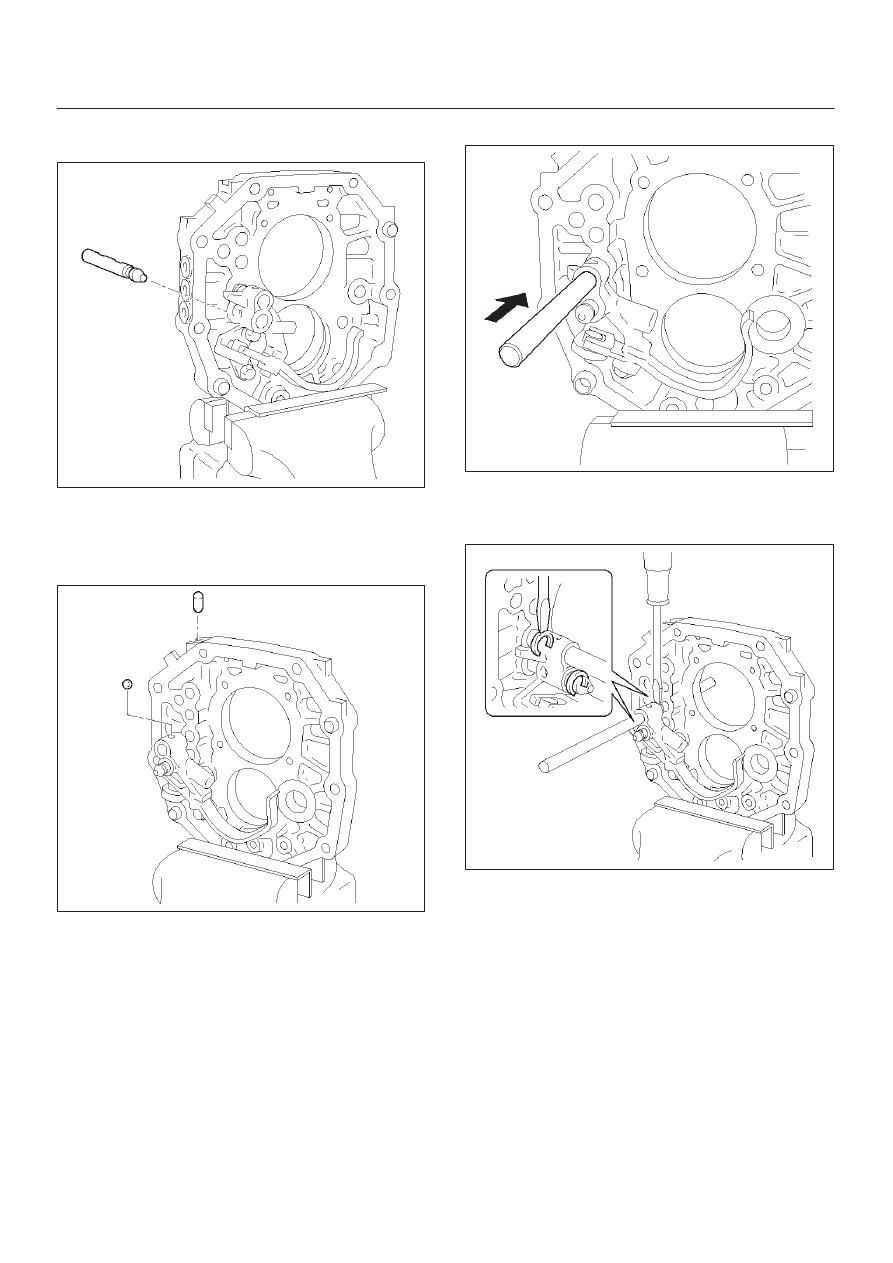

7B–54 MANUAL TRANSMISSION

2. Install the reverse shift rod from the rear side by

pushing the ball on using a screwdriver.

226RW126

21. Install the reverse-5th shift rod.

1. Install the reverse shift arm No.1 lock ball to the

reverse shift arm No.1.

2. Install the interlock pin to the intermediate plate.

226RW039

3. Put in the reverse-5th shift rod from the front.

226RW011

4. Using a screwdriver and a hammer, install the 2

new shift rod snap rings to the 5th-reverse shift
rod and reverse shift rod.

226RW037

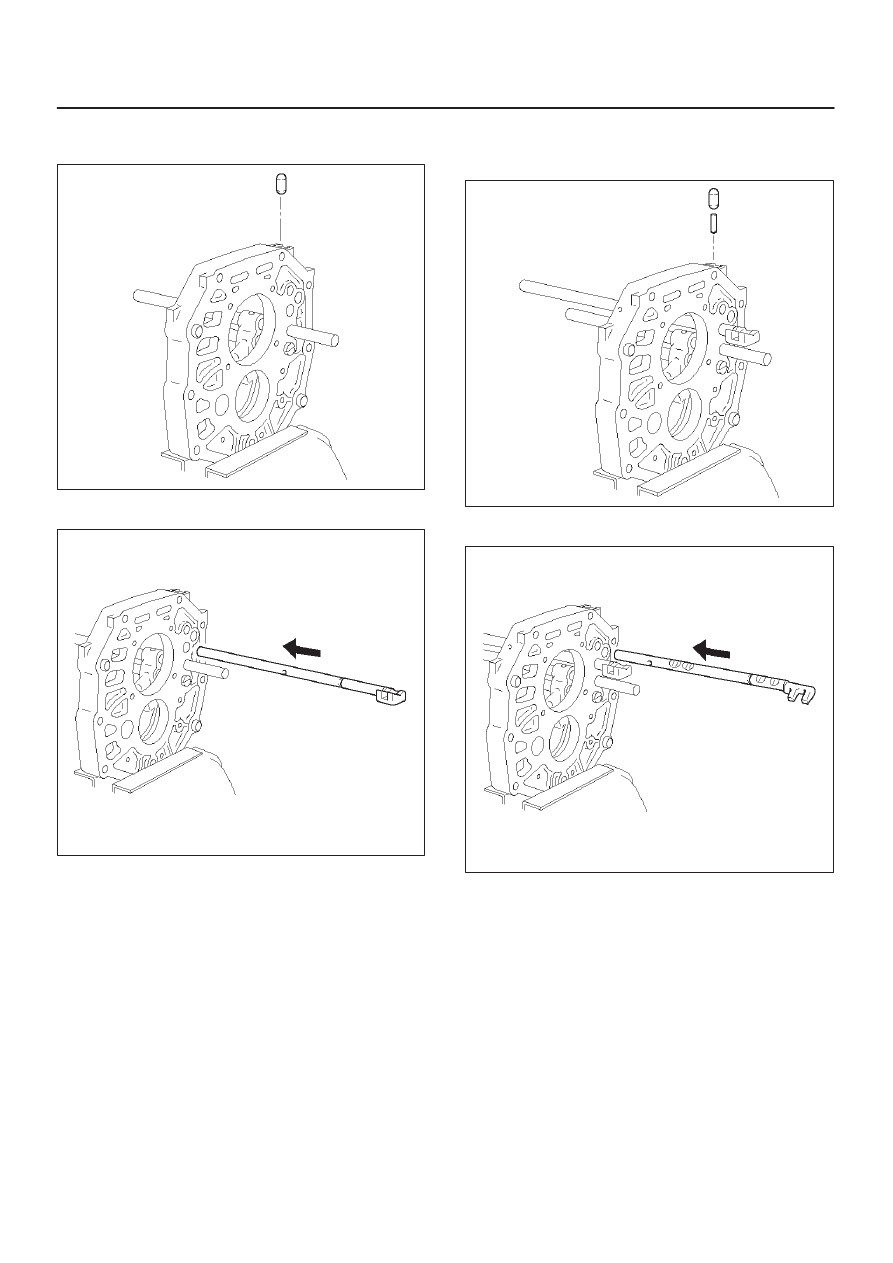

MANUAL TRANSMISSION

7B–55

22. Install 1st–2nd shift rod.

1. Install the interlock pin to the intermediate plate.

226RW042

2. Put in the 1st–2nd shift rod from the rear.

226RW044

23. Install 3rd–4th shift rod.

1. Install the straight pin and interlock pin to the

intermediate plate.

226RW043

2. Put in the 3rd–4th shift rod from the rear.

226RW046
