TRANSMISSION CONTROL SYSTEM (4L30–E)

7A1–15

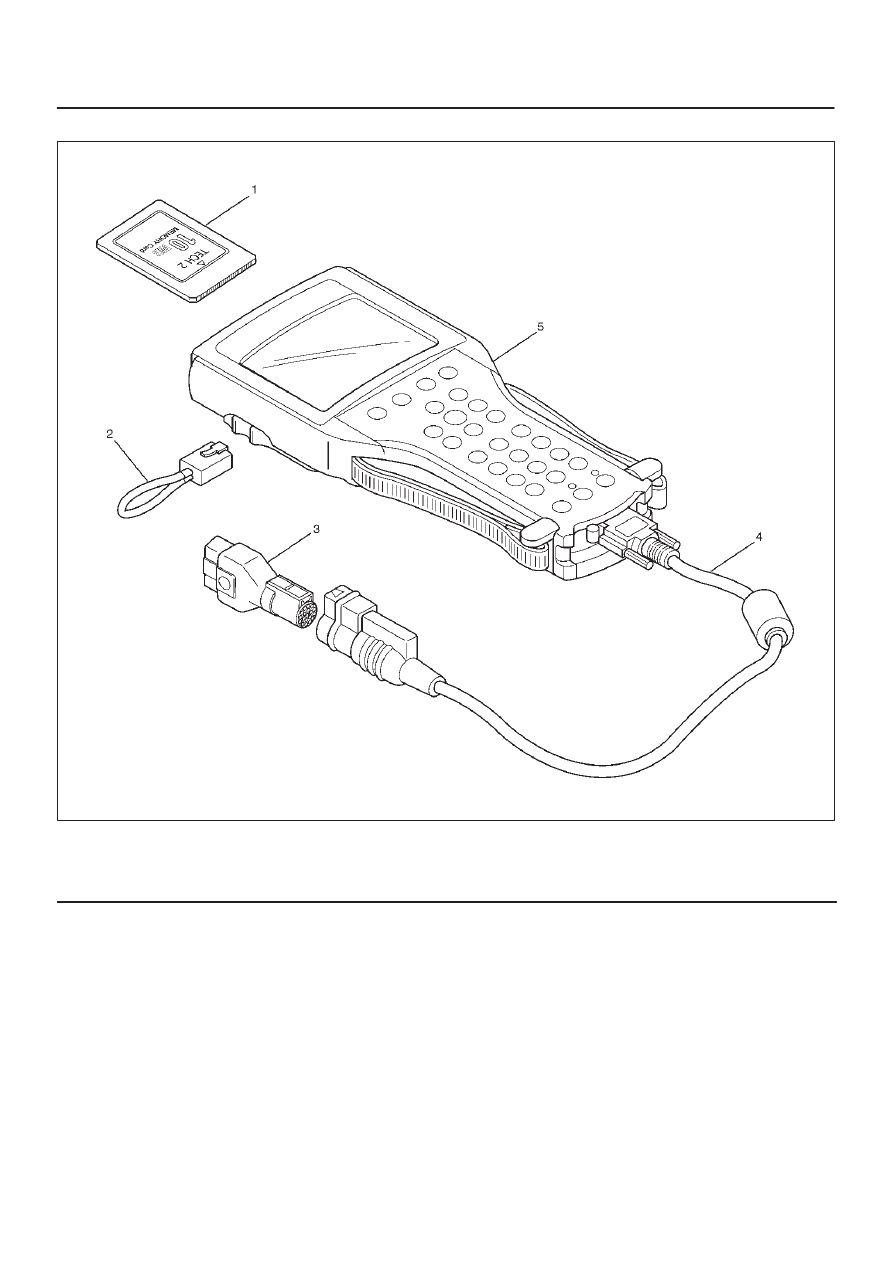

2. Connecting the TECH2

901RW180

Legend

(1) PCMCIA Card
(2) RS 232 Loop Back Connector

(3) SAE 16/19 Adapter
(4) DLC Cable
(5) Tech 2

7A1–16 TRANSMISSION CONTROL SYSTEM (4L30–E)

D

Before operating the Isuzu PCMCIA card with the
Tech 2, the following steps must be performed:

1. The Isuzu (model year) System PCMCIA card (1)

inserts into the Tech 2 (5).

2. Connect the SAE 16/19 adapter (3) to the DLC

cable (4).

3. Connect the DLC cable to the Tech 2 (5)

4. Make sure the vehicle ignition is off.

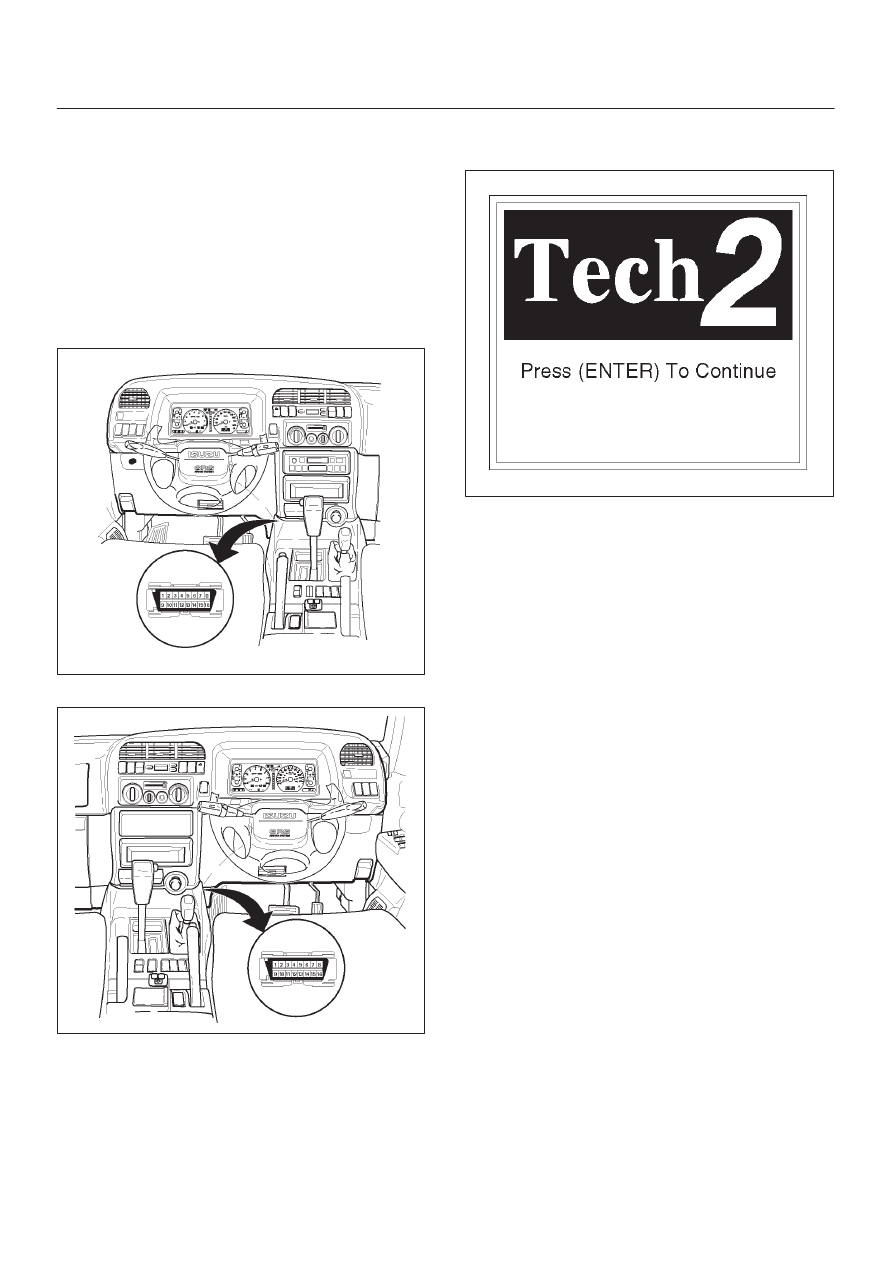

5. Connect the Tech 2 SAE 16/19 adaptor to the

vehicle DLC.

LHD

821RW262

RHD

821RW263

6. The vehicle ignition turns on.

7. Verify the Tech 2 power up display.

060RW009

NOTE: The RS232 Loop back connector is only to use for
diagnosis of Tech 2 and refer to user guide of the Tech 2.

TRANSMISSION CONTROL SYSTEM (4L30–E)

7A1–17

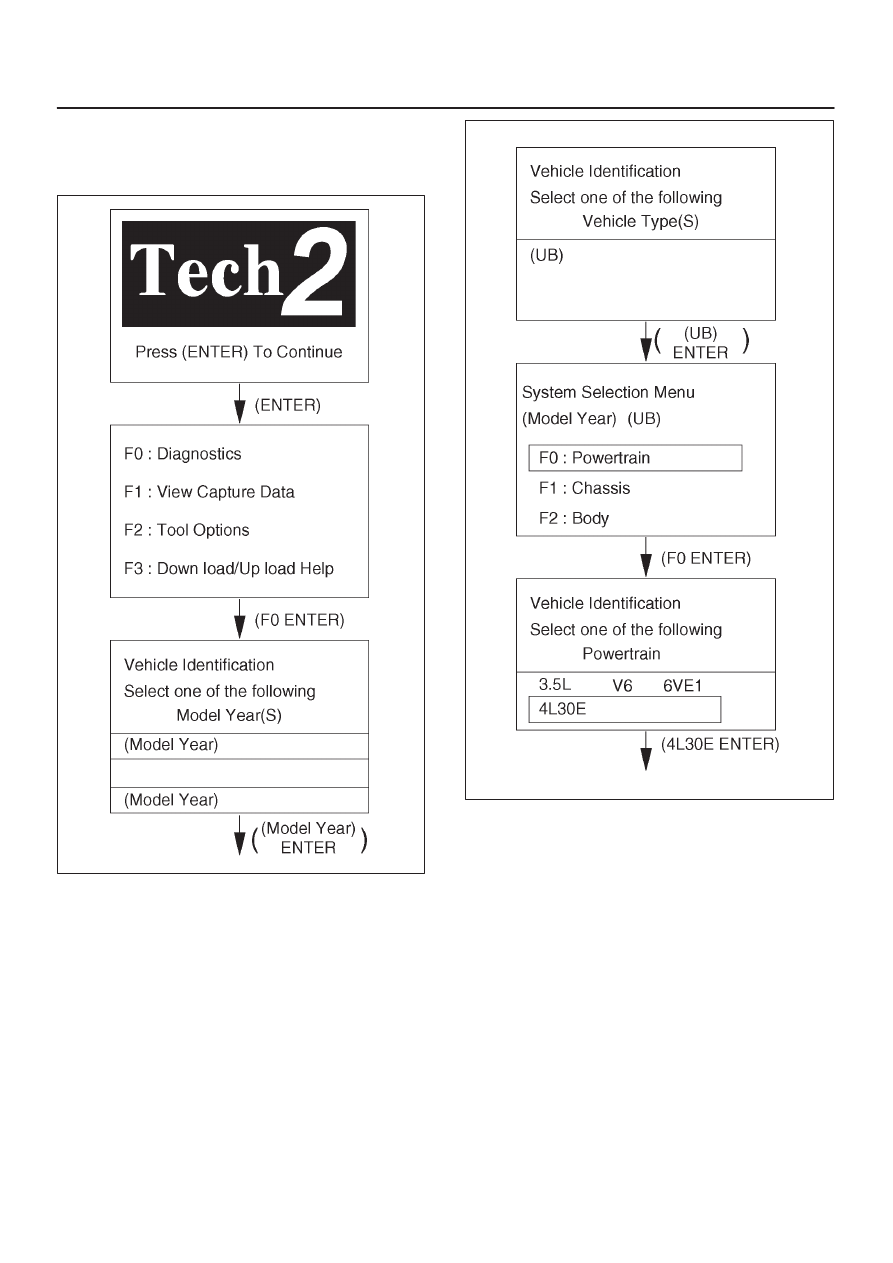

8. The power up screen is displayed when you

power up the tester with the Isuzu systems
PCMCIA card. Follow the operating procedure
below.

060R200264

060R200265

7A1–18 TRANSMISSION CONTROL SYSTEM (4L30–E)

Once the test vehicle has been identified an “Application
(Powertrain) Menu” screen appears. Please select the
appropriate application.
The following table shows, which functions are used for
the available equipment versions.

F0: Diagnostic Trouble Codes

F0: Read DTC Info Ordered By Priority

F1: Clear DTC Information

F2: DTC Information

F1: Data Display

F0: Transmission Data

F2: Snap Shot

F3: Actuator Tests

F0: Lamps

F0: Check Light

F1: Winter Drive Lamp

F2: Power Drive Lamp

F3: AT Oil Temperature Lamp

F1: Solenoids

F0: Solenoid 1-2/3-4 Test

F1: Solenoid 2-3 Test

F2: TCC Solenoid

F3: Band Apply Solenoid

F4: Pressure Control Solenoid (PCS)

F4: Function Tests

F0: Reset Oil Life Monitor

Diagnostic Trouble Codes
The purpose of the “Diagnostic Trouble Codes” mode is to
display stored PCM trouble codes.
When “Diagnostic Trouble Codes” is selected an
“Application Menu” screen appears.

Clear DTC Information
The purpose of the “Clear DTC Information” mode is to
command the clearing of stored PCM trouble codes.
When “Clear DTC Information” is selected, a “Clear DTC
Information”, warning screen appears. This screen
informs you that by cleaning DTC’s, “all stored DTC
information in controller will be erased”.
Do you want to clear DTC’s (Yes/No).
Press either the Yes or No key when answering.
After clearing codes, confirm system operation by test
driving the vehicle.
Allow the vehicle to shift through all four forward gears in a
manner which attempts to repeat the failure condition.

NOTE: When the trouble has not been repaired and the
trouble code cannot be erased, check the vehicle again.

DTC Information
When “DTC Information” is selected, an “Application
Menu” appears with a list of DTC information function
keys addressing DTC specifics and their origins.

Function key selections may vary for particular vehicle
and/or system.

Data Display
The purpose of the “Data Display” mode is to
continuously monitor data parameters.
The current actual values of all important sensors and
signals in the system are display through F1 mode.
When “Data Display” is selected an “Application Menu”
appears. Please select either “Engine” or “Transmission
Data Display”.
See “Transmission Data” on next page.

Snapshot
When “Snapshot” is selected an “Application Menu”
appears.
When “Transmission Snapshot” application is selected
from the “Application Menu”, a “Snapshot Menu”
appears, displaying several options. “Snapshot” options
may vary from one system to another.
“Snapshot” allows a recording of all vehicle parameters.
There parameters may then be replayed at a future point
in time.
This action allows you to focus on making the condition
occur, rather than trying to view all of the data in
anticipation of the fault. The snapshot will collect
parameter information around a trigger point that you
select.
When a snapshot is taken. It is recorded onto the
PCMCIA memory card. When the Tech 2 is powered
down. Snapshots are not lost.

Actuator Tests
The purpose of “Actuator Tests” mode is to check for
correct operation of electronic system actuators.

Lamps
You can operate the lamps by pressing the ON and OFF
buttons.
Preconditions: none

Solenoid
Solenoid 1-2/3-4, Solenoid 2-3, TCC Solenoid
You can operate the solenoids by pressing the ON and
OFF buttons.
Preconditions: P–N position, no vehicle speed, no engine
speed
Band Apply Solenoid
You can operate the solenoid by pressing the ON and
OFF buttons.
Preconditions: P-N position, idle engine speed, no vehicle
speed.
Pressure Control Solenoid (PCS)
You can set desired PCS Current using the UP (+25) and
DOWN (–25) button. The PC Solenoid Data informs
about PCS Current, Pressure and Duty Cycle.
Preconditions: P–N position, no engine speed, no vehicle
speed

Reset Oil Life Monitor
Displays parameter “Oil Life Monitor” and resets to 100%
if Yes-button is pressed on Reset-question. “No” leaves
test.
Preconditions: no vehicle speed, no engine speed
