Opel Frontera UBS. Manual - part 2609





TRANSMISSION CONTROL SYSTEM (4L30–E)

7A1–11

Diagnosis

Electronic Diagnosis

How To Diagnose The Problem

1. To avoid incorrect diagnostics, this book needs to be

followed accurately. Unless stated, do not jump
directly to a section that could contain the solution.
Some important information may be missed.

2. The sections in CAPITALS and bold are the main

sections that can be found in the contents.

3. The GOTO “SECTION” means to continue to check

going to the “section”.

4. The GOTHROUGH “SECTION” means to go

through the “section” and then to go back to the place
the GOTHROUGH was written.

5. BASIC ELECTRIC CIRCUITS:

You should understand the basic theory of electricity.
This includes the meaning of voltage, amps, ohms,
and what happens in a circuit with an open or shorted
wire. You should also be able to read and understand
wiring diagrams.

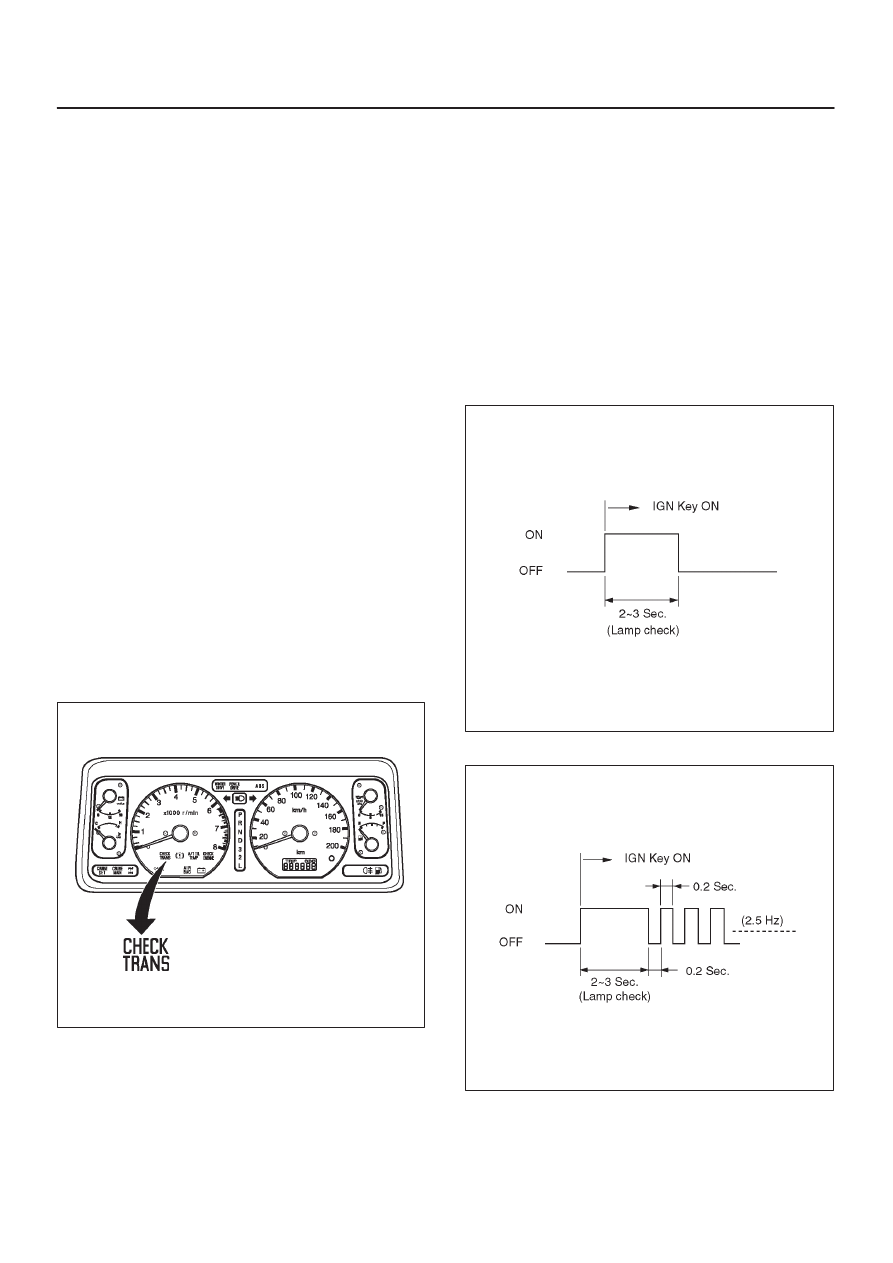

Check Trans Indicator

Find CHECK TRANS indicator and verify if it is
A. Flashing: GOTO DIAGNOSTIC CHECK.
B. Staying on: GOTHROUGH CHECK TRANS

CHECK.

C. Is never ON when the ignition key is turned on:

GOTHROUGH CHECK TRANS CHECK

D. Is ON during 2

 3 seconds at ignition but OFF after:

Normal operation. No DTC or malfunction.

821RW261

Diagnostic Check

This test determines if the transmission or its input or
output connections or sensors are failing.

1. Connect the Tech 2: GOTHROUGH Tech 2 OBD II

CONNECTION.

2. Turn on the ignition but not the engine.
3. Push “F0” on Tech 2 to see the Diagnostic Trouble

Code (DTC):

4. Do you have a DTC?

YES: write down all code numbers and do the DTC
CHECK
NO: the DTC can not help you finding the problem.

1. GOTHROUGH “CHECK TRANS” CHECK

2. IF it is flashing and the flash is 0.2 seconds ON

and 0.2 seconds OFF, this means that you should
have a DTC stored. Please recheck GOTO
DIAGNOSTIC CHECK and if you find the same
problem, replace the Powertrain Control Module
(PCM).

Normal

C07R200005

Abnormal

C07R200006

7A1–12 TRANSMISSION CONTROL SYSTEM (4L30–E)

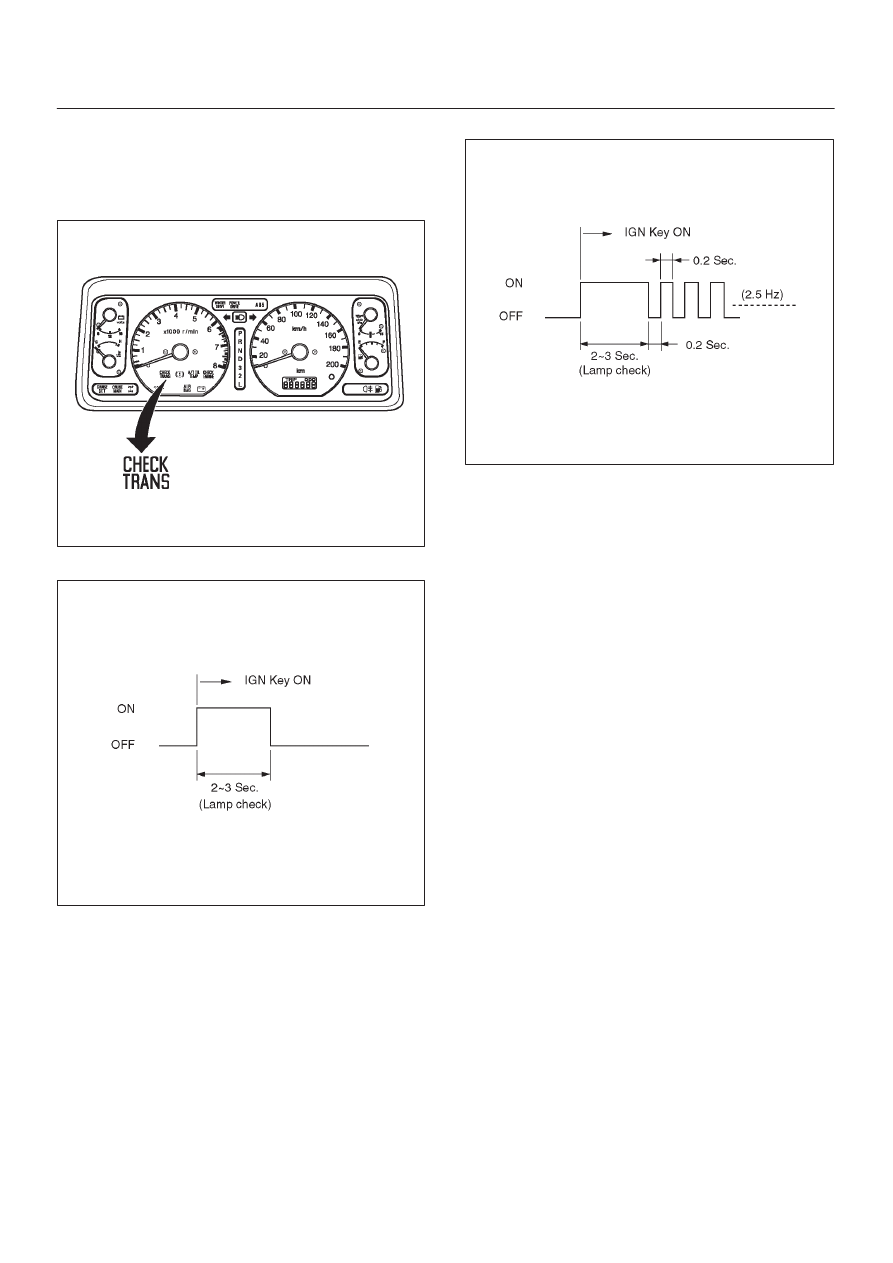

“Check Trans” Check

1. Indicator it is ON during 2

 3 seconds at ignition (or

when the engine is cranked) but it is OFF after the
engine starts. The indicator is working normally
GOTO DIAGNOSTIC CHECK.

821RW261

Normal

C07R200005

2. Indicator it is flashing and the flash is 0.2 seconds ON

and 0.2 seconds OFF always when ignition is on
(engine cranked or not). This means that there is a
malfunction. GOTO DIAGNOSTIC CHECK.

Abnormal

C07R200006

3. Indicator it is staying ON always when Ignition is ON.

1. This means that connection between the lamp

and the PCM is shorted to ground.

2. Verify if instrument panel terminal 3 (WO/TOD) or

6 (WO/TOD) of connector I–9 is shorted to
ground.

3. Verify if the PCM connector S (RED) terminal 46

is shorted to ground.

4. Verify that the instrument panel terminal 15

(WO/TOD) or 26 (W/TOD) of connector I–9 is
connected to battery.

5. IF problem solved: GOTO CHECK TRANS

INDICATOR.

NO:Replace Powertrain Control Module (PCM).

4. Indicator it is staying OFF with the ignition ON (engine

OFF).
1. This means that connection between the lamp

and the PCM is shorted to battery or opened.

2. Verify if instrument panel terminal 3 (WO/TOD) or

6 (WO/TOD) of connector I–9 is shorted to
battery or open.

3. Verify if the PCM connector S (RED) terminal 46

is shorted to battery or open.

4. Verify that the instrument panel terminal 15

(WO/TOD) or 26 (W/TOD) of connector I–9 is
connected to battery. If not, check the fuses and
the connections voltage.

TRANSMISSION CONTROL SYSTEM (4L30–E)

7A1–13

5. IF problem solved: GOTO CHECK TRANS

INDICATOR.

NO: Replace Powertrain Control Module (PCM).

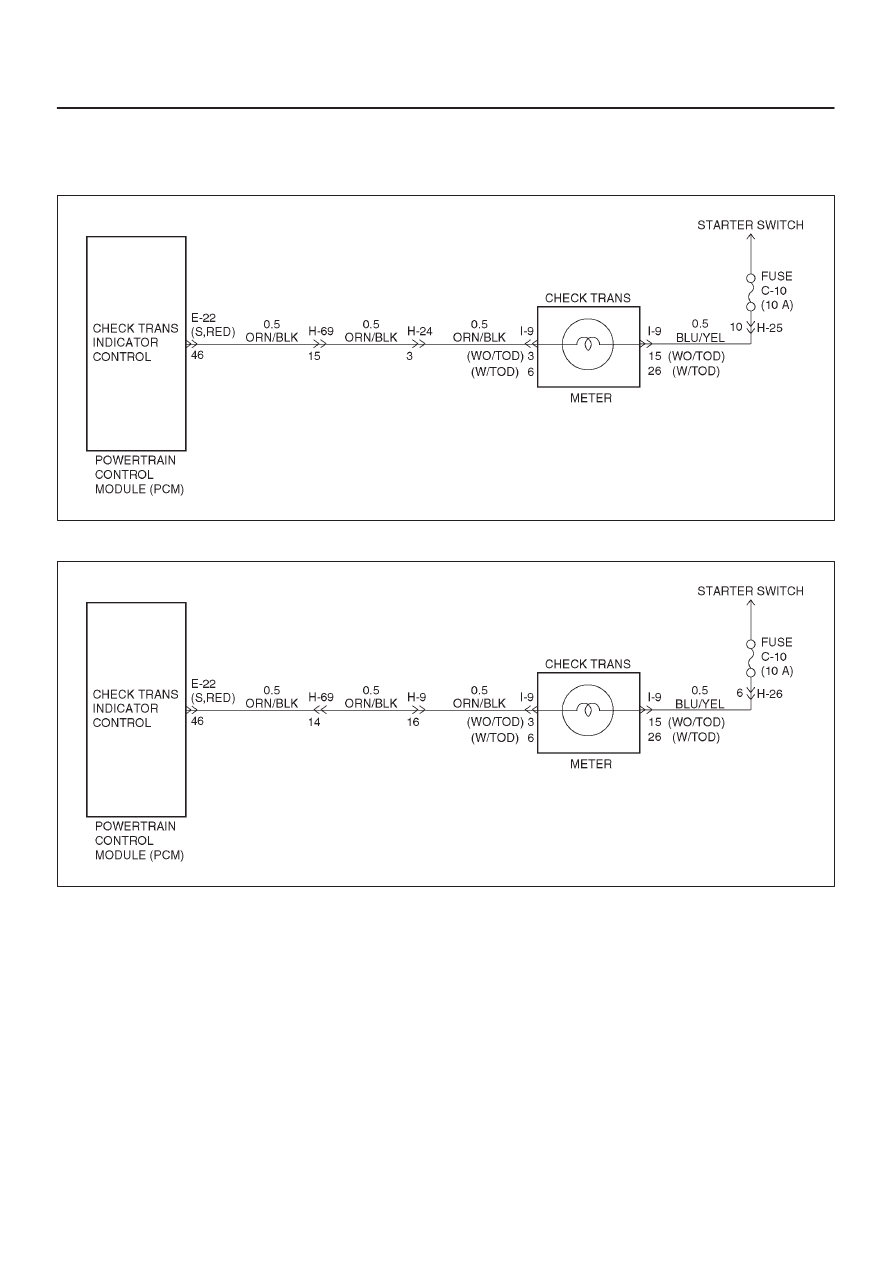

LHD

D07R200041

RHD

D07R200042

7A1–14 TRANSMISSION CONTROL SYSTEM (4L30–E)

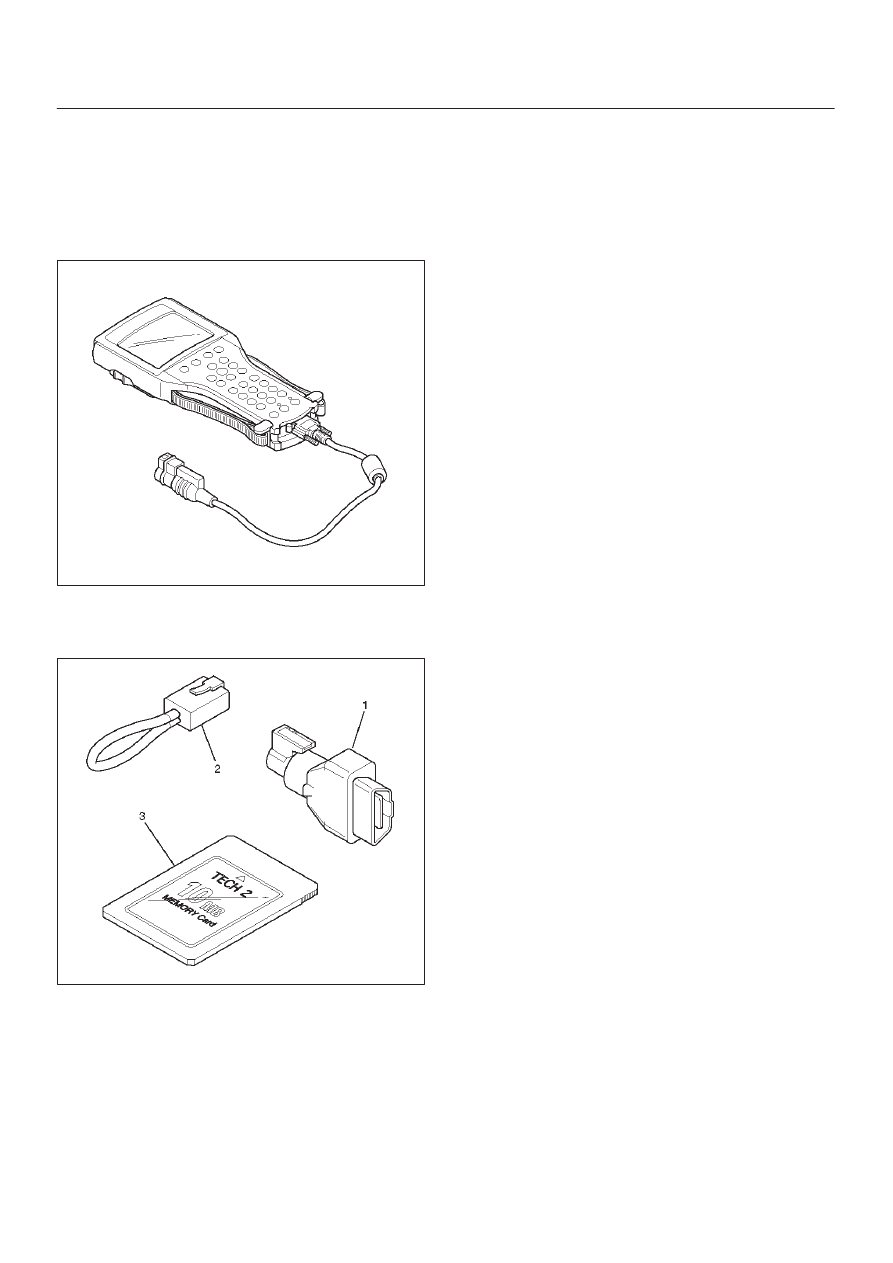

Tech 2 OBD II Connection

In order to access OBD II Powertrain Control Module
(PCM) data, use of the Tech 2 scan tool kit (7000086) is
required.

1. The electronic diagnosis equipment is composed of:

1. Tech 2 hand held scan tool unit (7000057) and

DLC cable (3000095).

901RW176

2. SAE 16/19 adaptor (3000098) (1), RS 232 loop

back connector (3000112) (2), and PCMCIA card
(3000117) (3).

F07RW033
