6D – 4 ENGINE ELECTRICAL

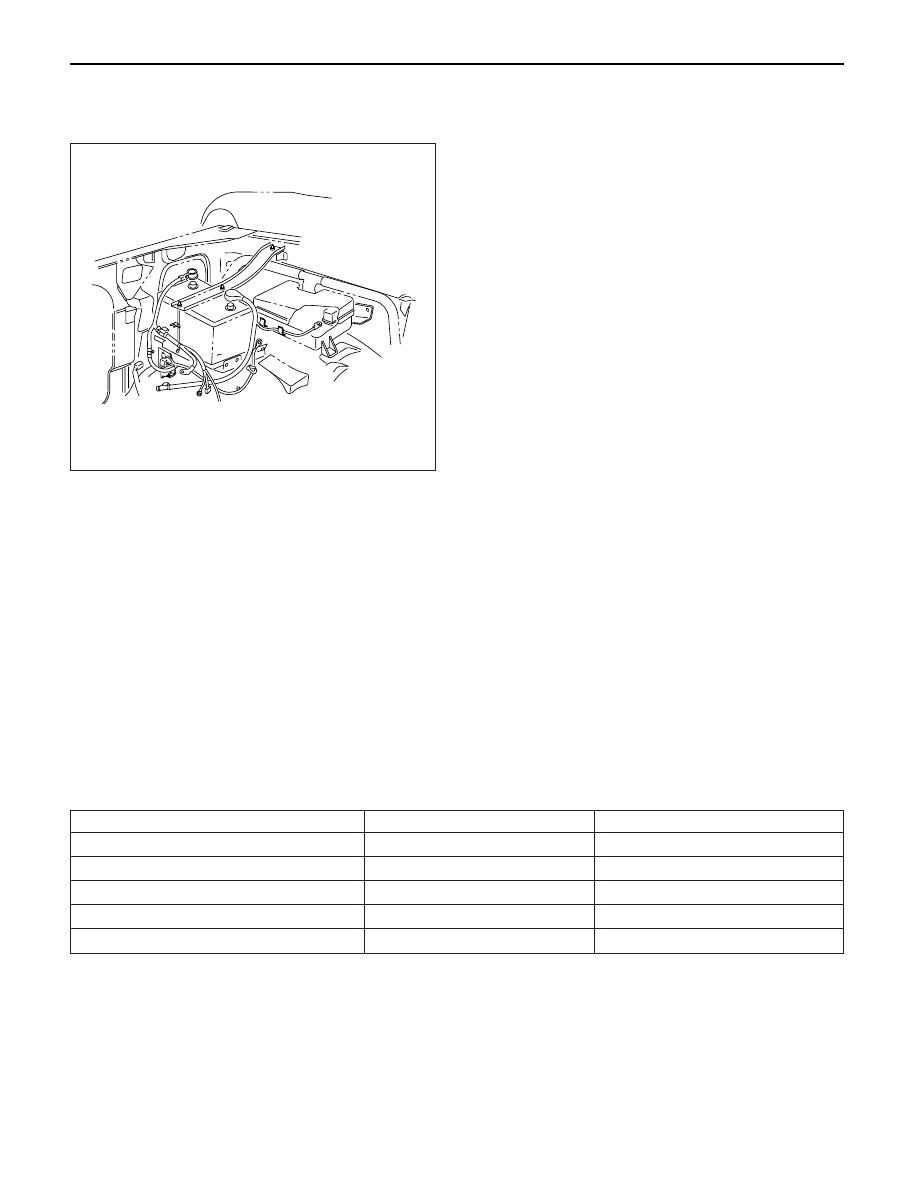

REMOVAL AND INSTALLATION OF THE
BATTERY

REMOVAL

1. Negative cable
2. Positive cable
3. Retainer screw and rods
4. Retainer
5. Battery

INSTALLATION

To install the battery, follow the removal procedure in
the reverse order, noting the following points:

1. Make sure that the rod is hooked on the body side.

065RW029

MAIN DATA AND SPECIFICATIONS

Model (JIS)

80D26R–MF

75D26R–MF

Voltage (V)

12

12

Cold-Cranking Performance (Amp)

582

490

Reserve Capacity (Min)

133

123

Load Test (Amp)

300

300

Fast Charge Maximum Amperage (Amp)

6.5

6.5

ENGINE ELECTRICAL 6D – 5

STARTING SYTEM

GENERAL DESCRIPTION

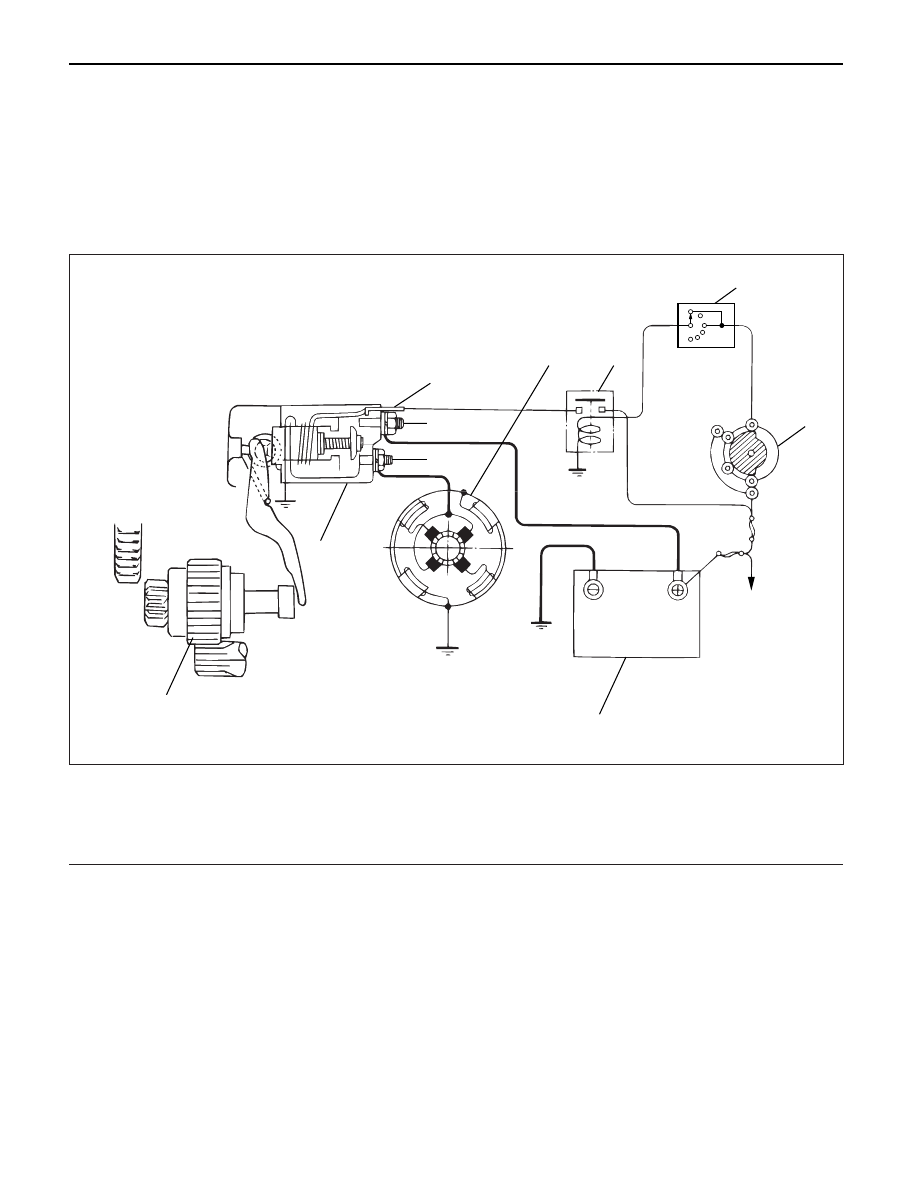

STARTING CIRCUIT

The cranking system consists of a battery, starter,

starter switch, starter relay, etc. and these main
components are connected as shown in the illustration.

“S”

“B”

“M”

Battery

5

4

3

2

IG1

ST

B2
B1

1

7

6

P

N

N

Legend

(1)

Inhibitor Switch

(2)

Starter Switch

(3)

Battery

(4)

Magnetic Switch

(5)

Pinion Clutch

(6)

Starter Motor

(7)

Starter Relay

065RW039

STARTER

The starting system employs a magnetic type reduction
starter in which the motor shaft is also used as a pinion
shaft. When the starter switch is turned on, the contacts
of the magnetic switch are closed, and the armature
rotates. At the same time, the plunger is activated, and
the pinion is pushed forward by the shift lever to mesh
with ring gear.

Then, the ring gear runs to start the engine. When the
engine starts and the starter switch is turned off, the
plunger returns, the pinion is disengaged from the ring
gear, and the armature stops rotation. When the engine
speed is higher than the pinion, the pinion idles, so that
the armature is not driven.

6D – 6 ENGINE ELECTRICAL

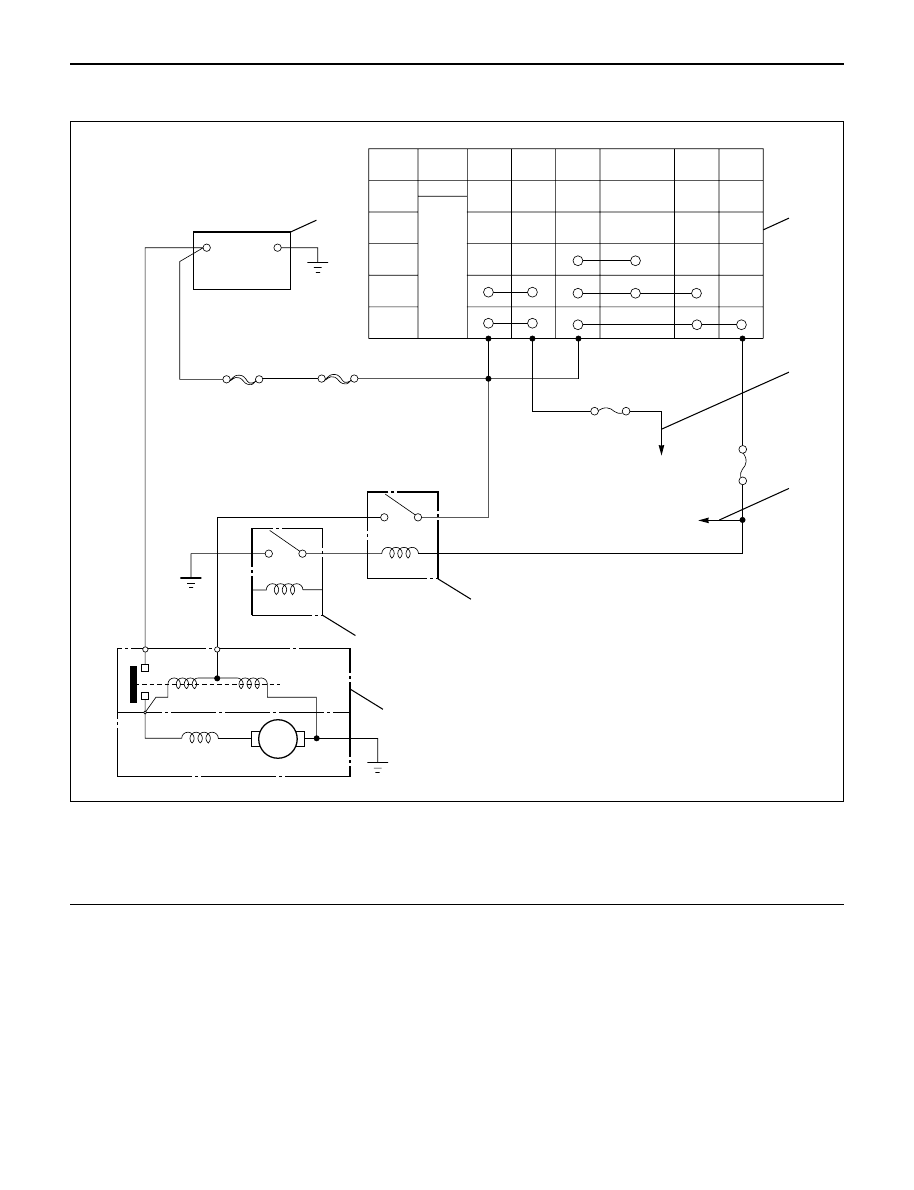

RELATION BETWEEN STARTER SWITCH AND STARTER

M

Key

Position

B1

B2

ACC

IG1

IG2

ST

LOCK

Key

Removed

Inserted

OFF

ACC

ON

START

B

S

Battery

+

-

2

1

7

3

4

5

6

Legend

(1)

Starter Switch

(2)

To Generator

(3)

To QOS4 Control

(4)

Starter Relay

(5)

Immobilizer Relay (for Europe)

(6)

Magnetic Switch

(7)

Battery

065R200029

ENGINE ELECTRICAL 6D – 7

ON-VEHICLE SERVICE

STARTER

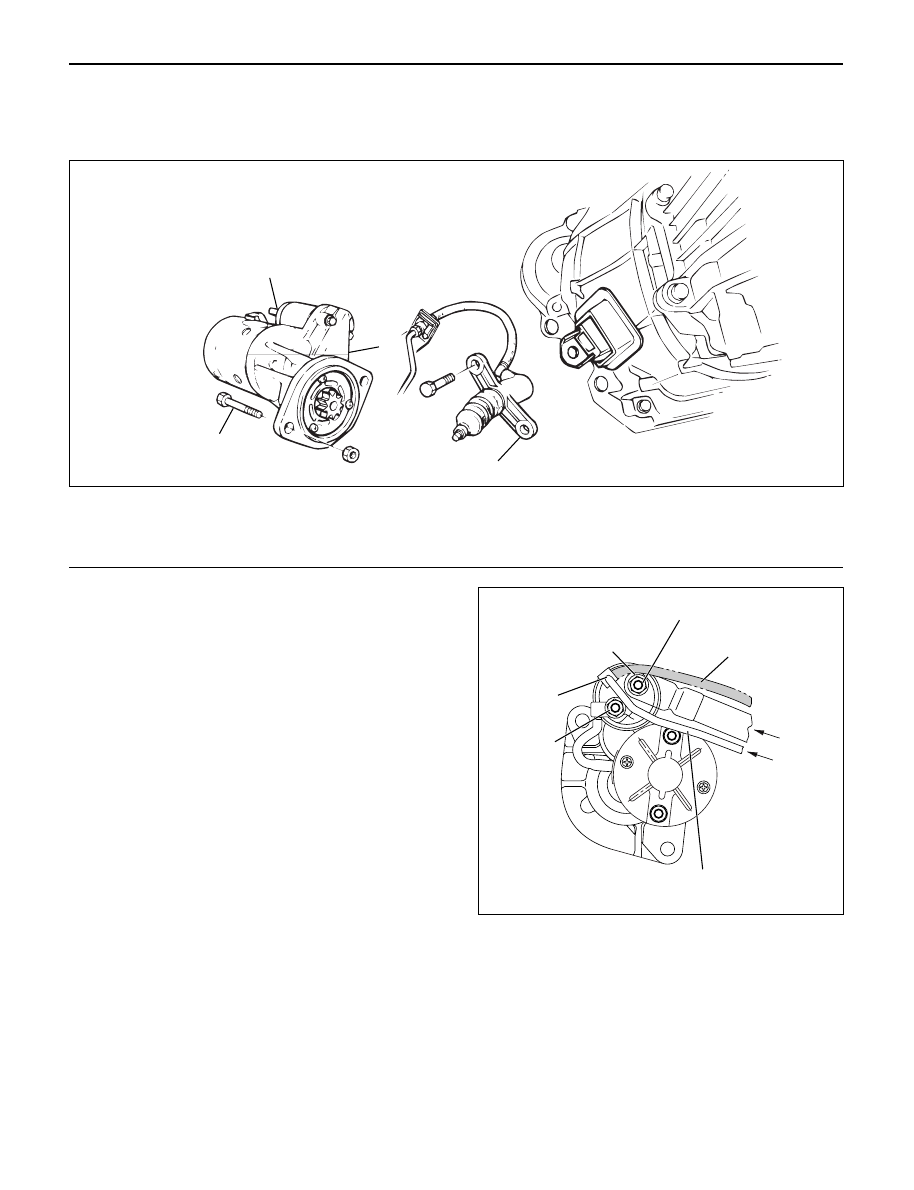

REMOVAL

1 Battery ground cable
2 Remove the slave cylinder and bind with wire it to

the frame.

3 Disconnect the connector from terminals “B” and

“S”.

4. Remove mounting bolts
5. Remove starter assembly

INSTALLATION

1. Install starter assembly, tighten the fixing bolt and

nut to the specified torque.

Torque: 85 N·m (8.7 kg·m/63 lb ft)

2. Reconnect the starter terminals.

CAUTION: When installing the starter motor wiring,
do not allow the S-circuit wiring to obstruct the B-
circuit terminal.

Install the wiring exactly as shown on the attached
illustration.

If S-circuit wiring obstructs the B-circuit terminal,
harness cover breakage and short circuiting may
occur.

2-1. Install the wire harness from the battery to the

terminal “B” with tightening torque 8.6 N·m
(0.88 kg·m/6.4 lb·ft).

2-2. Cover the terminal “B” together with wire

harness.

2-3. Connect the wire harness from starter relay to

the terminal “S”.

3. Install the clutch slave cylinder, tighten the fixing

bolt and nut to the specified torque.

Torque: 78 N·m (8.0 kg·m/58 lb·ft)

1

3

2

4

Legend

(1)

Clutch Slave Cylinder

(2)

Magnetic Switch

(3)

Bolt

(4)

Starter Assembly

065RW00003

Do not recommend
wiring route.

Recommend wiring route
from S terminal.

From
    battery

From
   starter relay

Terminal B

Terminal M

Terminal S

In this area,
Scratch to break the wire
cover and make shortage.

065RW00002
