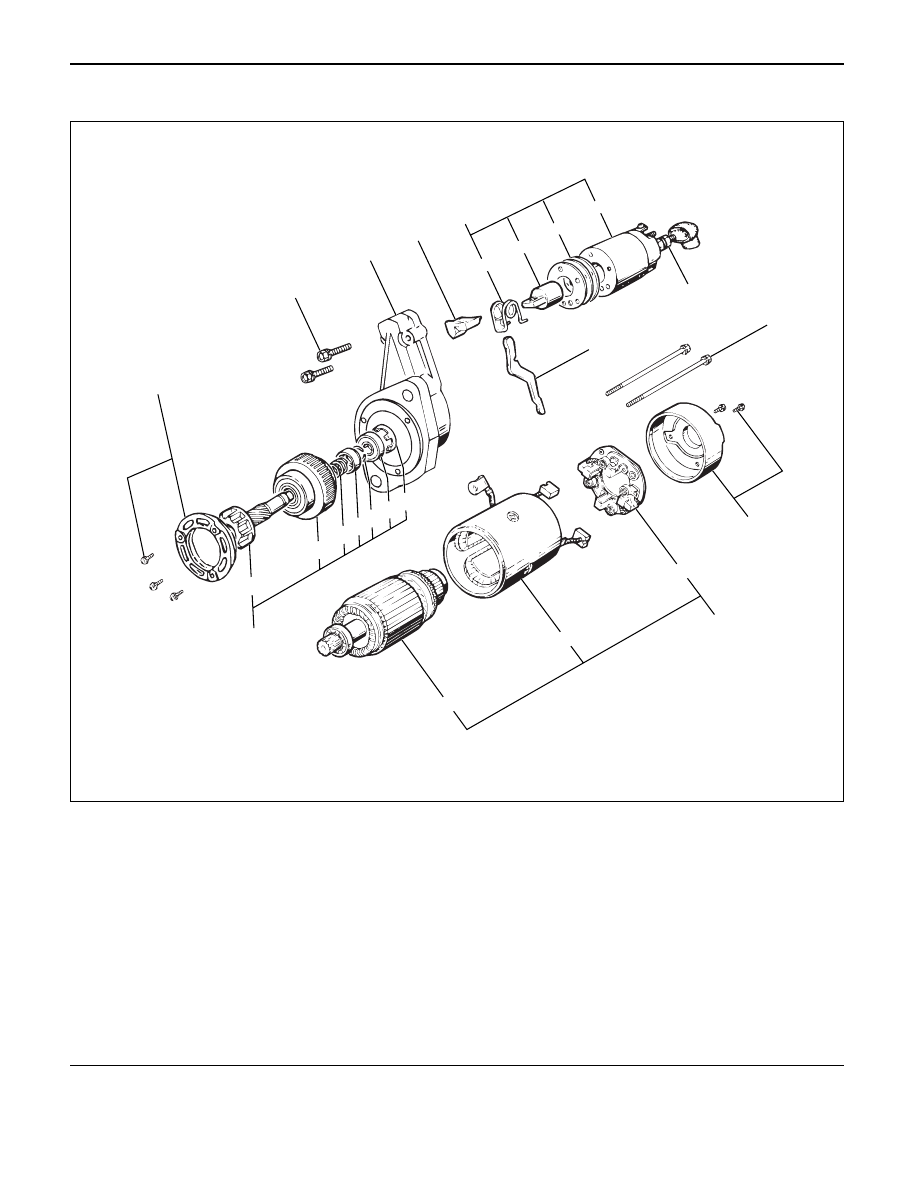

6D – 8 ENGINE ELECTRICAL UNIT REPAIR 8 24 1 3 23 25 2 14 15 21 22 20 19 18 17 16 10 9 11 13 12 7 6 5 4 Legend (1) Terminal (2) Bolt (3) Magnetic Switch (4) Torsion Spring (5) Plunger (6) Shim (7) Magnetic Switch (8) Through Bolt (9) Rear Cover (10) Motor Assembly (11) Brush Holder (12) Armature (13) Yoke Assembly (14) Bearing Retainer (15) Pinion Assembly (16) Bearing Holder (17) Bearing (18) Clip (19) Stopper (20) Spring (21) Pinion Shaft (22) Clutch (23) Dust Cover (24) Shift Lever (25) Gear Case 065RW040 |
