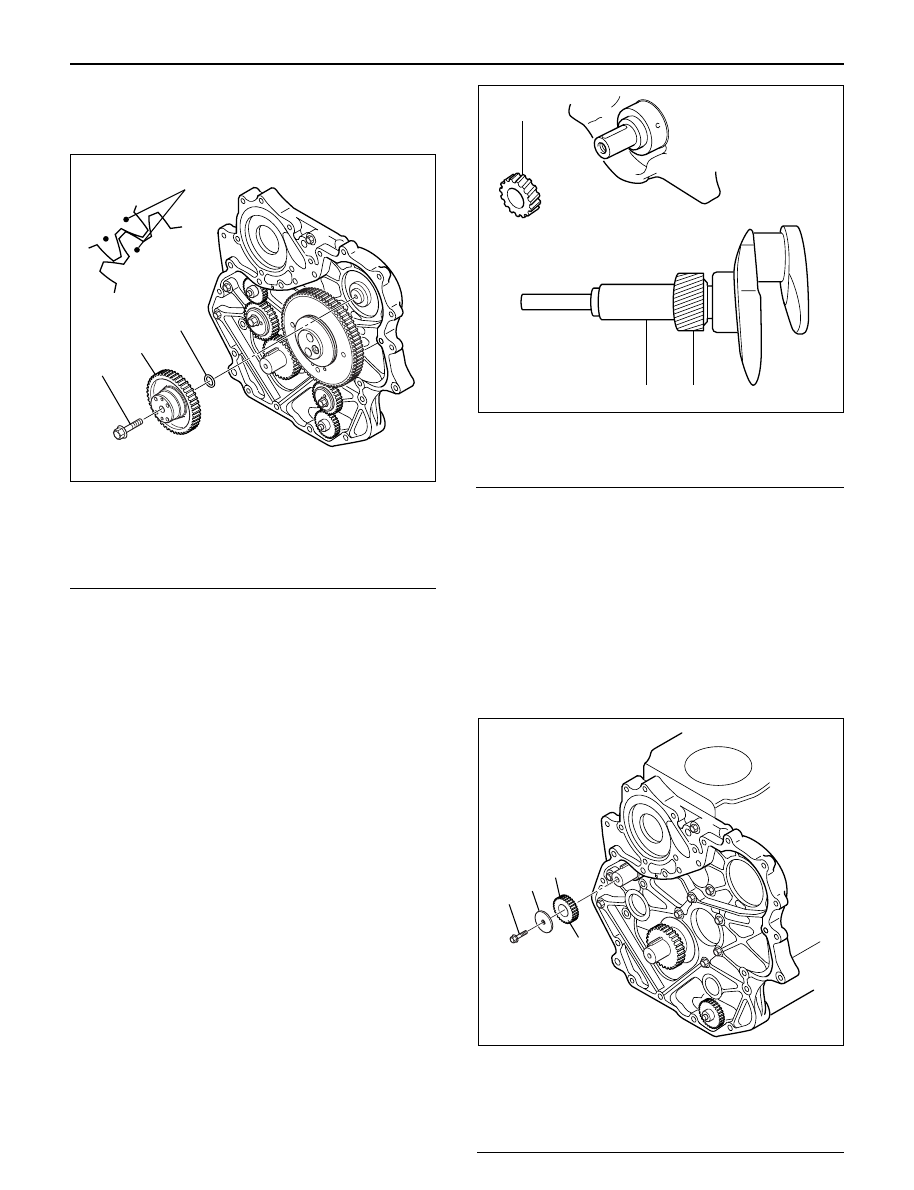

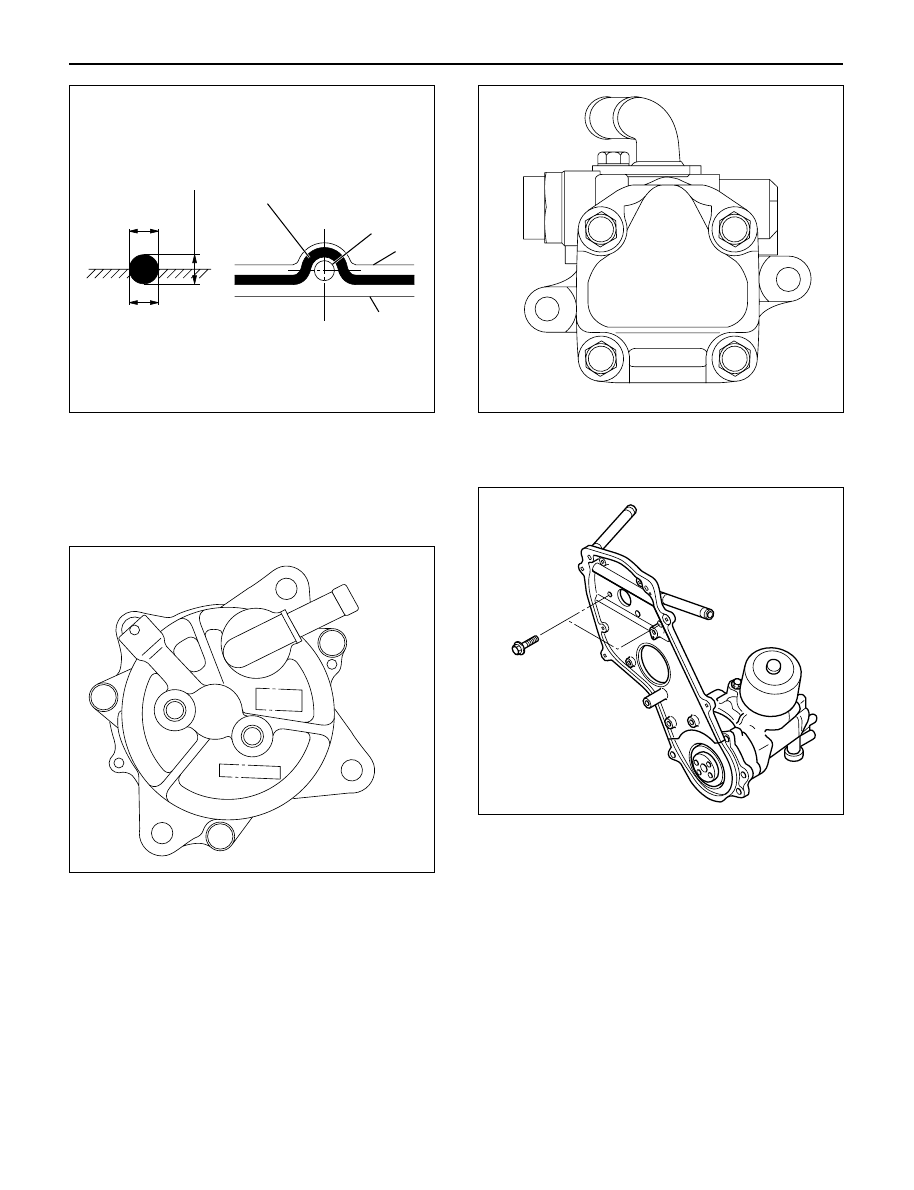

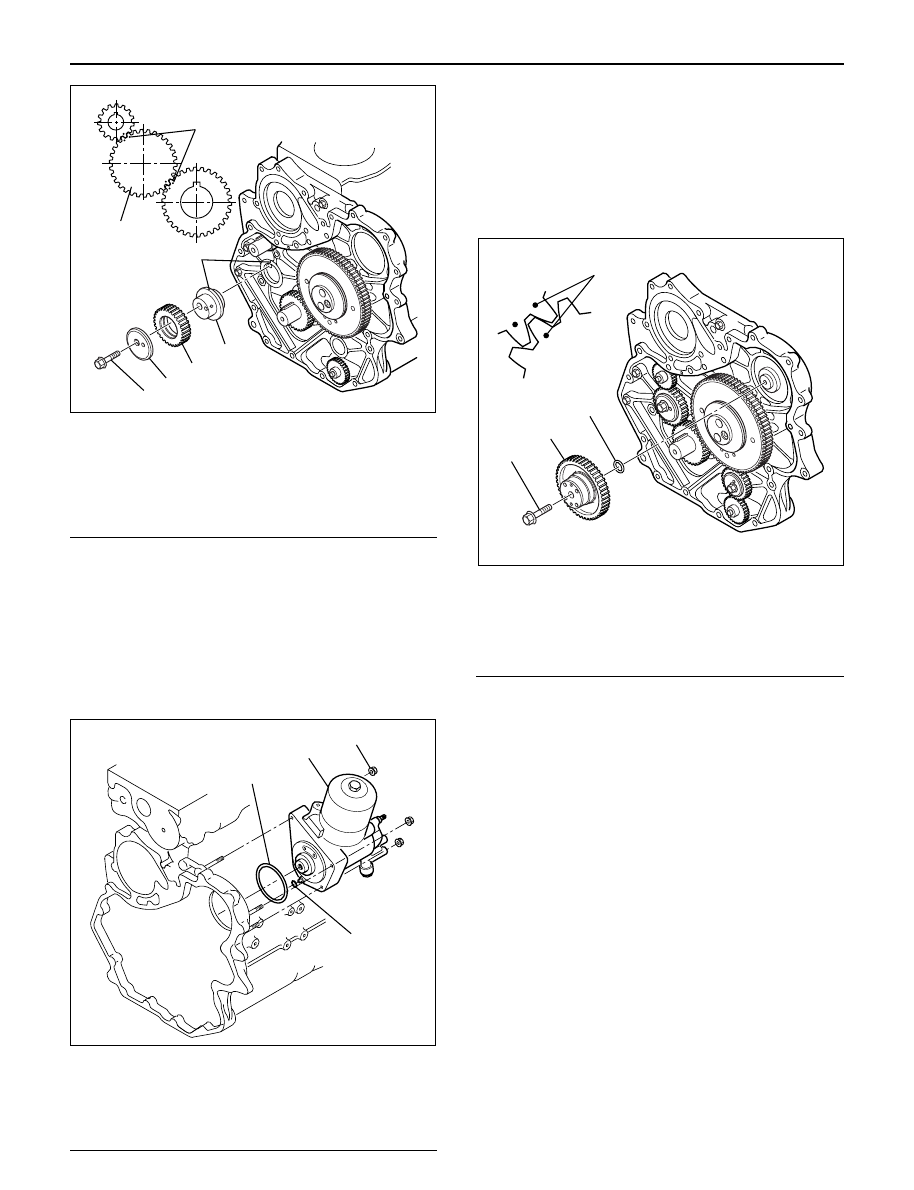

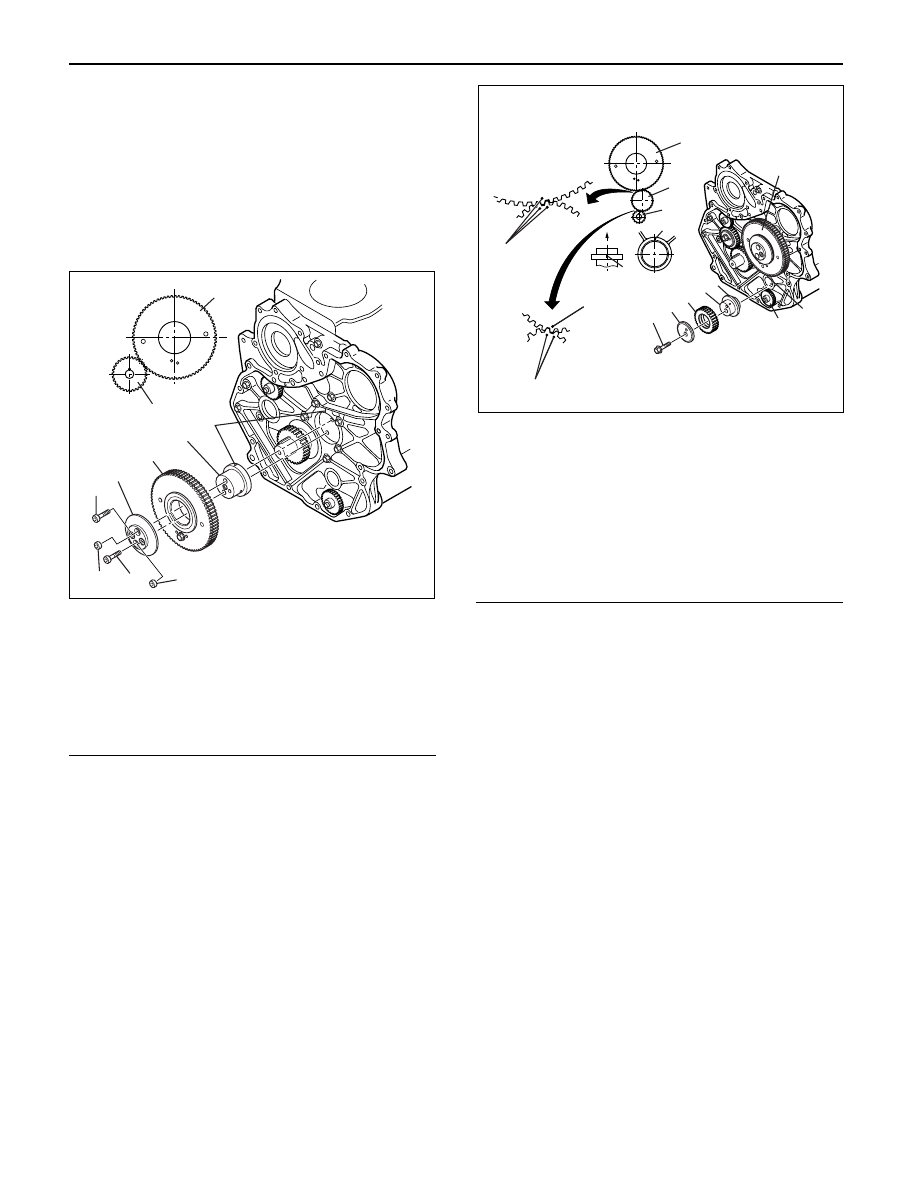

6A – 54 ENGINE MECHANICAL 15. High pressure oil pump 1) Remove oil pump gear fixing bolt then remove oil pump. Legend (1) O-Ring 16. Remove balance shaft gear LH. and RH. INSTALLATION 1. Crankshaft gear 1) Force key into the crankshaft and insert crankshaft gear with the crankshaft gear key Legend (1) Crankshaft Gear Installer 2. Balance shaft gear 1) Install the balance shaft gear RH to balance shaft, tighten center bolt to the specified torque. Torque : 32 N·m (3.3 kg·m/24 lb ft) 2) Install thrust plate for balance shaft LH before installing the balance shaft gear LH. Torque : 25 N·m (2.5 kg·m/18 lb ft) 3) Install balance shaft gear LH to balance shaft, tighten center bolt to the specified torque. Torque : 32 N·m (3.3 kg·m/24 lb ft) Legend (1) Center Bolt 4 GEAR:O/PUMP IDLE GEAR A 1 2 3 040RW005 1 2 2 012RW066 3 4 2 1 014RW173 |
