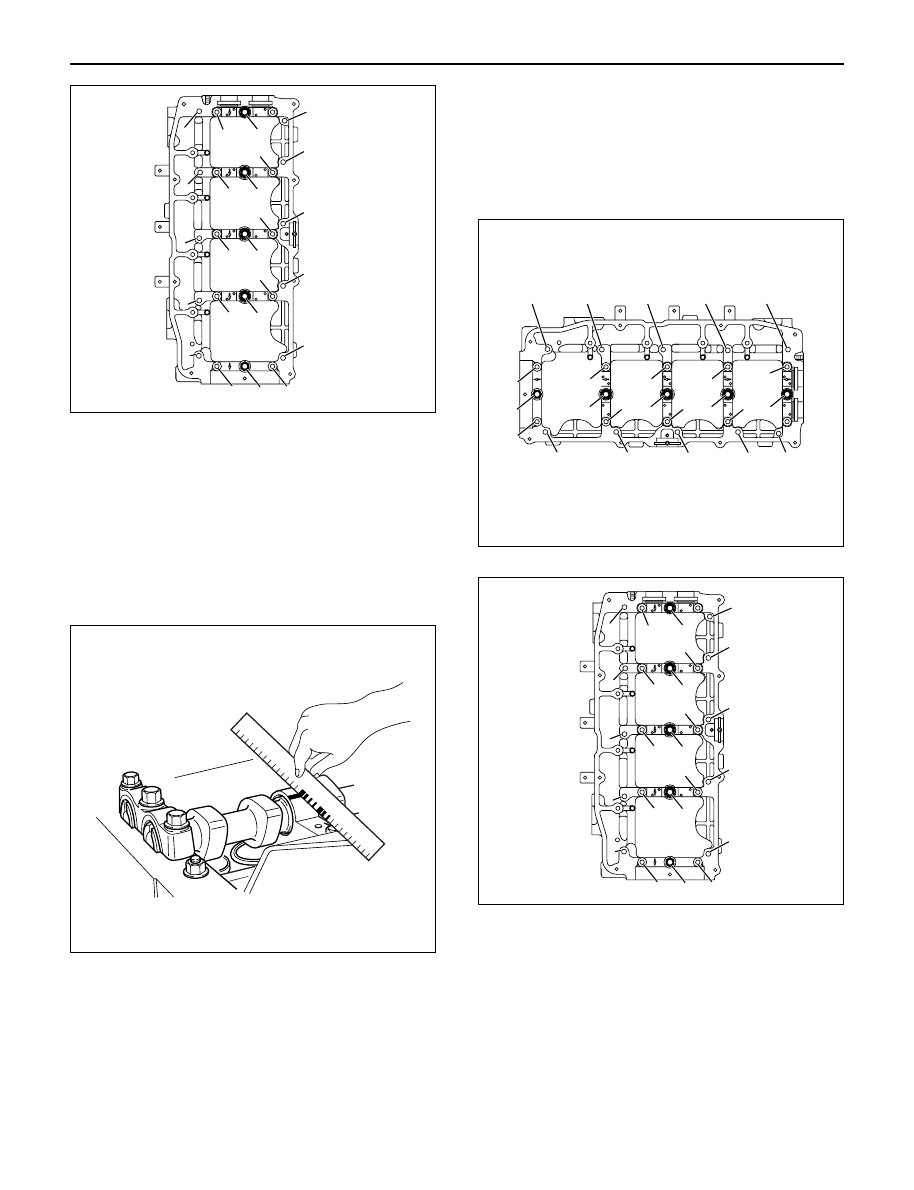

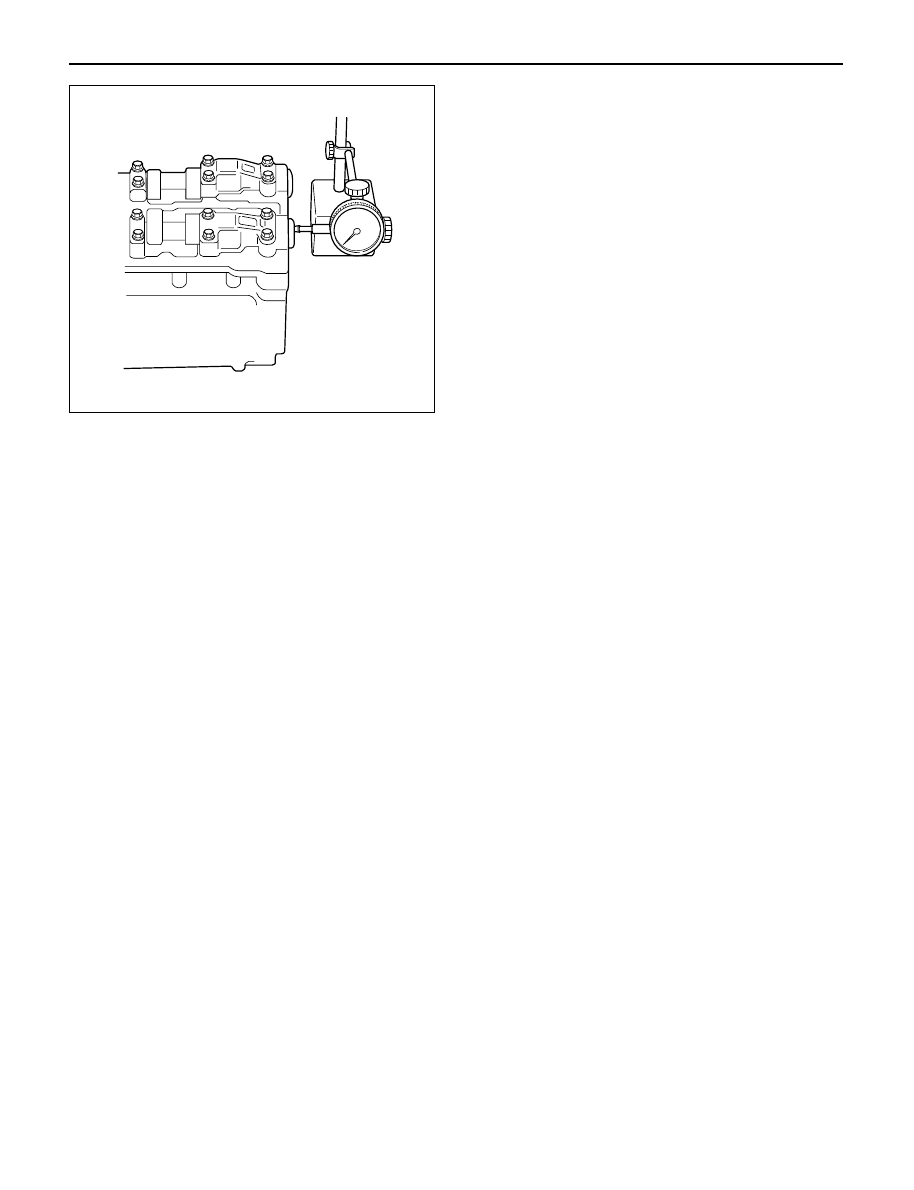

6A – 50 ENGINE MECHANICAL NOTE: Do not allow the camshaft to rotate. 6) Remove the camshaft bracket and measure the plastigauge width and determine the oil Oil clearance. Standard: 0.040 – 0.082 mm (0.0016 – 0.0032 in) 7) Clean the plastigauge from the camshaft bracket and camshaft carrier. 5. Camshaft thrust clearance. 1) Clean the camshaft, camshaft bracket and camshaft carrier. 2) Put camshaft carrier on the cylinder head. 5) Install camshaft bracket to original position and tighten bolts to specified torque in the numerical Torque: A; 22 N·m (2.2 kg·m/16 lb ft) B; 38 N·m (3.9 kg·m/28 lb ft) 6) Use a dial indicator to measure the camshaft thrust clearance. If the camshaft thrust Camshaft thrust clearance Standard: 0.1 mm (0.0002 in) 13 7 6 5 12 15 2 3 10 9 20 8 19 23 22 4 16 1 11 25 24 21 17 18 011RW041 014RW185 C C D B C C B C C D C C B C A A A A A A A A A A 011RW035 13 7 6 5 12 15 2 3 10 9 20 8 19 23 22 4 16 1 11 25 24 21 17 18 011RW041 |
