Opel Frontera UBS. Manual - part 2367





6E–504

6VE1 3.5 ENGINE DRIVEABILITY AND EMISSIONS

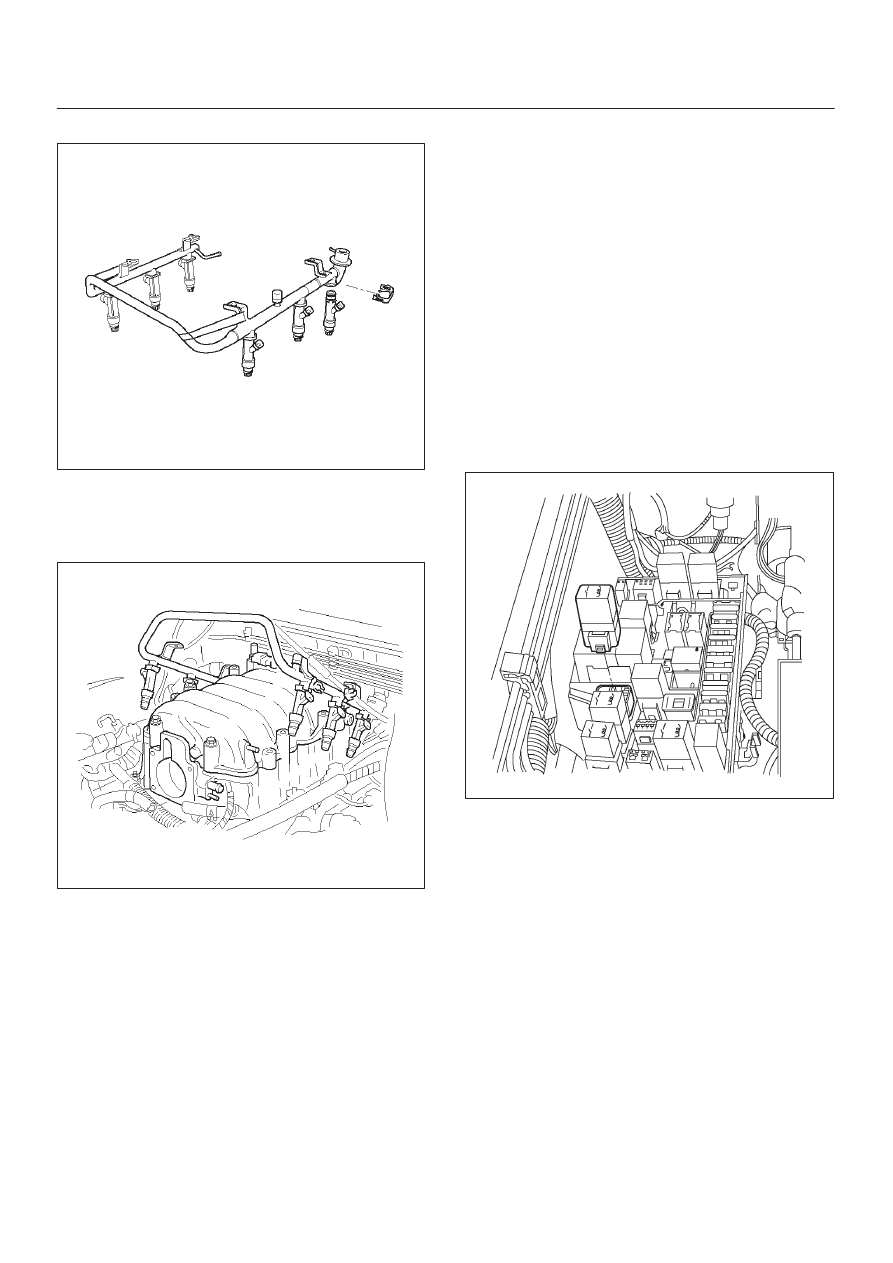

3. Install the fuel injector on the fuel rail.

040RY00001

4. Use new fuel injector retainer clips to retain the fuel

injector to the fuel rail.

5. Coat the end of the fuel injector with gasoline.
6. Install the fuel rail.  Refer to

Fuel Rail section.

014RW164

7. Install the common chamber.  Refer to

Common

Chamber in Engine Mechanical section.

8. Install the engine cover.
9. Connect the negative battery cable.

Fuel Metering System

Fuel Pressure Relief Procedure

CAUTION: To reduce the risk of fire and personal
injury, there are necessary to relieve the fuel system
pressure before filler and gauge unit servicing the
fuel system components.

CAUTION: After  relieving the system pressure, a
small amount of fuel may be released when servicing
fuel lines or connections.  Reduce the chance of
personal injury by covering the fuel line fittings with
a shop towel before you disconnect the fittings.  The
towels will absorb any fuel that may leak out.  When
the disconnect is completed, place the towel in an
approved container.

1. Remove the fuel cap.
2. Remove the fuel pump relay from the underhood

relay box.  Refer to

Fuel Pump Relay section.

060R200195

3. Start the engine and allow it to stall.
4. Crank the engine for 30 seconds.
5. Disconnect the negative battery cable.

6E–505

6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS

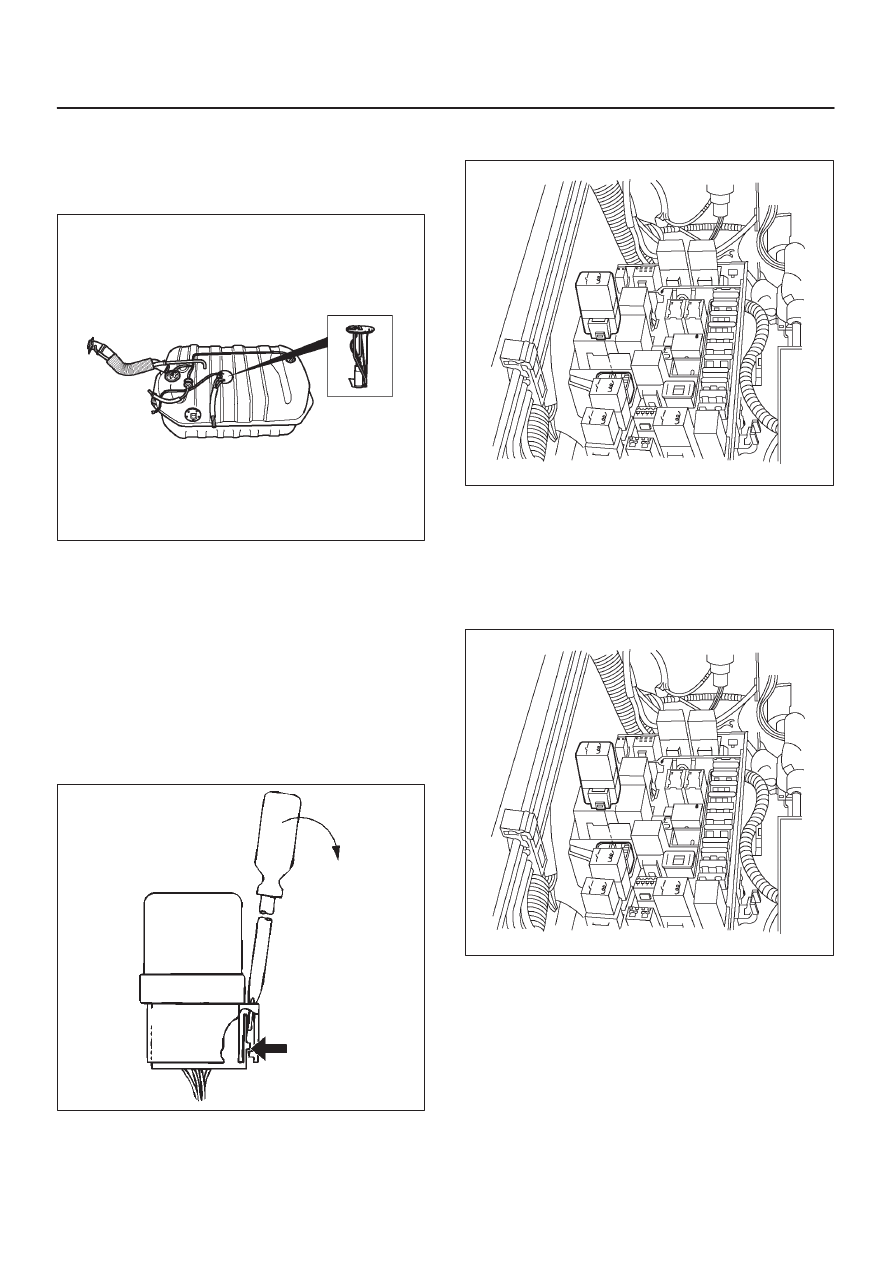

Fuel Pump Assembly

Removal Procedure

Refer to

Fuel Tank section.

060R200246

Fuel Pump Relay

Removal Procedure

1. Remove the fuse and relay box cover from under the

hood.

2. Consult the diagram on the cover to determine which

is the correct relay.

3. Insert a small screwdriver into the catch slot on the

forward side of the fuel pump relay.

D

The screwdriver blade will release the catch inside.

D08RY00291

4. Pull the relay straight up and out of the fuse and relay

box.

060R200195

Installation Procedure

1. Insert the relay into the correct place in the fuse and

relay box with the catch slot facing forward.

2. Press down until the catch engages.

D

An audible “click” will be heard.

060R200195

3. Install the fuse and relay box cover.

6E–506

6VE1 3.5 ENGINE DRIVEABILITY AND EMISSIONS

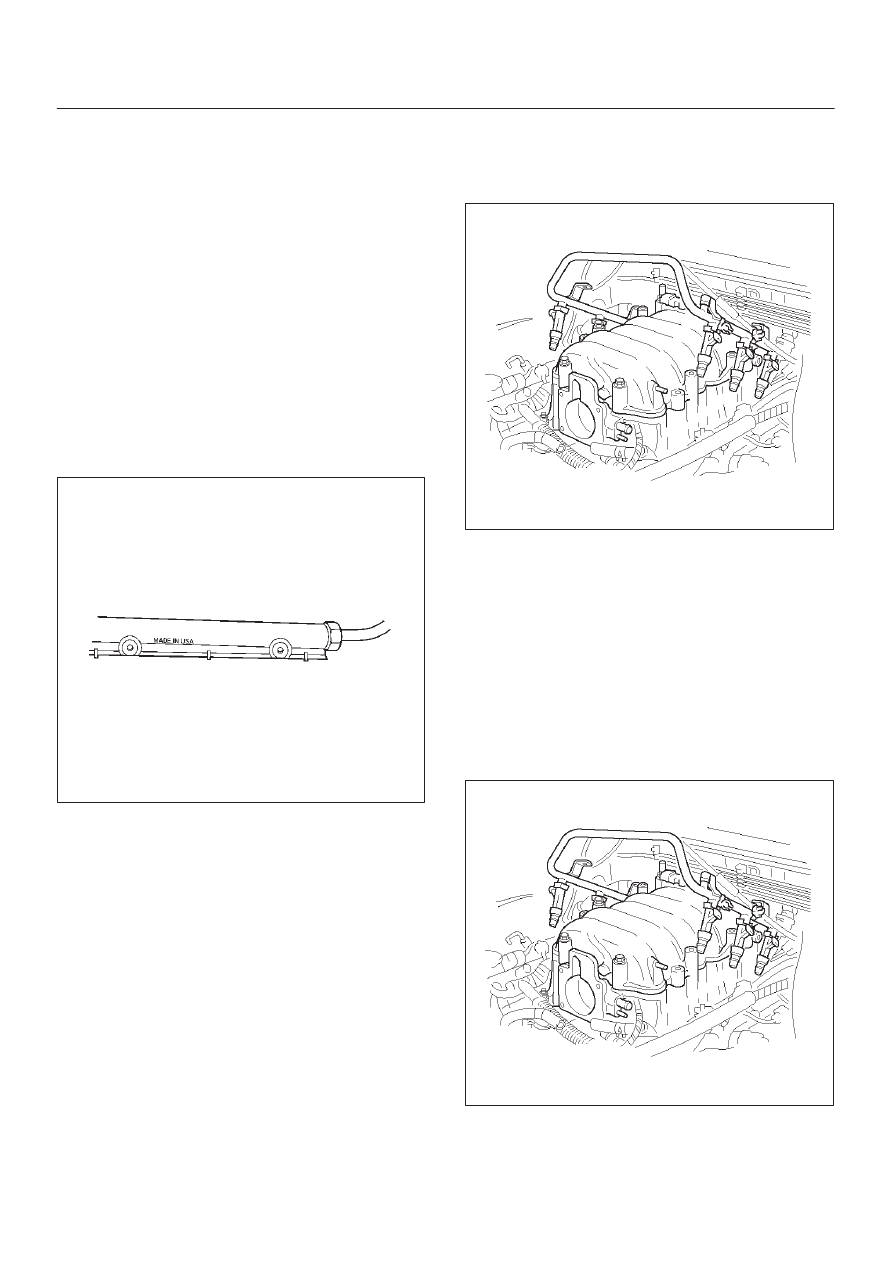

Fuel Rail Assembly

Removal Procedure

NOTE:

D

Do not attempt to remove the fuel inlet fitting on the
fuel rail.  It is staked in place.  Removing the fuel inlet
fitting will result in damage to the fuel rail or the
internal O-ring seal.

D

Use care when removing the fuel rail assembly in
order to prevent damage to the injector electrical
connector terminals and the injector spray tips.

D

Fittings should be capped and holes plugged during
servicing to prevent dirt and other contaminants from
entering open lines and passages.

IMPORTANT:

An eight-digit identification number is

stamped on the side of the fuel rail.  Refer to this number
when you service the fuel rail or when a replacement part
is required.

014RY00008

Before removal, the fuel rail assembly may be cleaned
with a spray type engine cleaner.  Follow the spray
package instructions.  Do not immerse the fuel rails in
liquid cleaning solvent.

1. Depressurize the fuel system. Refer to Fuel Pressure

Relief Procedure in this Section.

2. Disconnect the negative battery cable.
3. Remove the engine cover.
4. Disconnect the throttle position sensor electrical

connector from throttle body.

5. Disconnect the connectors from manifold absolute

pressure sensor, solenoid valve, electric vacuum
sensing valve.

6. Disconnect the vacuum hose on canister VSV and

positive crankcase ventilation hose.

7. Remove the common chamber. Refer to the common

chamber in Engine Mechanical section.
1. Lift up carefully on the fuel injectors. Do not

separate the fuel injectors from the fuel rail.

2. If an injector becomes separated from the fuel

rail, the infector O-ring seals and the retainer clip
must be replaced.

3. Drain residual fuel into an approved container.

014RW164

8. If removal of the fuel pressure regulator is necessary,

refer to

 Fuel Pressure Regulator section.

9. If removal of the fuel injectors is necessary, refer to

Fuel Injectors section.

Installation Procedure

1. If the fuel injectors were removed, install them.  Refer

to

Fuel Injectors section.

2. If the fuel pressure regulator was removed, install it.

Refer to

Fuel Pressure Regulator section.

3. Install the common chamber. Refer to common

chamber in engine Mechanical section.

014RW164

4. Connect the vacuum hose on Canister VSV and

positive crankcase ventilation hose.

6E–507

6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS

5. Connect the connectors to manifold absolute

pressure sensor, solenoid valve, electric vacuum
sensing valve.

6. Connect the throttle position sensor electrical

connector to throttle body.

7. Install the engine cover.
8. Connect the negative battery cable.
9. Crank the engine until it starts.  Cranking the engine

may take longer than usual due to trapped air in the
fuel rail and in the injectors.

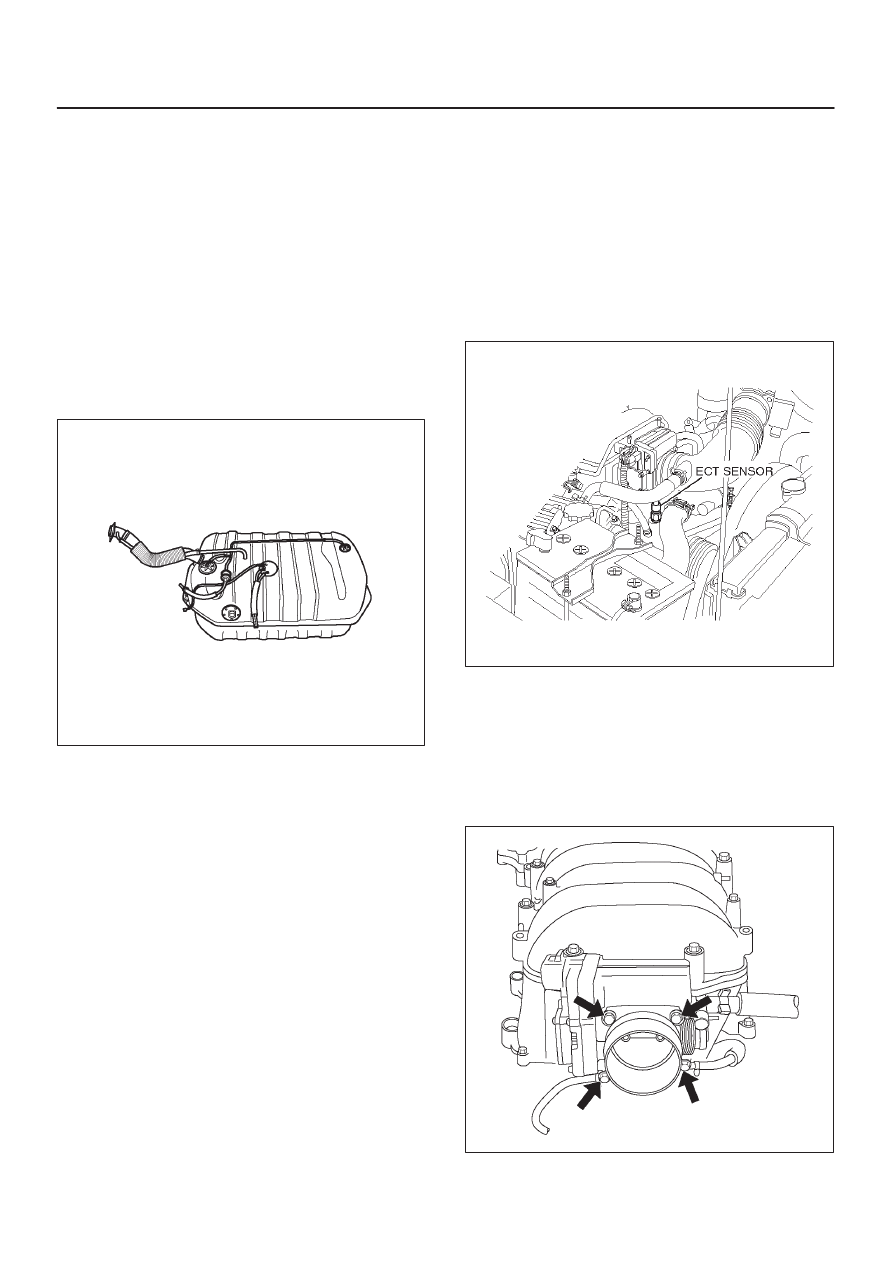

Fuel Tank

Removal Procedure

Refer to

Fuel Tank section.

060R200244

Throttle Body (TB)

Removal Procedure

1. Disconnect the negative battery cable.
2. Drain the cooling system.  Refer to

Cooling System

section.

3. Disconnect the electrical connectors:

D

Throttle position (TP) sensor.

D

Intake air temperature (IAT) sensor.  Refer to

Intake

Air Temperature Sensor section.

060RY00014

4. Disconnect the vacuum hose below the air horn.
5. Remove the intake air duct clamp.
6. Disconnect the intake air duct.
7. Disconnect the coolant lines from the throttle body.
8. Remove the bolts from the common chamber.
9. Remove the throttle body from the common chamber.

10. Remove the gasket from the common chamber.

060R200183

11. Remove the TP sensor.  Refer to

Throttle Position

(TP) Sensor section.
