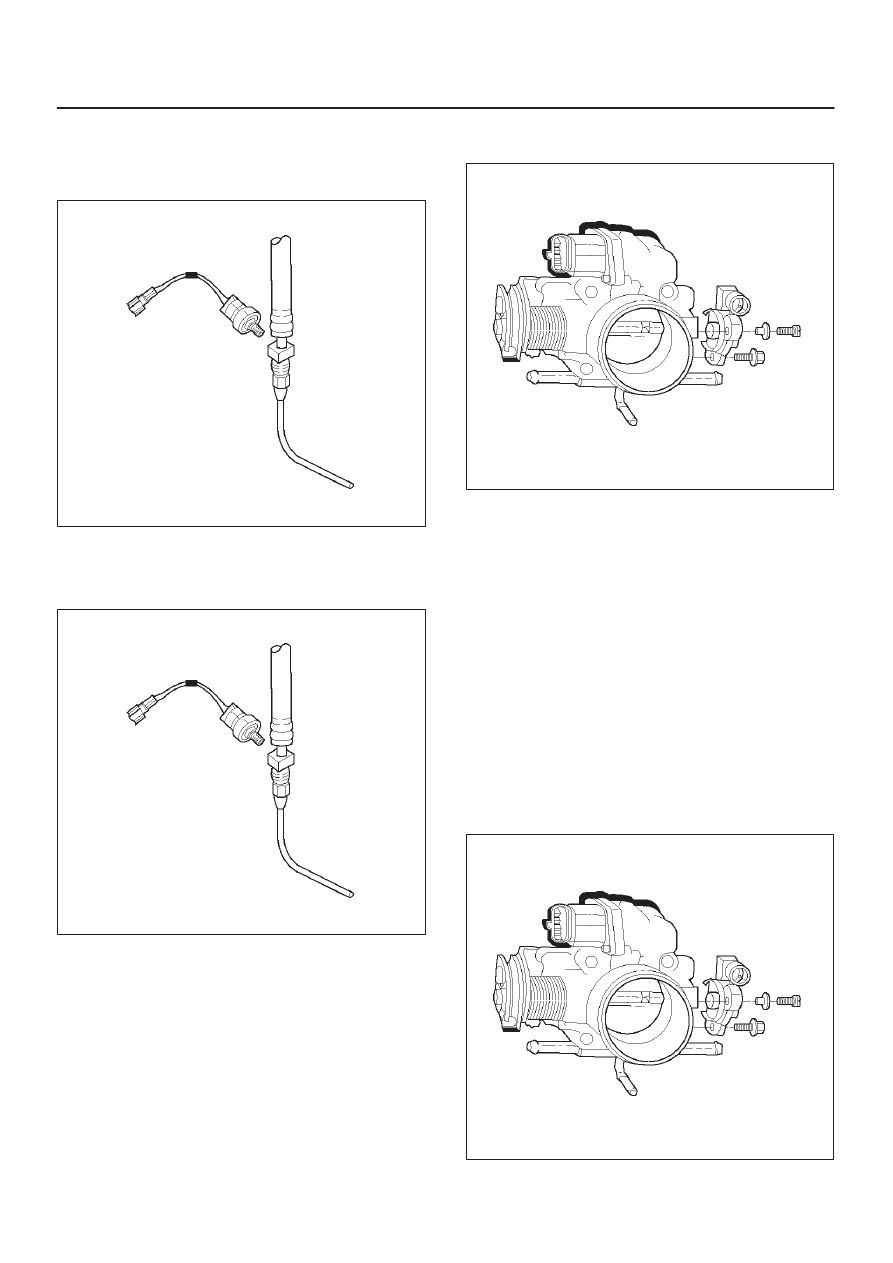

6E–301

ENGINE DRIVEABILITY AND EMISSIONS

2. Remove the PSP switch from the power steering line.

D

Plug the line to prevent excessive loss of fluid and
possible contamination of the power steering
system.

TS23760

Installation Procedure

1. Install the PSP switch in the power steering line.

TS23760

2. Connect the PSP switch pigtail to the wiring harness.
3. Check the power steering fluid level.  Refer to

Power

Steering.

4. Start the engine.  Watch the PSP switch for signs of

fluid leakage.

Throttle Position (TP) Sensor

Removal Procedure

1. Disconnect the negative battery cable.
2. Disconnect the TPS electrical connector.

3. Remove the bolts and the TP sensor from the throttle

body.

TS23747

NOTE: Do not clean the TP sensor by soaking it in
solvent.  The sensor will be damaged as a result.

Function Check

Use a Tech 2 to check the TP sensor output voltage at
closed throttle.

D

The voltage should be under 0.85 volt.

D

If the reading is greater than 0.85 volt, check the
throttle shaft to see if it is binding.  Check that the
throttle cable is properly adjusted, also.  Refer to
Throttle Cable Adjustment.

D

If the throttle shaft is not binding and the throttle cable
is properly adjusted, install a new TP sensor.

Installation Procedure

1. Install the TP sensor on the throttle body with the

bolts.

TS23747

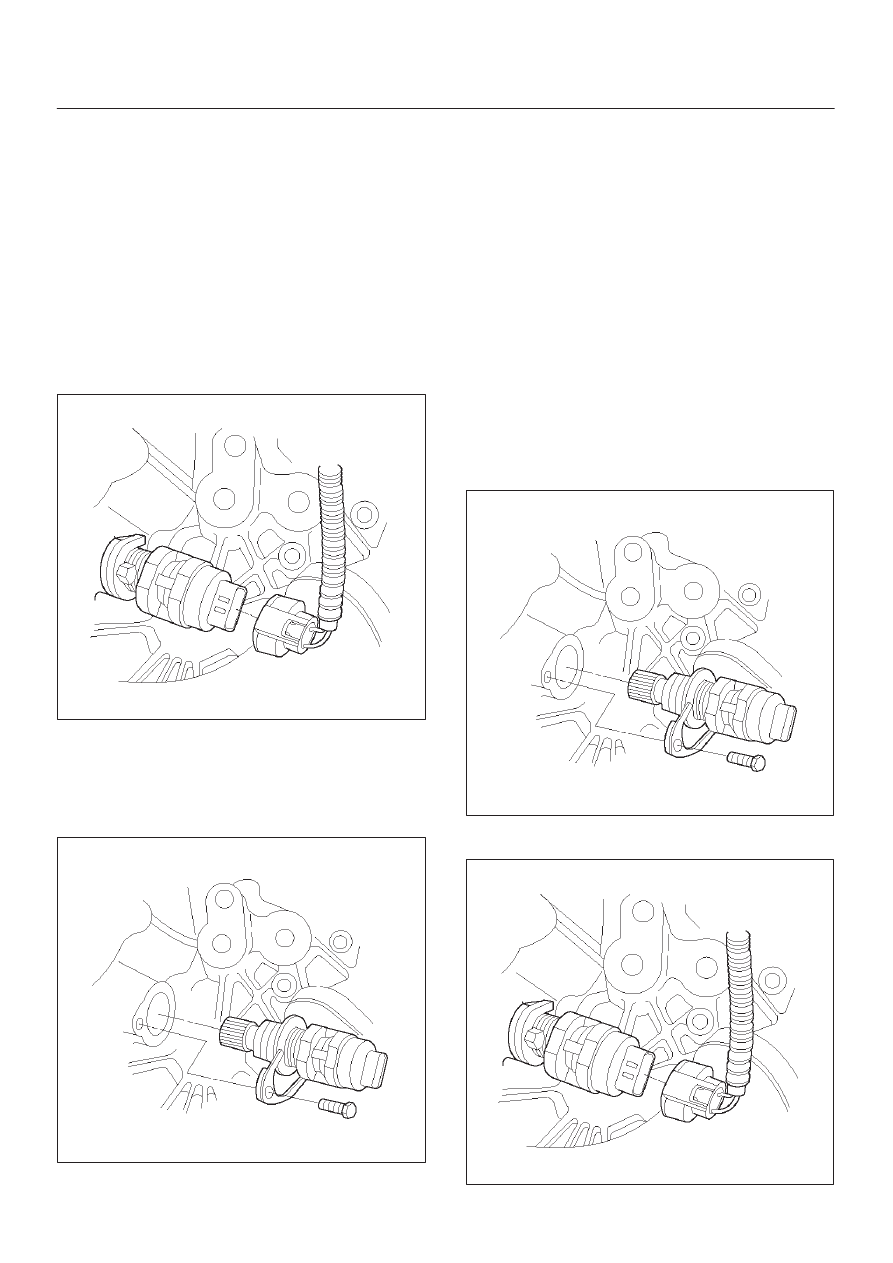

6E–302

ENGINE DRIVEABILITY AND EMISSIONS

2. Connect the TP electrical connector.
3. Install the negative battery cable.

Vehicle Speed Sensor (VSS)

Removal Procedure

CAUTION: The VSS is located on the right side of
the transfer case just ahead of the rear propeller
shaft and very close to the exhaust pipes.  Be sure
that the exhaust pipes are cool enough to touch
before trying to remove the VSS.  If the pipes are hot,
you could be burned.

1. Disconnect the negative battery cable.
2. Disconnect the VSS electrical connector.

TS23748

3. Remove the bolt and the clamp securing the VSS in

place.

IMPORTANT:

Have a container ready to catch any fluid

that leaks out when the VSS is removed from the transfer
case.

TS23780

4. Remove the VSS from the transfer case by wiggling it

slightly and pulling it straight out.

Inspection Procedure

1. Inspect the electrical connector for signs of corrosion

or warping.  Replace the VSS if the electrical
connector is corroded or warped.

2. Inspect the VSS driven gear for chips, breaks, or worn

condition.  Replace the VSS if the driven gear is
chipped, broken or worn.

3. Inspect the O-ring for wear, nicks, tears, or

looseness.  Replace the O-ring if necessary.

Installation Procedure

1. Install the VSS in the transfer case with the notch for

the connector facing the rear.

2. Secure the VSS in place with the clamp and the bolt.

Tighten

D

Tighten the bolt to 16 N·m (12 lb ft.).

TS23780

3. Connect the VSS electrical connector.

TS23748

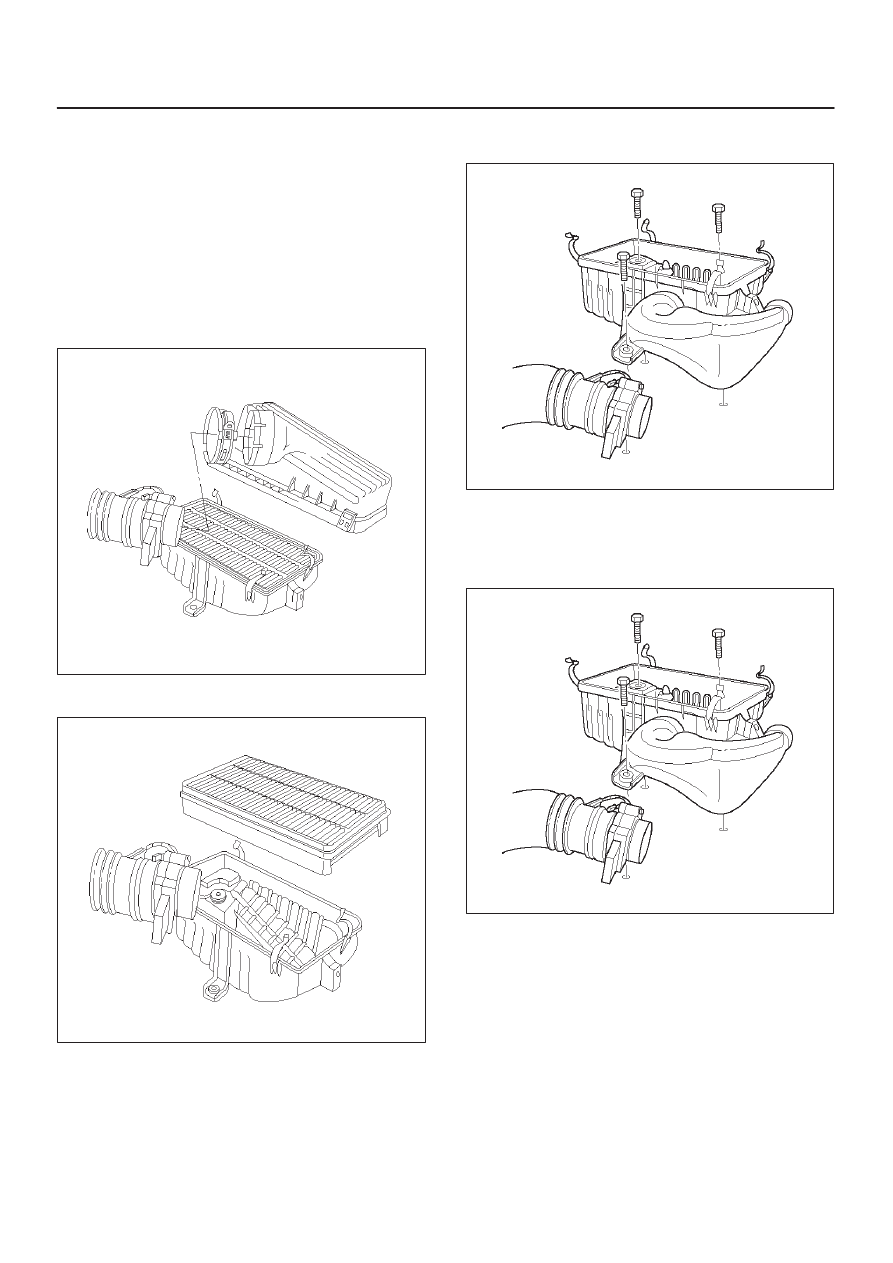

6E–303

ENGINE DRIVEABILITY AND EMISSIONS

4. Check the transfer case oil level.  Add fluid if

necessary.

5. Connect the negative battery cable.

Air Cleaner/Air Filter

Removal Procedure

1. Loosen the clamp between the air cleaner lid and the

mass air flow sensor.

2. Release the four latches securing the lid to the air

cleaner housing.

3. Remove the air cleaner lid.

TS23973

4. Remove the air filter element.

TS23794

5. Remove the retaining bolts and the air cleaner

housing from the vehicle.

130RT002

Installation Procedure

1. Install the air cleaner housing in the vehicle with the

retaining bolts.

130RT002

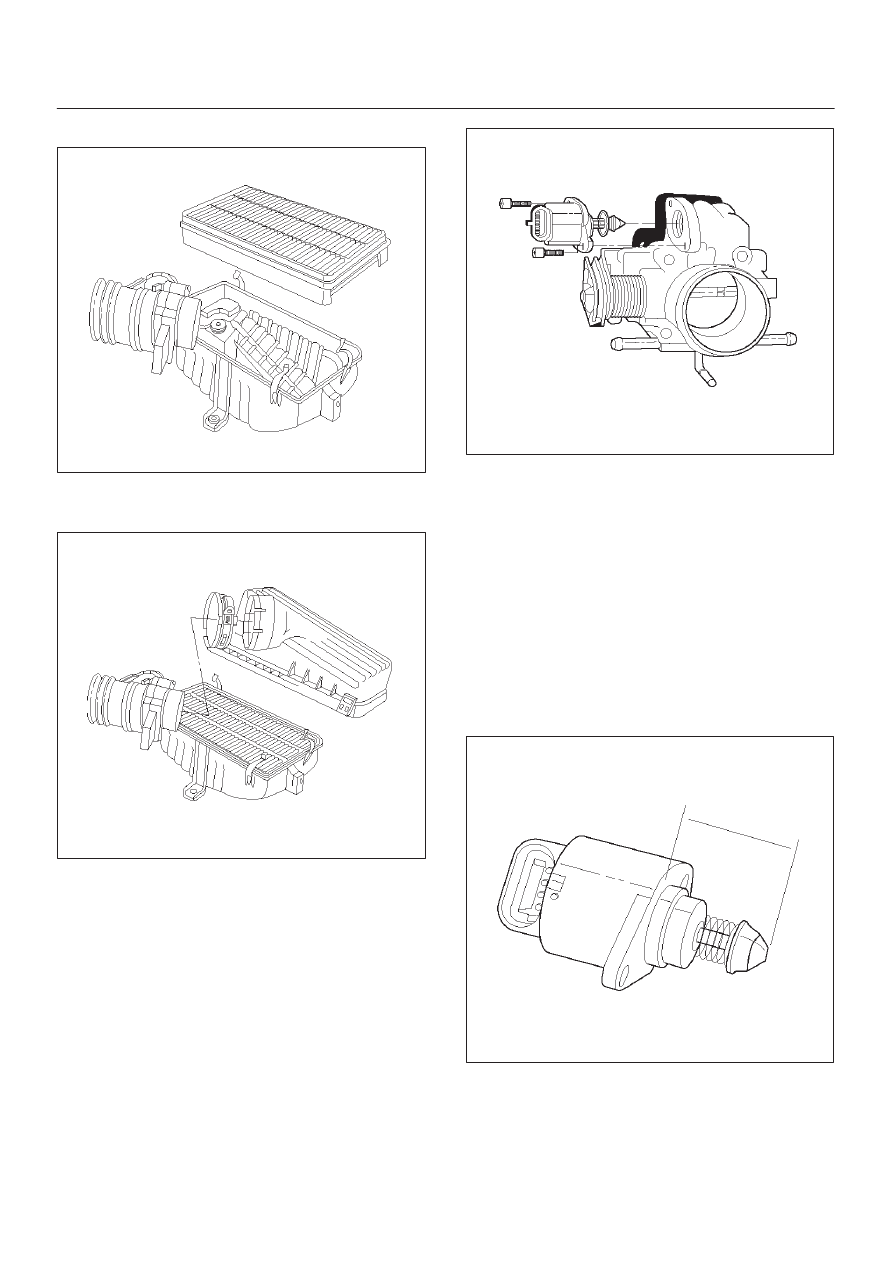

6E–304

ENGINE DRIVEABILITY AND EMISSIONS

2. Install the air filter element in the air cleaner housing.

TS23794

3. Install the air cleaner lid on the MAF sensor and the air

cleaner housing.

TS23973

4. Tighten the clamp and secure the four latches

between the lid and the air cleaner housing.

Idle Air Control (IAC) Valve

Removal Procedure

1. Disconnect the negative battery cable.
2. Disconnect the IAC electrical connector.
3. Remove the bolts and the IAC valve from the throttle

body.

NOTE: Do not clean the IAC valve by soaking it in
solvent.  The valve will be damaged as a result.

TS23745

Cleaning, Inspection, and
Measurement Procedure

D

Clean the IAC valve O-ring sealing surface, pintle
valve seat and air passage.

– Use carburetor cleaner and a parts cleaning brush to

remove carbon deposits.  Do not use a cleaner that
contains methyl ethyl ketone.  This is an extremely
strong solvent and not necessary for this type of
deposit.

– Shiny spots on the pintle are normal and do not

indicate misalignment or a bent pintle shaft.

– If the air passage has heavy deposits, remove the

throttle body for complete cleaning.

TS23746

D

Inspect the IAC valve O-ring for cuts, cracks, or
distortion.  Replace the O-ring if damaged.
