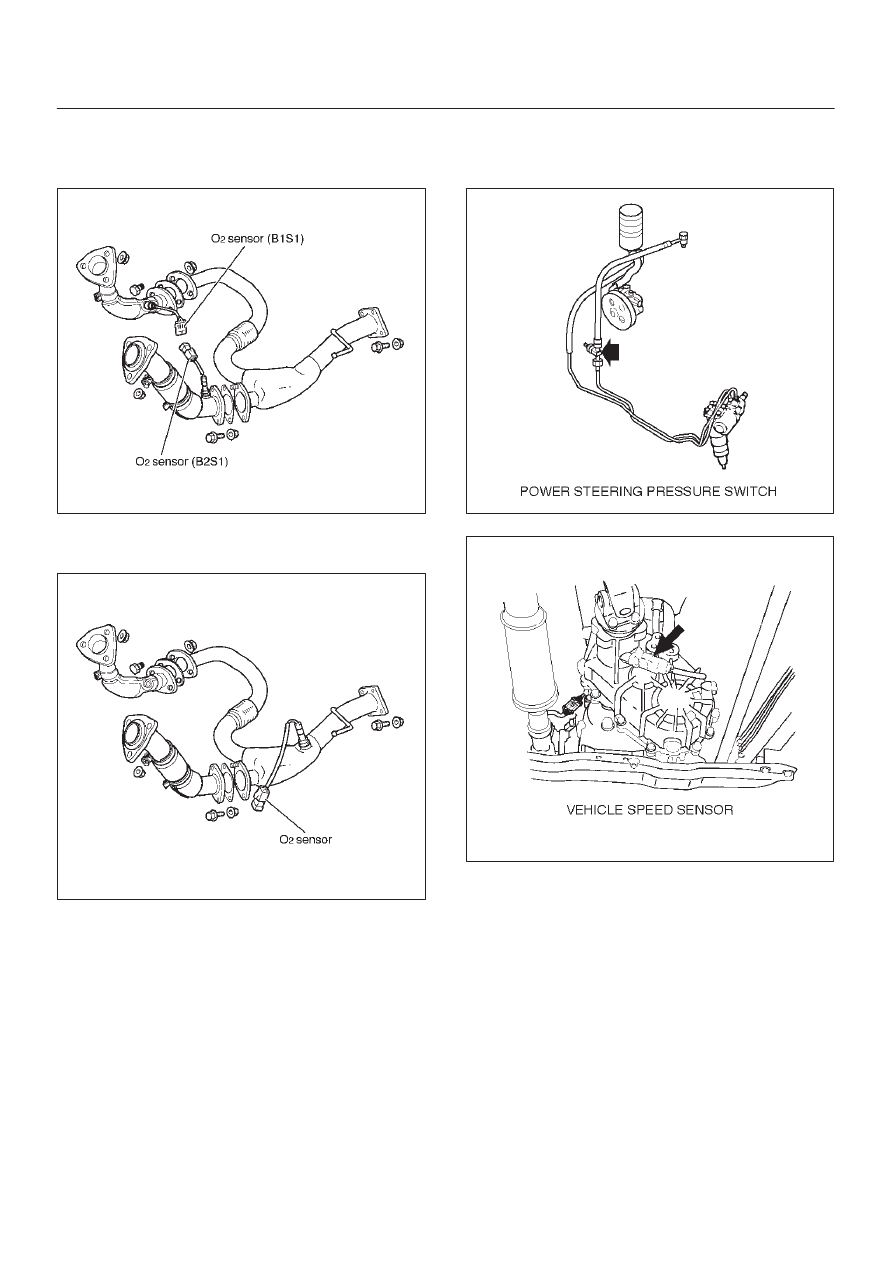

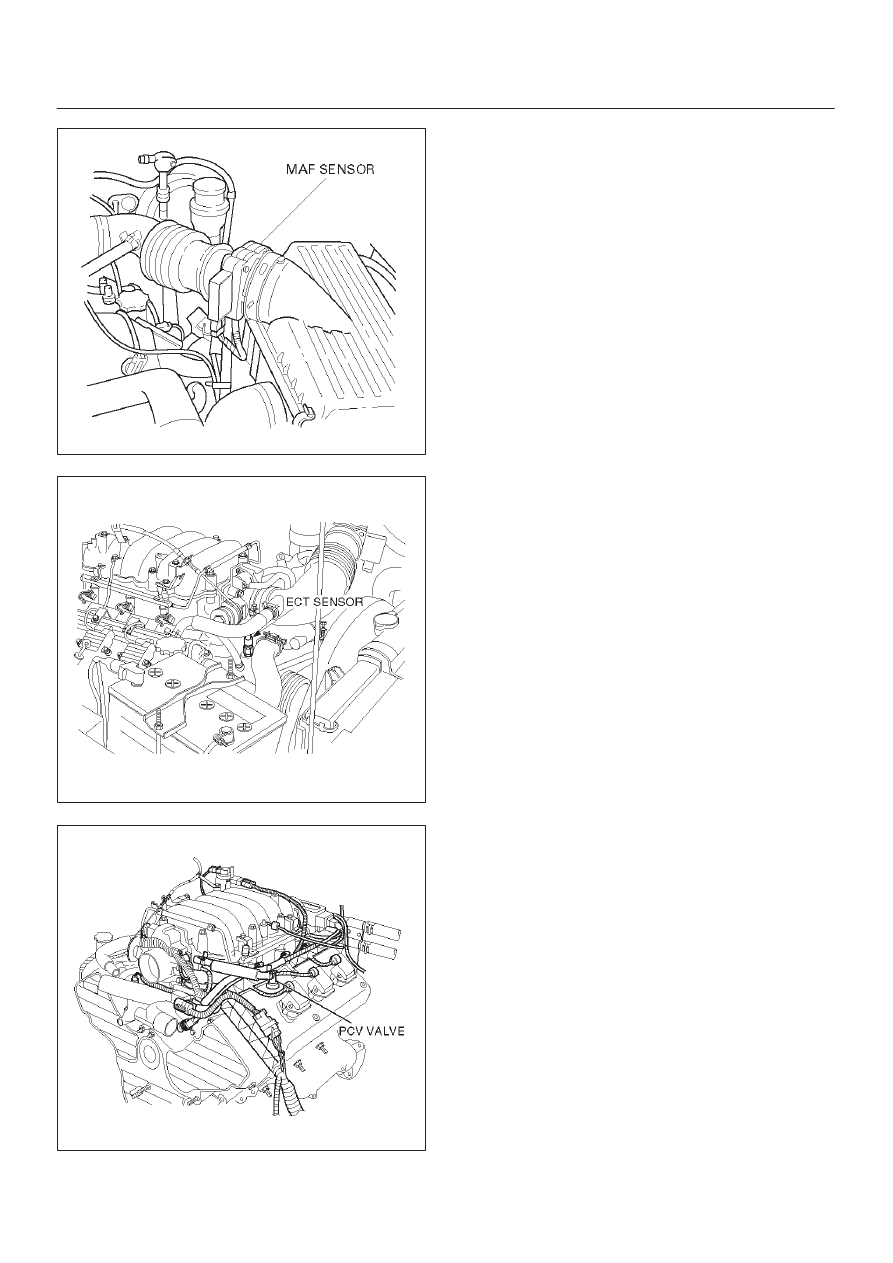

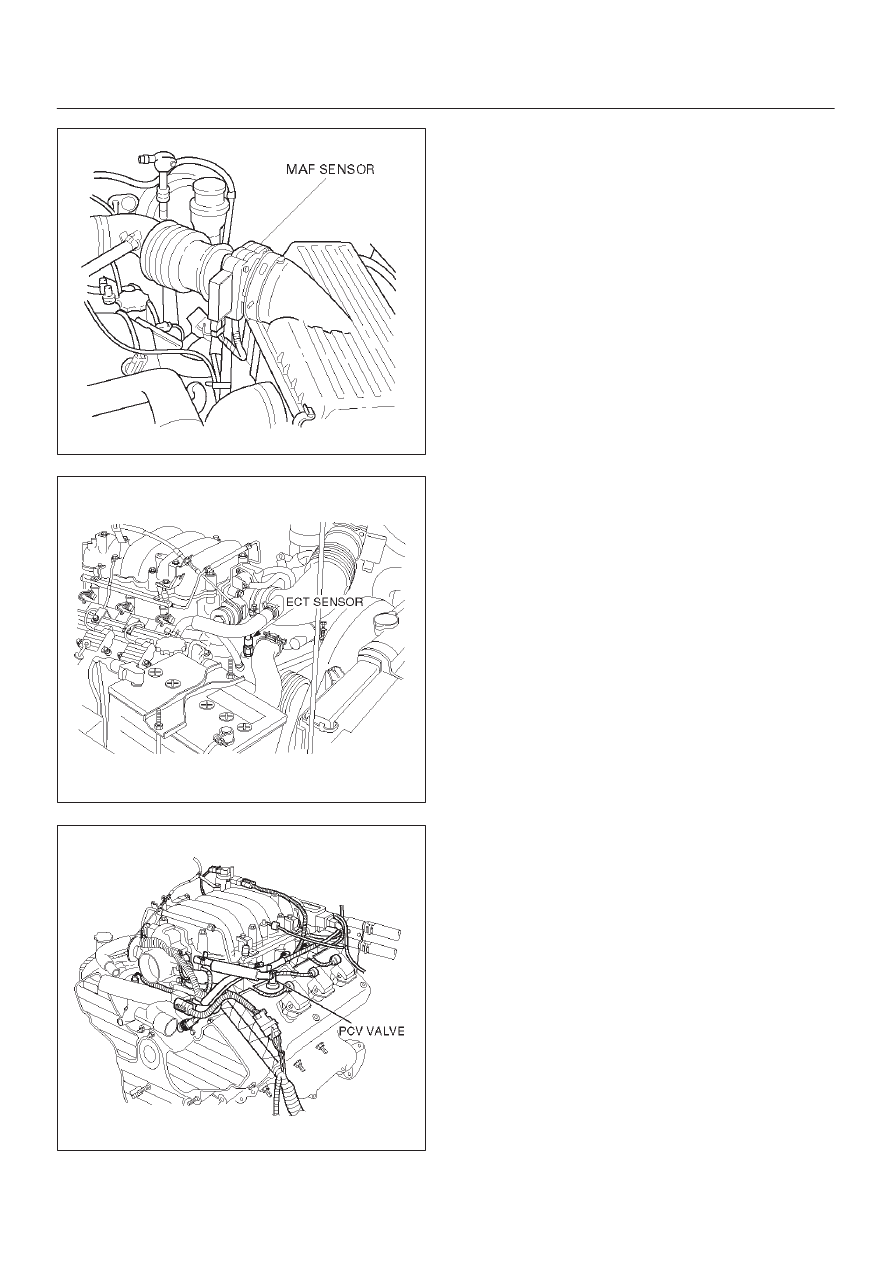

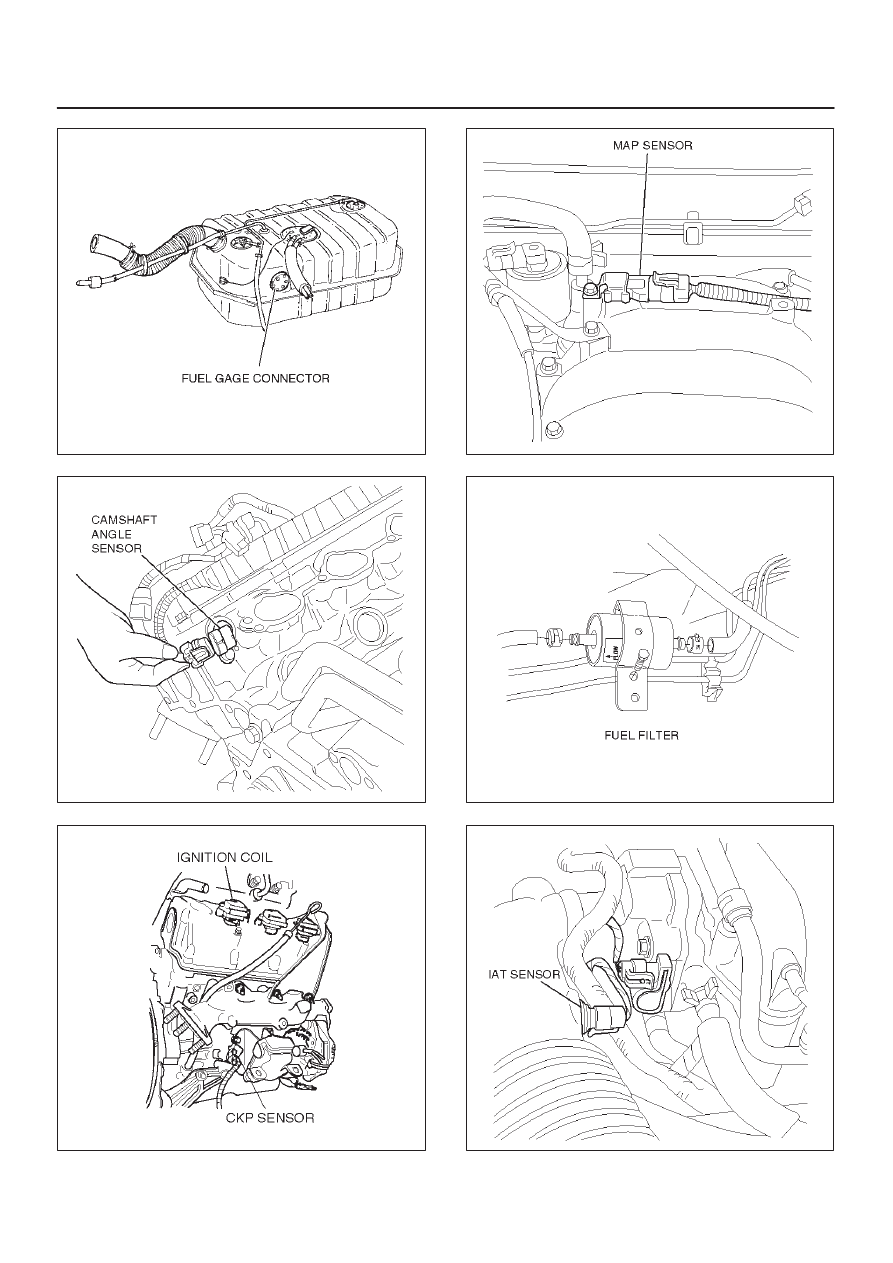

6E–33 ENGINE DRIVEABILITY AND EMISSIONS Undercarriage Component Locator Table (Manual Transmission) Number Name Location 1 Fuel Pump Assembly Installed in the top of the fuel tank 2 Fuel Gauge Unit Installed in the front edge of the right frame 3 Fuel Filter Located along the inside of the right frame rail, 4 Vehicle Speed Sensor (VSS) 2WD: Protrudes from the transmission 4WD: Protrudes from the rear output shaft 5 Heated Oxygen Sensor (Bank 1, HO2S 1) Threaded into the exhaust pipe ahead of the 6 Heated Oxygen Sensor (Bank 2, HO2S 1) Threaded into the exhaust pipe ahead of the Fuse and Relay Panel (Underhood Electrical Center) TS23336 |
