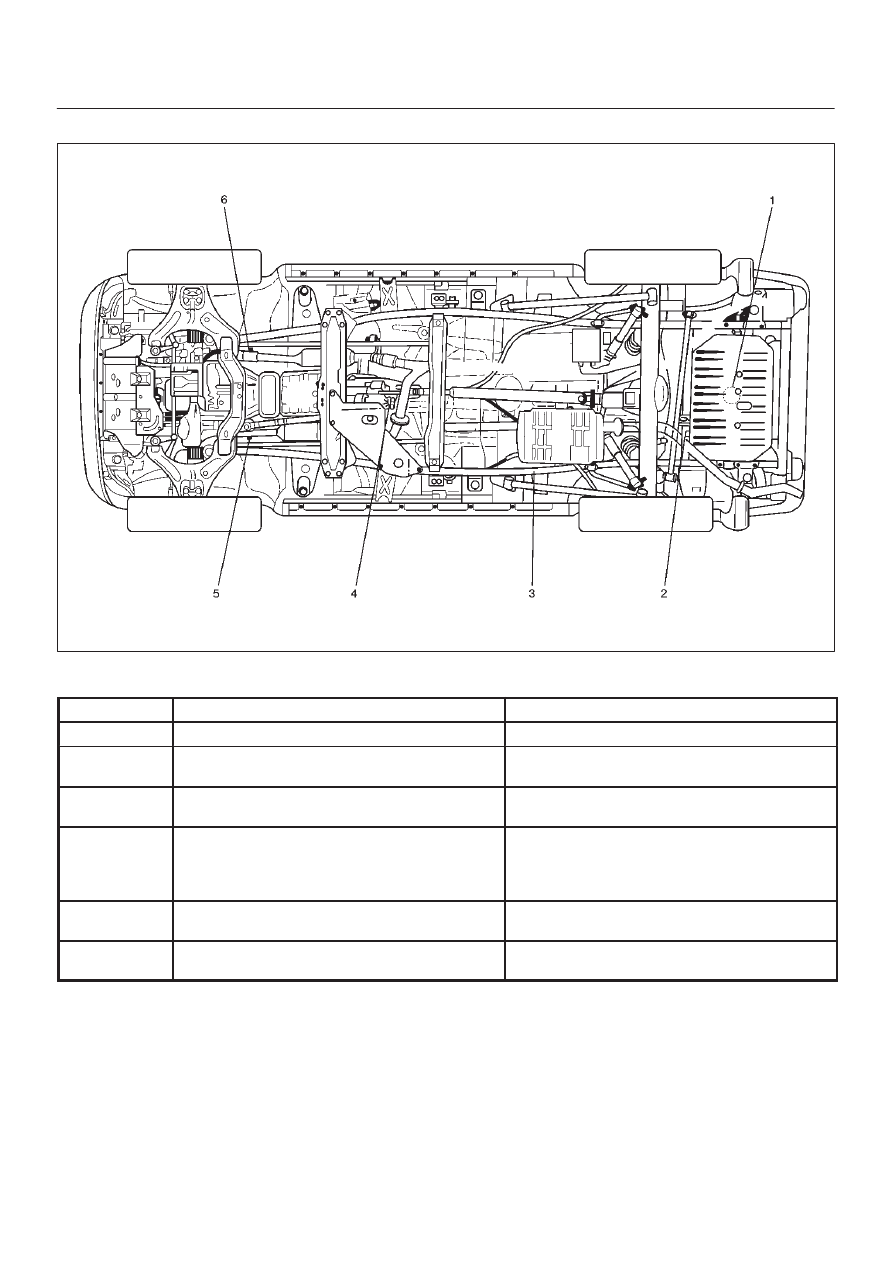

6E–29 ENGINE DRIVEABILITY AND EMISSIONS Engine Component Locator Table Number Name Location 1 Linear Exhaust Gas Recirculation (EGR) Valve Rear right side of the engine 2 Throttle Position (TP) Sensor On the rear of the throttle body 3 Intake Air Temperature (IAT) Sensor On the intake air duct near the throttle body 4 Check Engine (MIL) Light On the instrument panel beneath the 5 Positive Crankcase Ventilation (PCV) Valve On the left of the cylinder head cover 6 Air Cleaner Left front of the engine bay 7 Mass Air Flow (MAF) Sensor Attached to the air filter box 8 Camshaft Position (CMP) Sensor On the rear right side at the left of the cylinder 9 Fuel Pressure Regulator Rear right side of the engine 10 Idle Air Control (IAC) Valve On the left of the throttle body 11 Upper Intake Manifold Top of the engine 12 Fuse/Relay Box Along the inside of the right fender 13 Manifold Absolute Pressure (MAP) Sensor Bolted to the top of the upper intake manifold 14 Throttle Body Between the intake air duct and the upper 15 Engine Coolant Temperature Sensor On the coolant crossover pipe at the front of |
