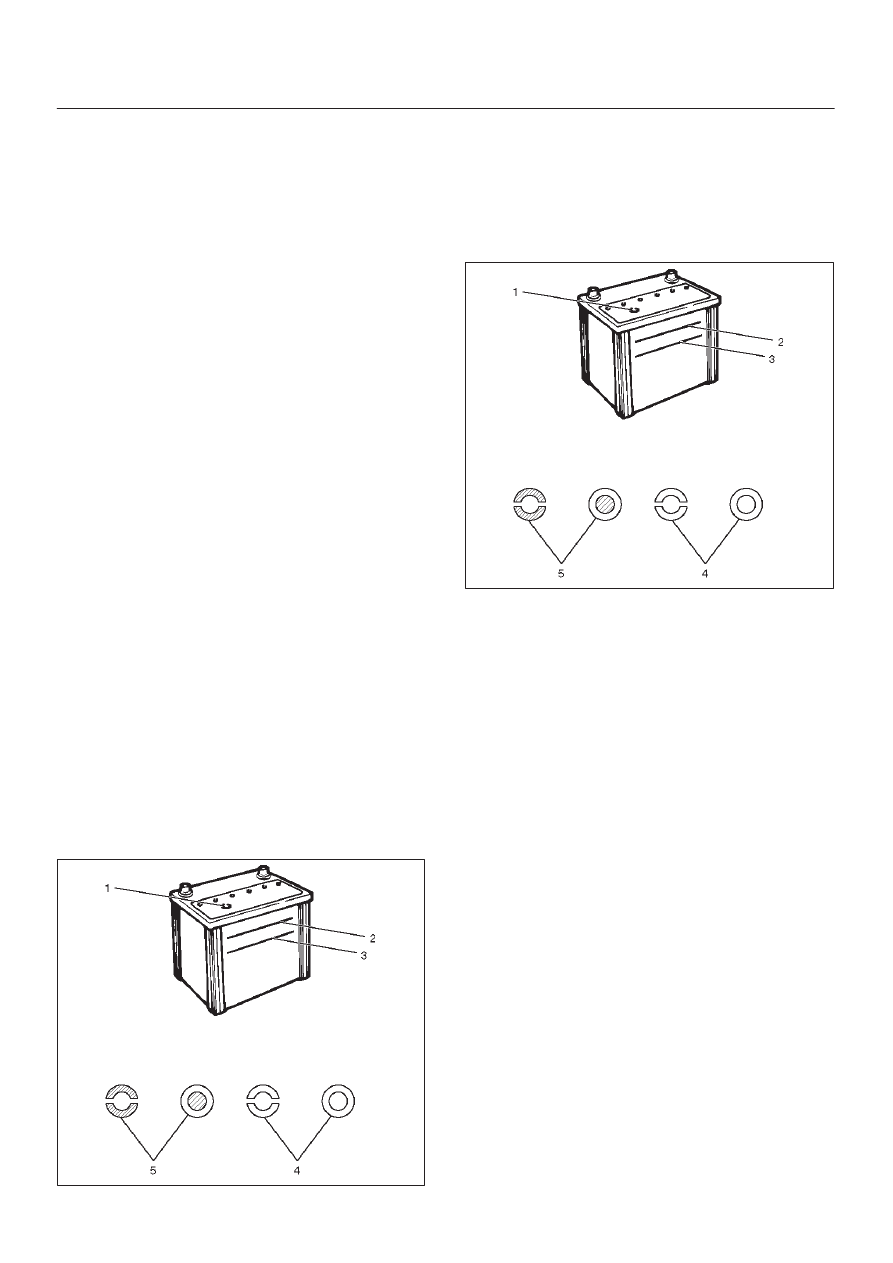

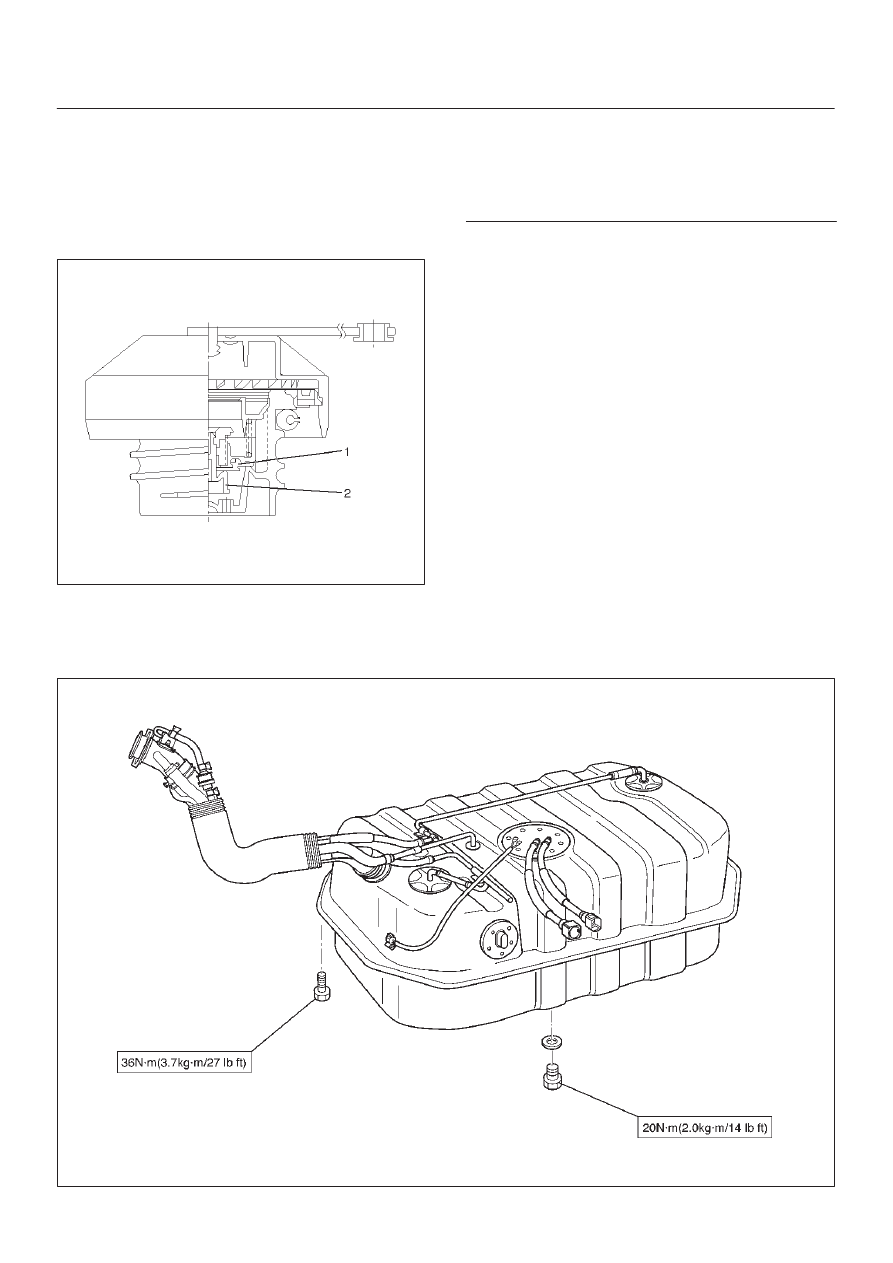

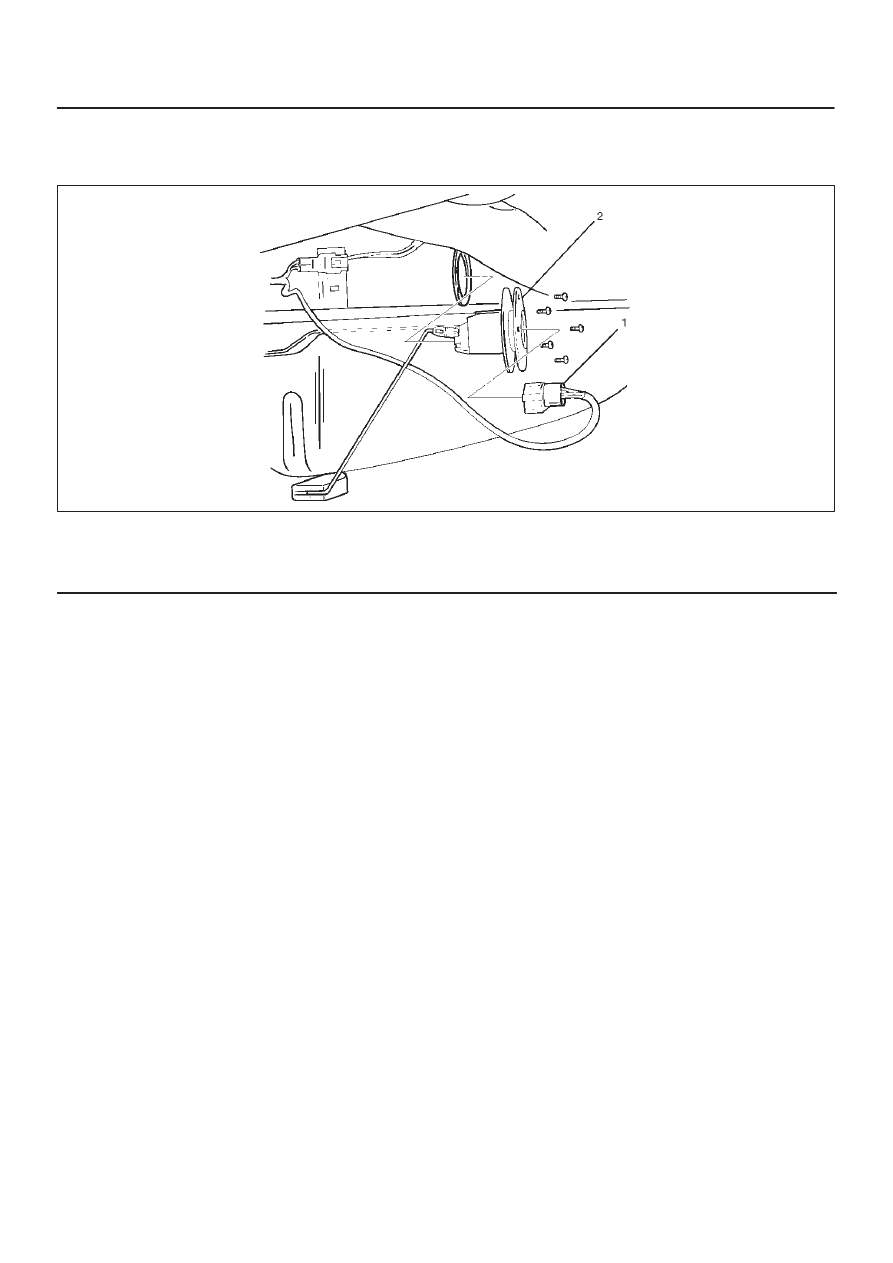

6C–11 ENGINE FUEL Fuel Gauge Unit Fuel Gauge Unit and Associated Parts 140RS004 Legend (1) Wiring Connector Removal CAUTION: When repair to the fuel system has been 1. Disconnect battery ground cable. Tighten drain plug to the specified torque after Torque: 20 N·m (2.0 Kg·m/14 lb ft) — M8 4. Wiring connector D Disconnect wiring connector(1) from the unit. 5. Fuel gauge unit D Remove the fixing screws, then the fuel gauge NOTE: After removing fuel gauge unit, cover fuel tank to Installation 1. Fuel gauge unit(2). D Connect the wiring connector to the fuel gauge unit. D Fill the tank with fuel and tighten fuel filler cap. D Connect battery ground cable. |
