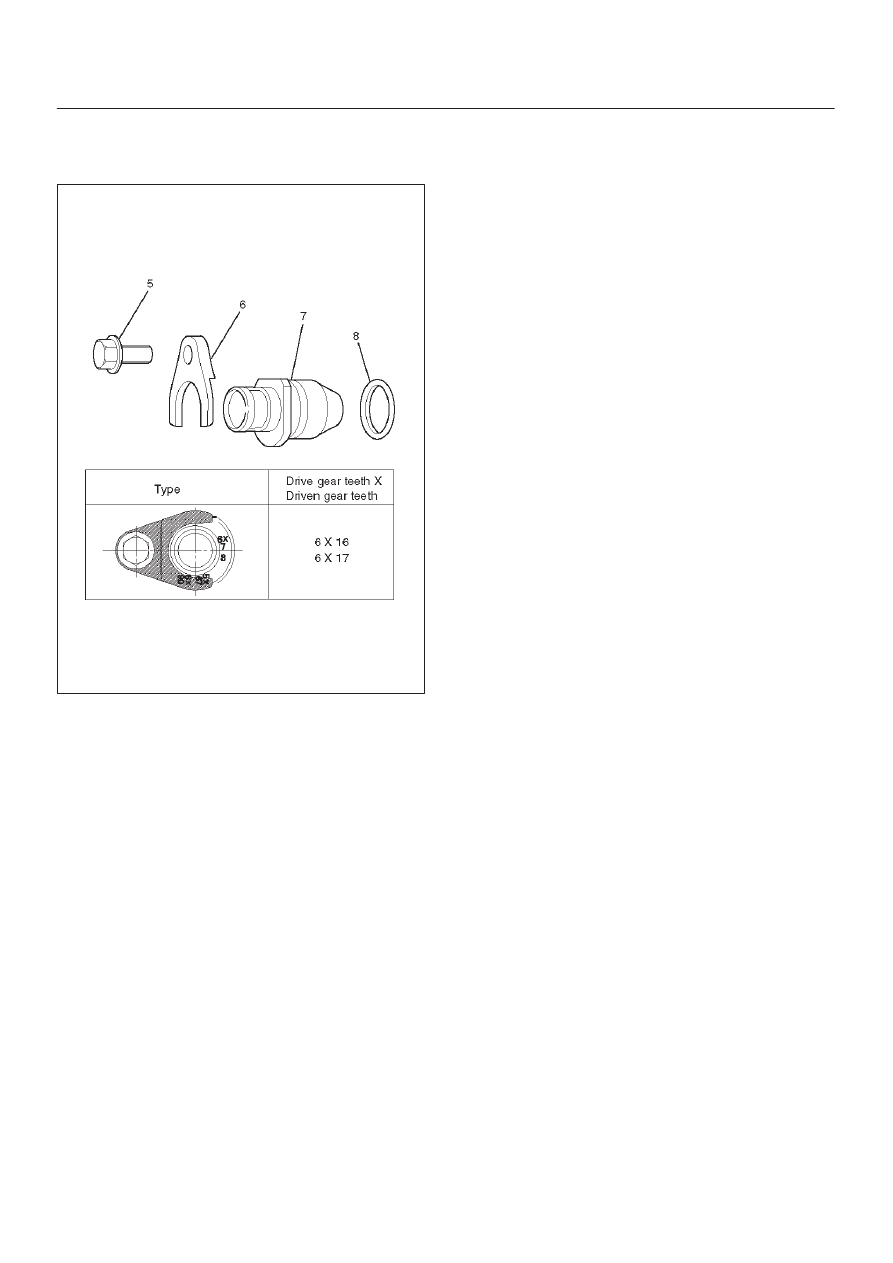

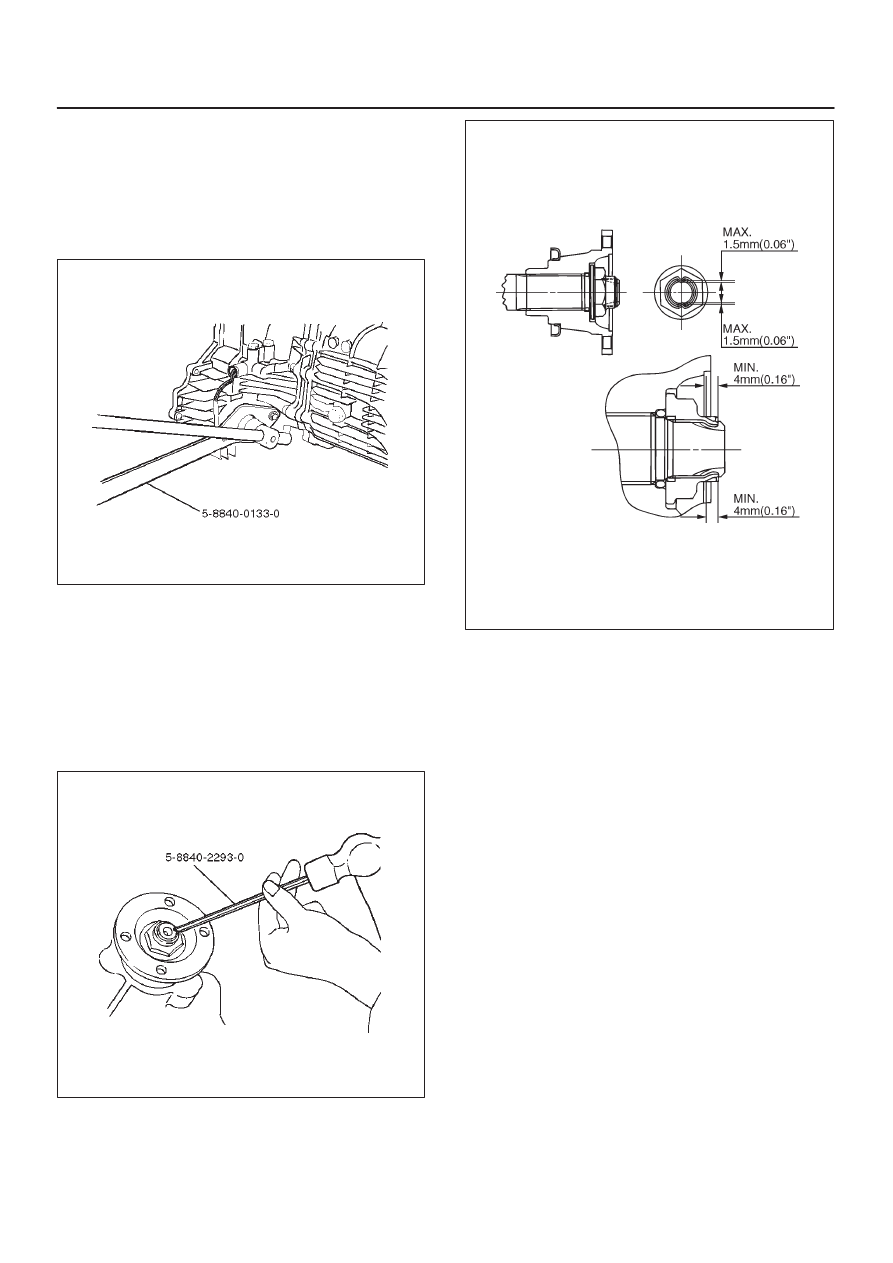

TRANSFER CASE (STANDARD TYPE) 4D1–21 5. Install the control box assembly. Torque: 19 N·m (1.9kg·m/14 lb ft) 6. Connect the breather hoses to the control box. companion flange, using the companion flange holder 262RW067 8. Tighten the new transfer flange nuts to the specified torque. Torque 9. Use the punch 5–8840–2293–0 (J–39209) to stake the rear companion flange nut at two spots. 266RW027 266RW002 10. Stake the front companion flange nut at one spot. NOTE: Be sure to confirm that there is no crack at the 11. Install the O–ring (8) to the speedometer driven gear bushing (7). 12. Install the driven gear to the speedometer driven gear bushing (7). 13. Install the speedometer driven gear assembly to the transfer rear cover. 14. Install the plate (6) to the transfer rear case and tighten to the specified torque. Torque: 15 N·m (1.5kg·m/11 lb ft) |
