8F–63

BODY STRUCTURE

Rear Door Fixed Glass And Glass Run

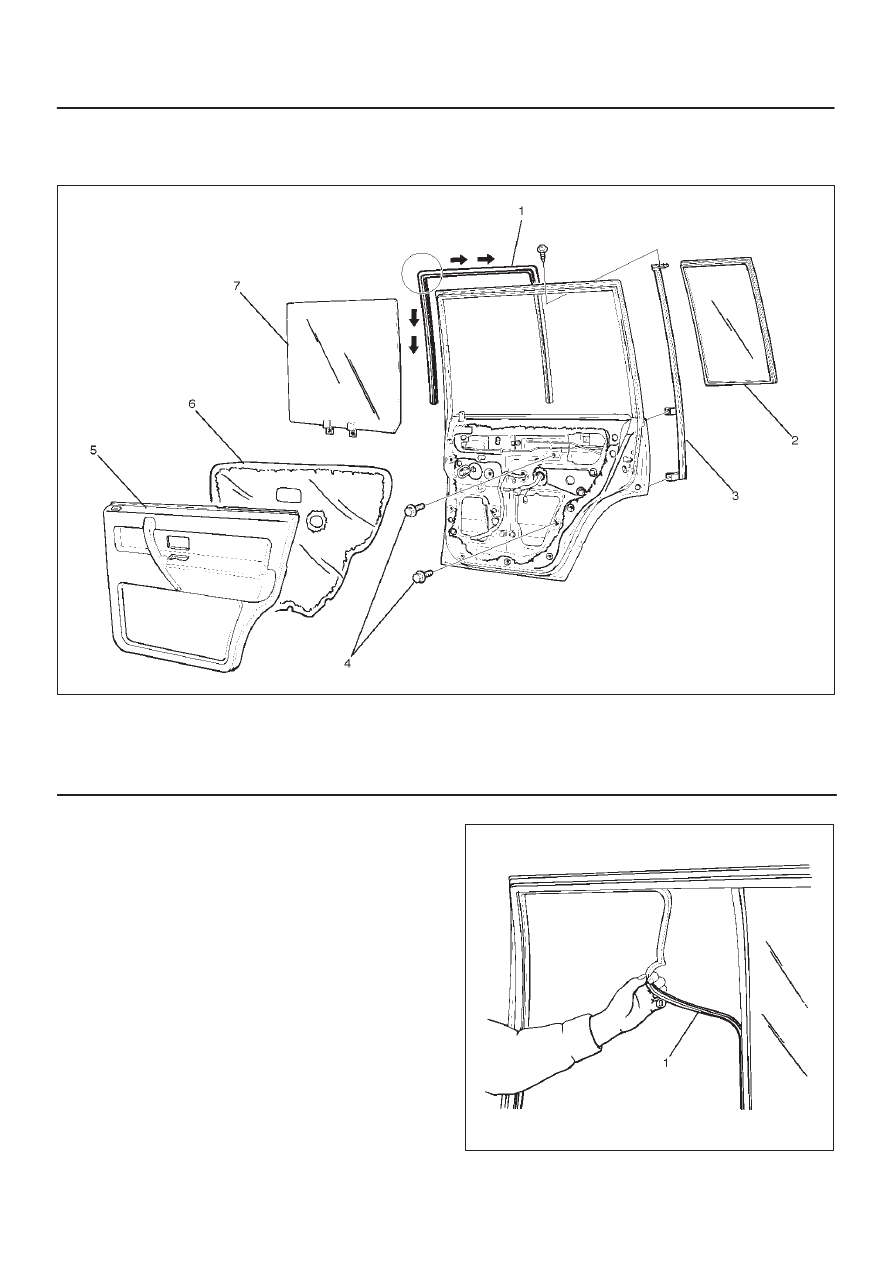

Parts Location

651RW019

Legend

(1) Glass Run
(2) Rear Fixed Glass
(3) Sash Division

(4) Sash Division Fixing Bolts
(5) Door Trim Panel
(6) Waterproof Sheet
(7) Glass

Removal

1. Disconnect the battery ground cable.
2. Remove door trim panel.
3. Remove waterproof sheet.
4. Remove glass.

D

Refer to Window Regulator and Glass in this
section.

5. Remove glass run.

D

Pull the glass run (1) out from the door frame.

651RS007

8F–64

BODY STRUCTURE

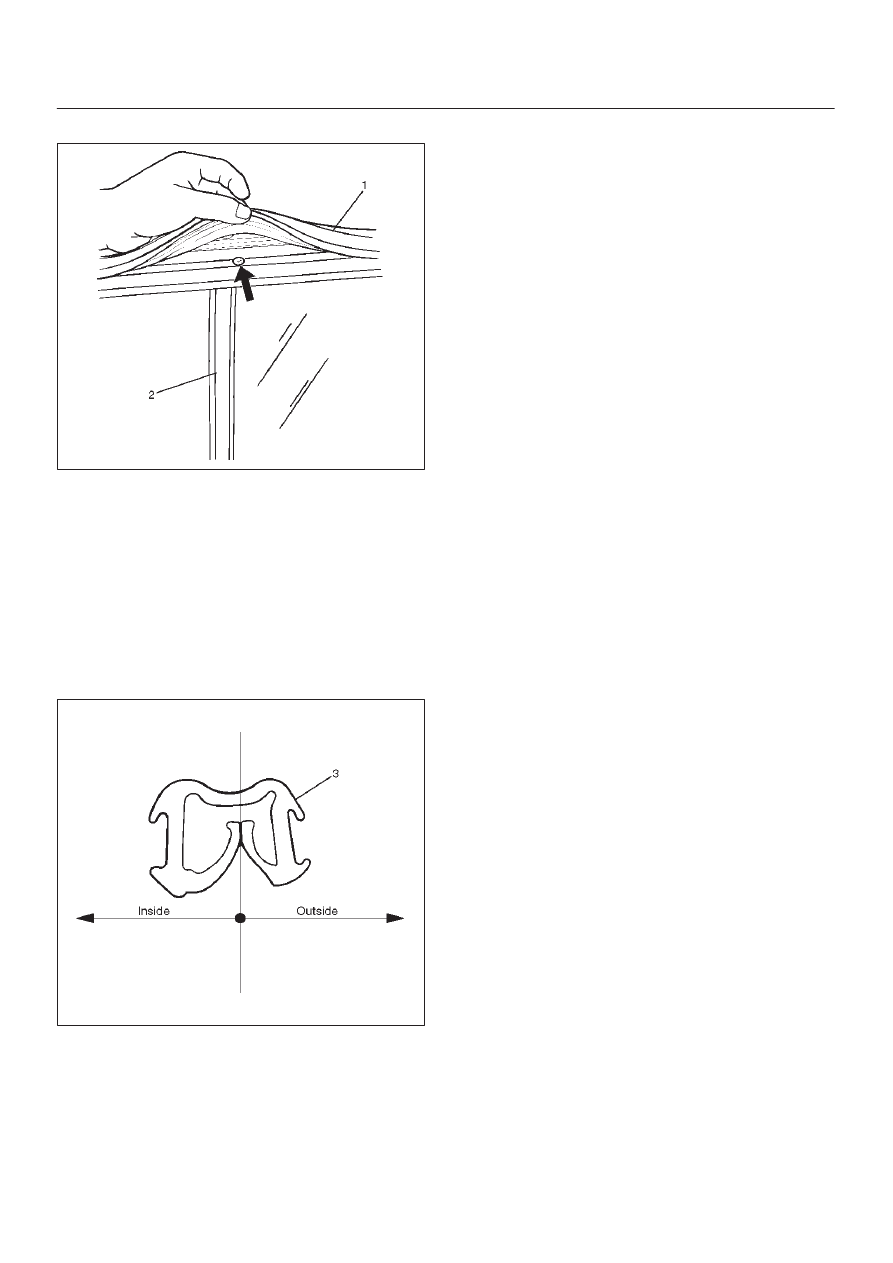

6. Remove sash division (2).

651RS008

7. Remove door fixed glass.

Installation

To install, follow the removal steps in the reverse order,
noting the following points.

1. Apply soap and water to the fixed glass.
2. Apply soap and water to the door groove and insert

the glass run (3) to the frame from the corner in the
arrow-marked directions.

3. Be sure to install the glass run with its end pointed to

the inside of the vehicle.

A10RW019

8F–65

BODY STRUCTURE

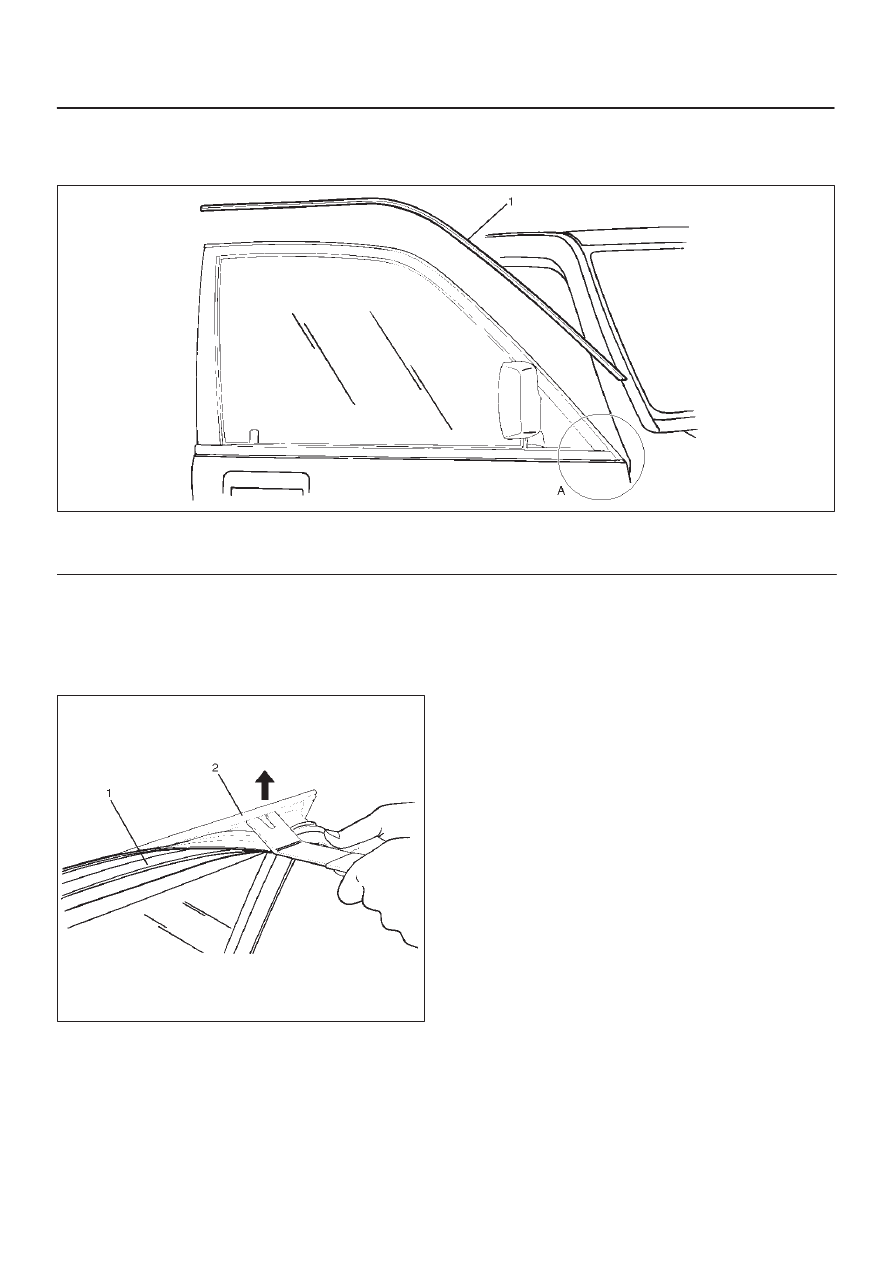

Front Door Sash Moulding

Parts Location

645RS001

Legend

(1) Front Door Sash Moulding

Removal

1. Remove front door slash moulding.

D

To avoid the weatherstrip (1) and pry the door sash
moulding (2) out from the door panel.

645RS002

Installation

1. Install the front door sash moulding.

D

Assemble the edge portion (A portion) of the
moulding so that the clearance between the
moulding and the waist seal becomes 1 mm (0.04
in).

8F–66

BODY STRUCTURE

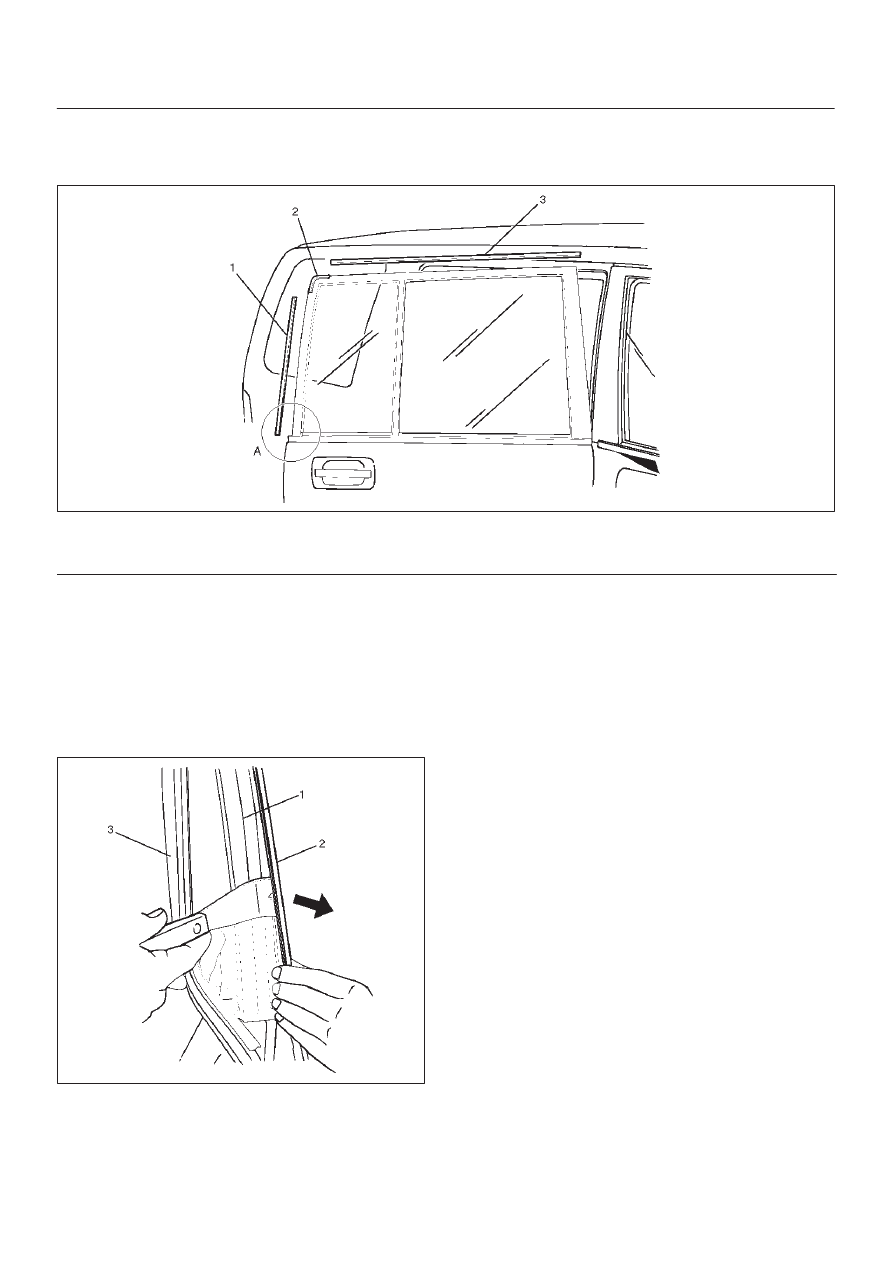

Rear Door Moulding

Parts Location

645RS003

Legend

(1) Rear Door Side Moulding

(2) Rear Door Corner Moulding
(3) Rear Door Upper Moulding

Removal

1. Disconnect the battery ground cable.
2. Remove rear door side moulding.
3. Remove rear door upper moulding.
4. Remove rear door corner moulding.

D

Avoiding the weatherstrip (3), pry the moulding (2)
out from the door frame (1).

645RS004

Installation

To install, follow the removal steps in the reverse order,
noting the following points.

1. Install each moulding with no clearance between

each piece of moulding.

2. Assemble the edge portion (A portion) of the

moulding so that the clearance between the rear side
moulding and the waist seal is 1 mm (0.04 in).
