Opel Frontera UBS. Manual - part 1749

8F–67

BODY STRUCTURE

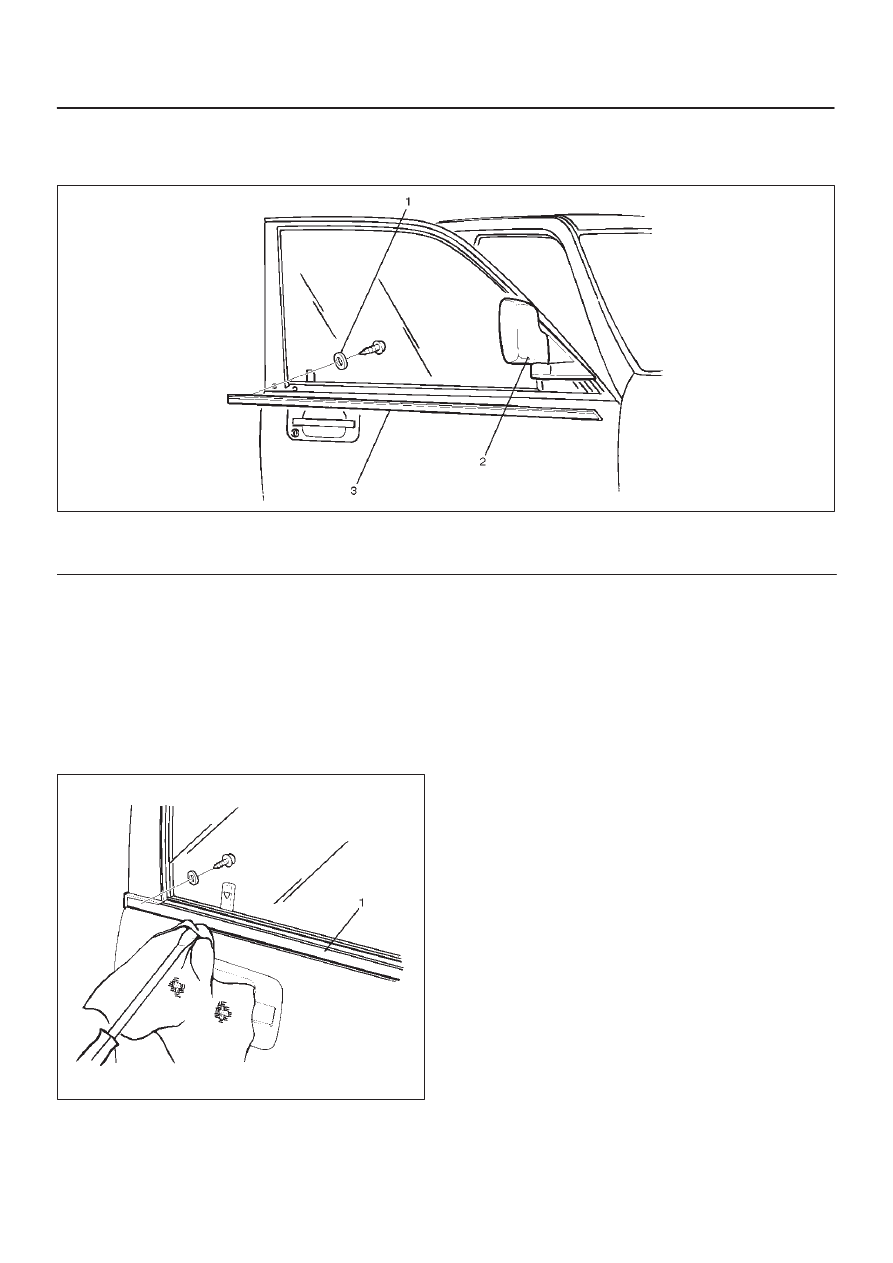

Front Door Waist Seal

Parts Location

631RS009

Legend

(1) Nylon Washer

(2) Door Mirror
(3) Front Door Waist Seal

Removal

1. Disconnect the battery ground cable.
2. Remove door mirror.

D

Refer to Door Mirror in Exterior / Interior Trim
section.

3. Remove front door waist seal.

D

Remove the fixing screw and pull out the waist seal
(1) from the door frame while prying it up.

631RS010

Installation

To install, follow the removal steps in the reverse order,
noting the following points.

1. Apply soap and water to the inside of the waist seal

and align the screw hole of the waist seal to the door
panel hole, and gently tap the seal with a rubber
hammer.
Be sure not to tap the seal hard. This may result in
deforming the seal.

8F–68

BODY STRUCTURE

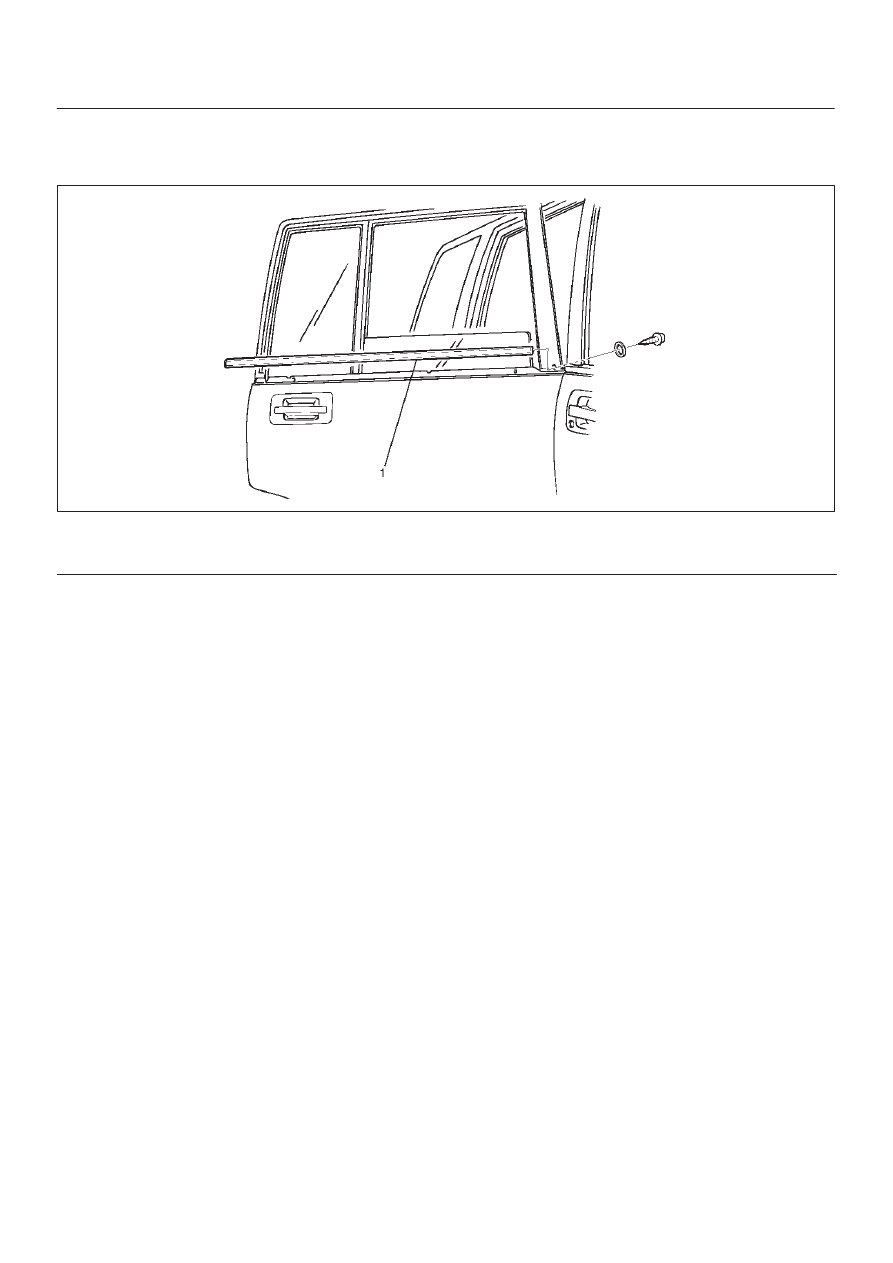

Rear Door Waist Seal

Parts Location

651RW013

Legend

(1) Rear Door Waist Seal

Removal and Installation

Refer to Front Door Waist Seal in this section.

8F–69

BODY STRUCTURE

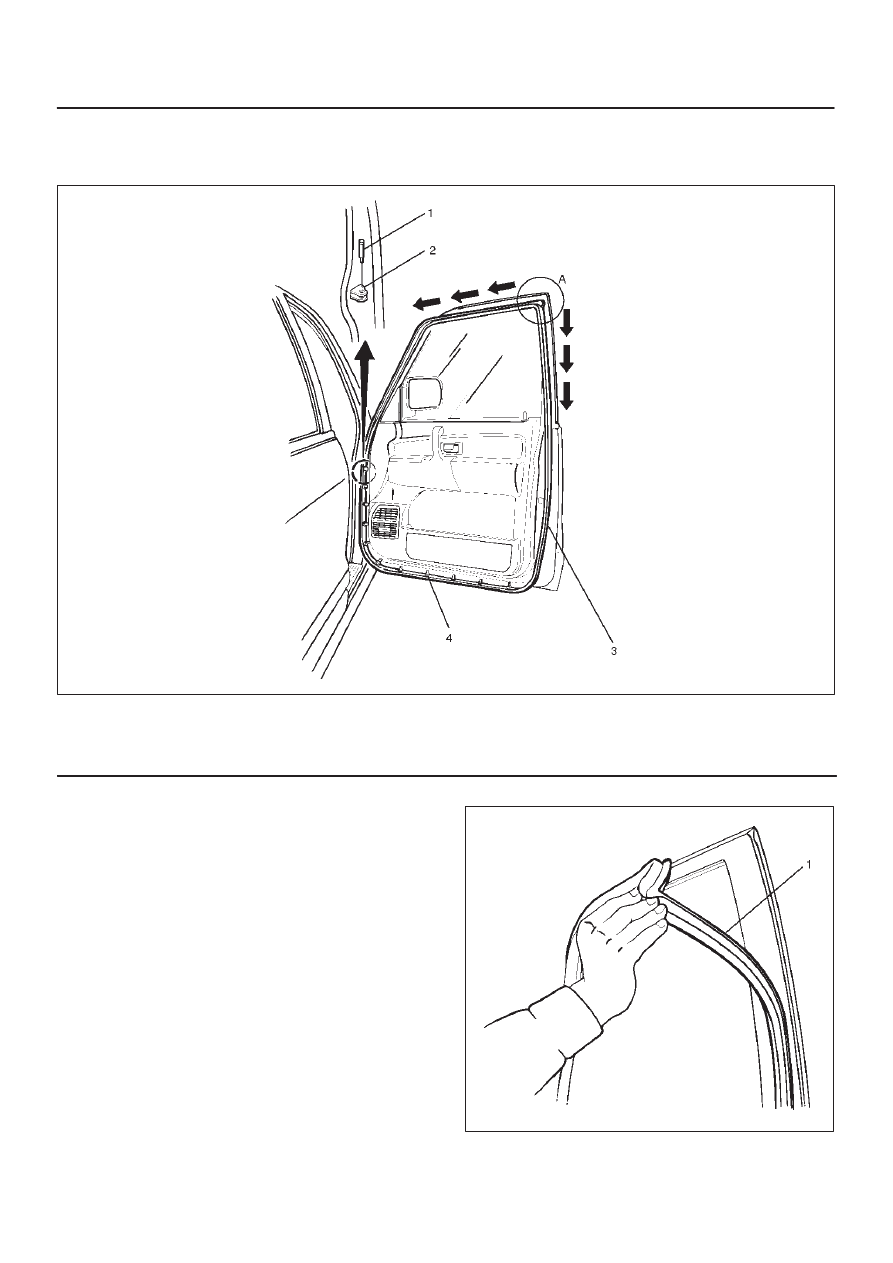

Front Door Weatherstrip

Parts Location

631RS008

Legend

(1) Check Arm Pin
(2) Bracket

(3) Weather Strip
(4) Clip

Removal

1. Remove check arm pin.
2. Remove front door weatherstrip.

D

 Pull the weatherstrip (1) out from the door frame.

631RS011

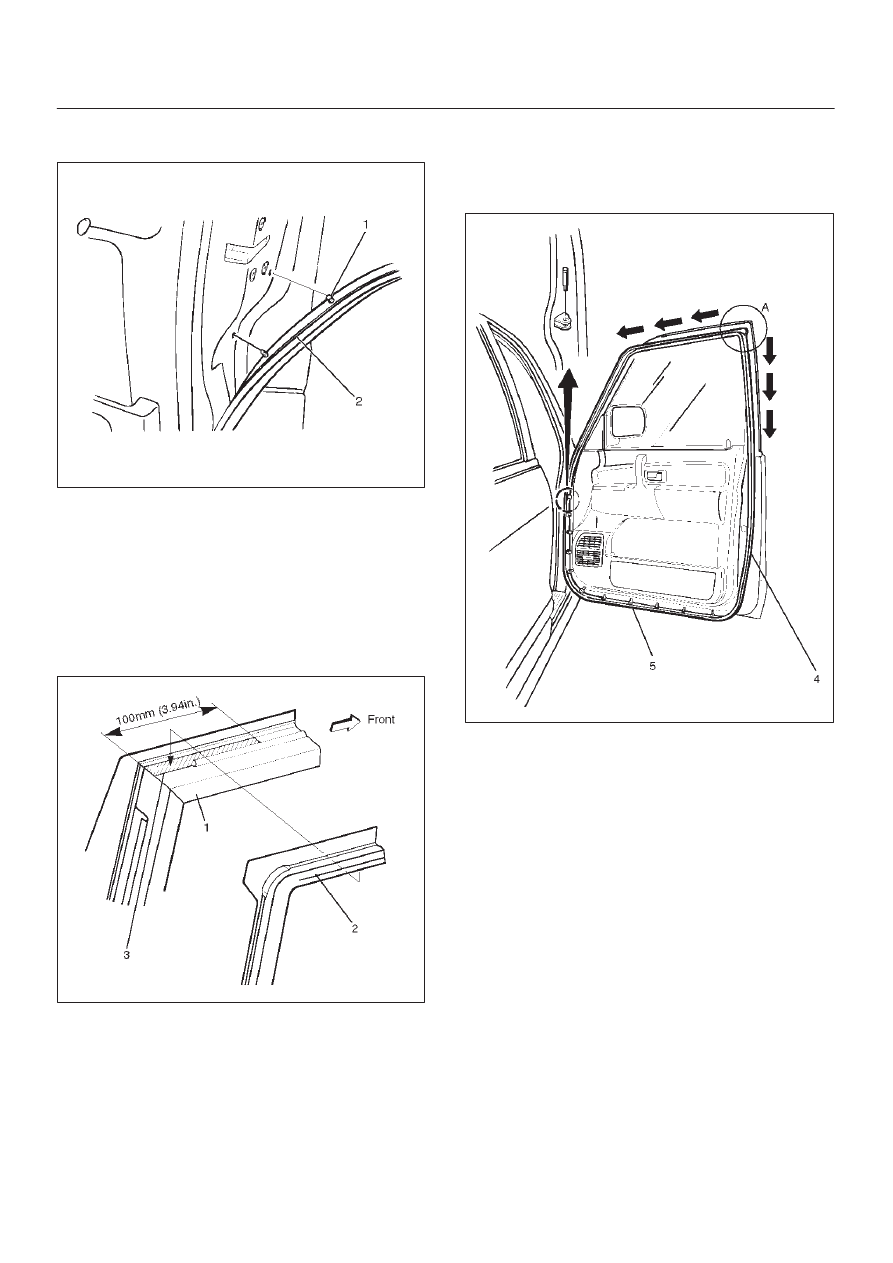

8F–70

BODY STRUCTURE

D

Carefully remove the weatherstrip (2) from the door
panel.

631RW003

Installation

To install, follow the removal steps in the reverse order,
noting the following points.

1. Apply soapy water to the door frame groove when

installing the front door weather strip (2).

2. Apply the sealing adhesive (3) to the upper A portion

of the door frame (1) and press it for installation after
assembling the weatherstrip (2).

631RS013

3. After positioning the weatherstrip (4) corner, insert

the weatherstrip into the door frame groove from A
point in the arrow–marked direction.

4. Insert the weatherstrip clip (5) into the door panel up

to its base.

631RW009
