8F–55

BODY STRUCTURE

Rear Door Assembly

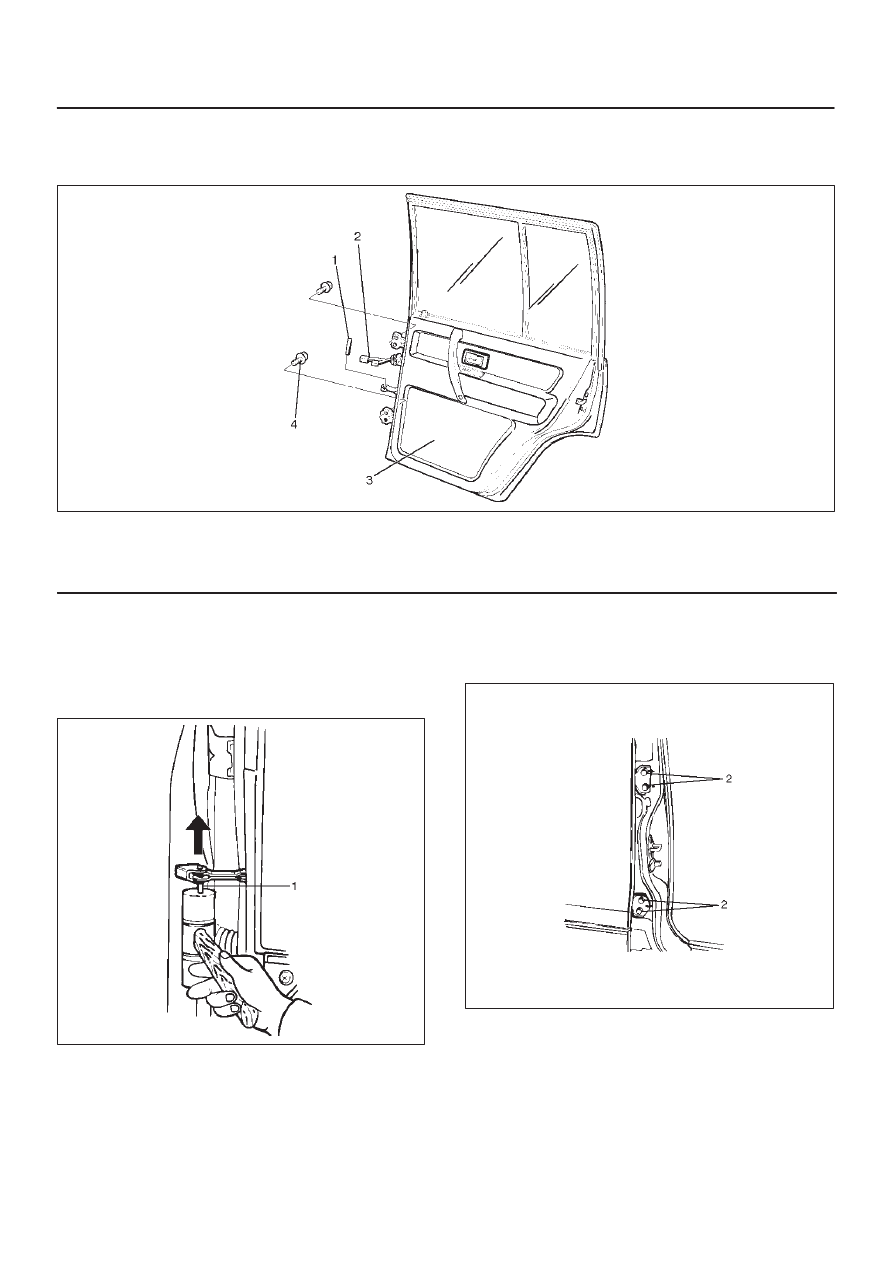

Parts Location

650RW007

Legend

(1) Door Check Arm Pin
(2) Door Harness Connection

(3) Rear Door Assembly
(4) Hinge Bolt

Removal

1. Disconnect the battery ground cable.
2. Apply a setting mark on the body side hinge.
3. Remove door check arm pin (1).

630RS002

4. Remove hinge bolt.

D

Open the front door and remove the body side hinge
bolts (2).

650RS002

8F–56

BODY STRUCTURE

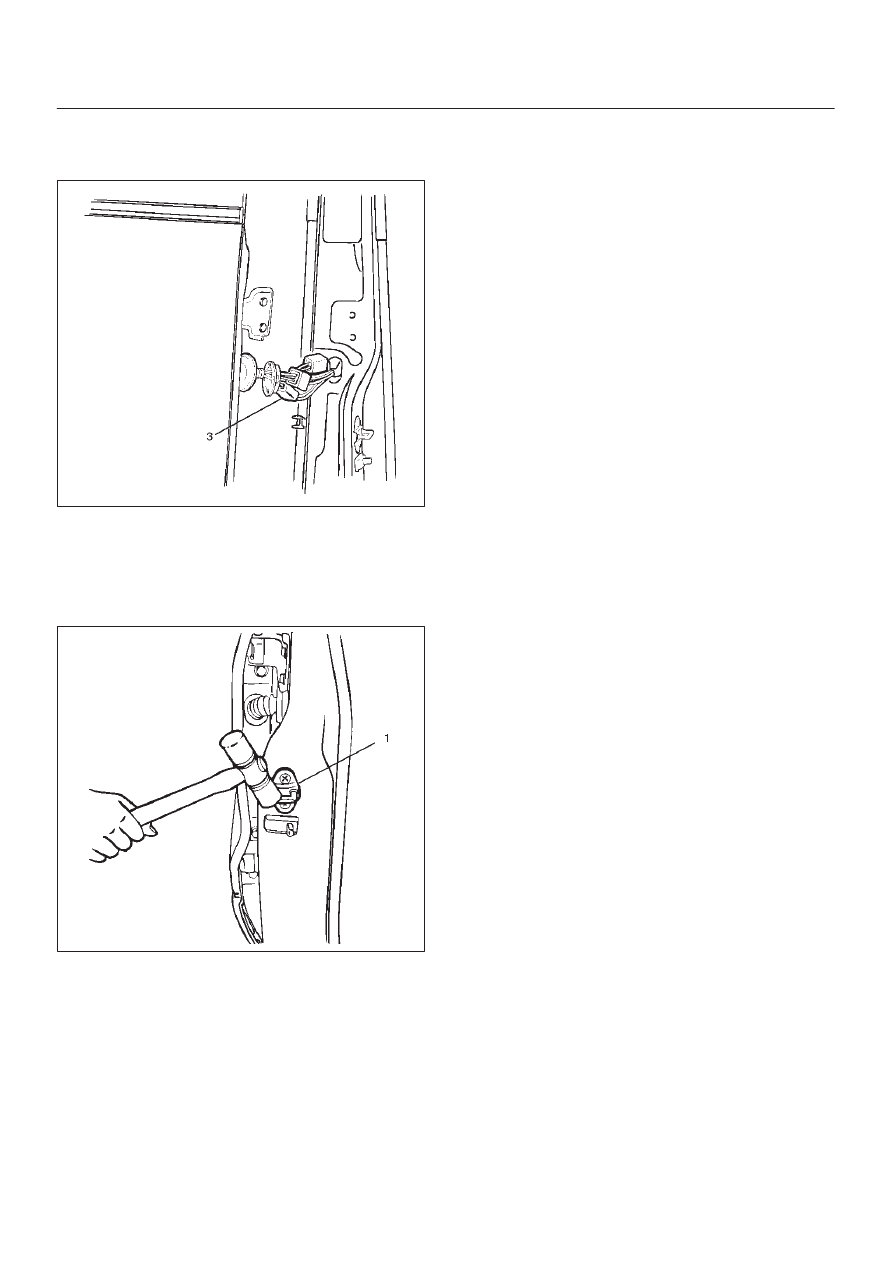

5. Remove door harness connection (3).

D

Pull the door harness grommet out in order to
disconnect the door harness connection.

810RS002

6. Remove door assembly

Installation

To install, follow the removal steps in the reverse order,
noting the following points.

1. Align the door fitting to the body by refer to Body

Dimensions in this section.

2. Tighten the door hinge bolts to the specified torque.

Torque : 34  N

m (3.5kg·m/25  lb ft)

3. Apply chassis grease to the check arm pin and the

door hinge moving surface.

Door Strikers

Adjustment

632RS001

1. Loosen the striker (1) screws.
2. Tap with a plastic hammer to align.
3. Tighten the striker screws.

Torque : 15  N

m (1.5kg·m/11 lb ft)

8F–57

BODY STRUCTURE

Door Check Arm Assembly (Front & Rear)

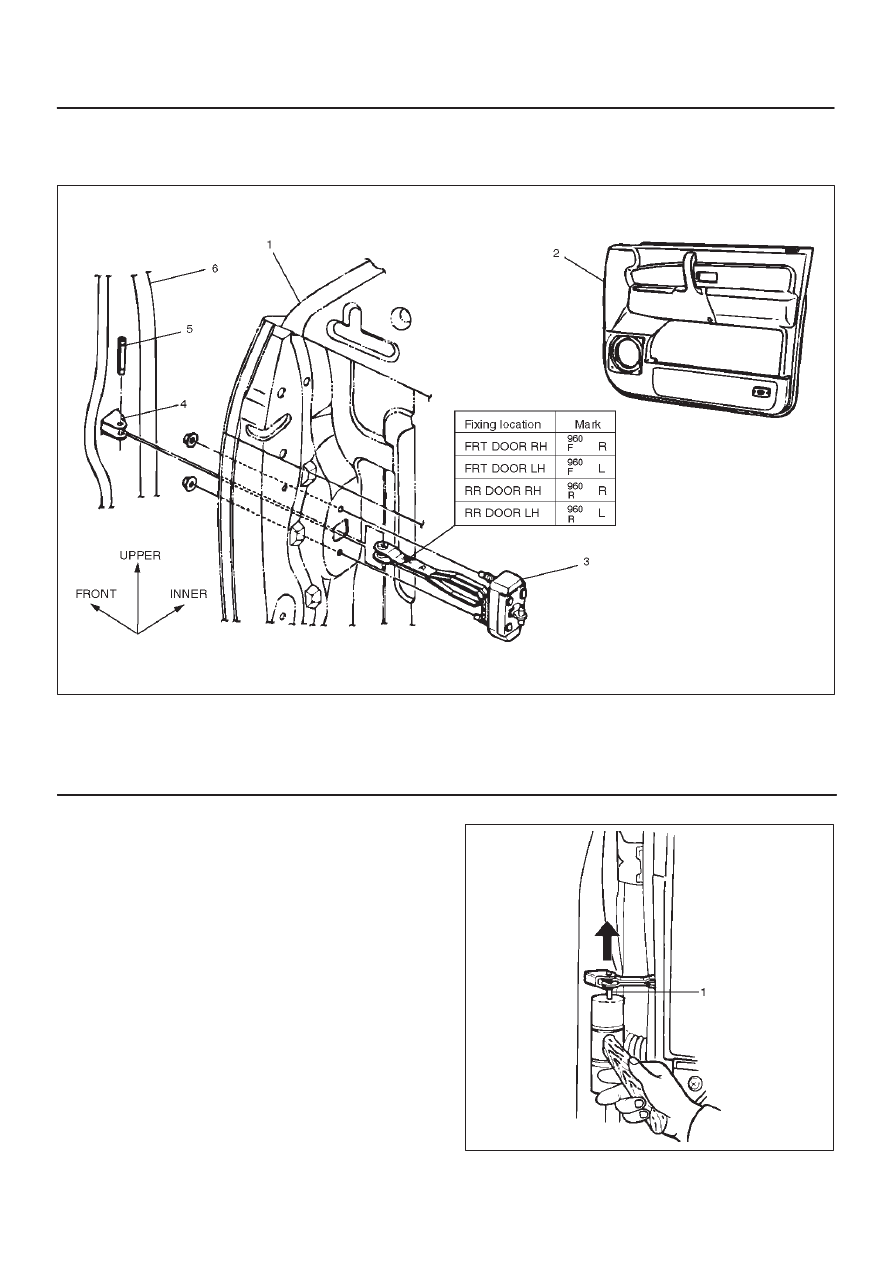

Parts Location

630RS003

Legend

(1) Front or Rear Door
(2) Door Trim Panel
(3) Check Arm Assembly

(4) Check Arm Pin Bracket
(5) Check Arm Pin
(6) Front or Center Pillar

Removal

1. Disconnect the battery ground cable.
2. Remove door trim panel.

D

Refer to Front Door Trim Panel in Exterior / Interior
Trim section.

3. Remove check arm pin (1).

630RS002

8F–58

BODY STRUCTURE

4. Remove check arm assembly.

D

Carefully peel off the water proof sheet as much as
necessary, for check arm removal.

Installation

To install, follow the removal steps in the reverse order,
noting the following point.

1. When installing the check arm assembly, note its

marking to ensure using the appropriate part.

2. Tighten the check arm fixing nuts to the specified

torque.

Torque : 13  N

m (1.3kg·m/113  lb in)

3. Apply chassis grease to the check arm pin moving

surface.

Front Window Regulator, Glass And Glass Run

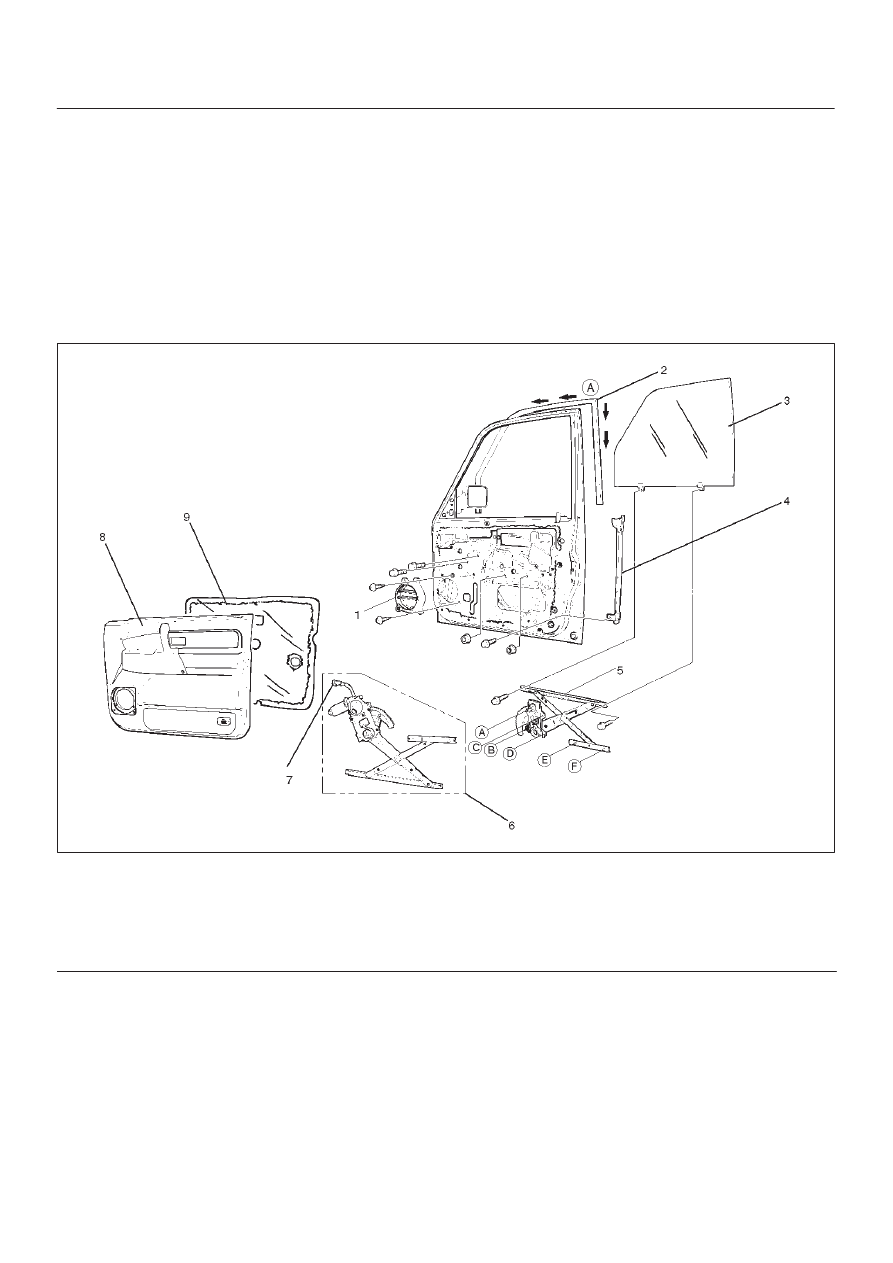

Parts Location

631RS002

Legend

(1) Speaker Box
(2) Glass Run
(3) Glass
(4) Rear Guide Rail

(5) Window Regulator
(6) Window Regulator with Power Window
(7) Window Regulator Motor Connector
(8) Door Trim Panel
(9) Waterproof Sheet

Removal

1. Disconnect the battery ground cable.

2. Remove door trim panel.

D

Refer to Front Door Trim Panel in Exterior / Interior
section.

3. Remove speaker box.
