4. Remove radiator grille.

D

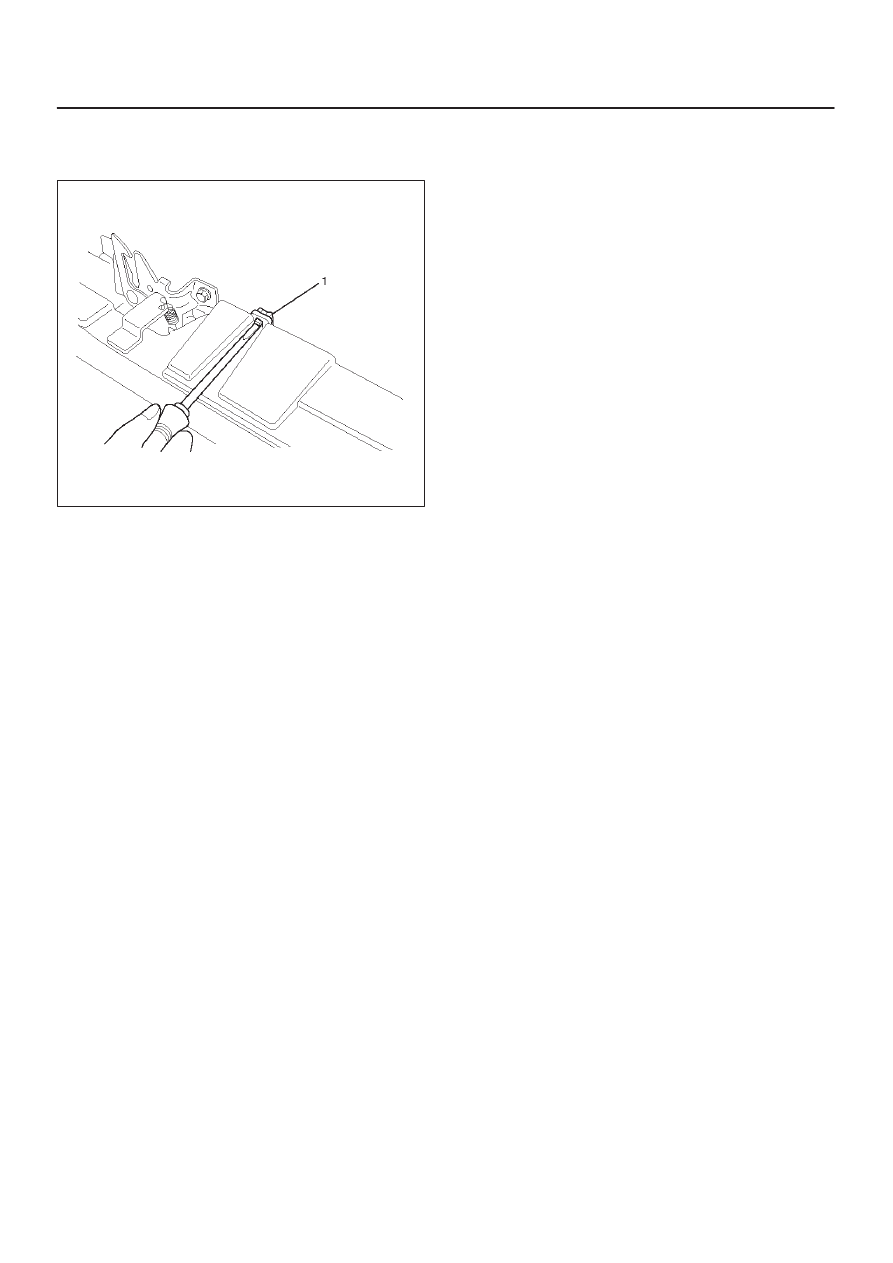

Raise the clips (1) on the radiator grille and remove
two screws.

603RW012

5. Remove front end lower panel.

D

Remove two fixing bolts and remove the panel from
the fender.

Installation

To install, follow the removal steps in reverse order, noting
the following point.

1. Install the radiator grille clips remaining on the body

side in the radiator grille, and then install the radiator
grille on the body.

8F–20

BODY STRUCTURE

Front Fender Panel

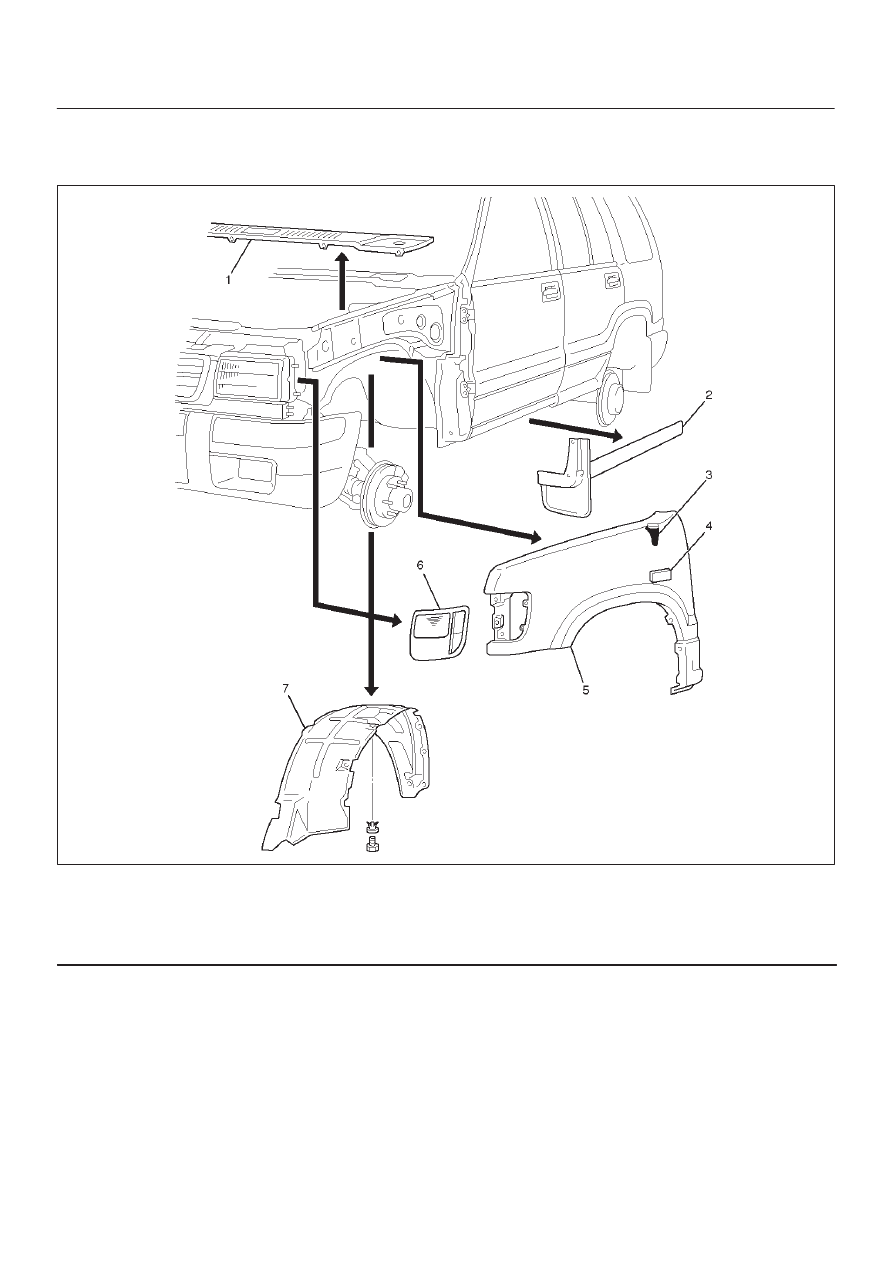

Parts Location

605RW008

Legend

(1) Cowl Cover
(2) Front Mud Flap
(3) Antenna Bezel

(4) Side Turn Signal Light
(5) Front Fender Panel
(6) Front Combination Light Assembly
(7) Inner Liner

Removal

1. Open the hood.
2. Support the hood.
3. Disconnect the battery ground cable.
4. Remove cowl cover.

D

Refer to Cowl Cover in this section.

5. Remove front combination lamp assembly.

D

Disconnect fixing screw and connector.

6. Remove front mud flap.

D

Disconnect three fixing screws and four clips.

7. Remove inner liner.
8. Remove antenna bezel.

D

Refer to Antenna in Entertainment section.

9. Remove side turn signal light.

D

Refer to Side Turn Signal Light Bulb in Lighting
System section.

8F–21

BODY STRUCTURE

10. Remove front fender panel.

D

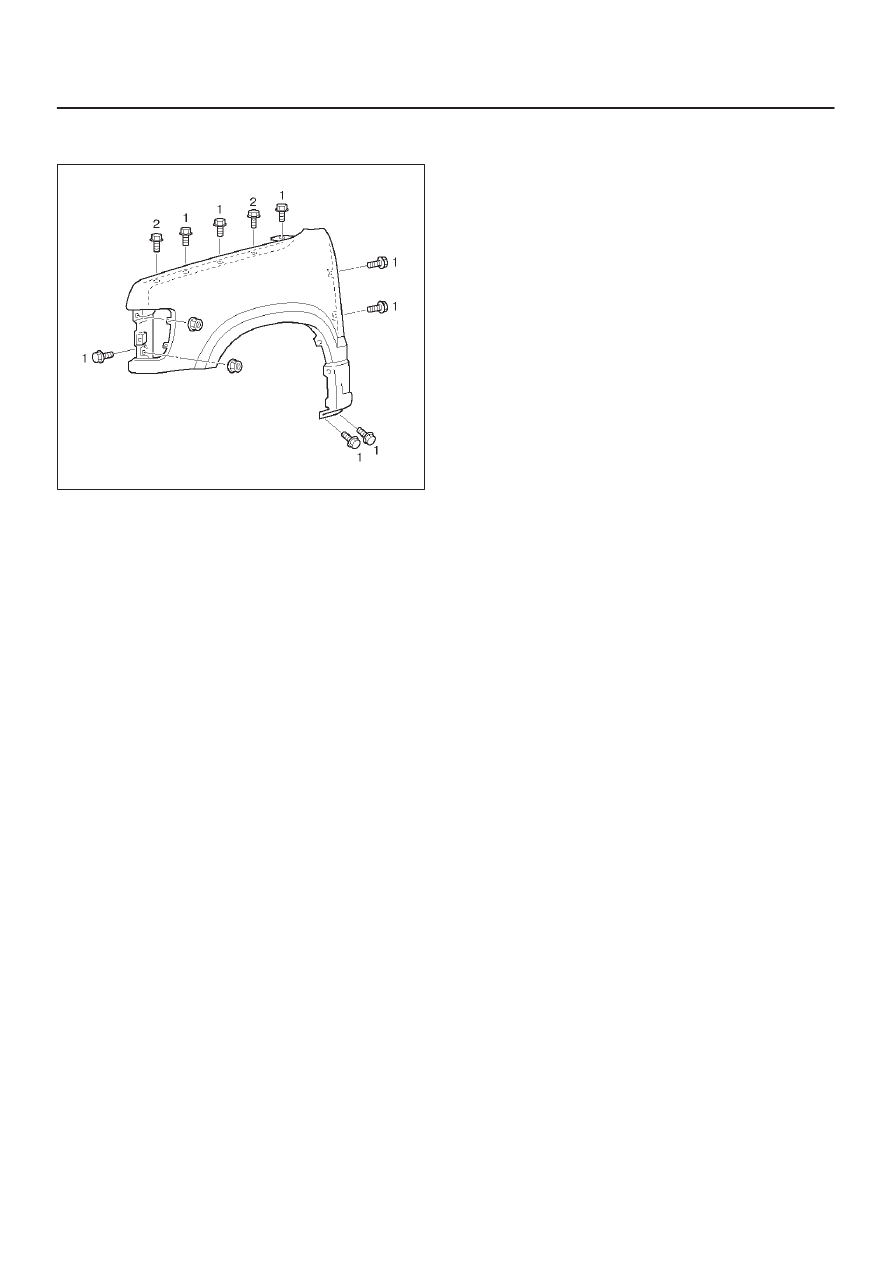

Disconnect ten fixing bolts and two nuts.

605RW001

Installation

To install, follow the removal steps in the reverse order
noting the following points:

1. Tighten the front fender panel fixing bolts to the

specified torque.

(1) Torque : 9 N

•

m (0.9kg·m/78 lb in)

(2) Torque : 7 N

•

m (0.7kg·m/61 lb in)

8F–22

BODY STRUCTURE

Body Mounting

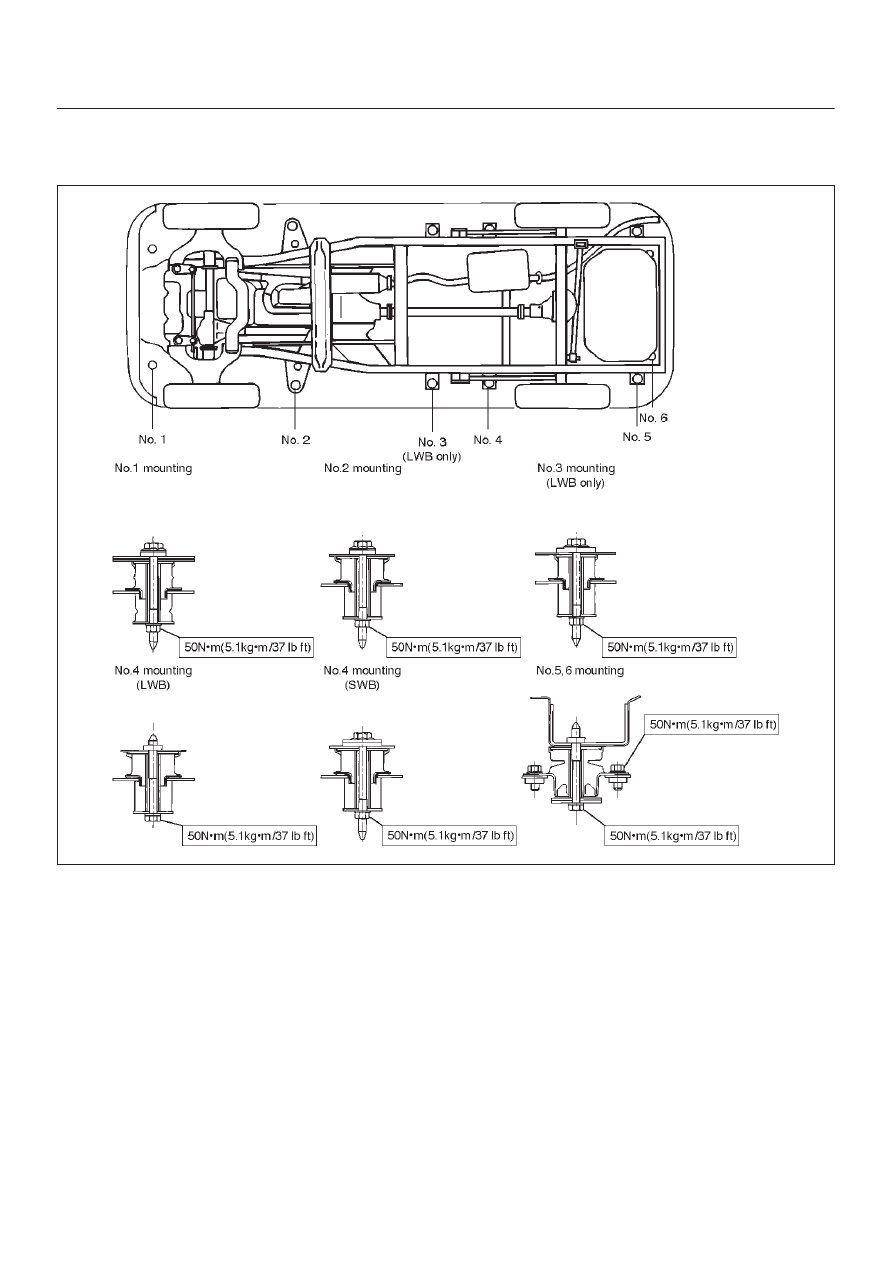

Parts Location

E02RW006

Removal (No.1 – No. 2)

1. Remove the front bumper.
2. Jack up the vehicle by the frame.
3. Support the front side sill and rear axle with stands.

Further, support the front jack up point with a jack.
