8F–15

BODY STRUCTURE

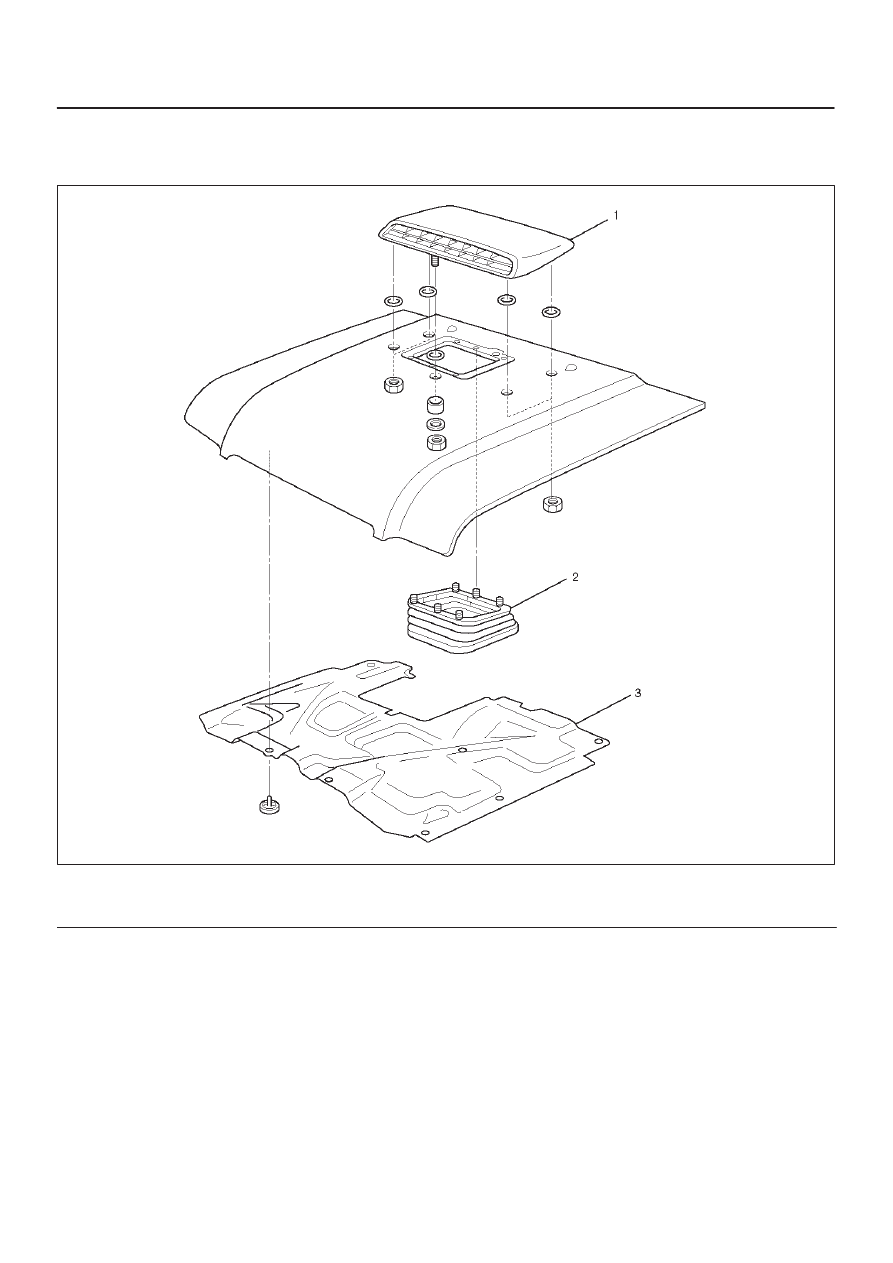

Air Bulge

Parts Location

610RW013

Legend

(1) Air Bulge

(2) Intercooler Seal
(3) Engine Hood Insulator

Removal

1. Remove engine food insulator.

D

 Remove the sixteen clips.

2. Remove Intercooler seal.

D

Remove the six clips.

3. Remove air bulge.

D

Remove the six nuts.

Installation

To install, follow the removal steps in the reverse order
noting the following points:

1. Tighten the air bulge  fixing nuts to the specified

torgue.

Torque 8 N

•

m (0.8kg·m/ 69 lb in)

8F–16

BODY STRUCTURE

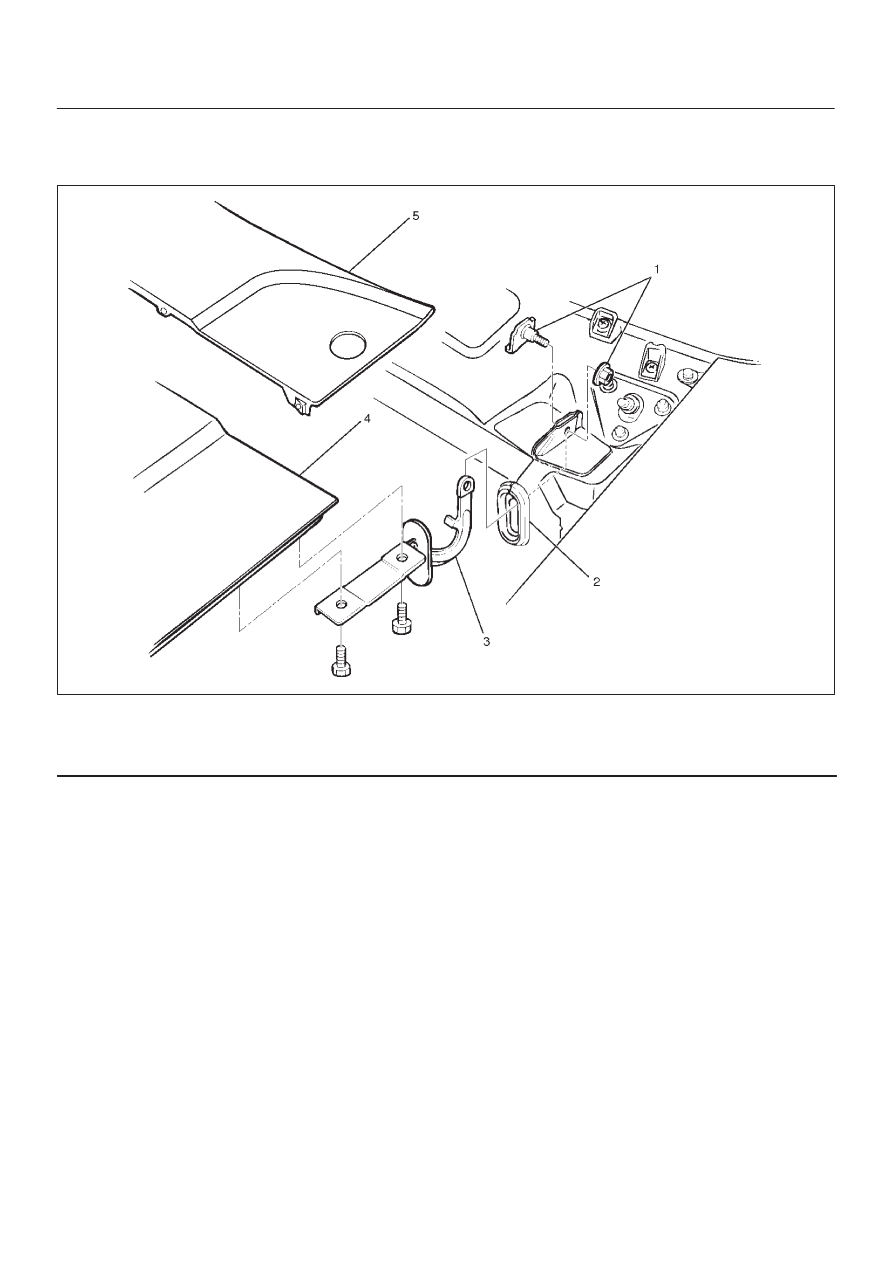

Engine Hood Hinge

Parts Location

610RW012

Legend

(1) Hinge Fixing Bolts And Nuts
(2) Hood End Seal

(3) Engine Hood Hinge
(4) Engine Hood
(5) Cowl Cover

Removal

1. Remove cowl cover.

D

 Refer to Cowl Cover in this section.

2. Remove engine hood.

D

Refer to Engine Hood in this section.

3. Remove hinge fixing bolt and nut.
4. Remove engine hood hinge.
5. Remove hood end seal.

Installation

To install, follow the removal steps in reverse order noting
the following points:

1. Tighten the hood hinge fixing bolt and nut to the

specified torque.

Torque 13  N

•

m (1.3kg·m/113 lb in)

8F–17

BODY STRUCTURE

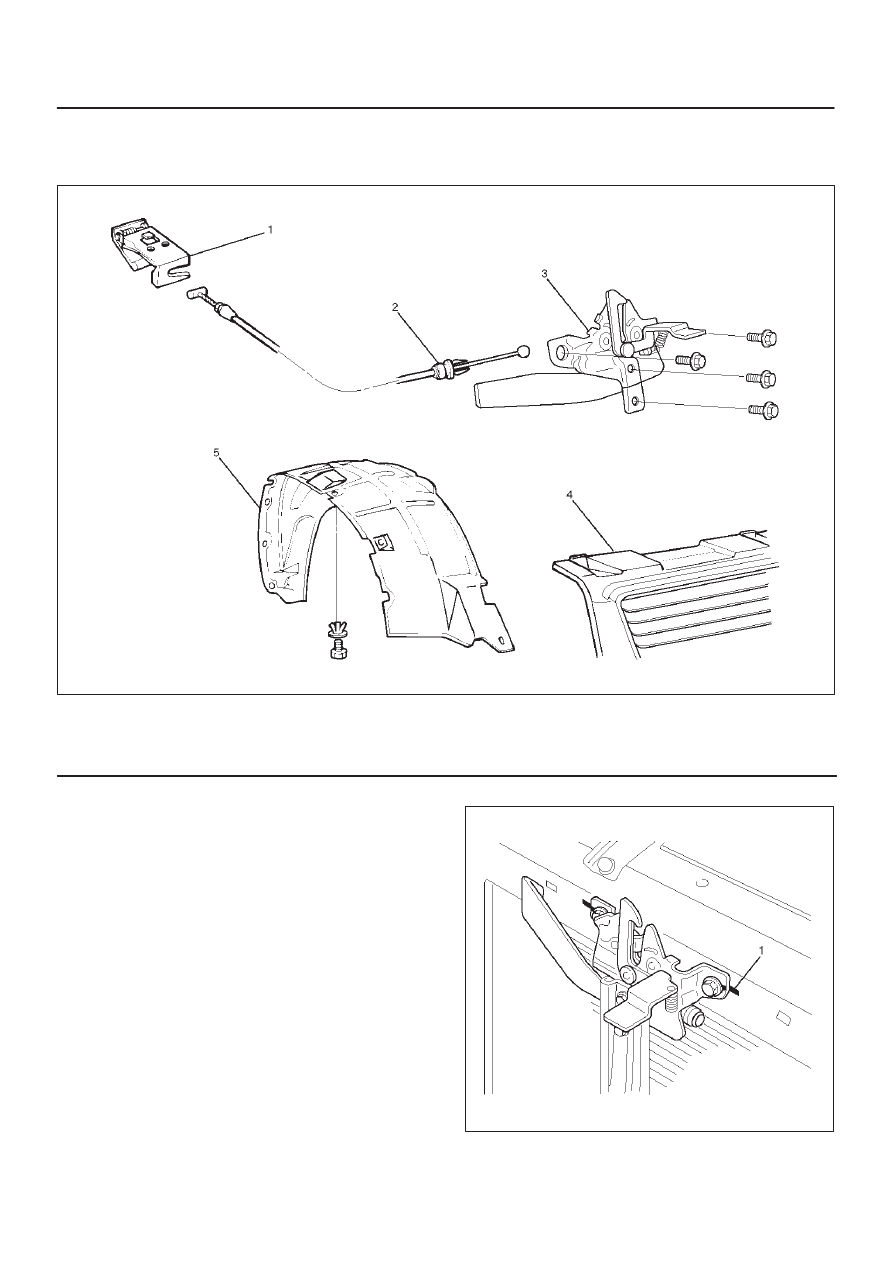

Engine Hood Lock

Parts Location

610RW011

Legend

(1) Hood Lock Control Lever
(2) Control Cable

(3) Engine Hood Lock Assembly
(4) Radiator Grille
(5) Inner Liner

Removal

1. Remove hood lock control lever.
2. Remove inner liner.
3. Remove control cable.

D

Remove the cable fixing clips from the body panel.

4. Remove radiator grille.

D

Refer to Radiator Grille And Front End Lower Panel
in this section.

5. Remove engine hood lock assembly.

D

Apply setting marks (1) to the hood lock assembly
and the body prior to removal.

610RW009

8F–18

BODY STRUCTURE

Installation

To install, follow the removal steps in reverse order noting
the following points:

1. Reroute the control cable to its original position, and

check and see if the lock assembly and control lever
work normally.

2. Tighten the hood lock assembly fixing bolts to the

specified torque.

Torque : 10 N

•

m (1.0kg·m/87 lb in)

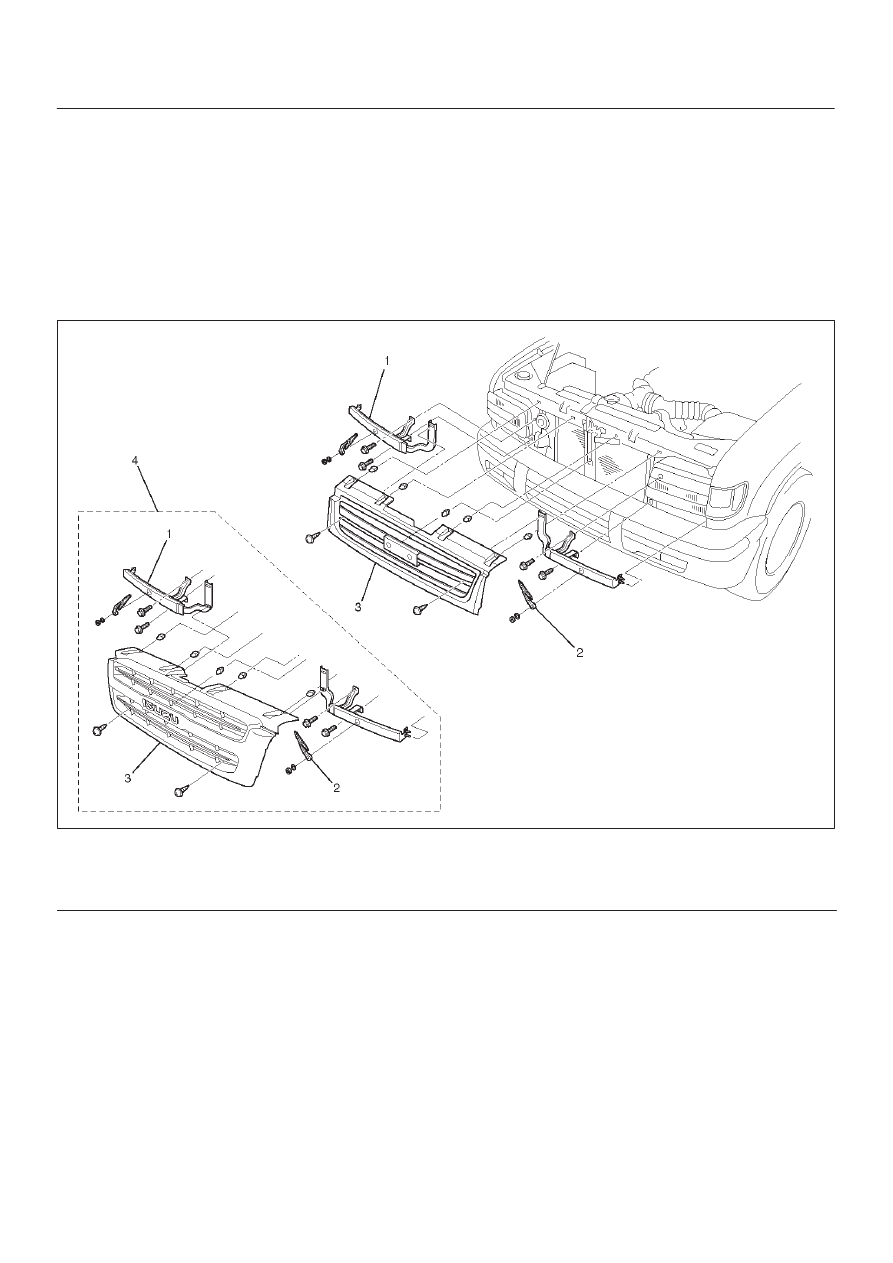

Radiator Grille And Front End Lower Panel

Parts Location

603RY00002

Legend

(1) Front End Lower Panel
(2) Head Light Wiper

(3) Radiator Grille
(4) For ISUZU Brand Vehicle Only

Removal

1. Open the hood.
2. Support the hood.
3. Remove headlight wiper.

D

Refer to Headlight Wiper Arm & Blade in
Wiper/Washer System section.
