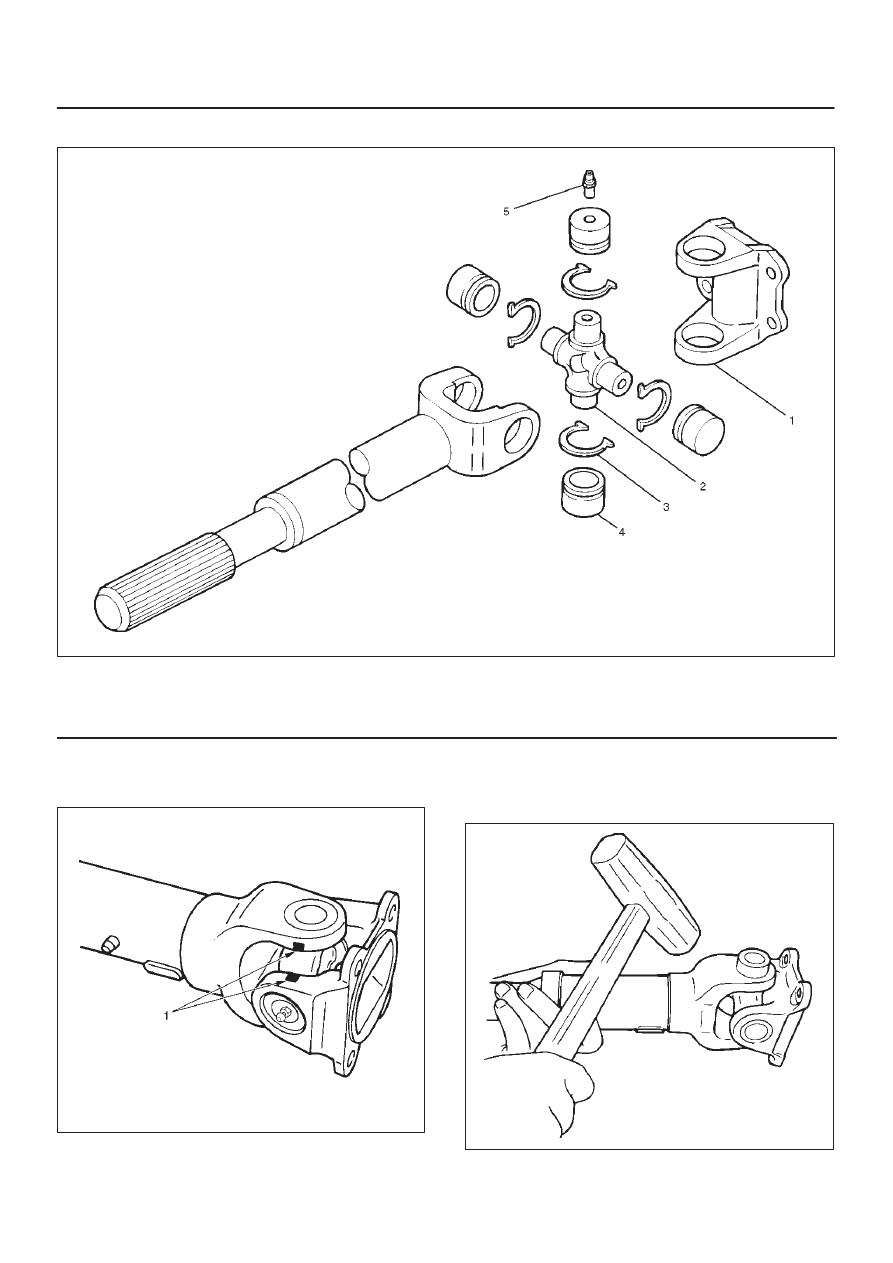

4C–41 DRIVE SHAFT SYSTEM Universal Joint Disassembly 401RW055 Legend (1) Flange Yoke (3) Snap Ring 1. Apply alignment marks (1) on the yokes of the universal joint, then remove snap ring. 401RS028 2. Tap out the needle roller bearing by gently striking the shoulder of the yoke, using a mallet or a copper 401RS006 |
