Opel Frontera UBS. Manual - part 172





4C–45

DRIVE SHAFT SYSTEM

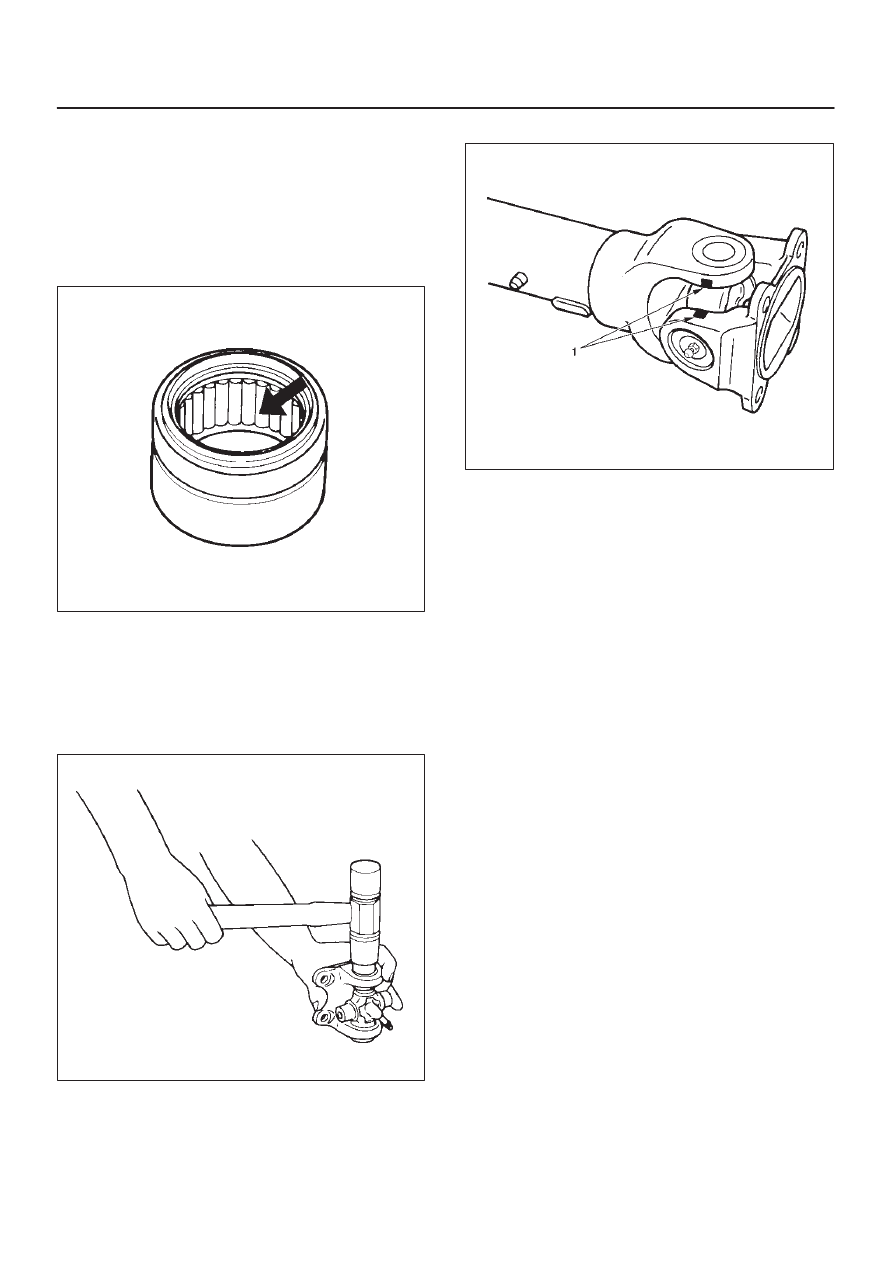

Universal Joint Reassembly

1. Install spider to flange yoke. Be sure to install the

spider by aligning the setting marks made during
disassembly.

2. Apply a molybdenum–disulfide grease or a

multi–purpose type grease NLGI No. 2 to inside of the
bearing cap.

Grease Amount: Approx. 1.2 g (0.042 oz)

401RS011

3. Using either a mallet (or copper hammer) or a press,

install the needle roller bearing into the yoke so that
the snap ring can be installed in its groove.

CAUTION: The  needle roller bearing cannot be
installed smoothly if it is set at an incorrect angle
with the flange and excessive hammering will
damage the needle roller bearing.

401RS012

4. Align setting marks (1) and join the yokes.

401RS028

5. Install snap ring.

NOTE: Discard used snap rings and install new ones.
When the bearing cap is in position, select and attach a
snap ring of suitable thickness so that the end play of the
spider pin is held within 0.1 mm (0.004 in).

Snap ring thickness and Identification color
1.5 mm (0.059 in); Blue
1.53 mm (0.060 in); White
1.59 mm (0.063 in); Yellow
1.62 mm (0.064 in); Green
1.68 mm (0.066 in); Not colored

NOTE: Be sure to use snap rings of the same thickness
on both sides.

4C–46

DRIVE SHAFT SYSTEM

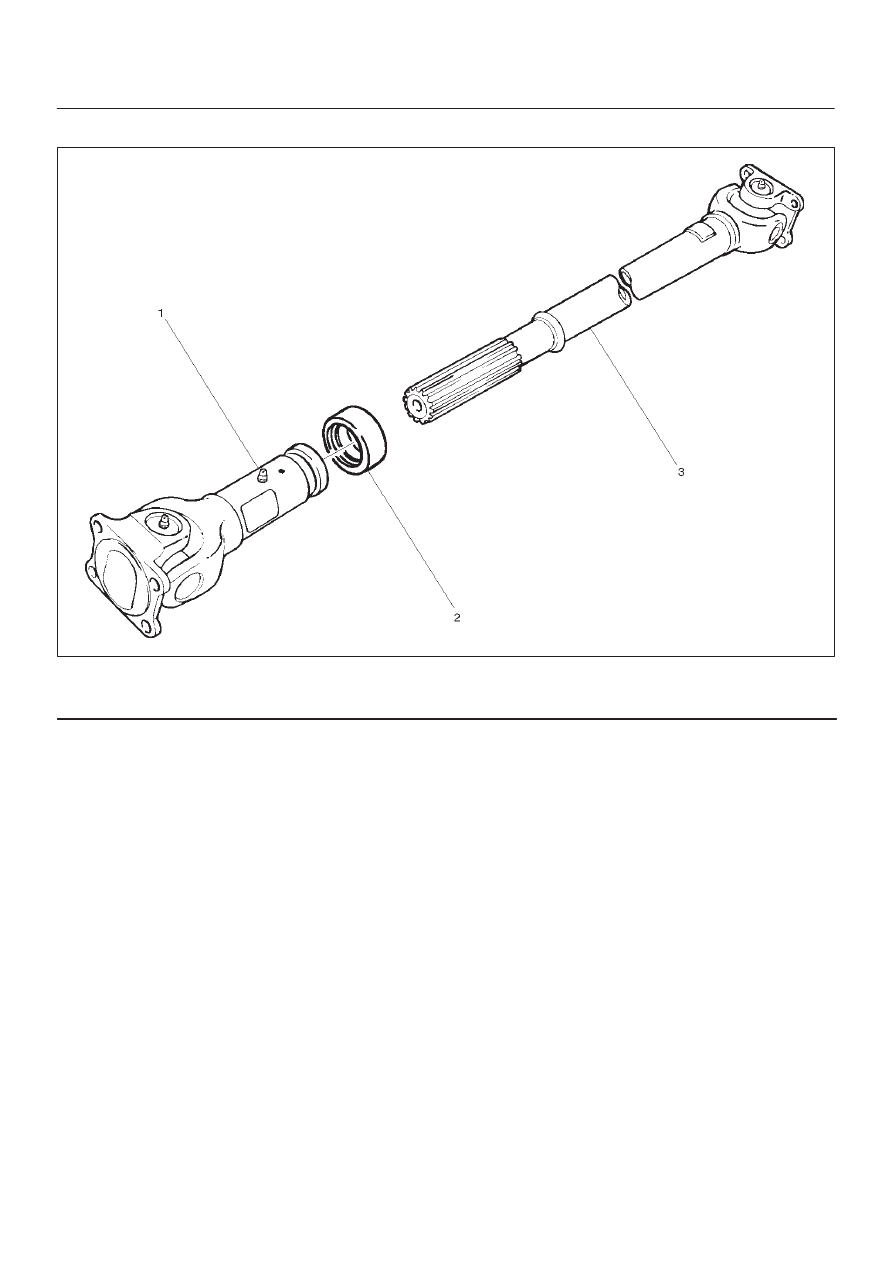

Reassembly (Except TOD 4

×

4)

401RW057

Legend

(1) Sleeve Yoke

(2) Seal
(3) Tube Assembly

1. Discard used seal and install new one.
2. Align the alignment marks and install tube assembly

to sleeve yoke.

4C–47

DRIVE SHAFT SYSTEM

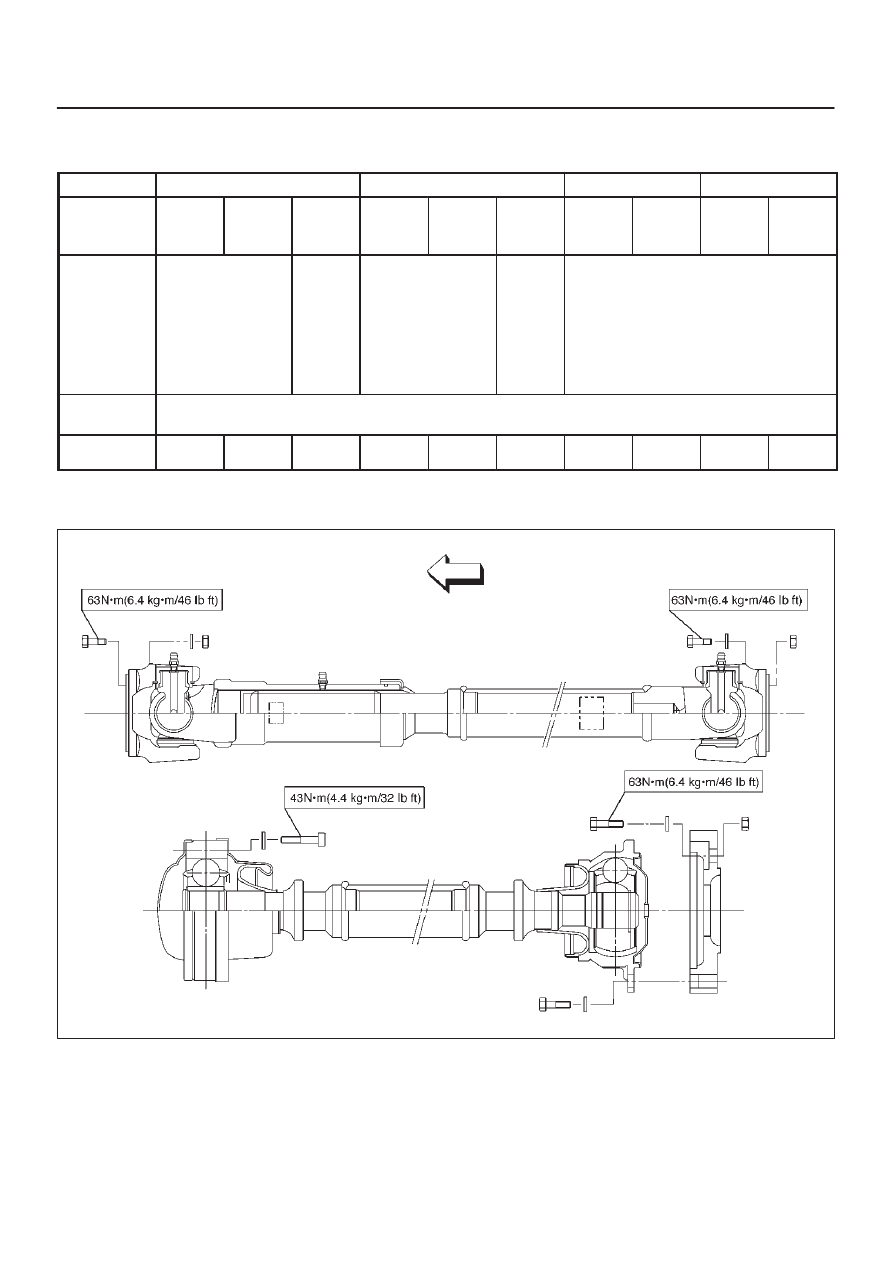

Main Data and Specifications

General Specifications

Engine

6VE1 (3.5L)

6VD1 (3.2L)

4JX1 (3.0L)

4JG2 (3.1L)

Transmission

M/T

A/T

A/T

with

TOD

M/T

A/T

A/T

with

TOD

M/T

A/T

M/T

A/T

Construction

Hollow steel tube

with yoke and

spider type

universal joint

Hollow

steel

tube

with

consta

nt

velocity

joints

Hollow steel tube

with yoke and

spider type

universal joint

Hollow

steel

tube

with

consta

nt

velocity

joints

Hollow steel tube with yoke and

spider type universal joint

Outside
diameter

40.0mm (1.57 in)

Length

559mm

(22.01in)

559mm

(22.01in)

577mm

(22.72in)

393mm

(15.47in)

559mm

(22.01in)

577mm

(22.72in)

627mm

(24.69in)

627mm

(24.69in)

421mm

(16.57in)

627mm

(24.69in)

Torque Specifications

E04RW021

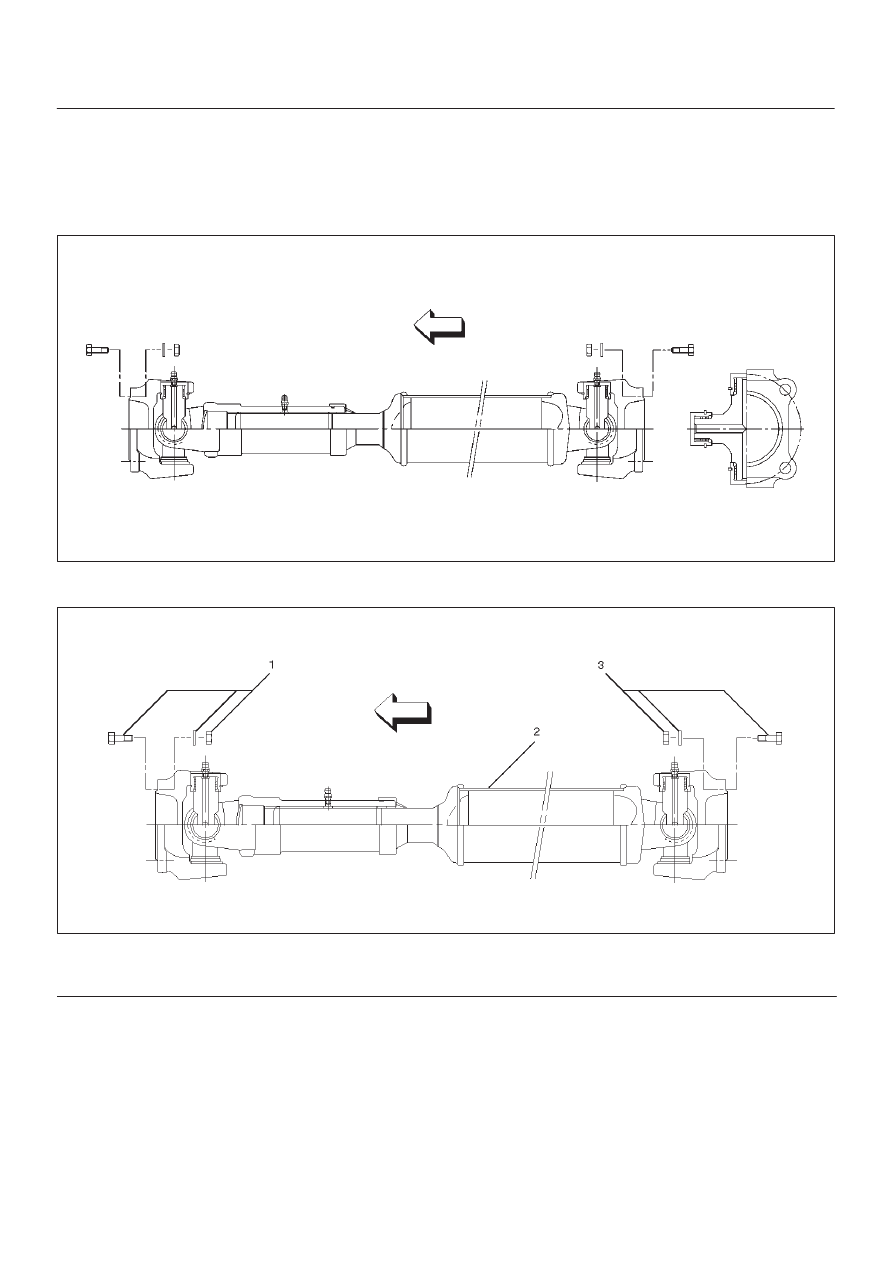

4C–48

DRIVE SHAFT SYSTEM

Rear Propeller Shaft

General Description

Since the propeller shaft is balanced carefully, welding or
any other modifications are not permitted.

Alignment marks should be applied to each propeller
shaft before removal.

401RW003

Rear Propeller Shaft and Associated Parts

401RW059

Legend

(1) Bolt, Nut and Washer

(2) Rear Propeller Shaft
(3) Bolt, Nut and Washer
