7B–54 MANUAL TRANSMISSION

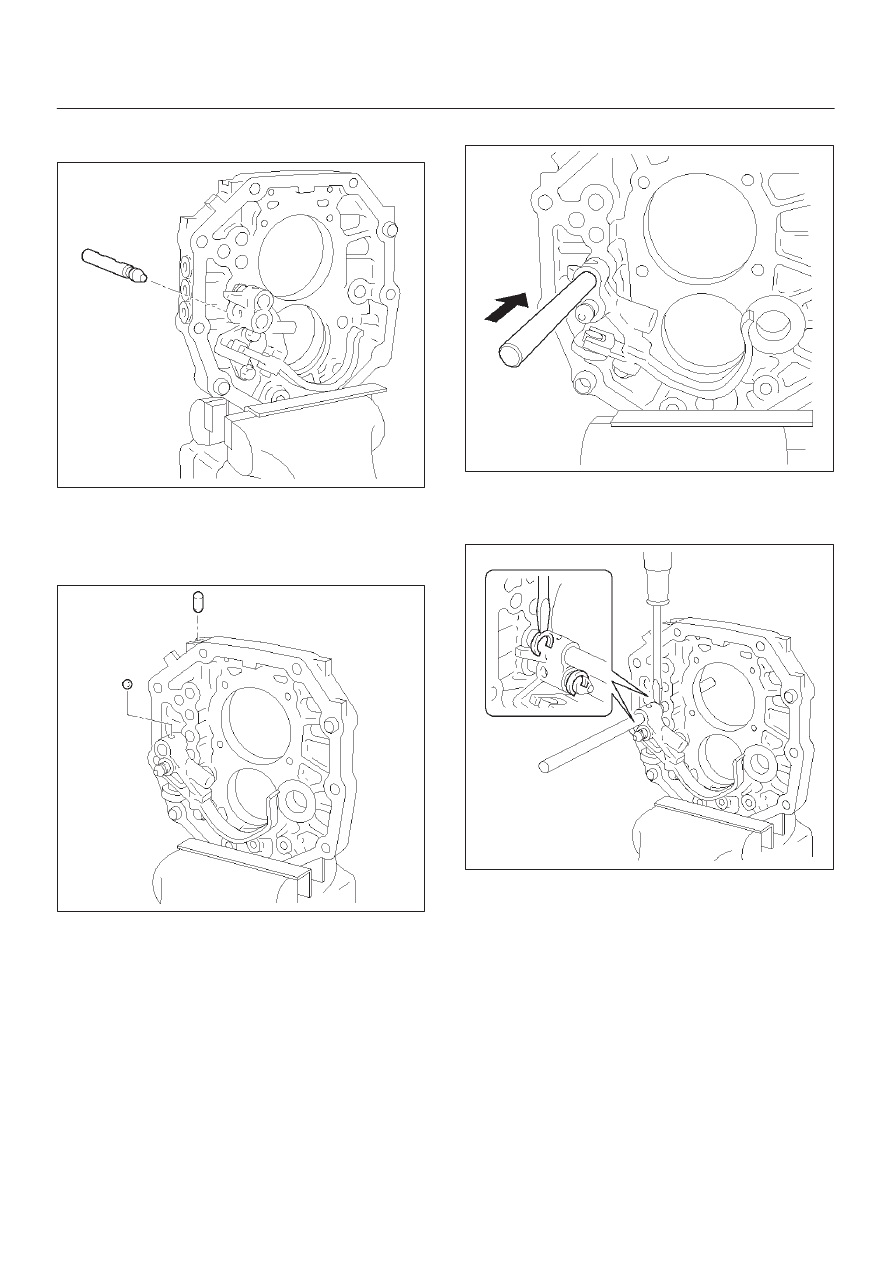

2. Install the reverse shift rod from the rear side by

pushing the ball on using a screwdriver.

226RW126

21. Install the reverse-5th shift rod.

1. Install the reverse shift arm No.1 lock ball to the

reverse shift arm No.1.

2. Install the interlock pin to the intermediate plate.

226RW039

3. Put in the reverse-5th shift rod from the front.

226RW011

4. Using a screwdriver and a hammer, install the 2

new shift rod snap rings to the 5th-reverse shift
rod and reverse shift rod.

226RW037

MANUAL TRANSMISSION

7B–55

22. Install 1st–2nd shift rod.

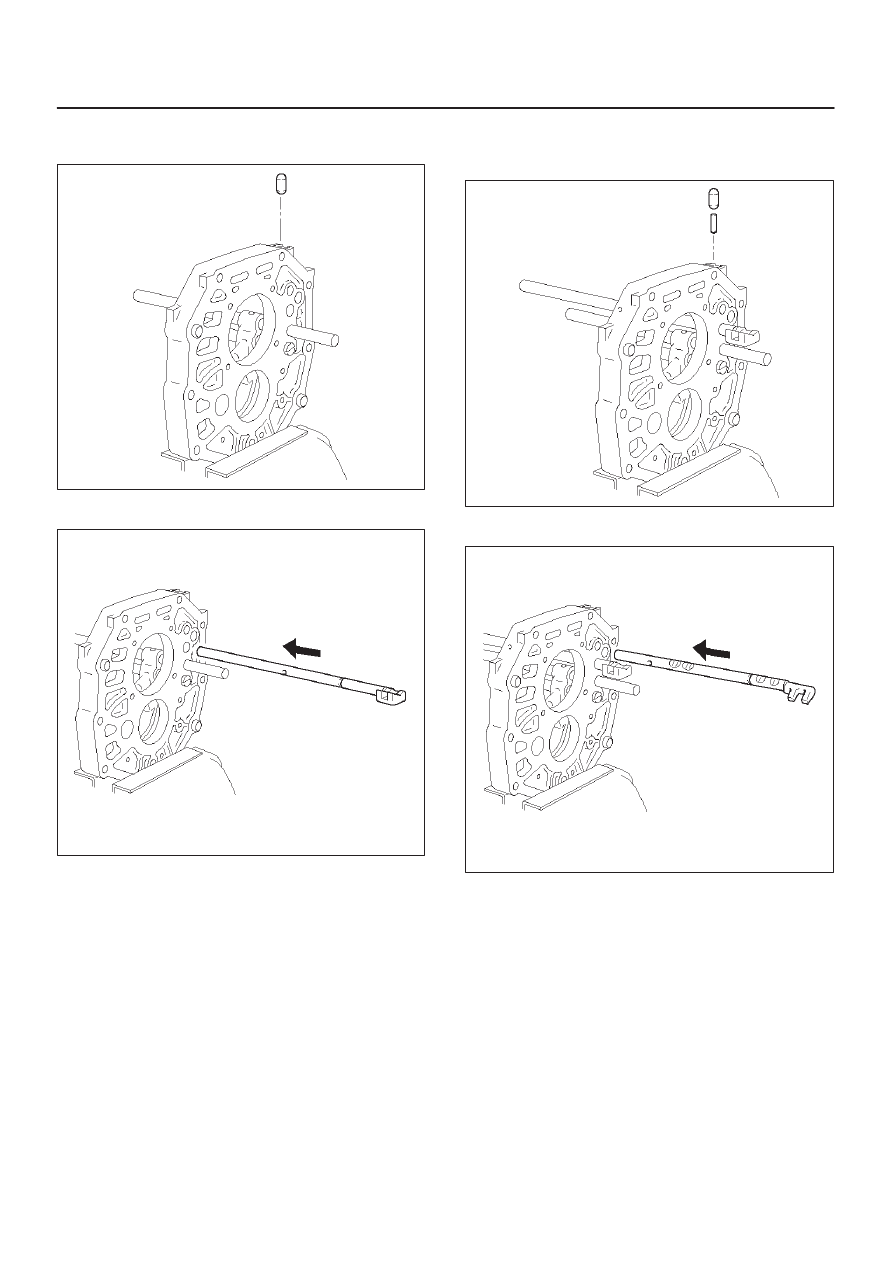

1. Install the interlock pin to the intermediate plate.

226RW042

2. Put in the 1st–2nd shift rod from the rear.

226RW044

23. Install 3rd–4th shift rod.

1. Install the straight pin and interlock pin to the

intermediate plate.

226RW043

2. Put in the 3rd–4th shift rod from the rear.

226RW046

7B–56 MANUAL TRANSMISSION

24. Install the interlock parts.

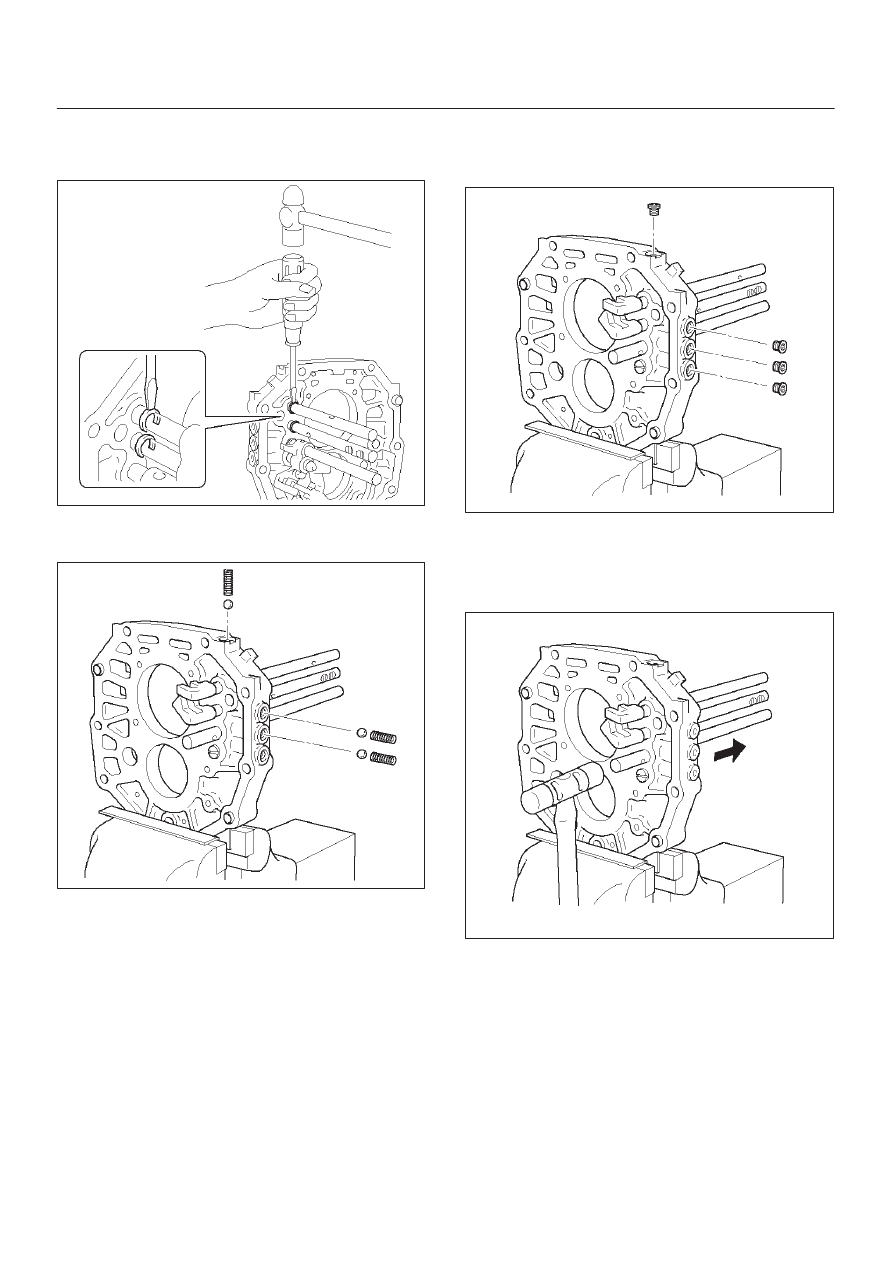

1. Using a screwdriver and hammer, 2 new shift rod

snap rings to the 1st–2nd and 3rd–4th shift rod.

226RW051

2. Install the 3 shift detent ball and springs to the

intermediate plate.

226RW049

3. Clean up the plug hole.

4. Apply sealant to the plug threads.

sealant: THREE BOND 1344 or equivalent

5. Using a torx socket wrench(T40), install and

torque the 4 plugs.

Torque: 19 N·m (1.9 kg·m/14 lb ft)

226RW050

25. Install mainshaft assembly.

NOTE: Coat all parts with gear oil before installing them.

1. Using a plastic hammer, tap the 5th-reverse shift

rod at the reverse shift.

226RW180

MANUAL TRANSMISSION

7B–57

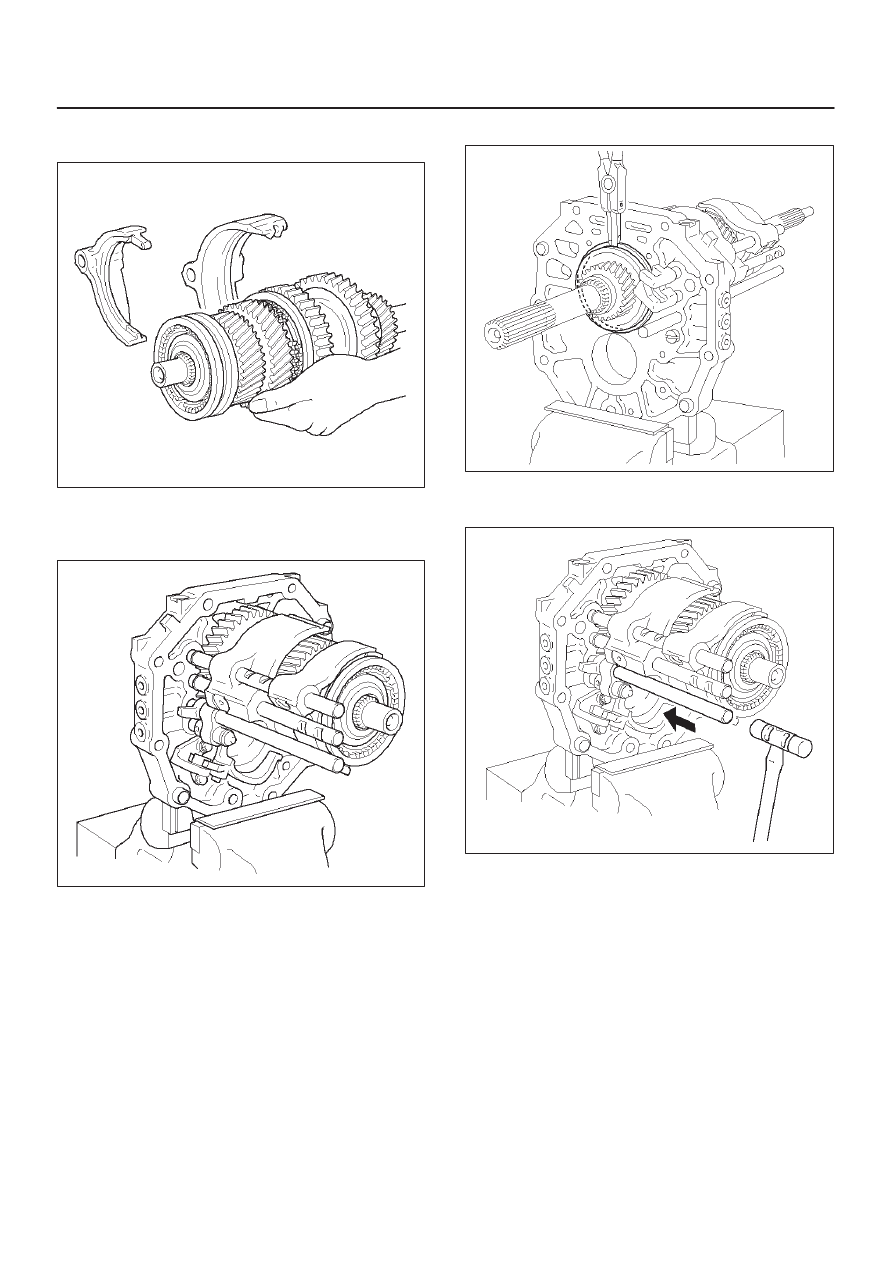

2. Install the shift arm No.1 and No.2 to the

mainshaft.

226RW010

3. Using a plastic hammer, tap the intermediate

plate and install the mainshaft.  Through the shift
arm No.1 and No.2 to the shift rod.

226RW009

4. Using a snap ring expander, install the snap ring.

226RW035

5. Using a plastic hammer, tap the 5th-reverse shift

rod at the neutral shift.

226RW008
