7B–50 MANUAL TRANSMISSION

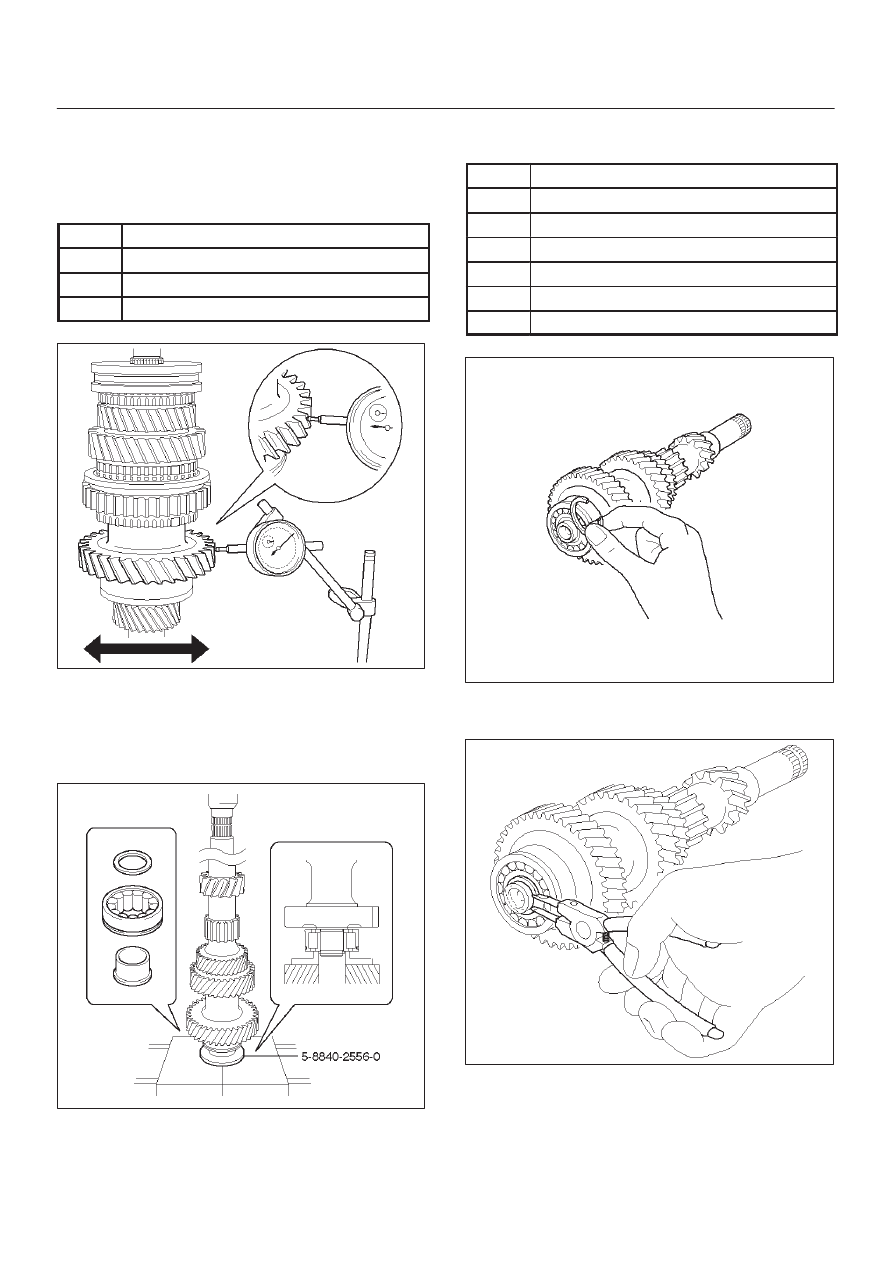

15. Inspect each gear radial clearance.

1. Mount the mainshaft through the aluminum plate

in a vise.

2. Using a dial indicator, measure the radial

clearance of each gear.

Gear

Standard Clearanse

1st

0.020 – 0.073 mm (0.0008 – 0.0029 in)

2nd

0.015 – 0.068 mm (0.0006 – 0.0027 in)

3rd

0.015 – 0.068 mm (0.0006 – 0.0027 in)

226RW071

16. Install the counter gear shaft.

1. Check the new counter front bearing inner race

and the side race, as shown.

2. Using installer 5–8840–2556–0 (J–42800) and a

press, install the counter gear shaft front bearing.

226RW194

3. Select a snap ring that will allow minimum axial

play.

Mark

Thickness

A

2.00 – 2.05 mm (0.079 – 0.081 in)

B

2.05 – 2.10 mm (0.081 – 0.083 in)

C

2.10 – 2.15 mm (0.083 – 0.085 in)

D

2.15 – 2.20 mm (0.085 – 0.087 in)

E

2.20 – 2.25 mm (0.087 – 0.089 in)

F

2.25 – 2.30 mm (0.089 – 0.091 in)

226RW128

4. Using a snap ring expander, install the new snap

ring.

226RW129

MANUAL TRANSMISSION

7B–51

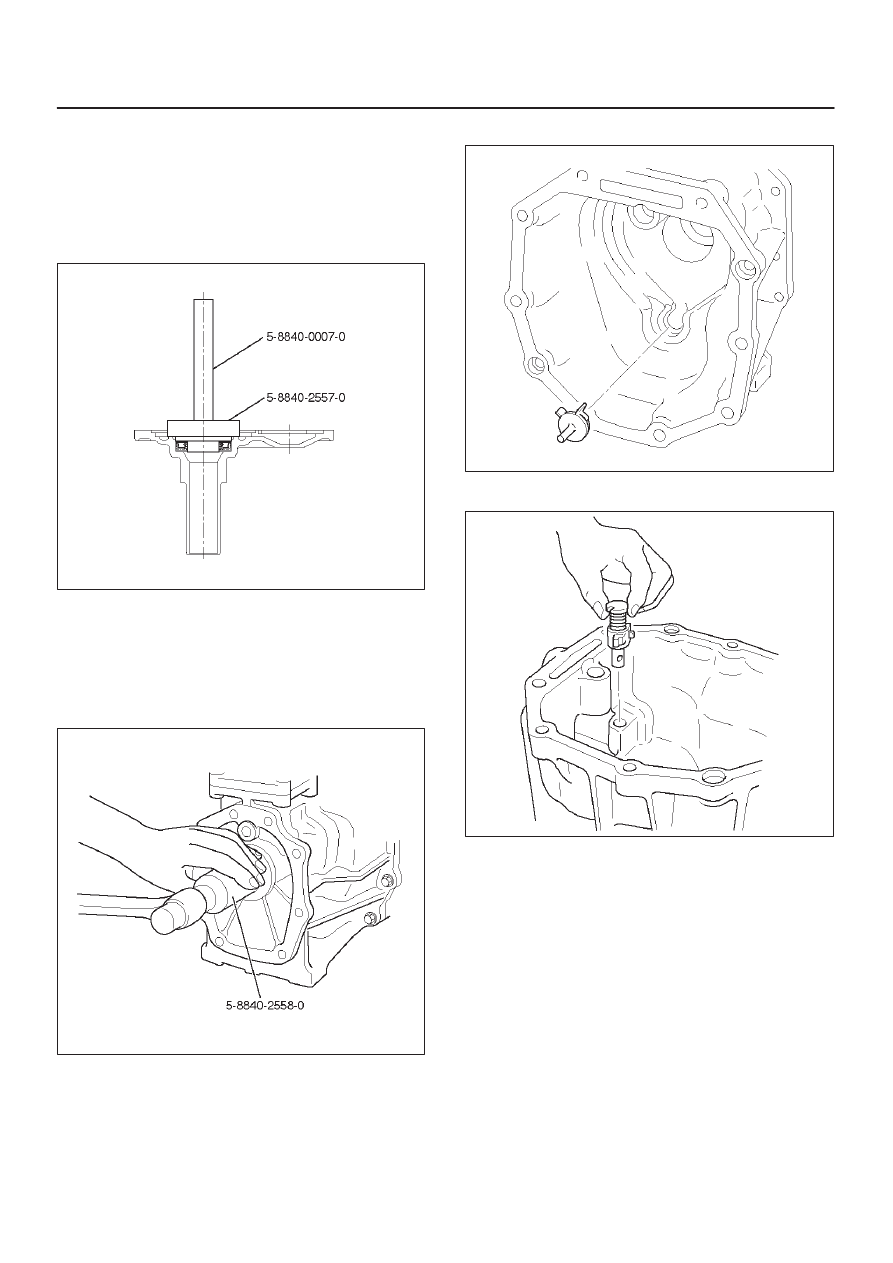

17. Install the front cover.

1. Using installer 5–8840–2557–0 (J–42801), grip

5–8840–0007–0 (J–8092) and a hammer, drive in
a new oil seal.

Drive in depth (from cover end): 11.7

±

0.5 mm

(0.46

±

0.02 in)

2. Apply grease to the seal lip.

220RW113

18. Install the transfer adapter.

1. Using installer 5–8840–2558–0 (J –42802), and a

hammer drive in a new oil seal.

Drive in depth (from transfer adapter):
10.95

±

0.5 mm (0.431

±

0.02 in)

2. Apply grease to the oil seal lip.

220RW114

3. Install the oil receiver pipe.

220RW011

4. Install the reverse restrict to the transfer adapter.

226RW059

7B–52 MANUAL TRANSMISSION

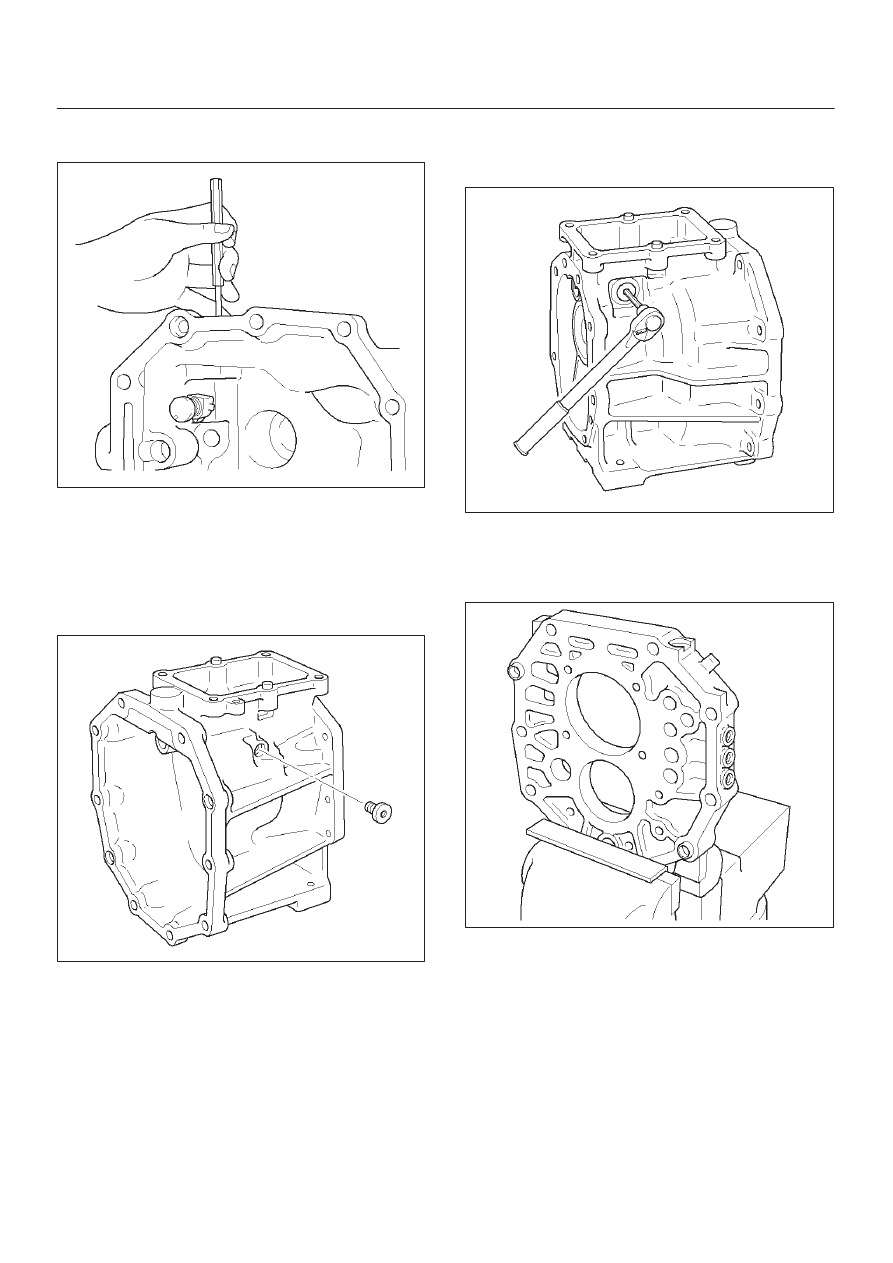

5. Using a pin punch and hammer, drive in the

slotted spring pin.

226RW058

6. Clean up the plug and plug hole.

7. Apply sealant to the plug threads. (THREE BOND

1344 or equivalent)

8. Using a torx socket wrench(T40), install and

torque the plug.

Torque: 19 N·m (1.9 kg·m/14 lb ft)

220RW013

9. Using hexagon wrench, install and torque the

plug.

Torque: 37 N·m (3.8 kg·m/27 lb ft)

220RW014

19. Install the reverse shift arm No.1 and reverse shift

arm No.2.
1. Mount the intermediate plate through the

aluminum plate in a vise.

226RW057

MANUAL TRANSMISSION

7B–53

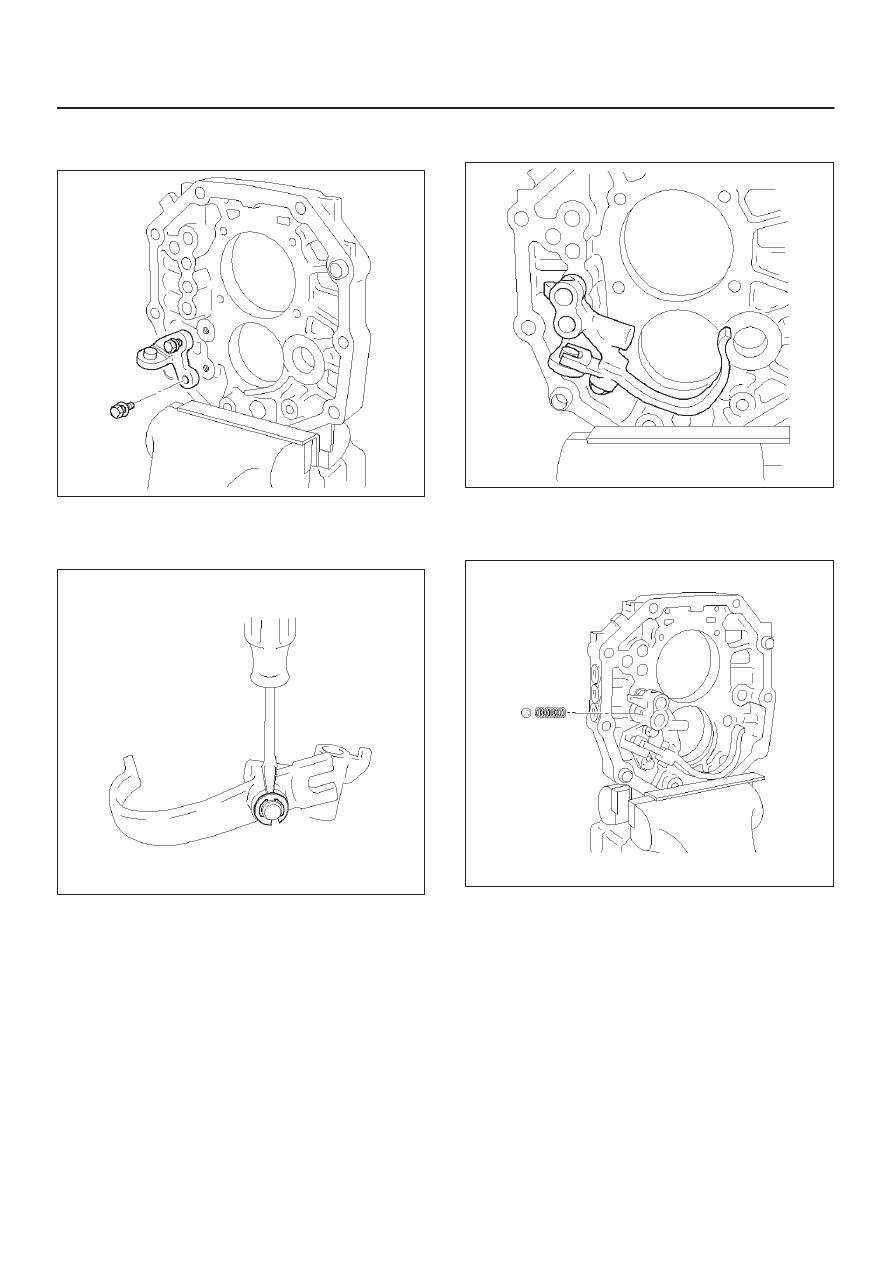

2. Using 2 bolts, install reverse shift arm bracket.

Torque: 18 N·m (1.8 kg·m/13 lb ft)

226RW054

3. Install reverse shift arm No.2 to the reverse shift

arm No.1.  Using screwdriver and a hammer,
install the new E-ring.

226RW138

4. Install reverse shift arm No.2 to the reverse shift

arm bracket.

226RW012

20. Install the reverse shift rod.

1. Install the reverse shift arm No.1 compression

spring and ball to the reverse shift arm No.1.

226RW125
