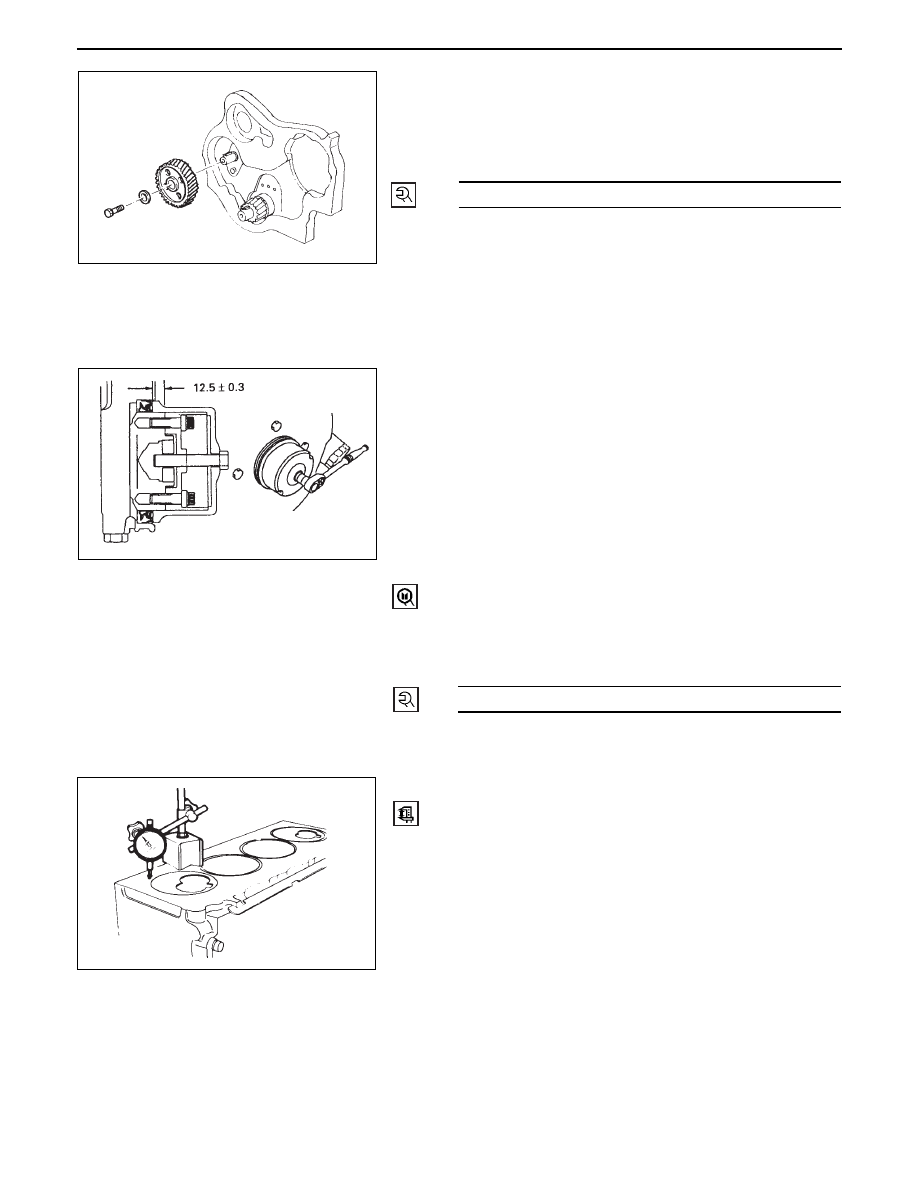

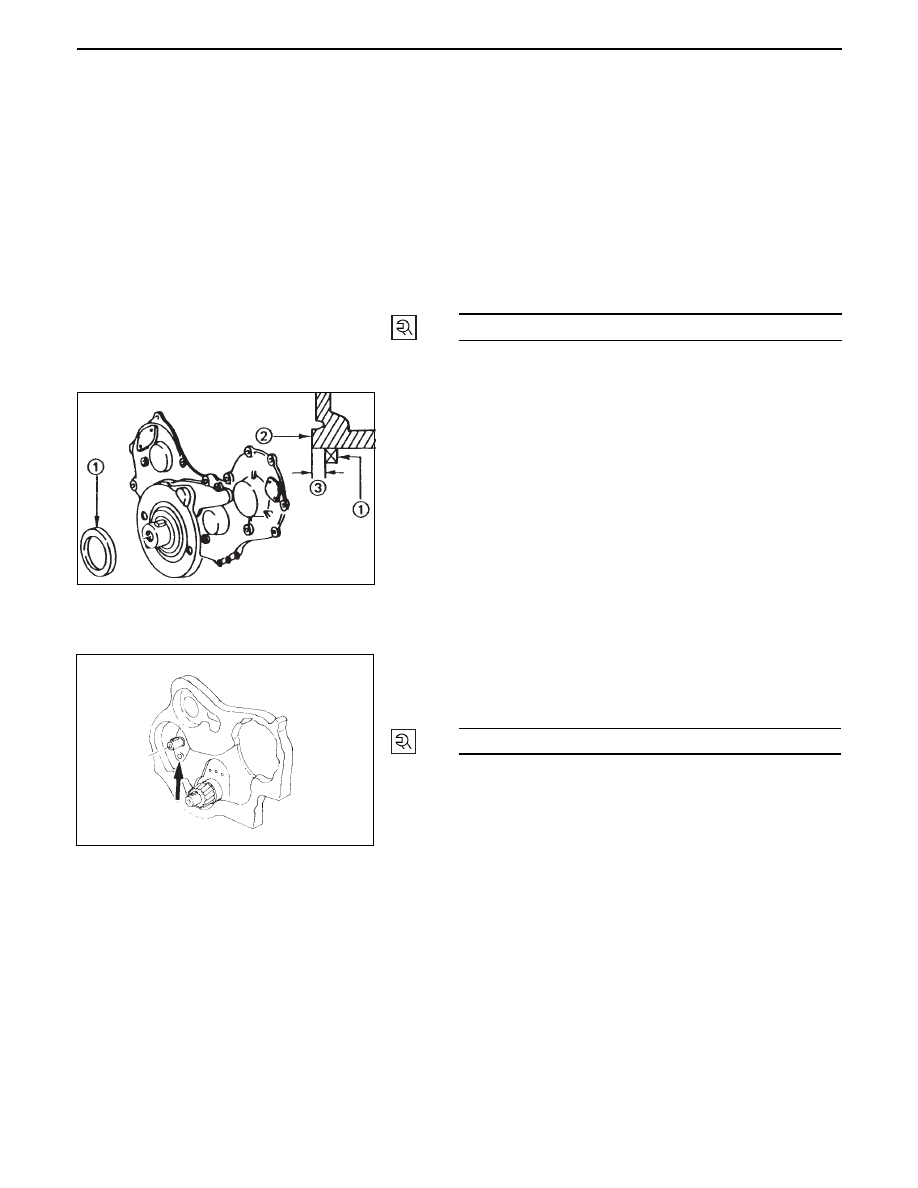

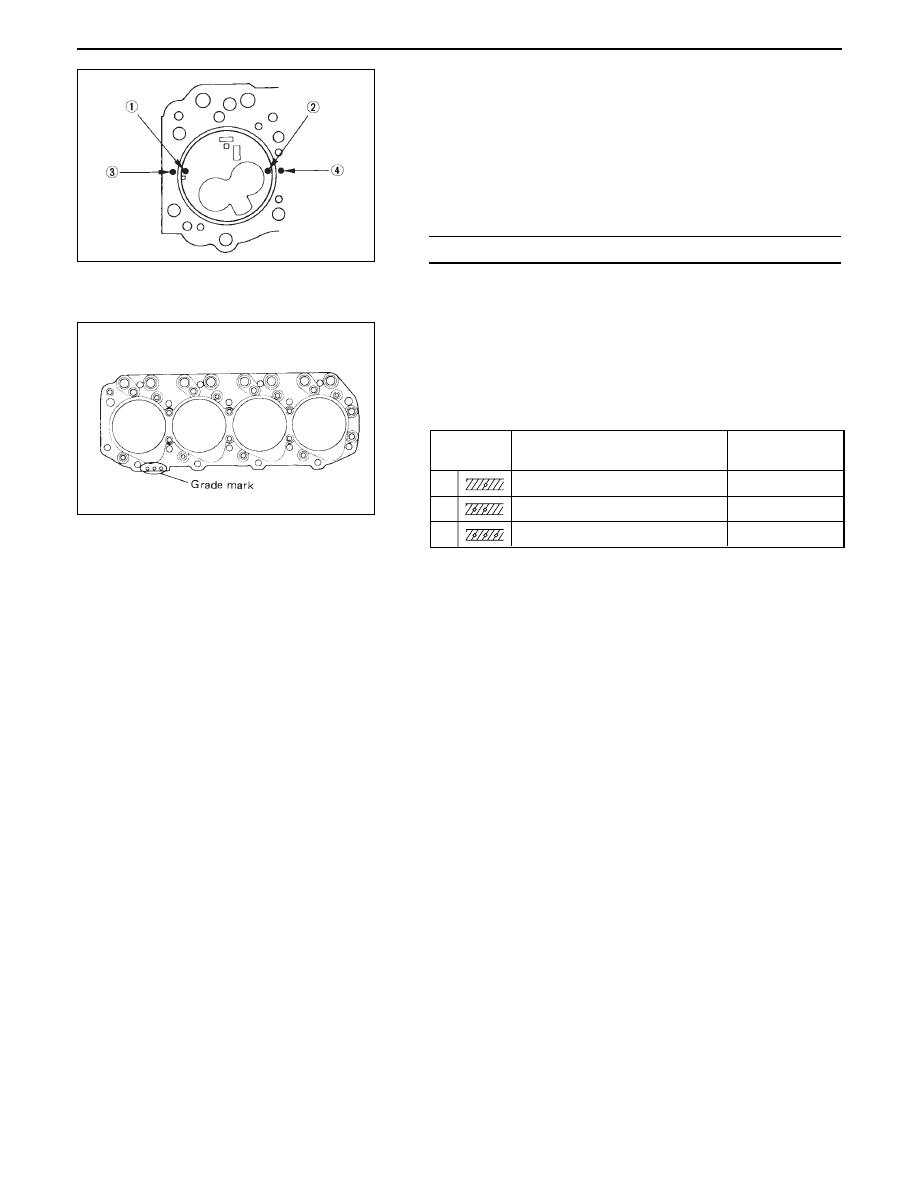

ENGINE MECHANICAL 6A – 49 14. Piston Assembly • Refer to “Piston and connecting rod” in this Section. 13. Tappet 12. Timing Gear Case 1) Install the timing gear case to the cylinder body. NOTE: Take care not to twist the front oil seal. 2) Tighten the timing gear case bolt together with the timing gear case gasket to the specified torque. 19 (1.9/14) N·m (kg·m/lb·ft) 3) Cut away the gasket protruding above the fitting surfaces (as shown in the illustration). 11. Crankshaft Front Oil Seal • Use the installer to install the front oil seal 1 to Oil Seal Installer: 5-8840-2061-0 Note the oil seal installation depth 3 shown in Depth 3 = 1 mm (0.039 in.) 10. Camshaft • Refer to ‘Camshaft, Tappet’ in Section 6A. 9. Camshaft Thrust Plate • Install the thrust plate to the cylinder body and 18 (1.8/13) N·m (kg·m/lb·ft) |
