4D1–42 TRANSFER CASE (STANDARD TYPE)

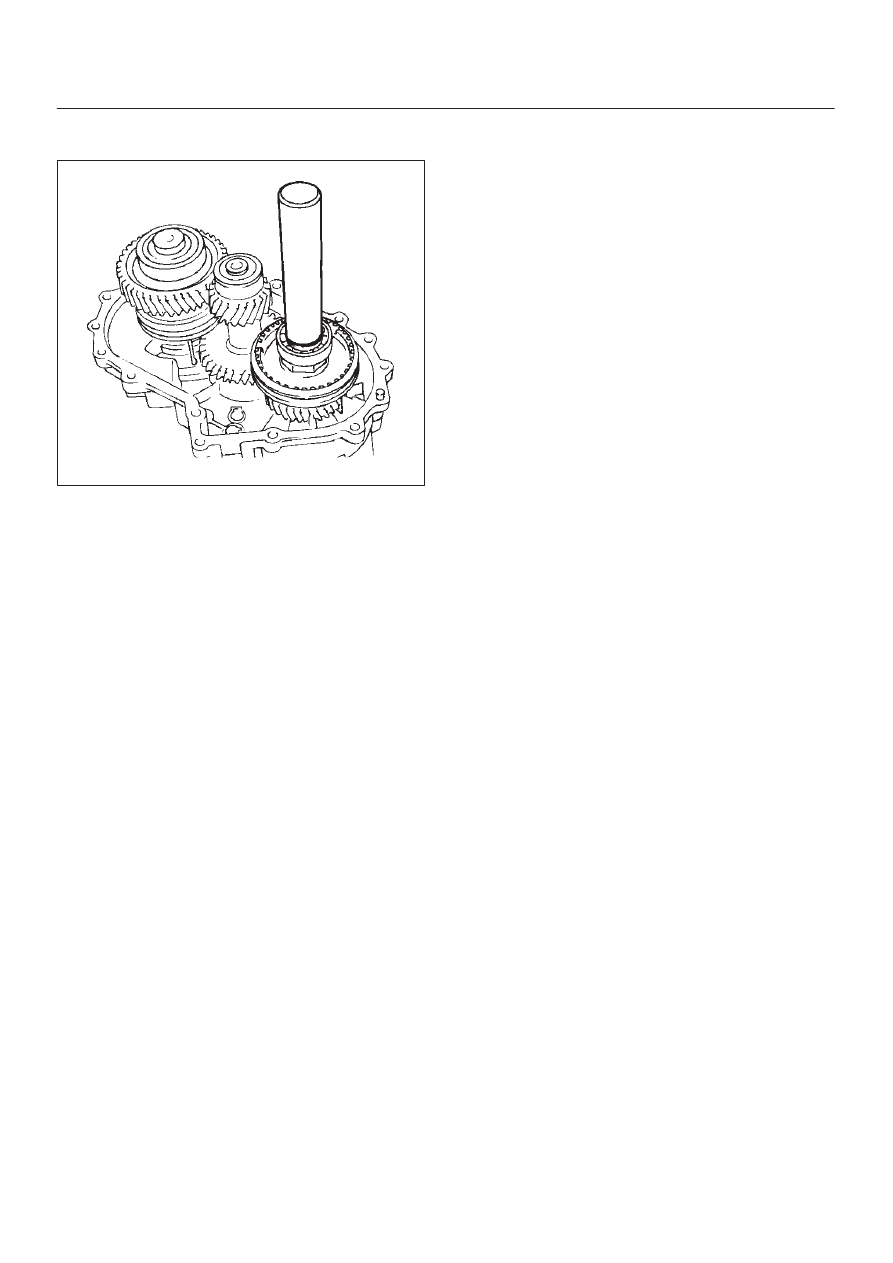

39. Use a suitable drift and hammer to install the ball

bearing (41).

226RS079

40. Install the bearing snap ring (42).

TRANSFER CASE (STANDARD TYPE)

4D1–43

Main Data and Specifications

General Specifications

Type

W/Shift On The Fly System model
Synchronized type gears shifting between the 2 and 4 wheel drive mode.
Constant mesh type gears shifting between “low” and “high”.
WO/Shift On The Fly System model
Constant mesh type gears shifting between the 2 and 4 wheel drive mode,
and between “low” and “high”.

Control method

W/4WD Switch model
Electric control with the button switch on the instrument panel for gear
shifting between the 2 and 4 wheel drive mode.
Remote control with the gear shift lever on the floor for gear shifting
between “low and high” .
WO/4WD Switch model
Remote control with the gear shift lever on the floor for gear shifting.

Gear ratio

High; 1.000
Low; 2.050

Oil capacity

1.45 lit. (1.53 U.S. quart)

Type of lubricant

Engine oil
Refer to chart in Section 0

Torque Specifications

E07RW037

4D1–44 TRANSFER CASE (STANDARD TYPE)

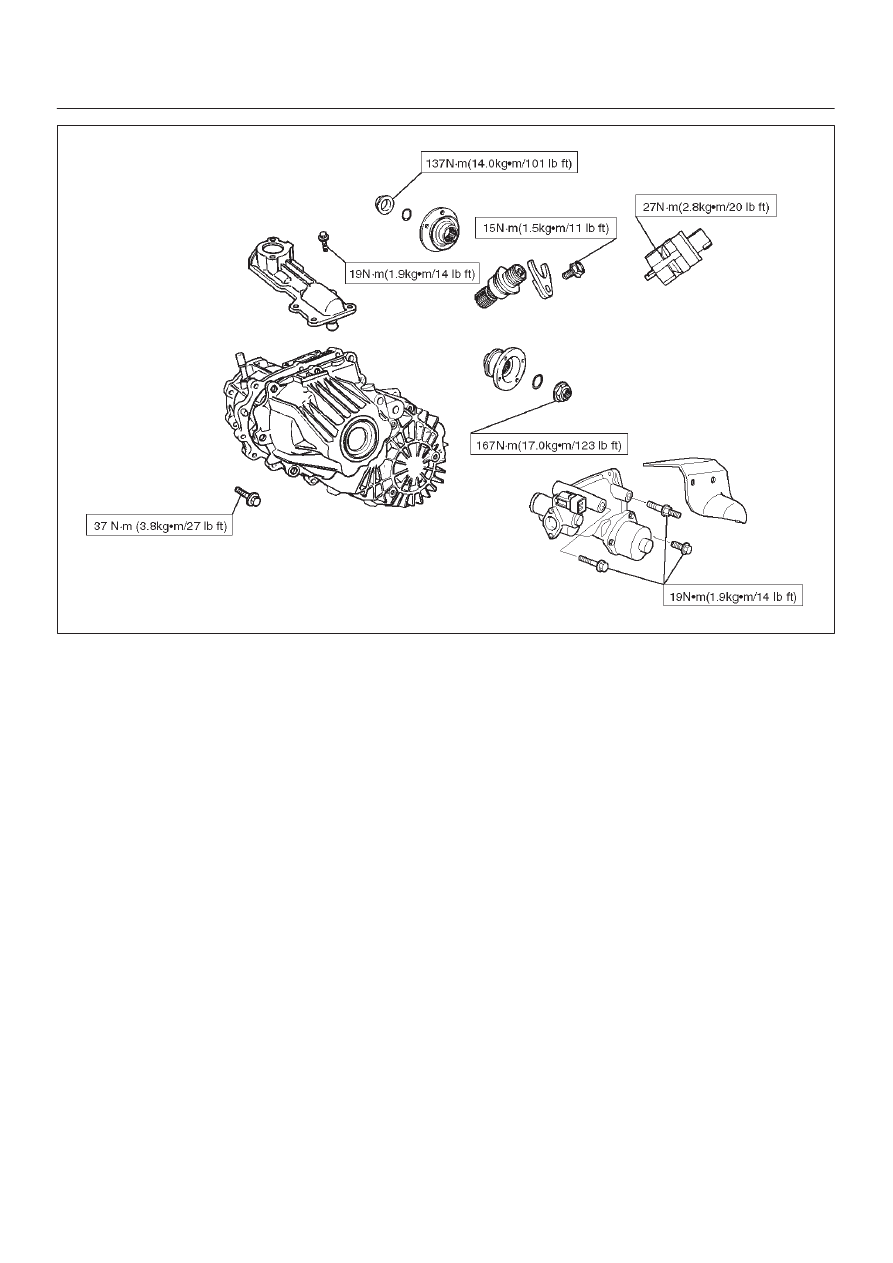

E07RW039

TRANSFER CASE (STANDARD TYPE)

4D1–45

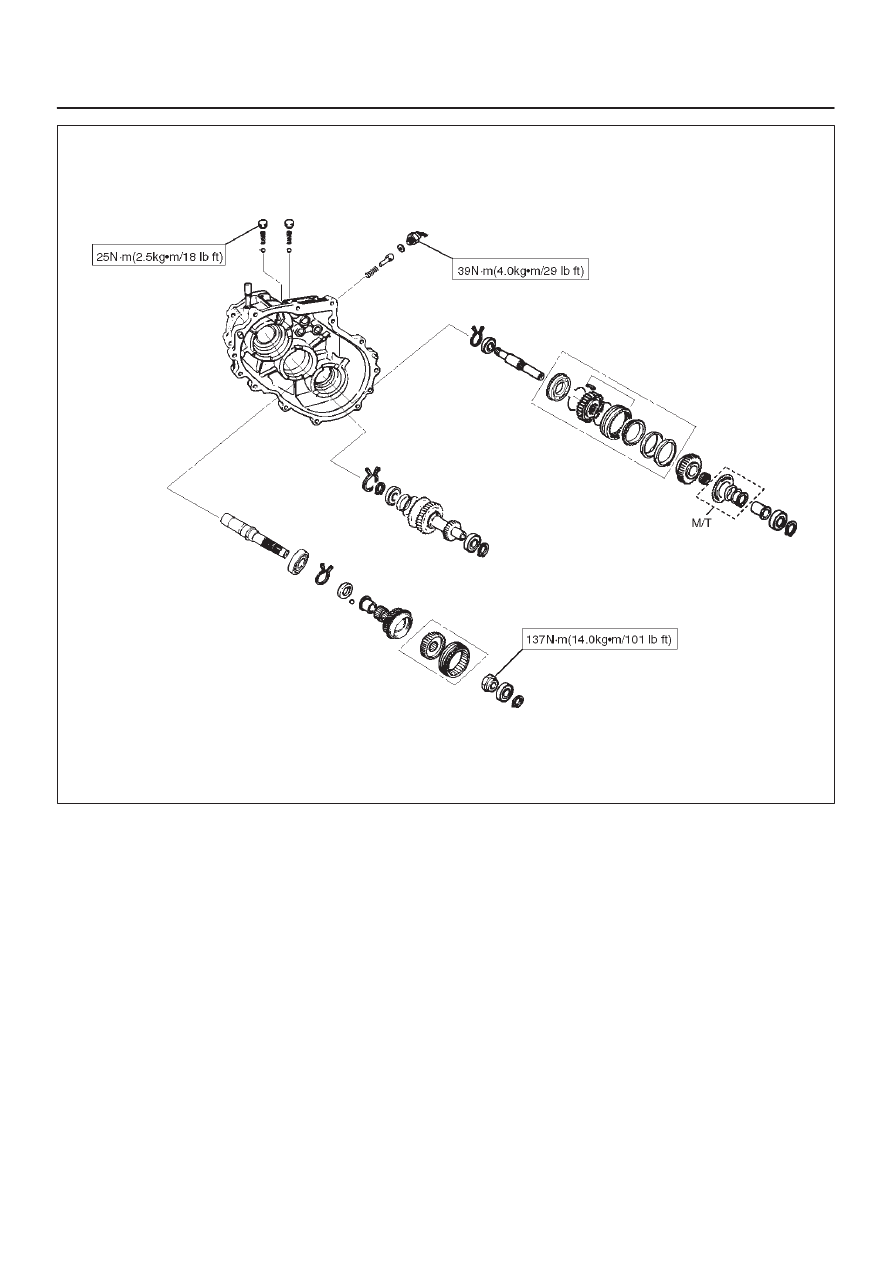

E07RW038
