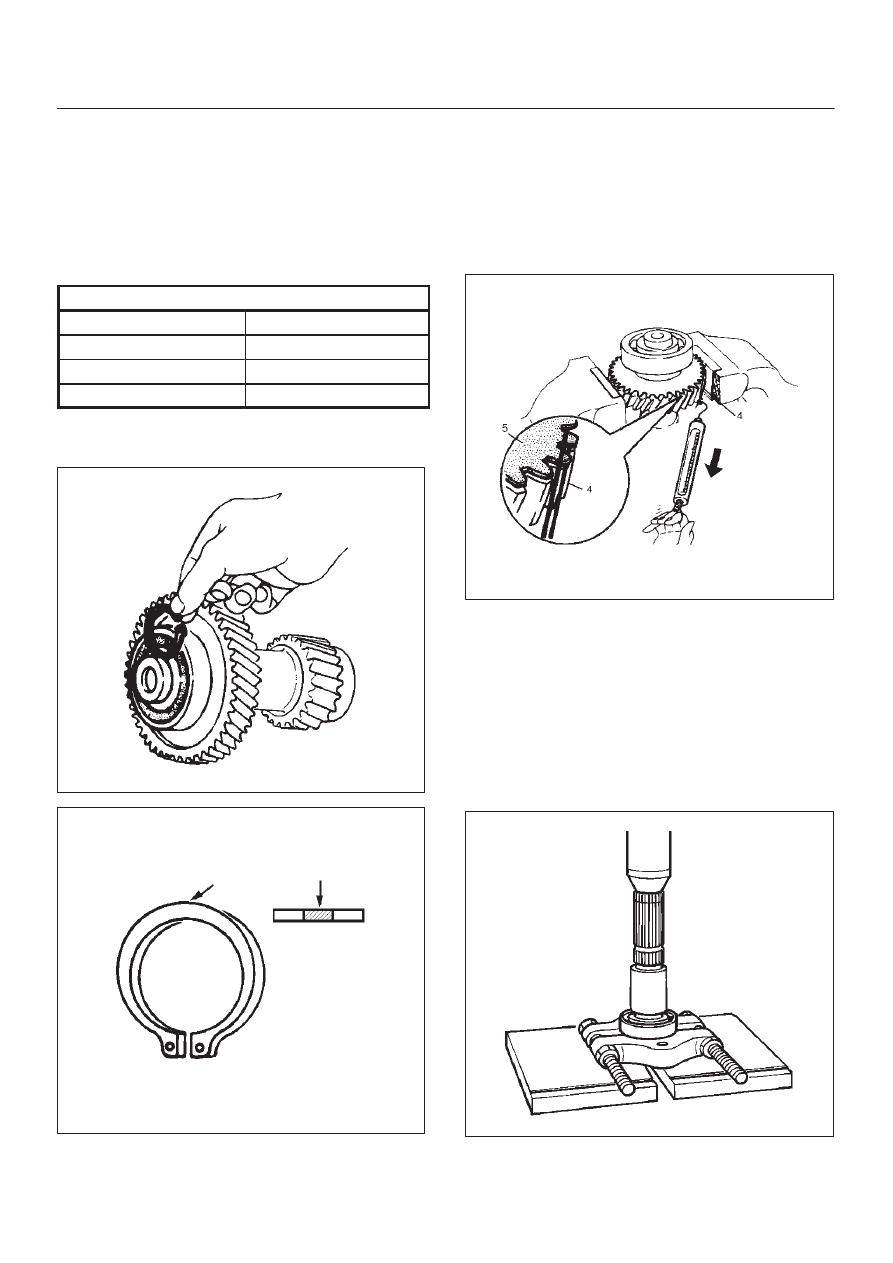

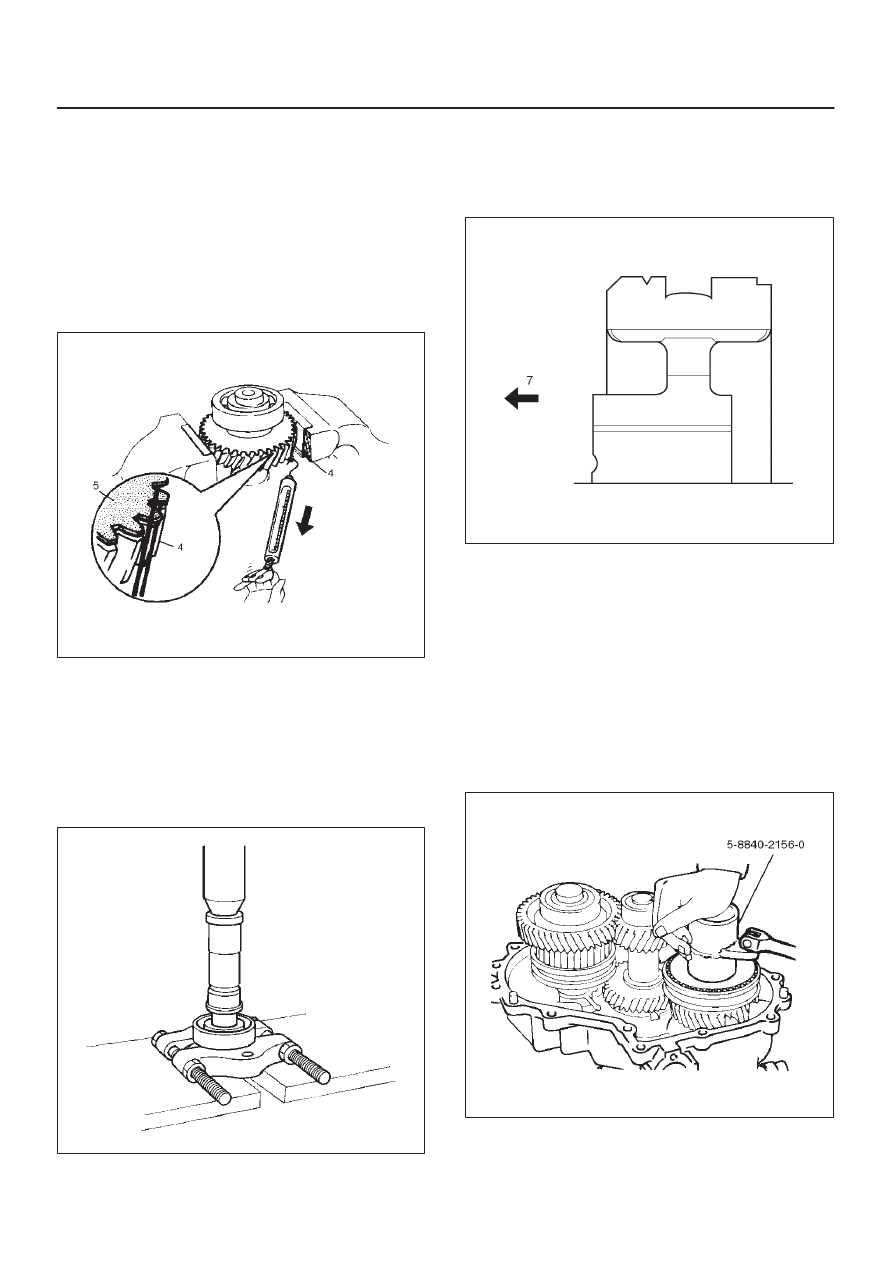

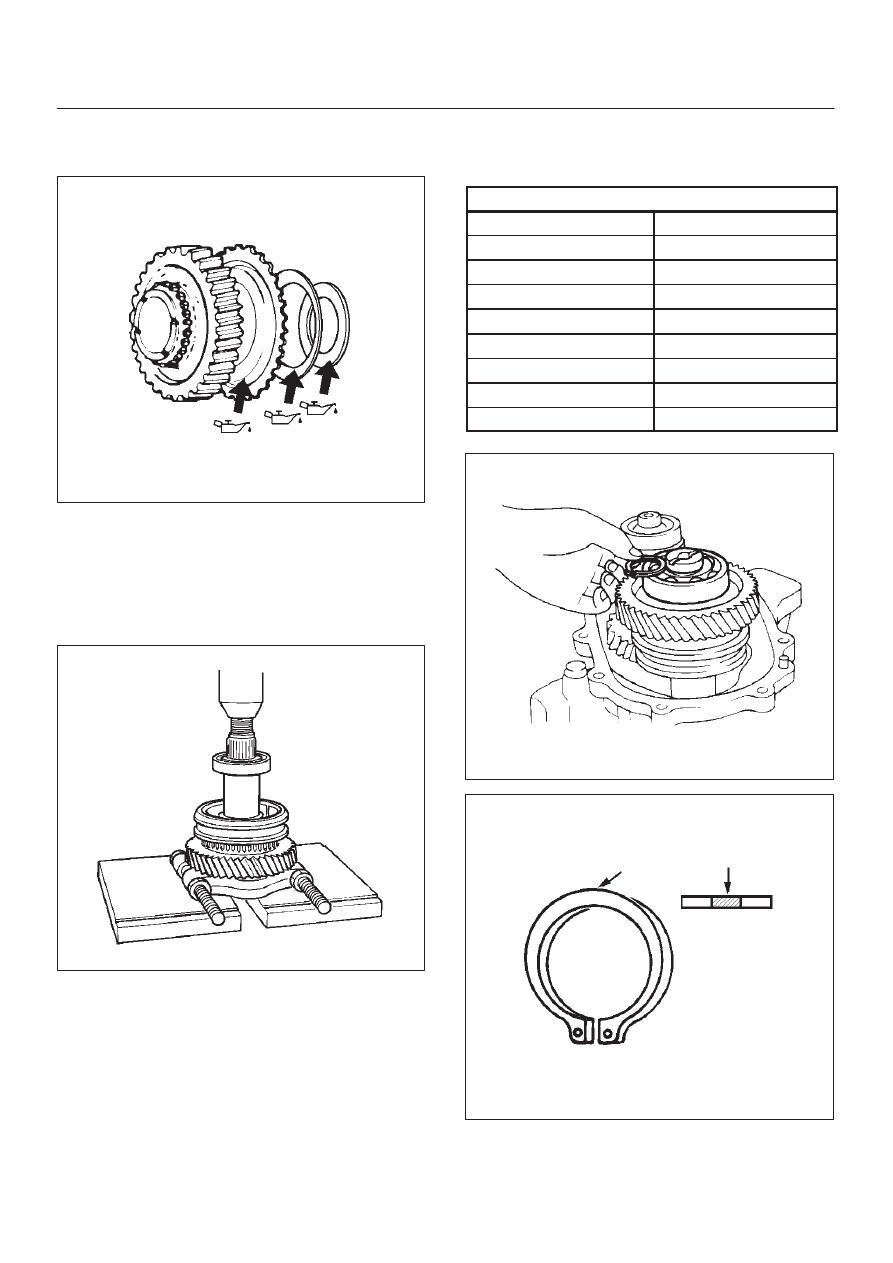

4D1–38 TRANSFER CASE (STANDARD TYPE) 3. Install the sub–gear (23) to the counter gear (22). the sub–gear (23). 6. Install the ball bearing (26), using a bench press. play. Clearance : 0–0.1 mm (0–0.004 in) Snap ring availability: Thickness Color–coding 1.50 mm (0.059 in) White 1.55 mm (0.061 in) Yellow 1.60 mm (0.063 in) Blue 8. Use a pair of snap ring pliers to install the snap ring (27) to the counter gear (22). 226RS170 226RS021 Sub–Gear (anti–lash plate) Preload 1. Hook a length of piano wire (4) over one of the sub–gear (5) teeth. 2. Attach the other end of the piano wire (4) to a spring balancer. 3. Measure the sub–gear preload. Preload : 59–98 N (6.0–10kg/13–22 lb) 226RS075 9. Install ball bearing (21), using a bench press. 10. Install snap ring (20). 11. Install the counter gear assembly (28) to the transfer case (1). 12. Use a pair of snap ring pliers to install the snap ring (29) to the transfer case (1). NOTE: The snap ring must be fully inserted into the 13. Use a bench press to install the ball bearing (4) to the front output shaft (5). 262RS012 |
