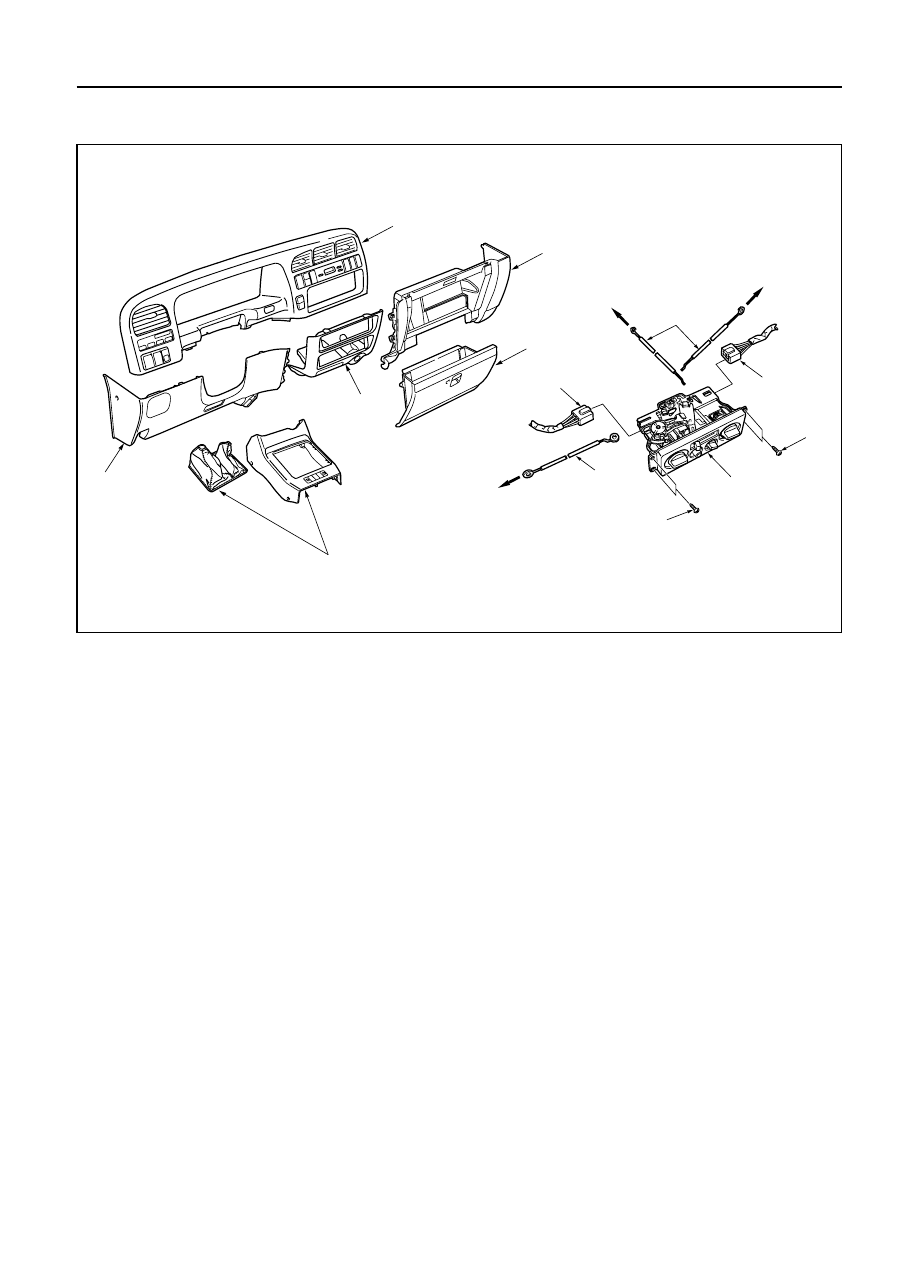

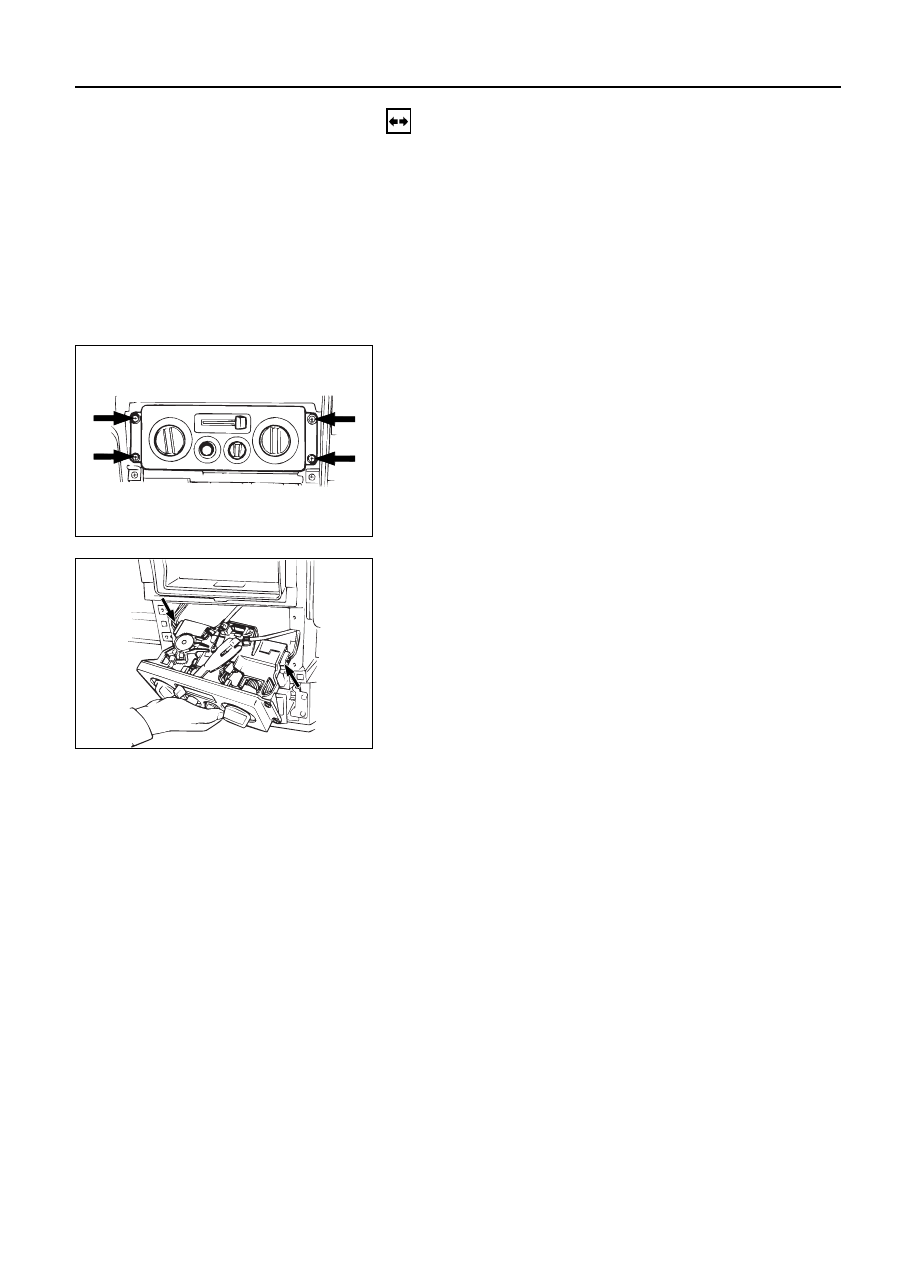

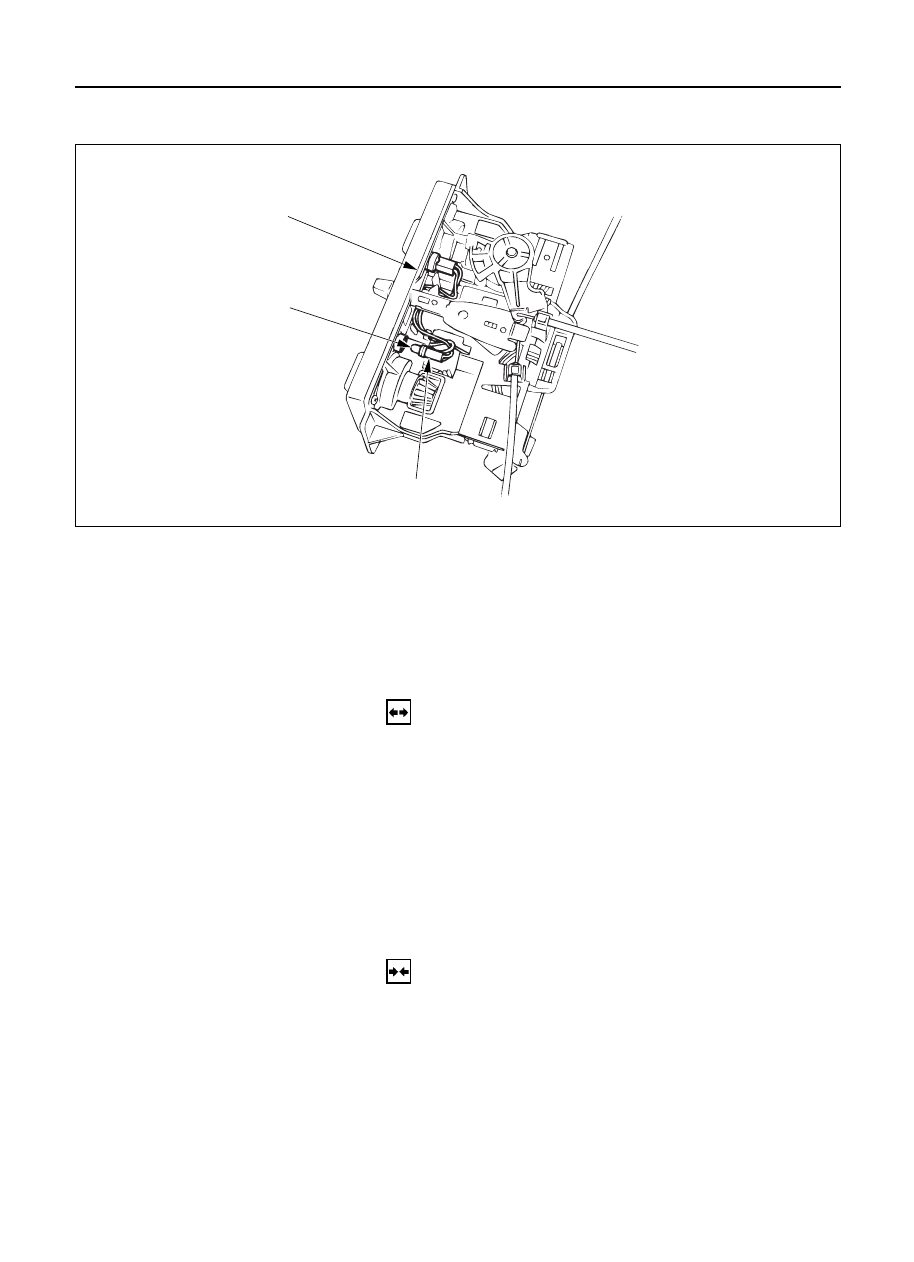

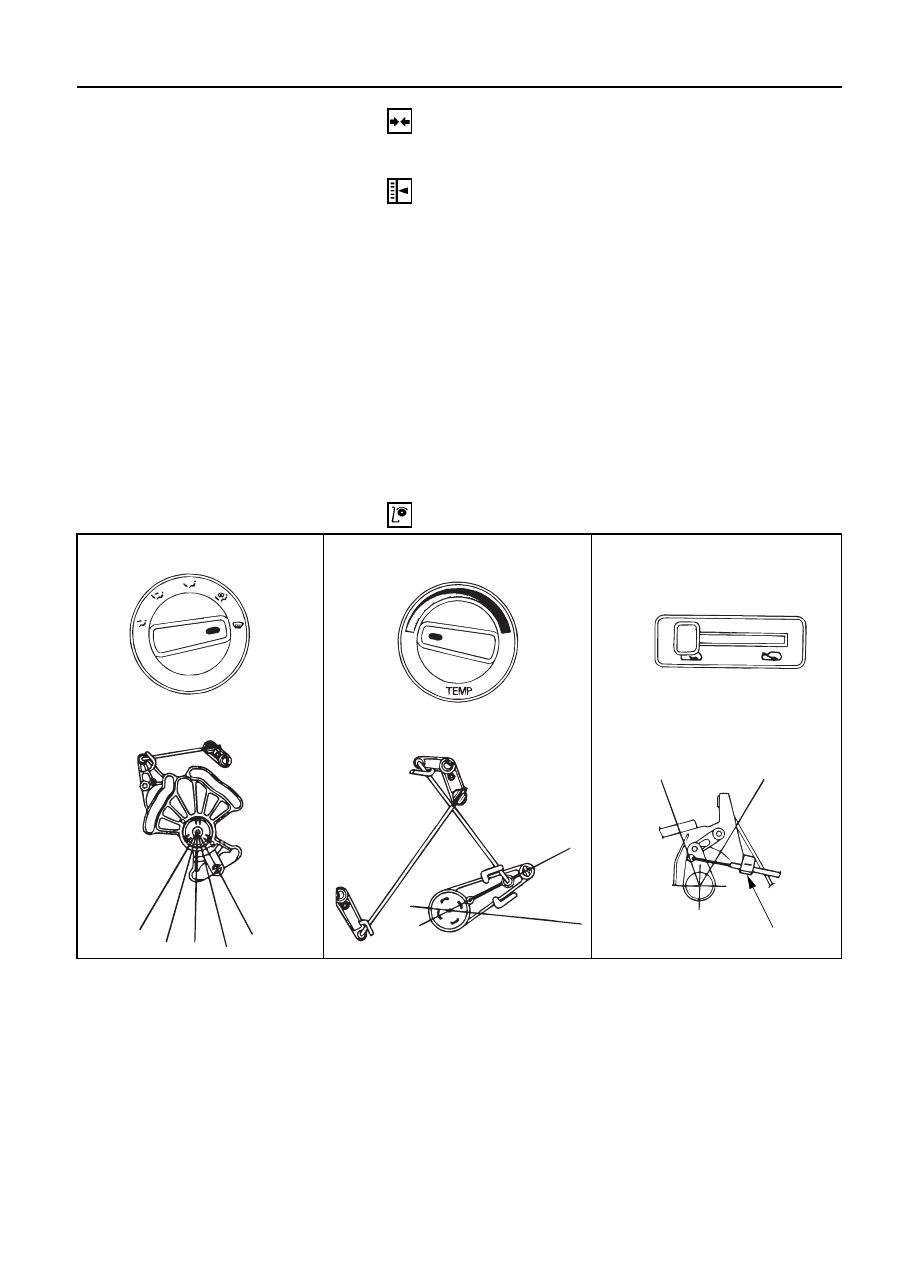

1A – 24 HEATING AND VENTILATION Removal Steps 1. Center console assembly cover assembly 5. Instrument panel driver lower cover assembly 6. Meter cluster assembly connector 9. Control lever assembly 10. Control cable CONTROL LEVER ASSEMBLY AND/OR CONTROL CABLES 6 1 5 2 10 7 7 8 8 9 10 To Mode control link To Temp control link To Blower assembly 4 3 Installation Steps To install, follow the removal steps in This illustration is based on LHD |
