Opel Frontera UBS. Manual - part 25

1A – 16 HEATING AND VENTILATION

Removal Steps

1. Blower assembly
2. Lower case
3. Upper case
4. Mode door
5. Sub-lever
6. Door lever

Installation Steps

To install, follow the removal steps in the
reverse order.

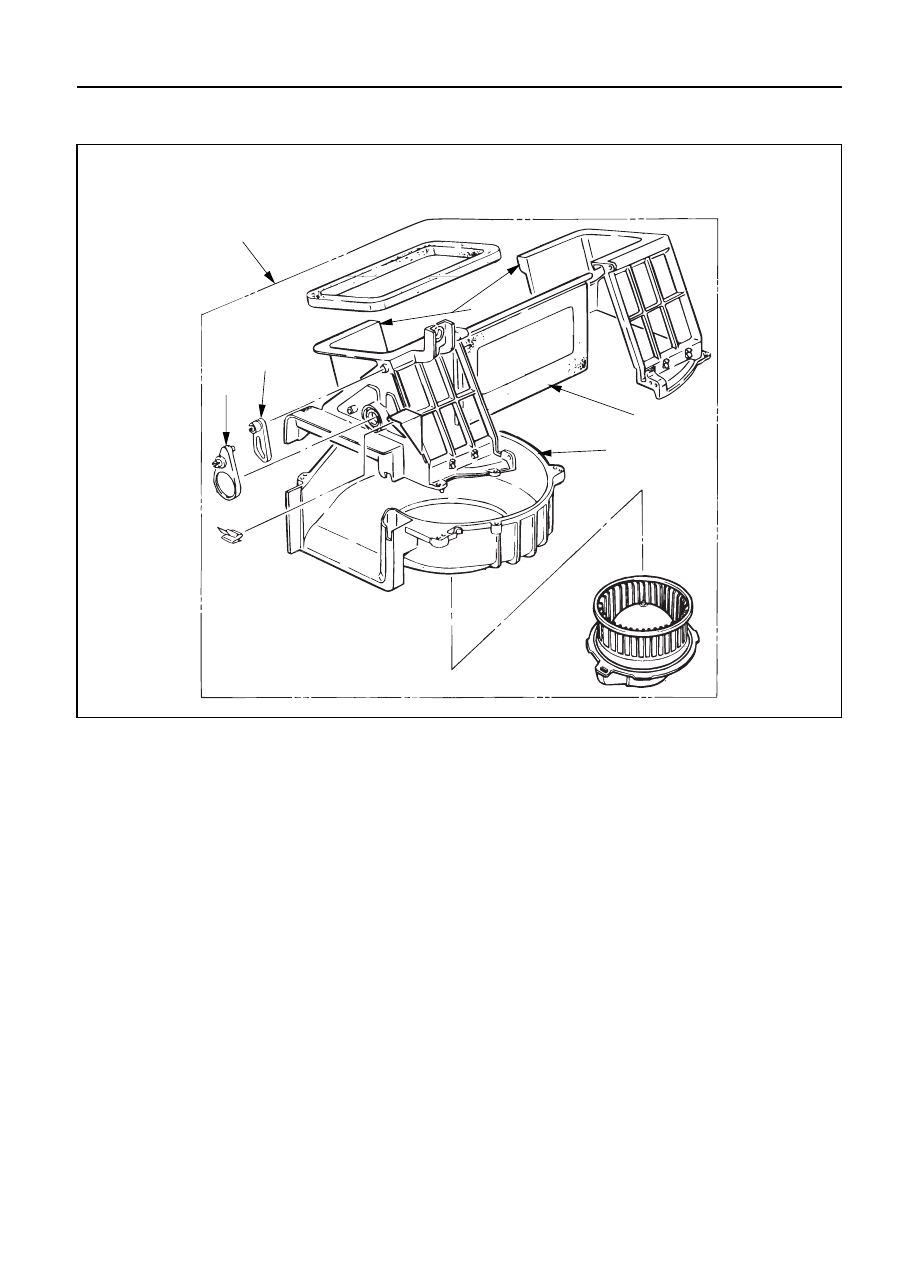

BLOWER LINK UNIT AND/OR MODE DOOR

This illustration is based on LHD

1

3

6

2

4

5

HEATING AND VENTILATION  1A – 17

REMOVAL

Preparation:

Disconnect the battery ground cable

1. Blower Assembly

Refer to “BLOWER ASSEMBLY” removal procedure
in this section.

2. Lower Case

3. Upper Case

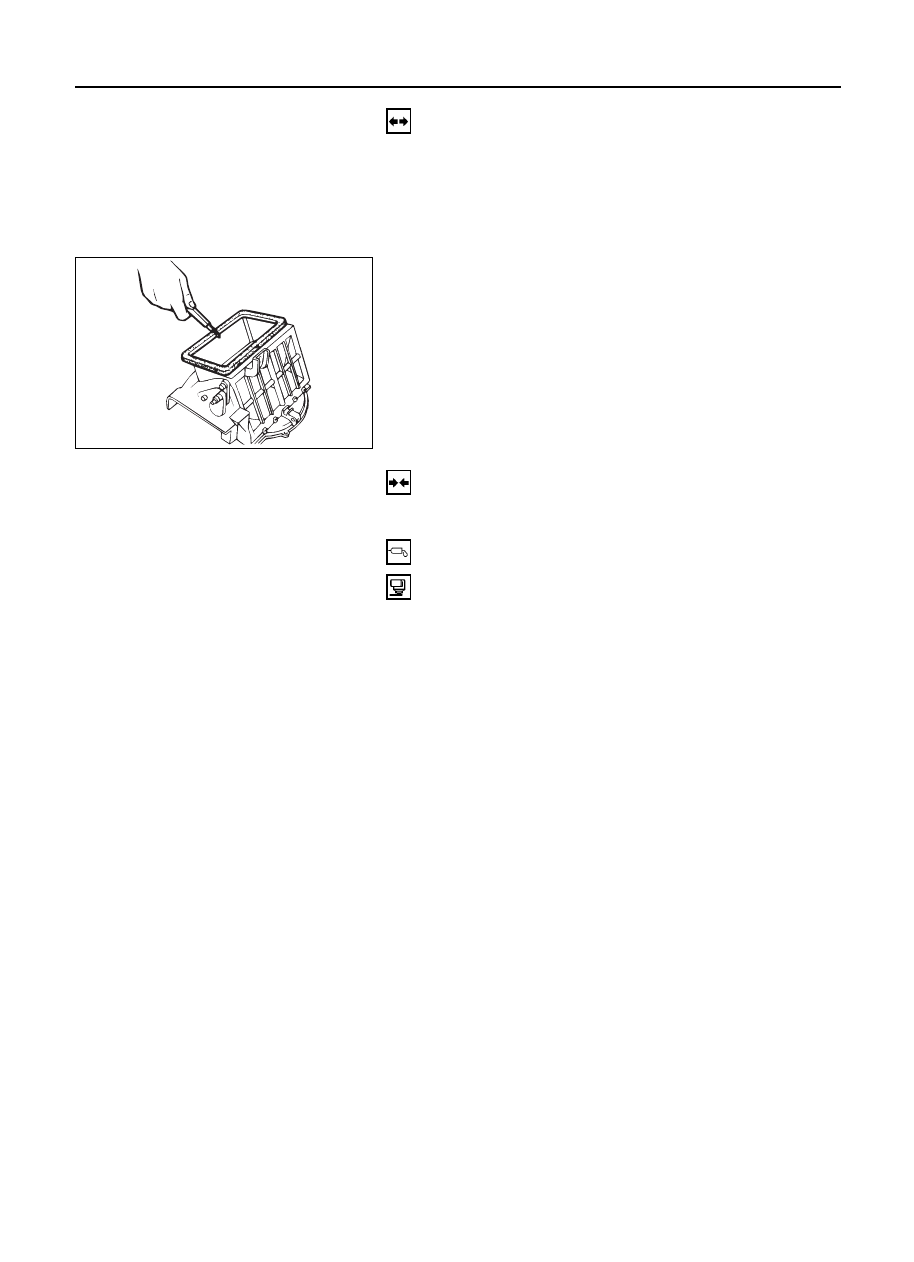

Separate upper case and slit the lining parting face
with a knife.

INSTALLATION

To install, follow the removal steps in the reverse order,
noting the following points:

1. Apply grease to the door lever and to the abrasive

surface of the upper case.

2. Apply an adhesive to parting face of lining when

assembling upper case.

3

4

2

1

5

6

1A – 18 HEATING AND VENTILATION

Removal Steps

1. Blower motor connector
2. Attaching screw
3. Blower motor assembly
4. Clip
5. Fan
6. Blower motor

Installation Steps

To install, follow the removal steps in the
reverse order.

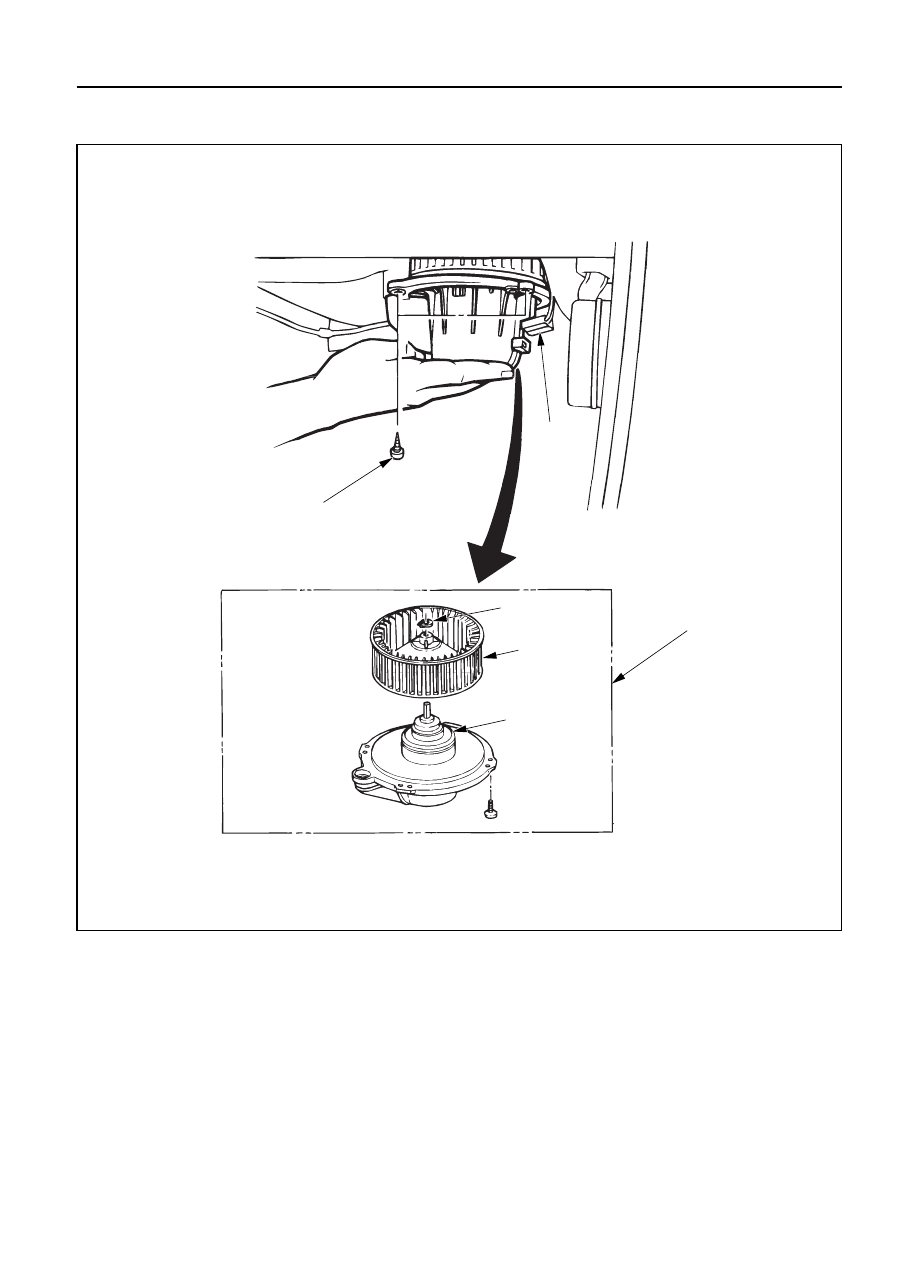

BLOWER MOTOR

This illustration is based on LHD

HEATING AND VENTILATION  1A – 19

REMOVAL

Preparation:

Disconnect the battery ground cable

1. Blower Motor Connector

2. Attaching Screw

3. Blower Motor Assembly

4. Clip

5. Fan

6. Blower Motor

INSTALLATION

To install, follow the removal steps in the reverse order.
